3100-25-102-01

Description
Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size281KB,3 Pages
ManufacturerMethode Electronics Inc.

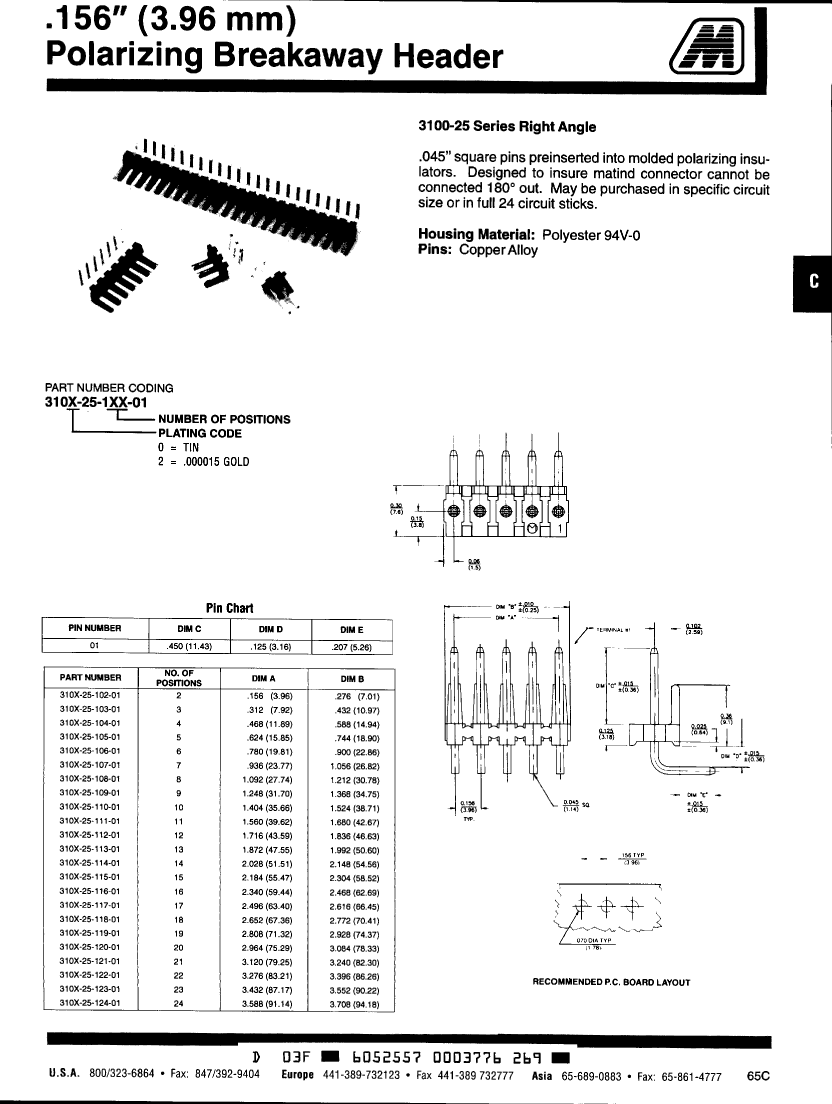

Download Datasheet Parametric View All

3100-25-102-01 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.156 inch Pitch, Solder Terminal, Receptacle

3100-25-102-01 Parametric

Parameter NameAttribute value
PCB contact patternRECTANGULAR
Contact completed and terminatedGOLD
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Plug contact pitch0.156 inch
Mixed contactsNO
Number of connectorsONE
Termination typeSOLDER
Contact materialCOPPER ALLOY
Filter functionNO
polarization keyHOUSING SIDE
GuidelineUL
Is SamacsysN
YTEOL0
Objectid301990295
Reach Compliance CodeUnknown
ECCN codeEAR99
Connector typeBOARD CONNECTOR
PCB row number1
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
Other featuresBREAKAWAY TYPE
Body/casing typeRECEPTACLE
Contact to complete cooperationSN
Contact point genderMALE
insulator materialPOLYESTER
Terminal pitch3.9624 mm
Total number of contacts2
subject depth0.53 inch
body length0.276 inch
Terminal length0.207 inch
body width0.3 inch
