SCPBFR24-11PX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> SCPBFR24-11PX

SCPBFR24-11PX: DescriptionMIL Series Connector, 9 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerSpacecraft Components Corp; Websitehttp://www.spacecraft.com

Download Datasheet Parametric View All

SCPBFR24-11PX Overview

MIL Series Connector, 9 Contact(s), Male, Solder Terminal, Receptacle

SCPBFR24-11PX Parametric

Parameter Name	Attribute value
Maker	Spacecraft Components Corp
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-5015, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	SCPBFR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	PANEL
Options	GENERAL PURPOSE
Housing size	24
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

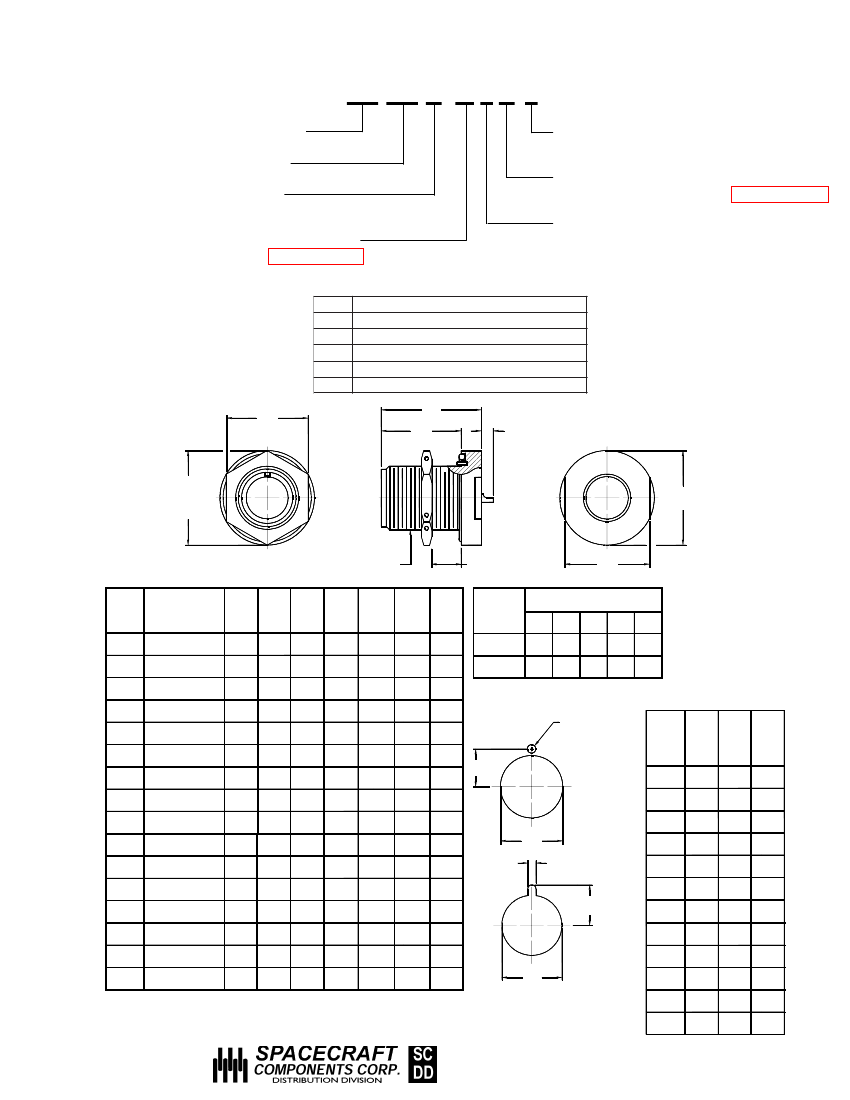

SCPBFR

SCP BFR 28 - 21 P W - 1

SERIES PREFIX

SHELL TYPE

ALTERNATE POSITION

(POLARIZATION)

SHELL SIZE

See Table below.

INSERT CONFIGURATION

See pages10A-1 thru 10A-50 for codes

and illustrations.

(normal),

W, X, Y, Z.

See pages 10A-1 thru 10A-16.

CONTACT STYLE

Pin contacts.

Socket contacts.

JAM NUT RECEPTACLE

MODIFICATION

See Table I below.

TABLE I. MODIFICATIONS

CODE

-1

-3

-4

-5

Basic part number

Basic shell has 4 holes and no positioning pin

Basic shell, no positioning pin and O-ring is Silicone

Same as -1 except positioning pin is longer.

Hex nut is replaced by spline nut.

DESCRIPTION

ACROSS

HEX

A THREAD

SHELL

SIZE

10S

10SL

12S

14S

16S

MAX.

.820

[20.83]

.960

[24.38]

.960

[24.38]

1.110

[28.19]

1.110

[28.19]

1.250

[31.75]

1.250

[31.75]

1.460

[37.08]

1.460

[37.08]

1.610

[40.89]

1.750

[44.45]

1.900

[48.26]

2.030

[51.56]

2.330

[59.18]

2.550

[64.77]

2.840

[72.14]

PANEL

THICKNESS

MAX. SOLDER POT EXT.

#16

.140

[3.56]

.062

[1.57]

#12

.062

[1.57]

.125

[3.18]

.125

[3.18]

.359

[9.12]

COUPLING THREAD

CLASS 2A

.500-28 UNEF

.625-24 UNEF

.750-20 UNEF

.875-20 UNEF

1.000-20 UNEF

1.125-18 UNEF

1.250-18 UNEF

1.375-18 UNEF

1.500-18 UNEF

1.750-18 UNS

2.000-18 UNS

2.250-16 UN

MAX.

.853

[21.67]

.853

[21.67]

.853

[21.67]

.853

[21.67]

1.244

[31.60]

.853

[21.67]

1.244

[31.60]

.853

[21.67]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

1.244

[31.60]

MAX.

.895

[22.73]

1.015

[25.78]

1.015

[25.78]

1.077

[27.36]

1.077

[27.36]

1.203

[30.56]

1.203

[30.56]

1.327

[33.71]

1.327

[33.71]

1.453

[36.91]

1.577

[40.06]

1.577

[40.06]

1.827

[46.41]

1.953

[49.61]

2.203

[55.96]

2.577

[65.46]

MAX.

1.077

[27.36]

1.203

[30.56]

1.203

[30.56]

1.327

[33.71]

1.327

[33.71]

1.453

[36.91]

1.453

[36.91]

1.577

[40.06]

1.577

[40.06]

1.703

[43.26]

1.827

[46.41]

1.953

[49.61]

2.077

[52.76]

2.327

[59.11]

2.577

[65.46]

2.827

[71.81]

MAX.

1.087

[27.61]

1.087

[27.61]

1.087

[27.61]

1.087

[27.61]

1.525

[38.74]

1.087

[27.61]

1.525

[38.74]

1.087

[27.61]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

1.525

[38.74]

MAX.

.697

[17.70]

.822

[20.88]

.822

[20.88]

.955

[24.26]

.947

[24.05]

1.072

[27.23]

1.072

[27.23]

1.265

[32.13]

1.265

[32.13]

1.395

[35.43]

1.515

[38.48]

1.635

[41.53]

1.765

[44.83]

2.015

[51.18]

2.205

[56.01]

2.455

[62.36]

MAX.

.250

[6.35]

.250

[6.35]

.250

[6.35]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.375

[9.52]

.312

[7.92]

SHELL

SIZE

8S-16S

12 THRU 36

MOUNTING DIMENSIONS

.102 [2.59]

.097 [2.46]

DIA

SHELL

SIZE

±.005

[±0.13]

+.015

-.000

[+0.38]

[-0.00]

±.005

[±0.13]

10S,10SL

12S,12

.323

[8.20]

.385

[9.78]

.448

[11.38]

.510

[12.95]

.573

[14.55]

.635

[16.13]

.698

[17.73]

.760

[19.30]

.823

[20.90]

.948

[24.08]

1.073

[27.25]

1.198

[30.43]

.500

[12.70]

.625

[15.88]

.750

[19.05]

.875

[22.23]

1.000

[25.40]

1.125

[28.58]

1.250

[31.75]

1.375

[34.93]

1.500

[38.10]

1.750

[44.45]

2.000

[50.80]

2.250

[57.15]

.373

[9.47]

.435

[11.05]

.498

[12.65]

.560

[14.22]

.623

[15.82]

.685

[17.40]

.748

[19.00]

.810

[20.57]

.873

[22.17]

.998

[25.35]

1.123

[28.52]

1.248

[31.70]

SCPBFRX

.102 [2.59]

.097 [2.46]

DIA

14S,14

16S,16

DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.

3040 North Clayton Street

Phone: 702-851-7600

Email: space@spacecraft.com

North Las Vegas, NV 89032

Fax: 702-851-7620

Web: www.spacecraft.com

1A-23

MIL-DTL-5015 SERIES I SOLDER OR CRIMP (F80) CONTACTS
