1N6289CA-XX-TR32 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> 1N6289CA-XX-TR32

1N6289CA-XX-TR32: DescriptionTrans Voltage Suppressor Diode,; CategoryDiscrete semiconductor diode; File Size385KB，9 Pages; ManufacturerTAITRON Components; Websitehttp://www.taitroncomponents.com/; Environmental Compliance

Download Datasheet Parametric View All

1N6289CA-XX-TR32 Overview

Trans Voltage Suppressor Diode,

1N6289CA-XX-TR32 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
YTEOL	6.76
Objectid	8329280245
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE

Preview

Download Datasheet

View All

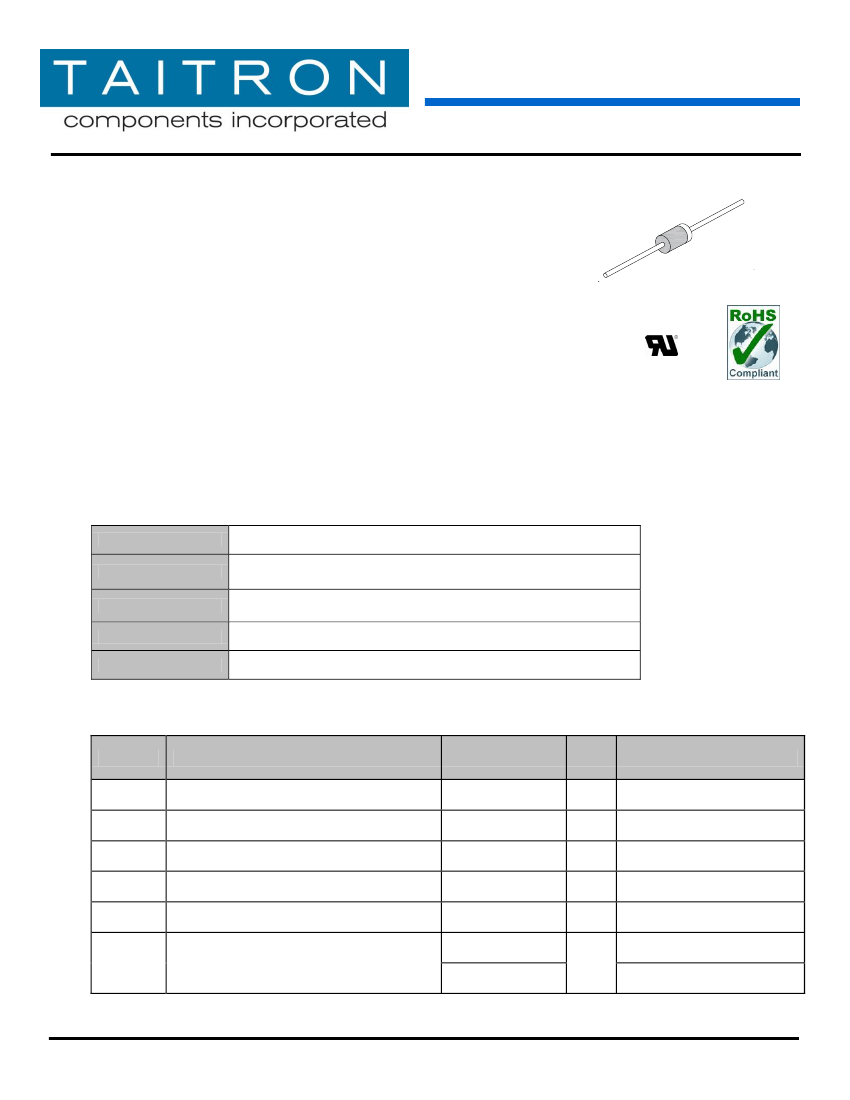

1500W Transient Voltage Suppressor

1.5KE6.8A

1.5KE600CA

1N6267A -1N6303CA

1500W Transient Voltage Suppressor

1.5KE

Features



Glass passivated junction

1500W Peak Pulse Power capability on 10/1000μs waveform

repetition rate(duty cycle): 0.05%

Fast response time: typically less than 1.0ps from 0v to V

for

uni-direction and 5.0ns for bi-direction types

Low incremental surge resistance, excellent clamping capability

High temperature soldering guaranteed:

265°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg tension)

1.5KE6.8A/CA -1.5KE550A/CA is UL recognized under component index. File number E315008

RoHS Compliant

Mechanical Data

Case:

Lead:

Polarity:

Mounting position:

Weight:

Molded plastic black body, 1.5KE

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Color band denoted positive end (cathode) except

for Bi-directional

Any

0.033 ounce, 0.93 grams

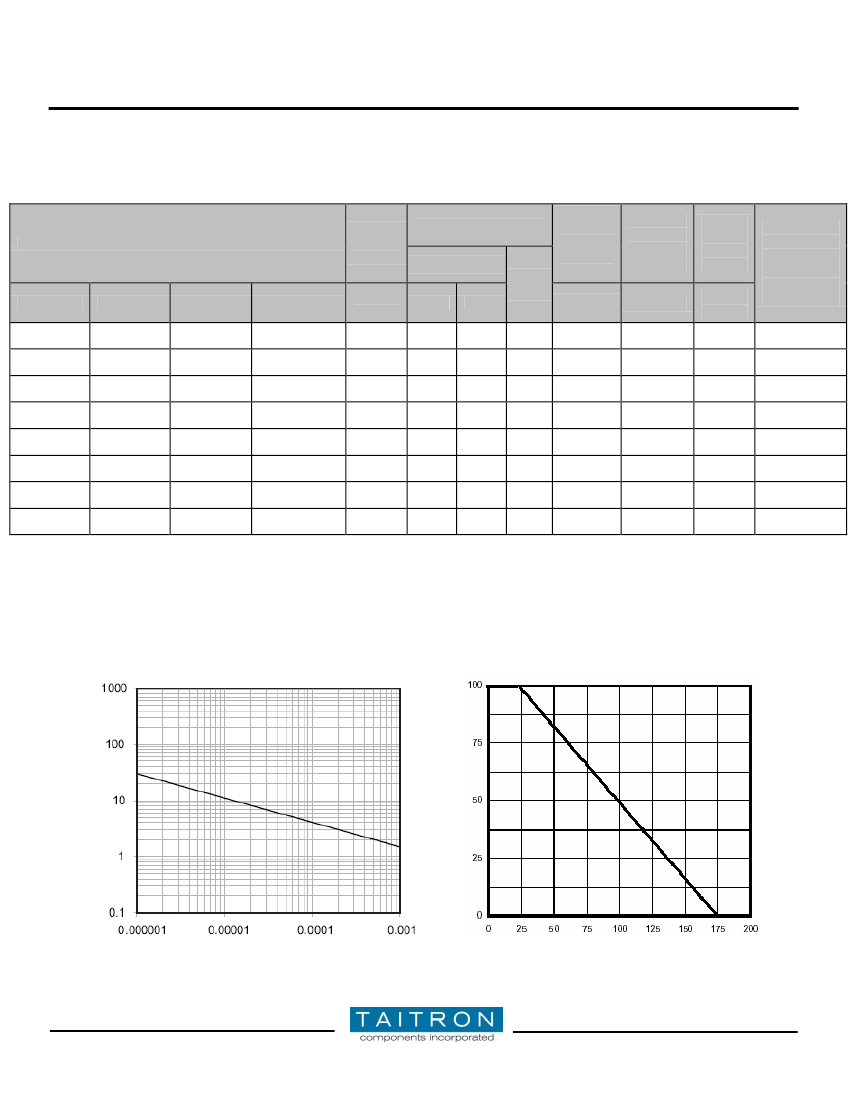

Maximum Ratings

Ambient

=25ºC unless noted otherwise)

Symbol

PPM

M(AV)

FSM

Description

Maximum Recurrent Peak Reverse Voltage

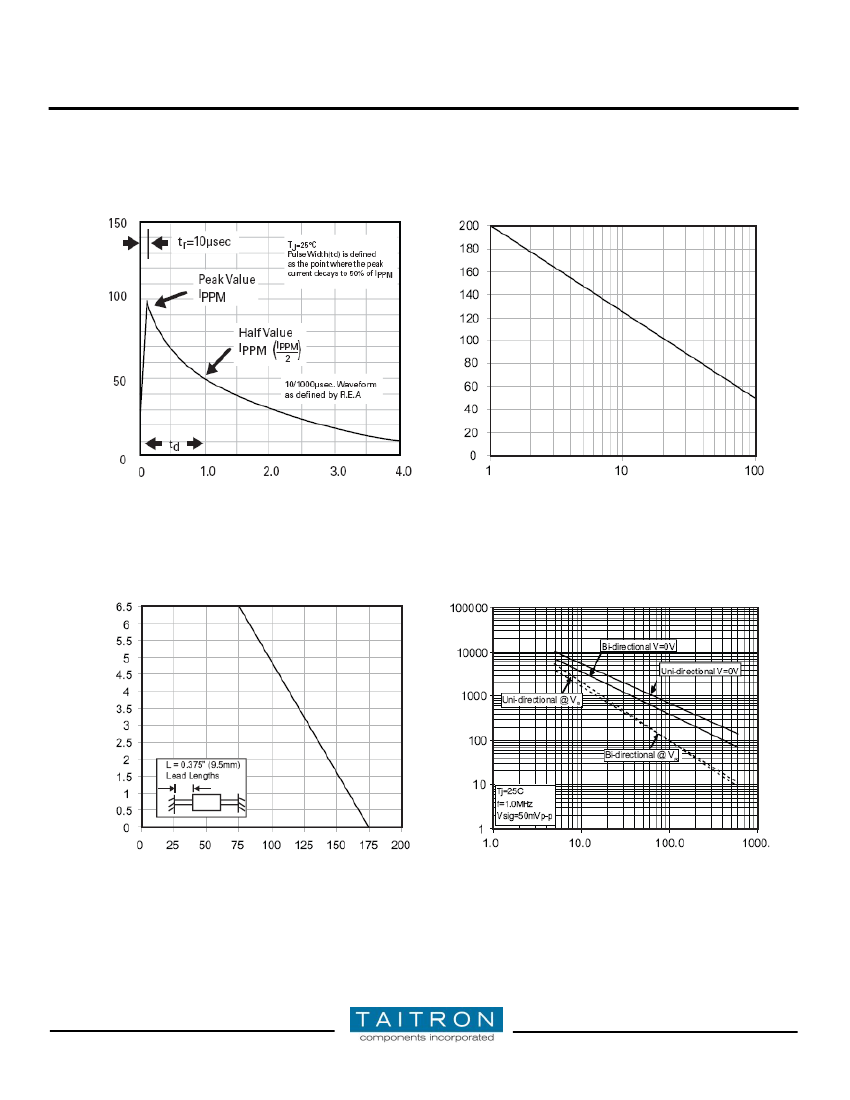

Peak Pulse Power Dissipation on 10/1000µs

waveform

Peak Pulse Current with a 10/1000µs

waveform

Steady State Power Dissipation at T

=75° C,

Lead Lengths 0.375”,(9.5mm)

Peak Forward Surge Current, Uni-directional

only (2)

Maximum Instantaneous Forward Voltage

at 100A for Uni-directional only

Value

6.8 to 600

1500

See Next Table

6.5

200

3.5

Unit

Note 1

Note 2

Note 3

Conditions

5.0

1.5KE6.8~1.5KE200

1N6267~1N6303

1.5KE220~1.5KE600

TAITRON COMPONENTS INCORPORATED

www.taitroncomponents.com

Tel: (800)-TAITRON

Fax: (800)-TAITFAX

(800)-824-8766

(800)-824-8329

(661)-257-6060

(661)-257-6415

Rev. J/PQ

Page 1 of 9
