TAK CHEONG
®
SEM IC O N DU C TO R
1 Watt DO-41 Hermetically
Sealed Glass Zener Voltage
Regulators
AXIAL LEAD
DO41
Absolute Maximum Ratings
Parameter
Storage Temperature Range
T
A
= 25°C unless otherwise noted
Value
-65 to +200
+200
1.0
53.5
100
Units
°C
°C
Watt
°C / W
°C / W
DEVICE MARKING DIAGRAM
Maximum Junction Operating Temperature
Total Device Dissipation
Thermal Resistance Junction to Lead
Thermal Resistance Junction to Ambient
L
1N
47
xx
T
L
: Logo
Device Code
: TC1N47xxT
VZ Tolerance (T) : A =
±5%
C =
±2%
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 3.3 to 56 Volts
DO-41 Package (JEDEC)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Surfaces Are Corrosion Resistant And Leads Are Readily Solderable
RoHS Compliant
Solder Hot Dip Tin (Sn) Terminal Finish
Cathode Indicated By Polarity Band
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device Type
TC1N4728A
TC1N4729A
TC1N4730A
TC1N4731A
TC1N4732A
TC1N4733A
TC1N4734A
TC1N4735A
TC1N4736A
TC1N4737A
TC1N4738A
TC1N4739A
TC1N4740A
TC1N4741A
TC1N4742A
TC1N4743A
V
Z
@ I
ZT
(Volts)
Nominal
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
T
A
= 25°C unless otherwise noted
Z
ZT
@ I
ZT
I
ZT
I
ZK
(Ω)
(mA)
(mA)
Max
76
69
64
58
53
49
45
41
37
34
31
28
25
23
21
19
10
10
9
9
8
7
5
2
3.5
4
4.5
5
7
8
9
10
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.25
0.25
0.25
0.25
Z
ZK
@ I
ZK
(Ω)
Max
400
400
400
400
500
550
600
700
700
700
700
700
700
700
700
700
I
R
@ V
R
(μA)
Max
100
100
50
10
10
10
10
10
10
10
10
10
10
5
5
5
V
R
(Volts)
1
1
1
1
1
1
2
3
4
5
6
7
7.6
8.4
9.1
9.9
Number: DB-031
August 2008 / E
Page 1
TC1N4728A through TC1N4758A
TAK CHEONG
Electrical Characteristics
Device Type
TC1N4744A
TC1N4745A
TC1N4746A
TC1N4747A
TC1N4748A
TC1N4749A
TC1N4750A
TC1N4751A
TC1N4752A
TC1N4753A
TC1N4754A
TC1N4755A
TC1N4756A
TC1N4757A
TC1N4758A
®
SEM IC O N DU C TO R
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
(Volts)
Nominal
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
I
ZT
(mA)
17
15.5
14
12.5
11.5
10.5
9.5
8.5
7.5
7
6.5
6
5.5
5
4.5
Z
ZT
@ I
ZT
(Ω)
Max
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
I
ZK
(mA)
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Z
ZK
@ I
ZK
(Ω)
Max
700
700
700
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
I
R
@ V
R
(μA)
Max
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
V
R
(Volts)
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1. TOLERANCE AND TYPE NUMBER DESIGNATION (V
Z
)
The type numbers listed have a standard tolerance on the nominal zener voltage of
±
5%. Device tolerance of
±2%
is indicated by a
“C” instead of an “A”.
2. SPECIALS AVAILABLE INCLUDE
Nominal zener voltages between the voltages shown and tighter voltage, for detailed information on price, availability and delivery,
contact you nearest Tak Cheong representative.
3. ZENER VOLTAGE (V
Z
) MEASUREMENT
The zener voltage (V
Z
) is tested under pulse condition. The measured
V
Z
is guaranteed to be within specification with device junction
in thermal equilibrium.
4. ZENER IMPEDANCE (Z
Z
) DERIVATION
The zener impedance is derived from the 60 cycle AC voltage, which results when an AC current having an RMS value equal to 10%
of the DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK.
Number: DB-031
August 2008 / E
Page 2
TAK CHEONG

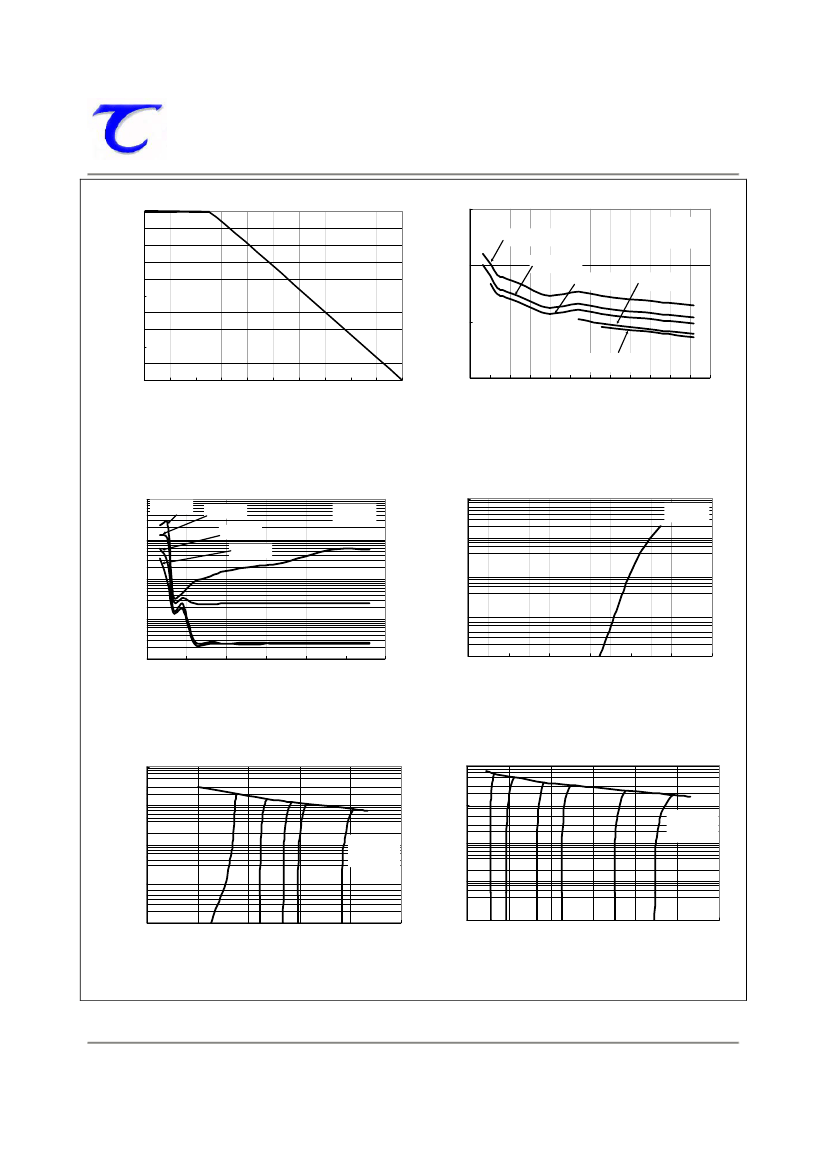

Typical Characteristics
1.0
®
SEM IC O N DU C TO R
1000
PD-Power Passipation [W]
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0
20
40
60
80
100
120
140
160
180
200
Total Capacitance [pF]
VR = 0V
VR = 2V
VR = 5V
f = 1MHz
Ta = 25
℃
100
VR = 20V
10
VR = 30V
1
0
5
10 15 20 25
30 35 40 45
50 55 60
Temperature [℃]
Figure 1. Power Dissipation vs Ambient Temperature
Valid provided leads at a distance of 0.8mm from case are kept at
ambient temperature
VZ - Reverse Voltage [V]
Figure 2. Total Capacitance
Differential Zener Impedance [Ω]
1000
Iz=1mA
1000
Iz=2mA
Iz=5mA
Iz=10mA
Ta = 25
℃
Forward Current [mA]
100
Ta = 25
℃
100
10
10
1
1
0.1
0
10
20
30
40
VZ - Reverse Voltage [V]
50
60
0.1
0
0.2
0.4
0.6
0.8
VF - Forw ard Voltage [V]
1
1.2
Figure 3. Differential Impedance vs. Zener Voltage
Figure 4. Forward Current vs. Forward Voltage
1000
100
Reverse Current [mA]
Reverse Current [mA]
100
10
PD=500mW
Ta = 25
℃
1
10
PD=500mW
Ta = 25
℃
1
0.1
0.1
0
3
6
9
VZ - Reverse Voltage [V]
12
15
0.01
10
20
30
40
50
VZ - Reverse Voltage [V]
60
70
Figure 5. Reverse Current vs. Reverse Voltage
Figure 6. Reverse Current vs. Reverse Voltage
Number: DB-031
August 2008 / E
Page 3
TAK CHEONG
Package Outline
Package
®
SEM IC O N DU C TO R
Case Outline
D0-41
DO-41
DIM
Min
Millimeters
Max
Min
Inches
Max
A
B
C
D
0.72
0.86
0.028
0.034
4.07
5.20
0.160
0.205
25.40
---
1.000
---
2.04
2.71
0.080
0.107
Notes:
1.
2.
All dimensions are within JEDEC standard.
DO41 polarity denoted by cathode band.
Number: DB-031
August 2008 / E
Page 4
TAK CHEONG
®
DISC LA I MER NOTIC E
NOTICE
The information presented in this document is for reference only. Tak Cheong reserves the right to make
changes without notice for the specification of the products displayed herein.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not
designed to be used with equipment or devices which require high level of reliability and the malfunction of with
would directly endanger human life (such as medical instruments, transportation equipment, aerospace
machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Tak Cheong Semiconductor
Co., Ltd., or anyone on its behalf, assumes no responsibility or liability for any damagers resulting from such
improper use of sale.
This publication supersedes & replaces all information reviously supplied. For additional information, please visit
our website
http://www.takcheong.com,
or consult your nearest Tak Cheong’s sales office for further assistance.
Number: DB-100
April 14, 2008 / A
