1N750A-PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N750A-PBF

1N750A-PBF: DescriptionZener Diode; CategoryDiscrete semiconductor diode; File Size486KB，3 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com; Environmental Compliance

Download Datasheet Parametric View All

1N750A-PBF Overview

Zener Diode

1N750A-PBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Shell connection	ISOLATED
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Terminal form	WIRE
Terminal location	AXIAL
Diode type	ZENER DIODE
Maximum forward voltage (VF)	1.1 V
Nominal reference voltage	4.7 V
technology	ZENER
Maximum power dissipation	0.5 W
Maximum reverse current	2 µA
surface mount	NO
Working test current	20 mA
Configuration	SINGLE
Diode component materials	SILICON
Number of components	1
polarity	UNIDIRECTIONAL
Maximum dynamic impedance	19 Ω
Reverse test voltage	1 V
Voltage temperatureCoeff-Max	-0.705 mV/°C
Maximum voltage tolerance	5%

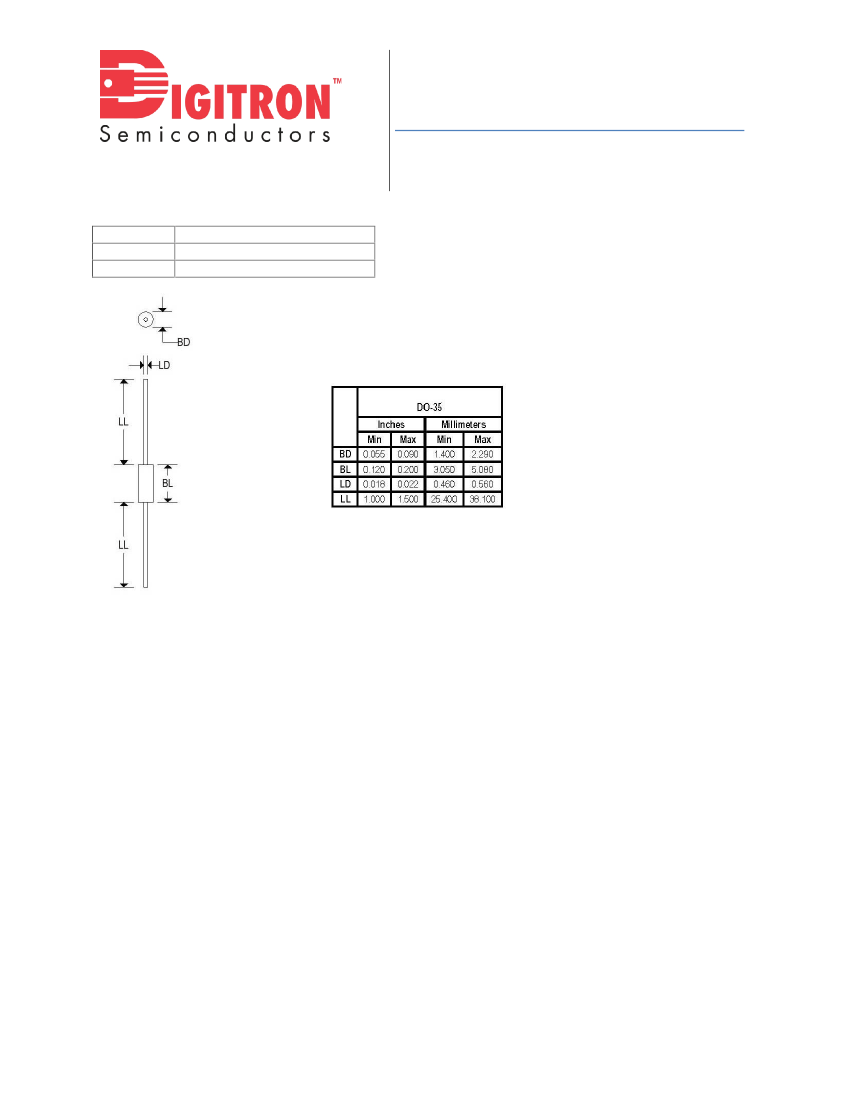

JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
CAGE Code	3XFH2, 0GXA3
Is Samacsys	N
YTEOL	5.93
Category CO2 Kg	8.7
Objectid	8335222112
Schedule B Code	8541.10.00.50
UNSPSC	32111502
ECCN code	EAR99
Compliance Temperature Grade	Military: -65C to +175C
EU RoHS Version	RoHS 2 (2011/65/EU)
Maker	Digitron
Reach Compliance Code	Unknown

Preview

Download Datasheet

View All

High-reliability discrete products

and engineering services since 1977

FEATURES



1N746-1N759

SILICON PLANAR ZENER DIODES

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.

Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

MAXIMUM RATINGS

Operating and Storage Temperature

Thermal Resistance

Steady State Power

Forward Voltage @ 200mA

Solder Temperatures:

-65 to +175°C

250°C/W junction to lead at 3/8” lead length from body

0.5 Watts at T

≤ 50°C

1.1 Volts

260°C for 10 s (max)

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise specified)

Part

Number

(Note 1)

1N4370

1N4371

1N4372

1N746

1N747

1N748

1N749

1N750

1N751

1N752

1N753

1N754

1N755

1N756

1N757

1N758

1N759

Notes:

Normal Zener

Voltage

@ l

(Note 2)

VOLTS

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

9.1

Zener

Test

Current

Maximum Zener

Impedance

@ l

(Note 3)

OHMS

Maximum Reverse

Leakage Current

= 1 Volt

Maximum

Zener Current

(Note 4)

150

135

120

110

100

Typical

Temperature

Coefficient

Of Zener

Voltage

%/°C

-.085

-.080

-.075

-.066

-.058

-.046

-.033

-.015

±.010

+.030

+.049

+.053

+.057

+.060

+.061

+.062

μA @ 25°C

100

0.1

μA @ 125°C

200

150

100

1. Suffix letter A denotes ±5% tolerance, suffix C denotes ±2% tolerance, & suffix D denotes ±1% tolerance.

2. Voltage measurements to be performed 20 seconds after application of dc current.

3. Zener impedance derived by superimposing on l

, a 60cps, rms ac current equal to 10% l

(2mA ac)

4. Allowance has been made for the increase in V

due to Z

and for the increase in junction temperature as the unit approaches thermal

equilibrium at the power dissipation of 400mW.

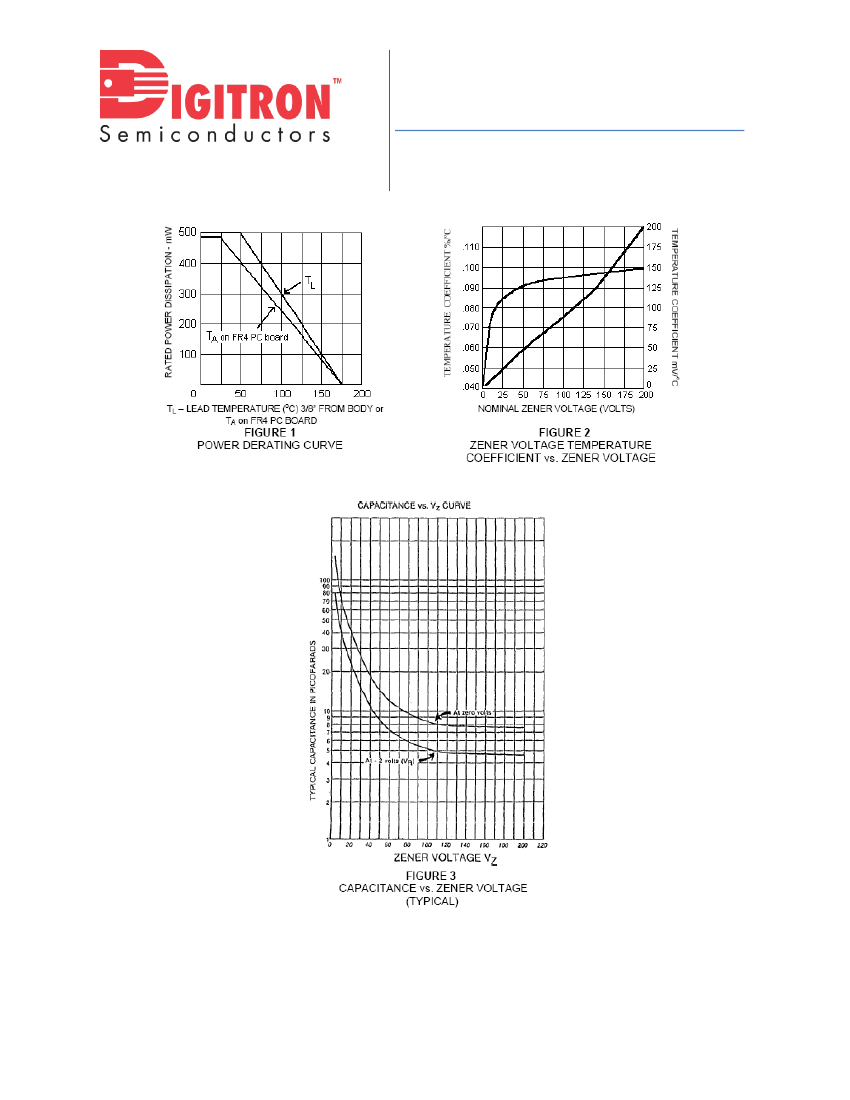

Rev. 20120328
