8081-3151: DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

8081-3151 Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle

8081-3151 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.197 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8081
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	HOLE .099-.111
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

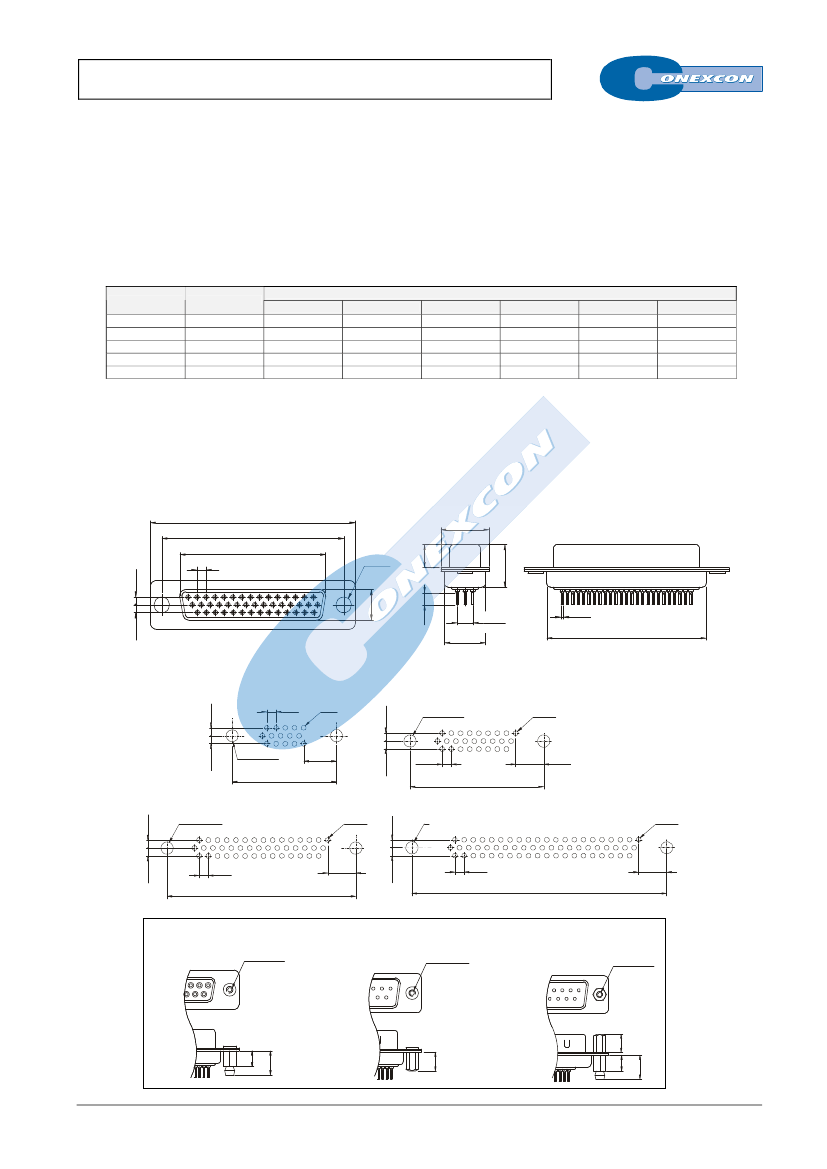

TOP ENTRY H/DENSITY D-SUB RECEPTACLE

8081 SERIES.

For PCB Solder. High Density D-Sub Receptacle

Features





Shell Material: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information



Available in 15, 26, 44, 62 and 78 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass, Colour: Black

Different plating options are available

Dimensional Information

Circuit Size

Part Number

8081 –

T151

8081 –

T261

8081 –

T441

8081 –

T621

8081 –

T781

Dimension

16.33 (0.643)

24.66 (0.971)

38.38 (1.511)

54.84 (2.159)

52.43 (2.064)

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

61.11 (2.406)

30.81 (1.213)

39.14 (1.541)

53.04 (2.088)

69.32 (2.729)

66.93 (2.635)

19.23 (0.757)

27.56 (1.085)

41.28 (1.625)

57.73 (2.273)

55.32 (2.178)

2.290 (0.090)

2.410 (0.095)

0.25 (0.010)

0. 51 (0.020)

0.58 (0.023)

T = Contact Plating

C = Hardware Options



T =

Gold flash over 50µ” nickel

T =

10µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel



C =

Standard with 3.05mm(.012”) dia. mount hole

C =

Whit riveted #4-40 UNC clinch nuts 6mm thickness

C =

Whit riveted retaining clip ground strap 5.0mm thickness

C =

With #4.40 UNC hexagonal standoff

12.55

.494

.236

6.0

1.98

.078

3.05

.120

7.90

.311

3.2

.126

.433

11.0

1.98

.078

3.96

.156

10.70

.421

0.60

.024

RECOMMENDED HOLE PATTERN

15 CIRCUITS

2.29

.090

ø1.2

.047

1.98

.078

26 CIRCUITS

ø3.05±0.05

.120±.002

1.98

.078

ø1.2

.047

1.98

.078

25.0

.984

1.98

.078

ø3.05±0.05

.120±.002

7.67

.302

2.29

.090

33.32

1.312

6.69

.275

ø3.05±0.05

.120±.002

1.98

.078

1.98

.078

44 CIRCUITS

ø1.2

.047

ø3.05±0.05

.120±.002

62 CIRCUITS

ø1.2

.047

2.29

.090

47.04

1.852

1.98

.078

6.99

.275

2.41

.095

63.5

2.500

7.07

.278

1.98

.078

C = Hardware Options

UNC #4-40

6.00

.236

10.30

.405

6.0

.236

6.00

.236

6.0

.236

FULL LINE CATALOGUE

10.30

.405

K-XX

8081-3151 Related Products

	8081-3151	8081-5151	8081-4151	8081-4441	8081-6441	8081-5441
Description	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle	D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Hole .099-.111, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
body length	1.213 inch	1.213 inch	1.213 inch	2.088 inch	2.088 inch	2.088 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8081	8081	8081	8081	8081	8081
Plug contact pitch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation option 1	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	3	3	3	3	3
Number of rows loaded	3	3	3	3	3	3
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm
Plating thickness	FLASH inch	15u inch	10u inch	10u inch	30u inch	15u inch
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	44	44	44
