8X372/BXA datasheet, PDF - EEWORLD Datasheet

8X372/BXA: DescriptionParallel I/O Port, 8 I/O, CMOS, CDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size270KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

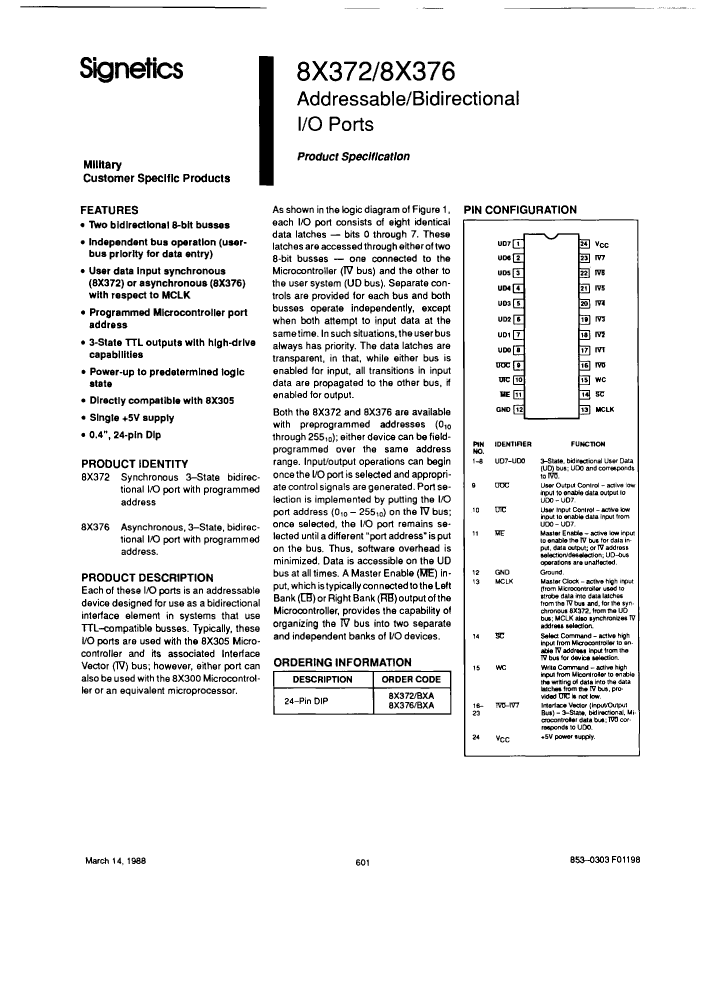

8X372/BXA Overview

Parallel I/O Port, 8 I/O, CMOS, CDIP24

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDIP-T24
Number of I/O lines	8
Number of ports	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1

	8X372/BXA	8X376/BXA
Description	Parallel I/O Port, 8 I/O, CMOS, CDIP24	Parallel I/O Port, 8 I/O, CMOS, CDIP24
Maker	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
JESD-30 code	R-CDIP-T24	R-CDIP-T24
Number of I/O lines	8	8
Number of ports	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1	1
