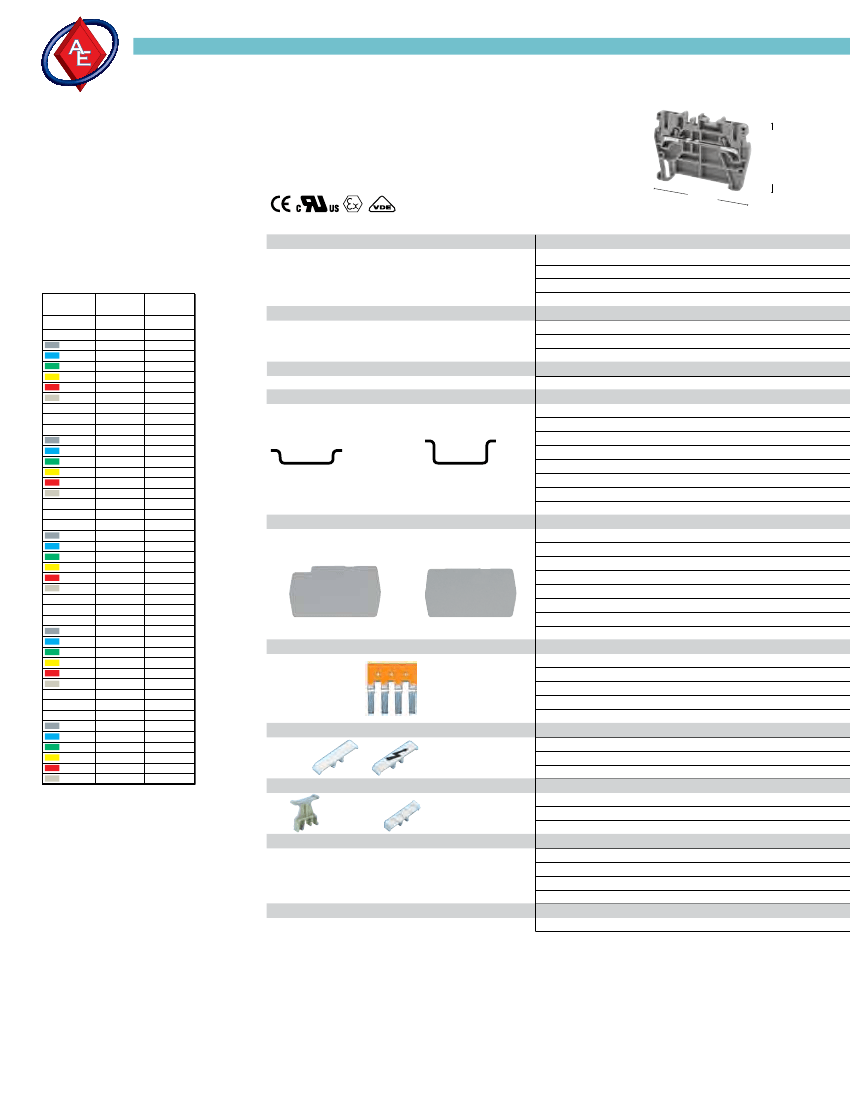

PYK Series
Practical Spring Clamp
Feed Thru Terminal Blocks
and Accessories
PYK 1.5
Width 4.2 mm
307 009
PYK Series Practical Spring
Clamp Terminals. Screwdriver
is not necessary to install
wire into the terminal block.
Suitable for usage with or
without ferrules. To make
connection, push the cable
into the terminal.
53.3
Colors
Terminals
End Plate
Part Number
Part Number
GREY
BLUE
GREEN
YELLOW
RED
BEIGE
PYK 1.5
307 009
307 001
307 002
307 003
307 004
307 000
NPP
446 449
446 441
446 442
446 443
446 444
446 440
GREY
BLUE
GREEN
YELLOW
RED
BEIGE
PYK 2.5
307 109
307 101
307 102
307 103
307 104
307 100
NPP
446 449
446 441
446 442
446 443
446 444
446 440
Electrical Ratings
CE (EN 60947-7-1)
UL / CSA
VDE
ATEX
Connection Data
Solid Strand, Screw Con. - Fine Strand, Screw Con.
AWG Conductor / Fine Strand with Ferrule
Insulation Stripping Length / Torque
Ordering Data
Polyamide 66 Grey
Mounting Rails
TS 35x7.5 solid
TS 35x15 solid
TS 35x7.5 slotted
TS 35x15 slotted
Voltage/Current/Cross-section
800 V / 17.5 A / 1.5 mm²
GREY
BLUE
GREEN
YELLOW
RED
BEIGE
PYK 4
307 119
307 111
307 112
307 113
307 114
307 110
NPP
446 459
446 451
446 452
446 453
446 454
446 450
steel slot dim.
25mm on 36mm center
5.2mm slot width
End Plate
Thickness 1.2mm
Polyamide 66
aluminum slot dim.
13mm on 26mm center
5mm slot width
grey
0.5 - 2.5 mm² / 0.5 - 2.5 mm²
22 - 14 / 0.5 - 1.5 mm²
10 mm / ...
Type
Part. No.
PYK 1.5
307 009
Type
Part. No.
slotted
35x7.5
TS3575SL
35x7.5
TS3575SL1
35x7.5
TS3575SL1-A
35x15
TS3515SL
solid
35x7.5
TS3575SOL
35x15
TS3515SOL
NPP PYK 2.5
APP PYK 1.5
446 449
463 180
Qty.
80
std. pk.
2m
1m
1m
2m
2m
2m
100
25
GREY
BLUE
GREEN
YELLOW
RED
BEIGE
PYK 6
307 129
307 121
307 122
307 123
307 124
307 120
NPP
446 469
446 461
446 462
446 463
446 464
446 469
npp
Cross Connection
app pyk
UK 1.5/2
UK 1.5/3
UK 1.5/4
UK 1.5/10
476 602
476 603
476 604
476 609
25
20
15
5
GREY
BLUE
GREEN
YELLOW
RED
BEIGE
PYK 10
307 139
307 131
307 132
307 133
307 134
307 130
NPP
446 479
446 471
446 472
446 473
446 474
446 470
Warning Label
IP
with symbol
without symbol
IP 2 S
IP 2
498 130
498 140
25
25
Group Marking
grey
ge
ge2
GE
GE 2
496 119
496 250
50
25
Technical Data
• Max.clamping range / Max. technical data
• Rated Impulse Voltage / Pollution severity
• Insulation material group / Gauge pin code
according to IEC 60947-1
• Protection class / Protection conductor type
Marking Tags
See pages 104 & 105 for further detail
0.2-2.5 mm² / 24 A
8 kV / 3
1 / A3
IP 20 / -
54
American Electrical • 456 Southlake Blvd. • Richmond, VA 23236 • 804.379.2899 • fax: 804.379.8935 • www.americanelectrical.com
MR 35 43.0

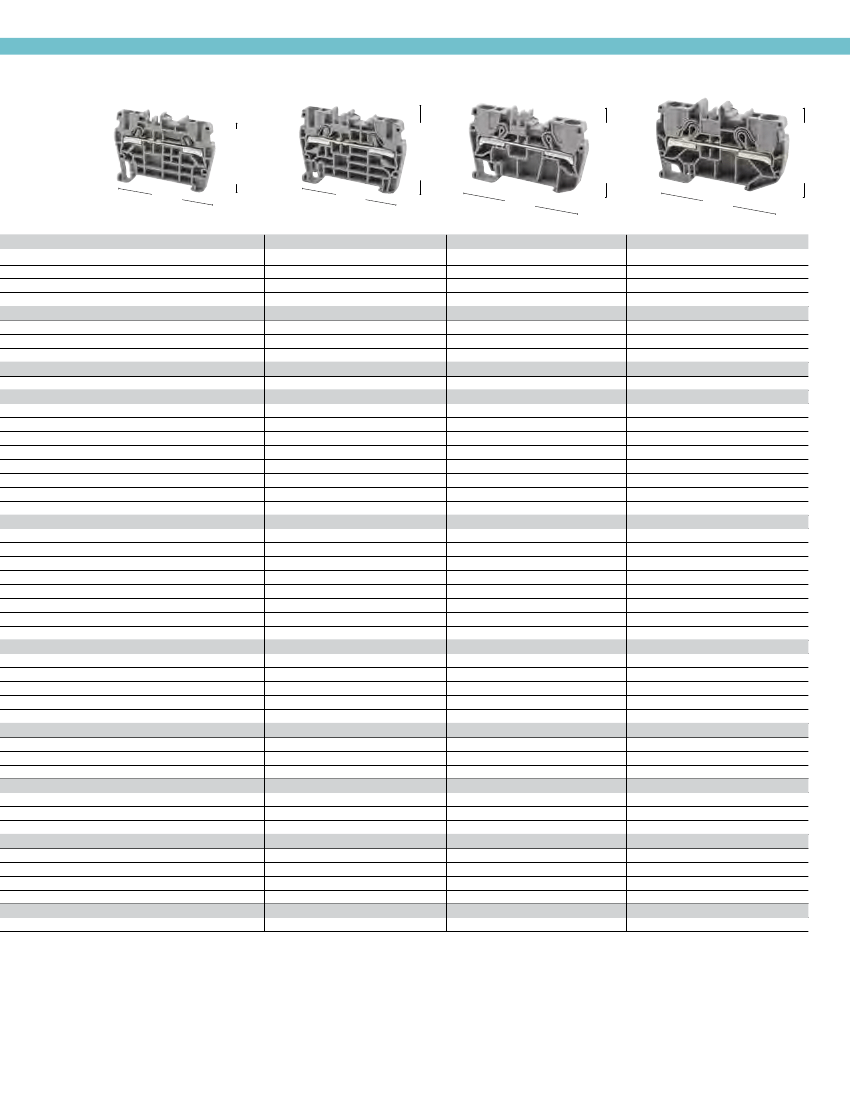

PYK 2.5
Width 5 mm
307 109
PYK 4
Width 6 mm
307 119
PYK 6
Width 8 mm
307 129
PYK 10
Width 10 mm
307 139
MR 35 46.20
53.3
55.90
65.60
75.40
Voltage/Current/Cross-section
800 V ~ / 24 A / 2.5 mm²
600 V ~ / 20 A / AWG 22-12
800 V ~ / 24 A / 2.5 mm²
800 V ~ / 24 A
0.5 - 4 mm² / 0.5 - 4 mm²
22 - 12 / 0.5 - 2.5 mm²
10 mm / ...
Type
Part. No.
Qty.
PYK 2.5
100
307 109
Type
Part. No. std. pk.
slotted
35x7.5
2m
TS3575SL
35x7.5
1m
TS3575SL1
1m
35x7.5
TS3575SL1-A
35x15
2m
TS3515SL
solid
35x7.5
2m
TS3575SOL
35x15
2m
TS3515SOL
NPP PYK 2.5
APP PYK 1.5-2.5-4
446 449
463 180
100
25
Voltage/Current/Cross-section
800 V ~ / 32 A / 4 mm²
600 V ~ / 30 A / AWG 22-10
800 V ~ / 32 A / 4 mm²
800 V ~ / 32 A
0.5 - 6 mm² / 0.5 - 6 mm²
22 - 10 / 0.5 - 4 mm²
10 mm / ...
Type
Part. No.
Qty.
PYK 4
100
307 119
Type
Part. No. std. pk.
slotted
35x7.5
2m
TS3575SL
35x7.5
1m
TS3575SL1
1m
35x7.5
TS3575SL1-A
35x15
2m
TS3515SL
solid
35x7.5
2m
TS3575SOL
35x15
TS3515SOL
2m
NPP PYK 4
APP PYK 4
446 459
463 180
100
25
Voltage/Current/Cross-section
800 V ~ / 41 A / 6 mm²
600 V ~ / 45 A / AWG 20-8
800 V ~ / 41 A
0.5 - 10 mm² / 0.5 - 10 mm²
20 - 8 / 0.5 - 6 mm²
13 mm / ...
Type
Part. No.
Qty.
PYK 6
60
307 129
Type
Part. No. std. pk.
slotted
35x7.5
2m
TS3575SL
35x7.5
1m
TS3575SL1
1m
35x7.5
TS3575SL1-A
35x15
2m
TS3515SL
solid
35x7.5
2m
TS3575SOL
35x15
2m
TS3515SOL
NPP PYK 6
APP PYK 6
446 469
463 190
50
25
Voltage/Current/Cross-section
800 V ~ / 57 A / 10 mm²
600 V ~ / 55 A / AWG 20-6
800 V ~ / 57 A
0.5 - 16 mm² / 0.5 - 16 mm²
20 - 6 / 0.5 - 10 mm²
15 mm / ...
Type
Part. No.
Qty.
PYK 10
50
307 139
Type
Part. No. std. pk.
slotted
35x7.5
2m
TS3575SL
35x7.5
1m
TS3575SL1
1m
35x7.5
TS3575SL1-A
35x15
2m
TS3515SL
solid
35x7.5
2m
TS3575SOL
35x15
2m
TS3515SOL
NPP PYK 10
APP PYK 10
446 479
463 200
50
25
UK 2.5/2
UK 2.5/3
UK 2.5/4
UK 2.5/10
476 222
476 223
476 224
476 229
25
20
15
5
UK 4/2
UK 4/3
UK 4/4
UK 4/10
476 232
476 233
476 234
476 239
25
20
15
5
UK 6/2
UK 6/3
UK 6/4
UK 6/10
476 242
476 243
476 244
476 249
25
20
15
5
UK 10/2
UK 10/3
UK 10/4
UK 10/10
476 252
476 253
476 254
476 259
25
20
15
5
IP 2 S
IP 2
498 130
498 140
25
25
IP 2 S
IP 2
498 130
498 140
25
25
IP 2 S
IP 2
498 130
498 140
25
25
IP 2 S
IP 2
498 130
498 140
25
25
GE
GE 2
496 119
496 250
50
25
GE
GE 2
496 119
496 250
50
25
GE
GE 2
496 119
496 250
50
25
GE
GE 2
496 119
496 250
50
25
0.2 - 4 mm² / 4 mm² / 32 A
8 kV / 3
1 / A3
IP 20 / -
0.2 - 6 mm² / 6 mm² / 41 A
8 kV / 3
1 / A4
IP 20 / -
0.2 - 10 mm² / 10 mm² / 57 A
8 kV / 3
1 / A5
IP 20 / -
0.2 - 16 mm² / 16 mm² / 76 A
8 kV / 3
1 / A4
IP 20 / -
