NTC Type
JW, JC
Thermometrics
Clip-On Pipe and
Surface Sensors
Features
• Suitable for use in conditions of high
condensation and occasional immersion in
water
• 0 - 100°C operating range
• Low temperature gradient (<1.8°F at 140°F
(<1°C at 60°C))
• Sensing element electrically isolated from shoe
(isolation >20M Ω at 500V)
• Type JC meets IP44 standard
• Range of clips for pipe diameters 0.51 in to
1.18 in (13 mm to 30 mm). (Consult factory for
additional size options.)
• Water resistant version (Type JW) meets
IP46 standard (with connector tabs
encapsulated)
• Offers cost benefits over traditional
immersion probes
• Typical applications include gas boiler
control, domestic water systems, air
conditioners, radiator inlet-outlet, electric
showers, vending machines, chiller and
refrigeration units
• Self-adjusts to irregular pipe surfaces
• Fast time response (1.5s typical) for JC and
3.0s for JW
Amphenol
Advanced Sensors

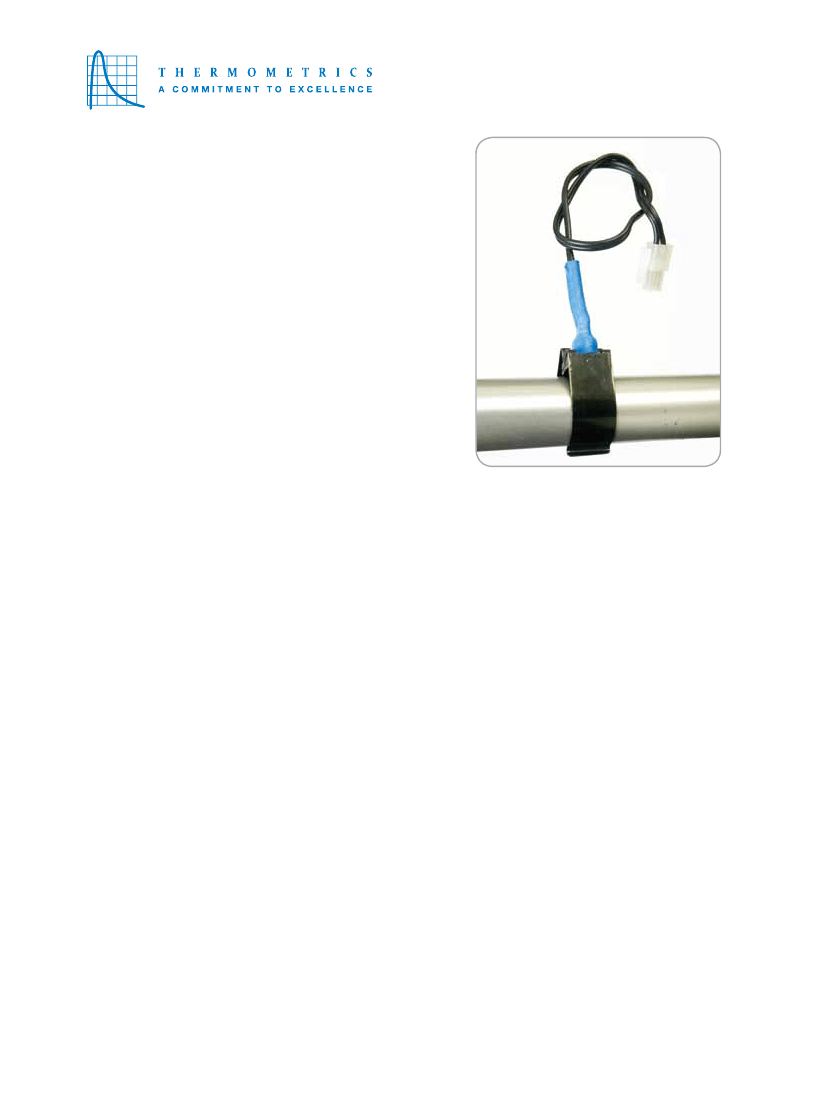

Type JW Specifications
Description
NTC or PTC chip thermistor on a ceramic/metal shoe
assembly sealed in a polymer housing and provided
with flexible twin cable connections. The housing is
fitted with a spring metal clip for pipe attachment.
Clip
Shoe
• Other resistance - temperature characteristics
• Other wire lengths
• Special pipe sizes
11.8 in ± 0.78 in (300 mm ± 20 mm)
Options
1.57 in (40 mm) Nom
General Data
NTC Type JW dimensions
• Minimum operating temperature: 32°F (0°C)
• Maximum temperature: 212°F (100°C) (sensor) 185°F
(85°C) (housing)
• Dissipation factor: ≥2mW/K (mounted on copper pipe
at 77°F (25°C))
• Isolation voltage: 500 VDC
• Clip force: <50N for mounting / de-mounting on pipe
5N will not cause rotation on pipe
• Shoe material: Plated brass
• Body material: Nylon
• Pack quantity & MOQ: 200 pcs
Response Time (seconds)
NTC
PTC
≤4 (to 90% voltage change)
≤4 to TNF 41°F (5°C) (sensor applied to pipe at
TNF 73.4°F (23°C)
Ordering Information
Code
JW
The code number to be ordered may be specified as
follows:
Type
Resin-Coated Thermistor With PVC Wires
Code Pipe Diameter Range in mm
13
13 - 15
17
17 - 18.5
20
20 - 22
28
28-30
____
Typical model number
JW -
NTC Data
Code
For codes, see below.
Nominal Resistance
77°F
(25°C)
Ω
JW103C3R5/X
9983
140°F
(60°C)
Ω
2500
185°F
(85°C)
Ω
1079
Clip size is specified in the code above as shown in the
table below, e.g.,
JW103C3R5/17
Tolerances
77°F
(25°C)
±%
6.46
±°C
1.48
140°F
(60°C)
±%
5.00
±°C
1.40
185°F
(85°C)
±%
5.90
±°C
1.87
K
3960±1%
B 25/85
PTC Data
• Maximum applied voltage: 30V
• Maximum applied voltage for temperature sensing: 2.5V
For codes see below.
T
NF
(-20 to T
NF
-20°C)
Ω
JW 060/X 60°C
JW 070/X 70°C
JW 080/X 80°C
<=250
<=250
<=250
VDC
2.5
2.5
2.5
25°C
Ω
<=100
<=100
<=100
VDC
0.2
0.2
0.2
T
NF
- 5°C
Ω
<=570
<=570
<=570
VDC
2.5
2.5
2.5
T
NF
+ 5°C
Ω
>=570
>=570
>=570
VDC
2.5
2.5
2.5
T
NF
+ 23°C
Ω
>=10000
>=10000
>=10000
VDC
2.5
2.5
2.5

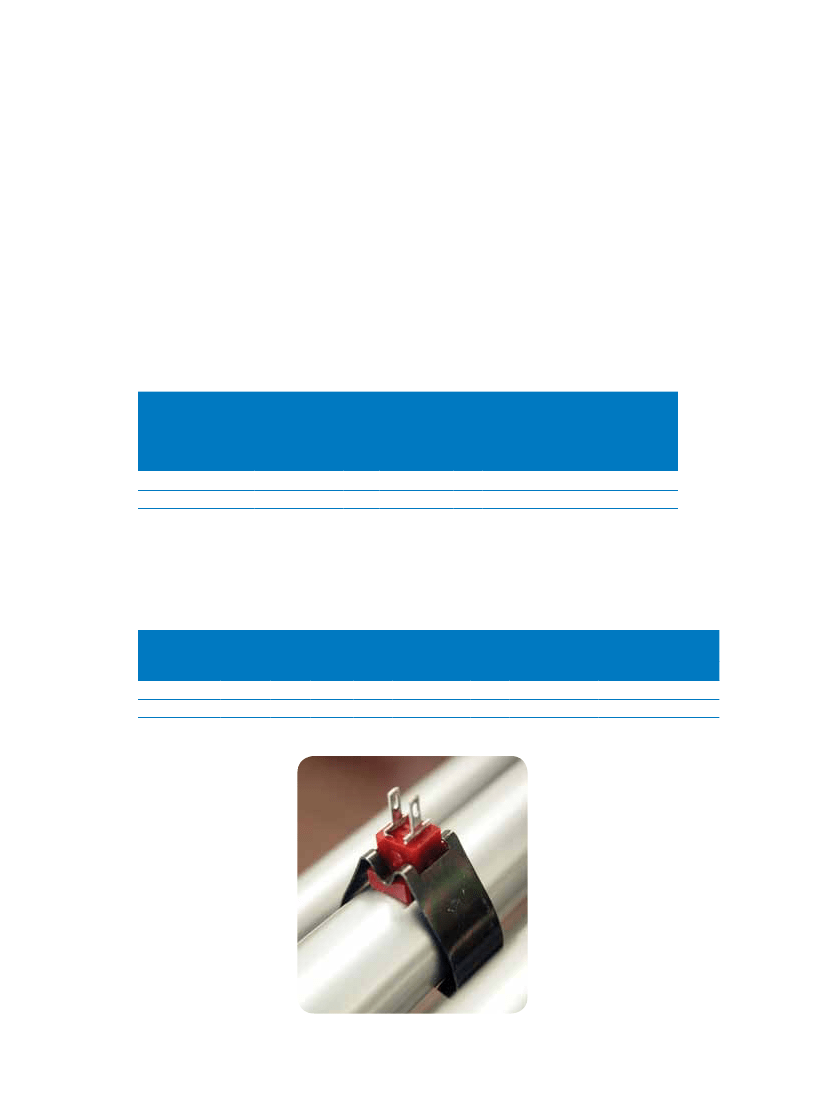

Type JC Specifications
Description
General Data
A range of temperature sensing elements on a
ceramic/metal shoe assembly, held in a polymer
housing and provided with connector tabs. The housing
is fitted with a spring metal clip for pipe attachment.
The elements available are NTC, PTC, SLN (silicon linear
PTC) and PRT (Pt).
• Minimum operating temperature: 32°F (0°C)
• Maximum temperature: 212°F (100°C) (sensor) 185°F
(85°C) (housing)
• Dissipation factor: =2mW/K (mounted on copper pipe
at 77°F (25°C))
• Isolation voltage: 500 VDC
• Clip force: <50N for mounting/de-mounting on pipe
5N will not cause rotation on pipe
• Shoe material: Plated brass
• Body material: Nylon
• Pack quantity & MOQ: 200 pcs
Options
• Other resistance – temperature characteristics
• Special pipe sizes
• Waterproof version – JW (see page 2)
NTC Data
Code
For codes, see below.
Nominal Resistance
77°F
25°C
Ω
JC502C3R5/X
JC103C3R5/X
JC103C4R5/X
4990
9983
9925
140°F
60°C
Ω
1250
2500
3000
185°F
85°C
Ω
540
1079
1441
±%
6.46
6.46
6.26
77°F
25°C
±°C
1.48
1.48
1.67
Tolerances
140°F
60°C
±%
5.00
5.00
5.00
±°C
1.40
1.40
1.60
±%
5.90
5.90
5.77
185°F
85°C
±°C
1.87
1.87
2.09
3960 ± 1%
3960 ± 1%
3435 ± 1%
Orange
None
Yellow
B 25/85
K
Identification
color dot
PTC Data
• Maximum applied voltage: 30V
• Maximum applied voltage for temperature sensing: 2.5V
For codes, see below.
T
NF
-20°C to T
NF
–20°C
Ω
JC060/X
JC070/X
JC080/X
60°C
70°C
80°C
<=250
<=250
<=250
VDC
2.5
2.5
2.5
77°F (25°C)
Ω
<=100
<=100
<=100
VDC
0.2
0.2
0.2
T
NF
-5°C
Ω
<=570
<=570
<=570
VDC
2.5
2.5
2.5
T
NF
+ 5°C
Ω
>=570
>=570
>=570
VDC
2.5
2.5
2.5
T
NF
+ 23°C
Ω
>=10000
>=10000
>=10000
VDC
2.5
2.5
2.5
White/Gray
White/Brown
White/White
Identification dots
Type JC Specifications
Silistor Data
Code:
JC202SLN1/X
Measurements made at 1 mA
77°F (25°C)
Resistance Ω
Temperature
Deviation
1980 – 2020
±2.29°F (±1.27°C)
140°F (60°C)
2577.1 – 2641.3
±4.10°F (±2.28°C)
185°F (85°C)
3024.2 – 3146.5
±5.4°F (±3.0°C)

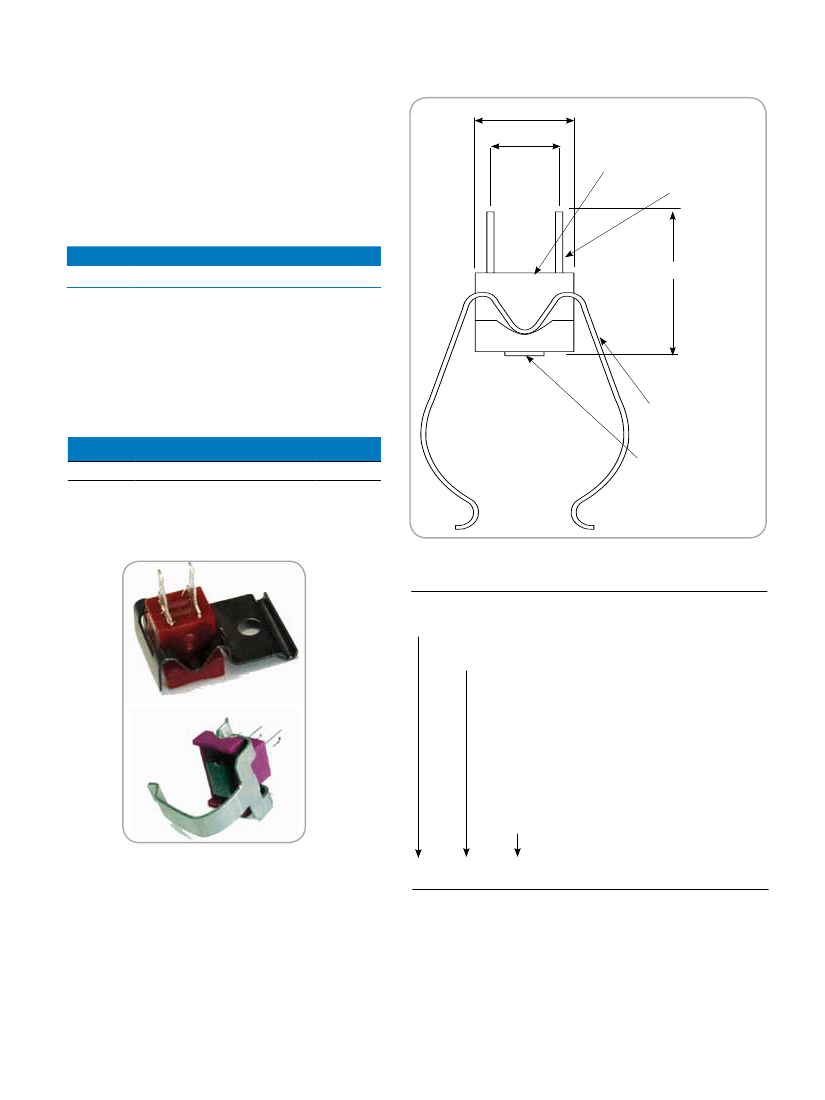

0.394 in (10 mm)
0.197 in
(5 mm)
Housing length
(along pipe) = 0.63 in (16 mm)
Housing
Tab 0.11 in (2.8 mm) X (0.02 in) 0.5 mm
0.7 in (17.8 mm)
PRT Data
• Tolerance: Class A
• Code: JC102PRTA/X
Refer to separate tables for RvT
32°F (0°C)
Resistance Ω
Temperature
Deviation
1000
±0.27°F
(±0.15°C)
77°F (25°C)
1097
±0.36°F
(±0.2°C)
140°F (60°C)
1232
±0.49°F
(±0.27°C)
185°F (85°C)
1328
±0.58°F
(±0.32°C)
Shoe
Clip
Ordering Information
Code
JC
The code number to be ordered may be specified as follows:
Type
Clip-On Pipe Sensor
Code Type
X
NTC (See NTC Data Table on page 3)
PTC (See PTC Data Table on page 3)
SLN (See Silistor Data Table)
PRT (See PRT Data Table)
Code Pipe Diameter Range in mm
13
13 - 15
17
17 - 18.5
20
20 - 22
26
26 - 27.5
28
28 - 30
F
Flat Surface
____ - ____
Typical model number
JC -
Clip Size is specified in the codes above as shown in the table
on the top.
Amphenol
Advanced Sensors
www.amphenol-sensors.com
© 2014 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-349D-03/2014
