3581500002: DescriptionElectric Fuse, Time Lag Blow, 5A, 500VAC, 1500A (IR), Inline/holder, 3AB, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size71KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3581500002 Overview

Electric Fuse, Time Lag Blow, 5A, 500VAC, 1500A (IR), Inline/holder, 3AB, ROHS COMPLIANT

3581500002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	32 mm
Body length or diameter	6.3 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	3AB
Joule integral nominal	62 J
Installation features	INLINE/HOLDER
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	BULK
physical size	6.3mm x 32mm
Pre-discharge time - minutes	10 ms
Rated breaking capacity	1500 A
Rated current	5 A
Rated voltage	500 V
Rated voltage (AC)	500 V
Guideline	UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

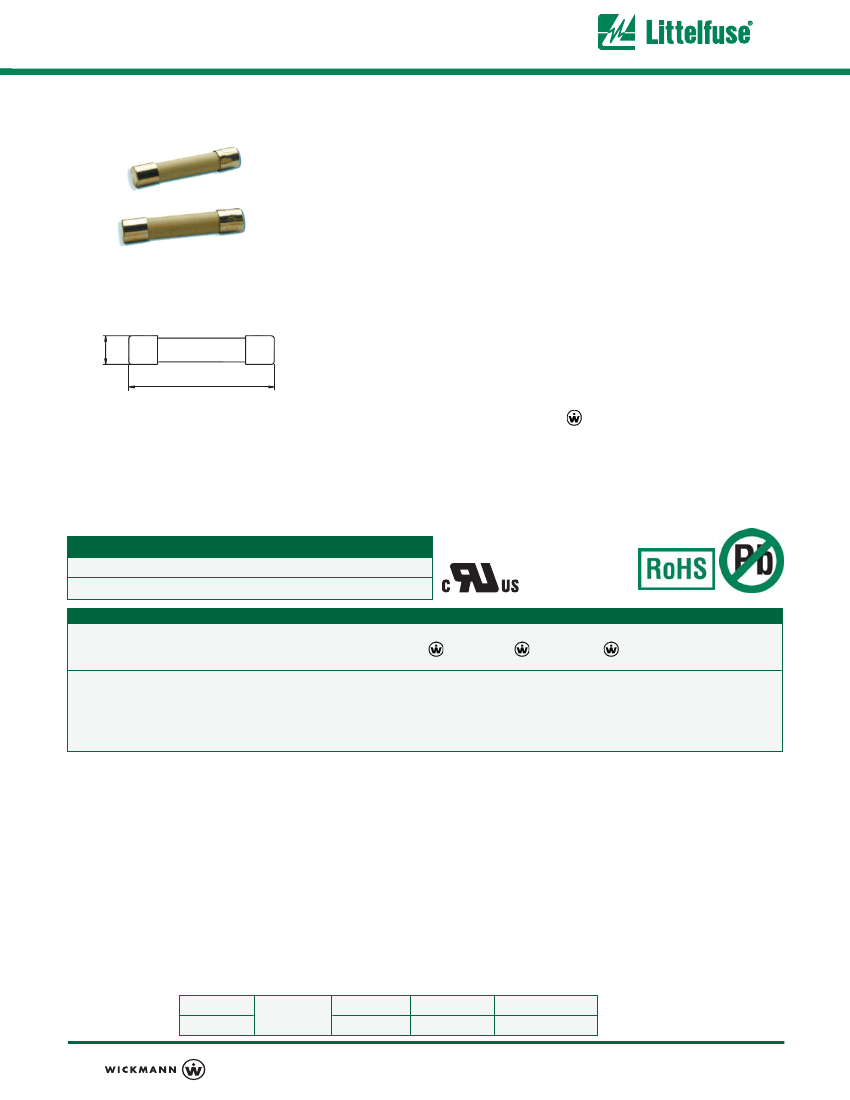

Preview

Download Datasheet

View All

INIATURE

M

INIATURE

F

USES

6.3x32mm / No. 358

Leadfree

Type,

V,

Special Type, 500 V, T

T ime-Current

Time Lag (T)

None

Specifications

Packaging

Materials

002: Pack (100 pcs.)

Tube:

End Caps:

Ceramic

Nickel-plated brass

Characteristic

Standard

Features

For high voltage applications

Surge tolerant

High breaking capacity

Pluggable into clips or shocksafe holders

Temperature

Operating Temperature

Climatic Category

Stock Conditions

-25 ºC to +85 ºC (consider de-rating)

-25 ºC/+70 ºC/21 days

(EN 60068-1,-2-1,-2-2,-2-78)

+10 ºC to +60 ºC

relative humidity

≤

75 % yearly average,

without dew, maximum value for 30 days-95 %

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

, T, Current Rating, 500V, Approvals

Dimensions (mm)

∅

6,3

32

Vibration Resistance

Marking

Unit Weight

3.0 g (approx.)

Limits for Pre-arcing Time

Rated Current

3.15 A ... 10.00 A

1.5 x I

N

>1h

2.5 x I

N

< 15 min

4 x I

N

150 ms ... 2 s

10 x I

N

10 ms ... 300 ms

Permissible continuous operating current is

≤

100 % at ambient temperature of 23 ºC (73.4 ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x I

N

1.5 x I

N

10 x I

N

max. (mV)

max. (W)

min. (A

2

s)

3.15 A

4.00 A

1

5.00 A

1

6.30 A

1

8.00 A

1

10.00 A

1315

1400

1500

1630

1800

2100

500 V

1500 A / 500 V AC

50-60 Hz

cos

ϕ

= 1.0

220

200

180

150

140

120

2.3

2.6

3.0

3.2

3.8

4.0

18

41

62

123

250

500

Approvals

cURus

•

1Depending on the application and mounting, the fuse heating at max. ambient temperature in a closed fuseholder should be considered.

p=pending

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

011706

Qty.

Order-

Number

Series

358

Amp Code

Packaging

Specifications are subject

to change without notice

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

www.littelfuse.com
