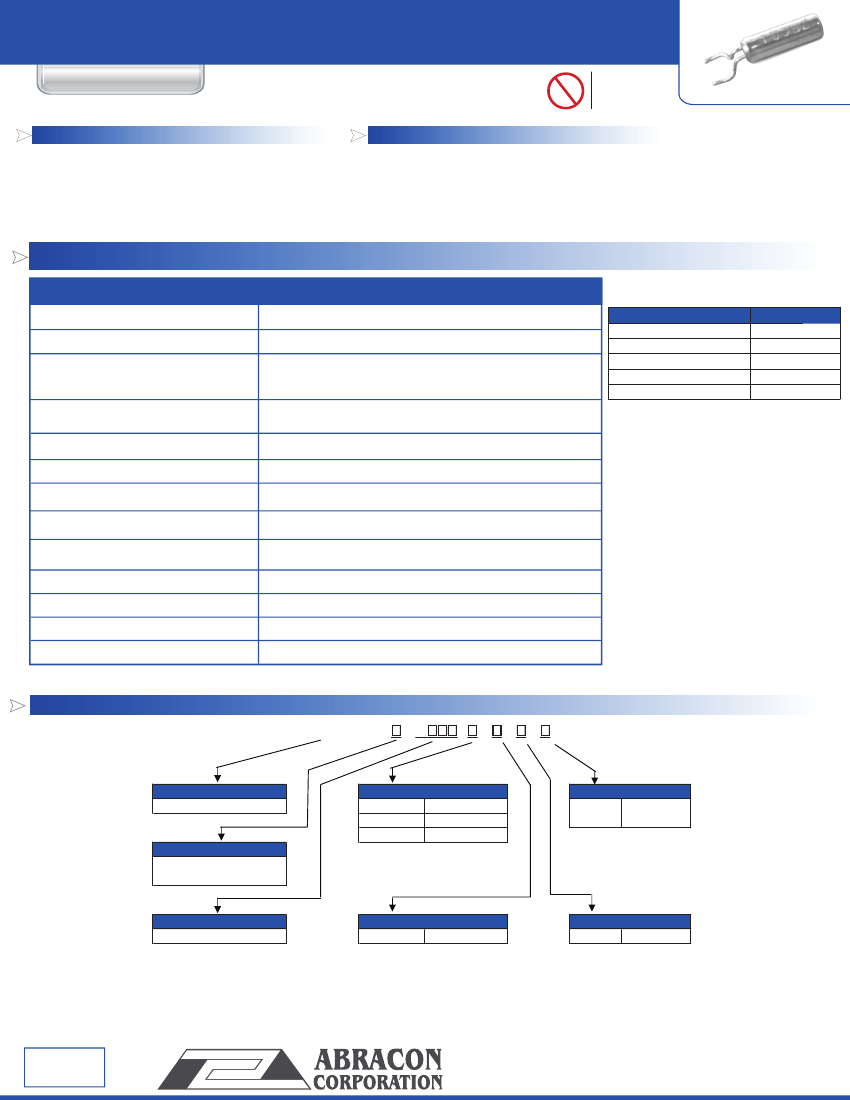

MHz CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
AB308R
FEATURES:
•
Cylinderical MHz frequency crystals.
•
IR Reflow capable.
Pb
RoHS
Compliant
APPLICATIONS:
•
Consumer electronics
•
Microprocessor clocks.
•
Ideal for low cost SMD applications.
| | | | | | | | | | | | | | |
8.8 x 3.2
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance
Frequency Stability
AB308R Series
4.001 MHz to 70 MHz
4.001MHz - 32.0 MHz (Fundamental)
30.00 MHz - 70.0MHz (Third-Overtone)
TABLE 1: STANDARD ESR
FREQUENCY (MHz)
ESR (Ω) max.
4.000 - 5.999
150
100
6.000 - 9.999
10.000 - 32.000
50
30.000 - 35.99 (3rd OT)
100
36.00 - 70.00 (3rd OT)
80
-10°C to + 60°C (see options)
- 40°C to + 85°C
± 30 ppm max. (see options)
± 50 ppm max. (see options)
See Table 1
5pF max.
16pF (see options)
100µW max.
± 5ppm max.
500 M
Ω
min at 100Vdc ± 15V
Equivalent Series Resistance
Shunt Capacitance C
0
Load Capacitance C
L
Drive Level
Aging at 25°C (Fist year)
Insulation Resistance
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
AB308 - Frequency -
-R
-
-
-
-
XX.XXXX MHz
Frequency
Load Capacitance
Please specify CL (minimun 10pF)
in pF or S
for Series
Operating Temp.
E
0°C to +70°C
B
-20°C to +70°C
D
-40°C to +85°C
Mode
F
Fund. AT
for F > 30 MHz
ESR if other than STD
RXXX (Value in
Ω
)
Freq. Tolerance
5
± 50 ppm
Freq. Stability
Y
± 30 ppm
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.24.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
MHz CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
AB308R

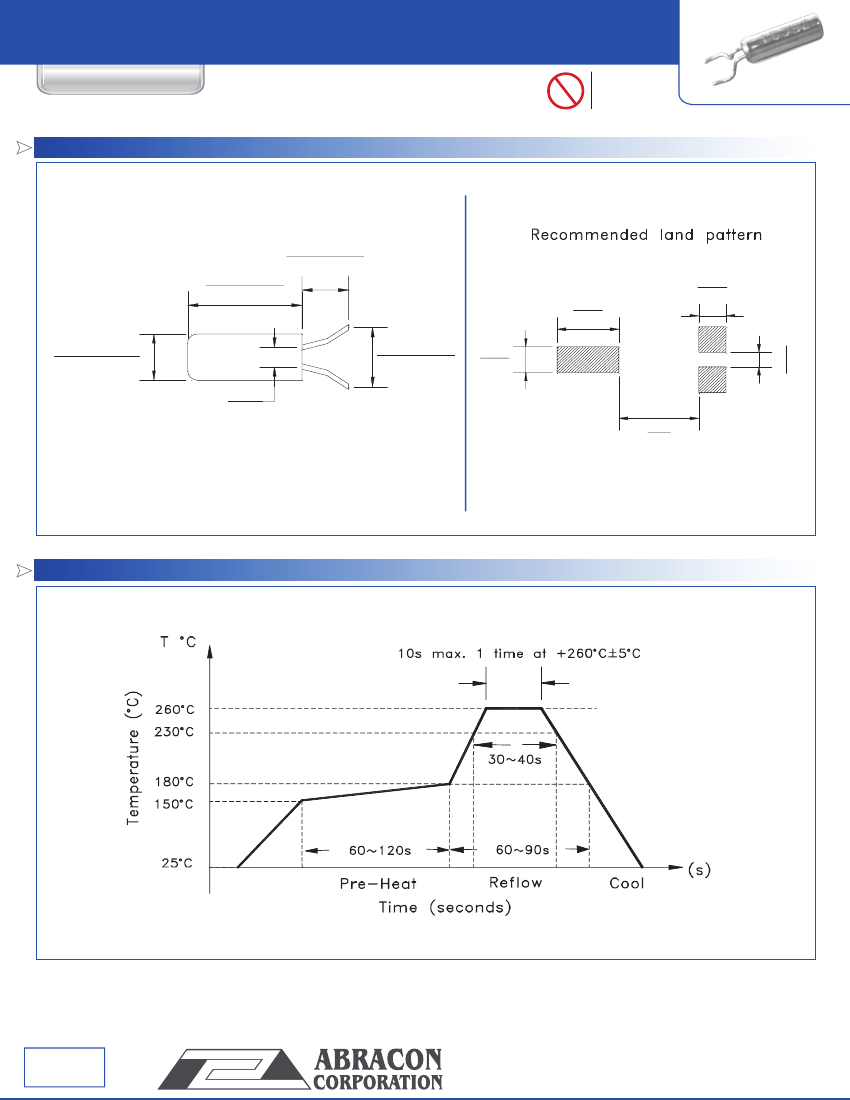

OUTLINE DRAWING:
Dimensions: Inches/(mm)
Pb
RoHS
Compliant
| | | | | | | | | | | | | | |
8.8 x 3.2
0.346±0.012
(8.8±0.3)
0.091±0.008
(2.3±0.2)
0.178
(4.5)
0.079
(2.0)
0.120
±
0.004
(Ø3.0 ±0.1)
0.043
(1.1)
0.23
(5.81)
REFLOW PROFILE:
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.24.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
0.043
(1.1)
Frequency
0.157±0.012
(4.0±0.3)
0.079
(2.0)
MHz CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
AB308R
HANDLING INSTRUCTIONS
Mounting:
(1) Soldering on the body of the cylinder type crystal unit must be strictly avoided due to deteriorate the characteristics or damage the
products. Rubber adhesive is recommended.
Pb
RoHS
Compliant
| | | | | | | | | | | | | | |

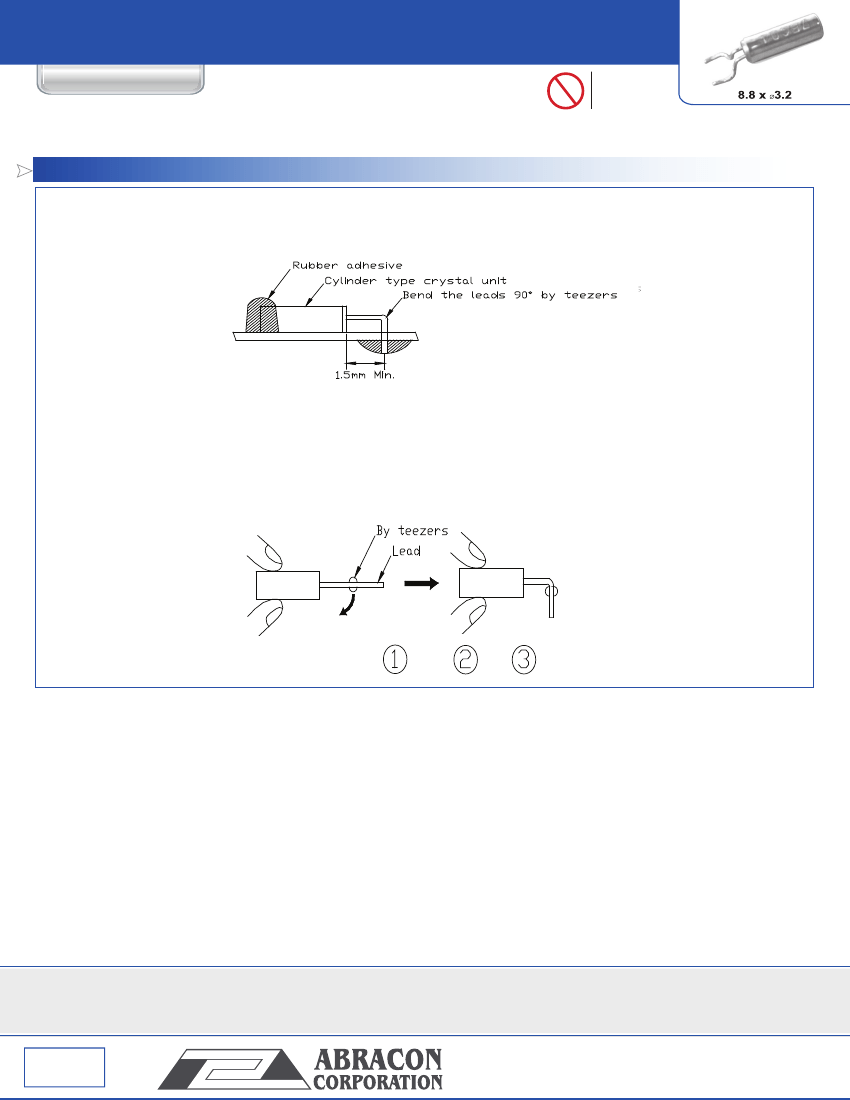

(2) When the leads need to be bent by hand, follow the instructions below.
- Hold the body of the Cylinder type crystal unit in fingers.
- Pick at the part with tweezers, which you intend to bend. There should be more than 1.5mm (3.0mm is recommendable) from
the body case.
- Bend the lead 90º by tweezers without pulling the lead strongly. Pulling the leads forcefully may cause cracks in the glass hermetic
seal resulting in component failure.
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automo-
tive Applications. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requir-
ing high reliability where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme
operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.24.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
