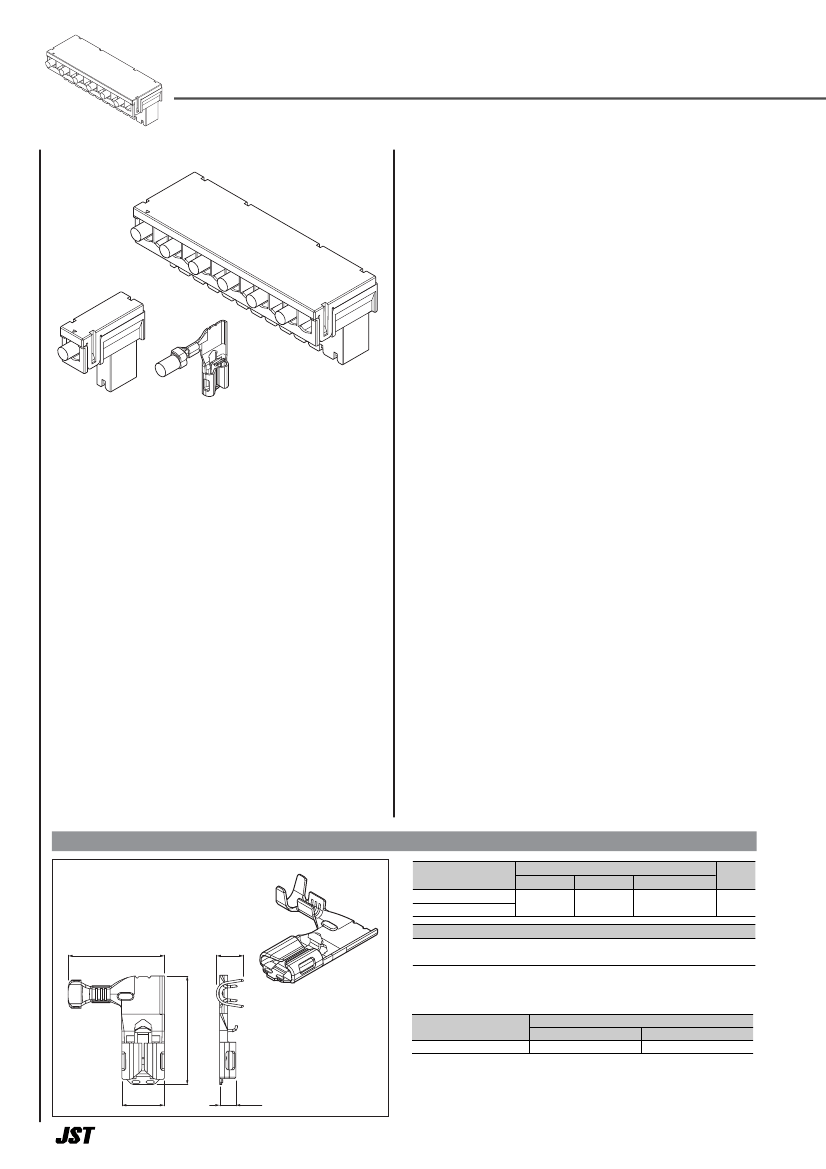

Right Angle RAST5 connectors
JS
T
C-
A
12
JS
T
C-
A
12
• Right angle design
Right angle design allows ease of harness
routing in tight places. Available in one circuit
to twelve circuits.
• Easy insertion, positive locking
The combination of terminal and housing
allows easy mating to a male tab. Un-mating is
equally easy. Simply hold the housing and
pull. The contact locking spring is depressed
by the taper inside the housing. The locking
mechanism prevents accidental disengagement
of the contact from the mating tab.
• Ultra low insertion force
The contact is designed as a low insertion
force with a large contact area to give stable
performance, even when high current is
applied.
• Contact back out preventive design
Innovative contact and housing design
eliminates contact back out caused due to
damaged locking lances during termination
and harness assembly.
• Keying options
Selective removal of built-in keys and
blocking housing cavities, allows for an
infinite number of keying possibilities.
The cover can be molded in various colors.
JS
T
C
-
A
1
Specifications –––––––––––––––––––
• Current rating: 15A AC, DC max.(AWG #14)
(20A Contact under develoment)
• Voltage rating: 250V AC, DC max.
• Temperature range: -40˚C to +105˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 3m
Ω
max.
After environmental testing/ 6m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 2,000V AC/minute
• Applicable wire: AWG #18 to #14
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
Contact
Model No.
RASRSF-61-250A
RASRSF-61T-250A
mm
2
Applicable wire
AWG# UL1015
Insulation O.D. (mm)
18∼14,
18+18∼20+20
3.0∼3.9
Q'ty /
reel
5,000
0.82∼2.08
Material and Finish
16.95
5.6
RASRSF-61T-250A: Brass, tin-plated
RASRSF-61-250A: Brass
Contact
RASRSF-61( )-250A
Applicator
Crimp applicator
CMKS-L
19.1
Dies set
CDSRASRSF61250
7.49
2.85
1

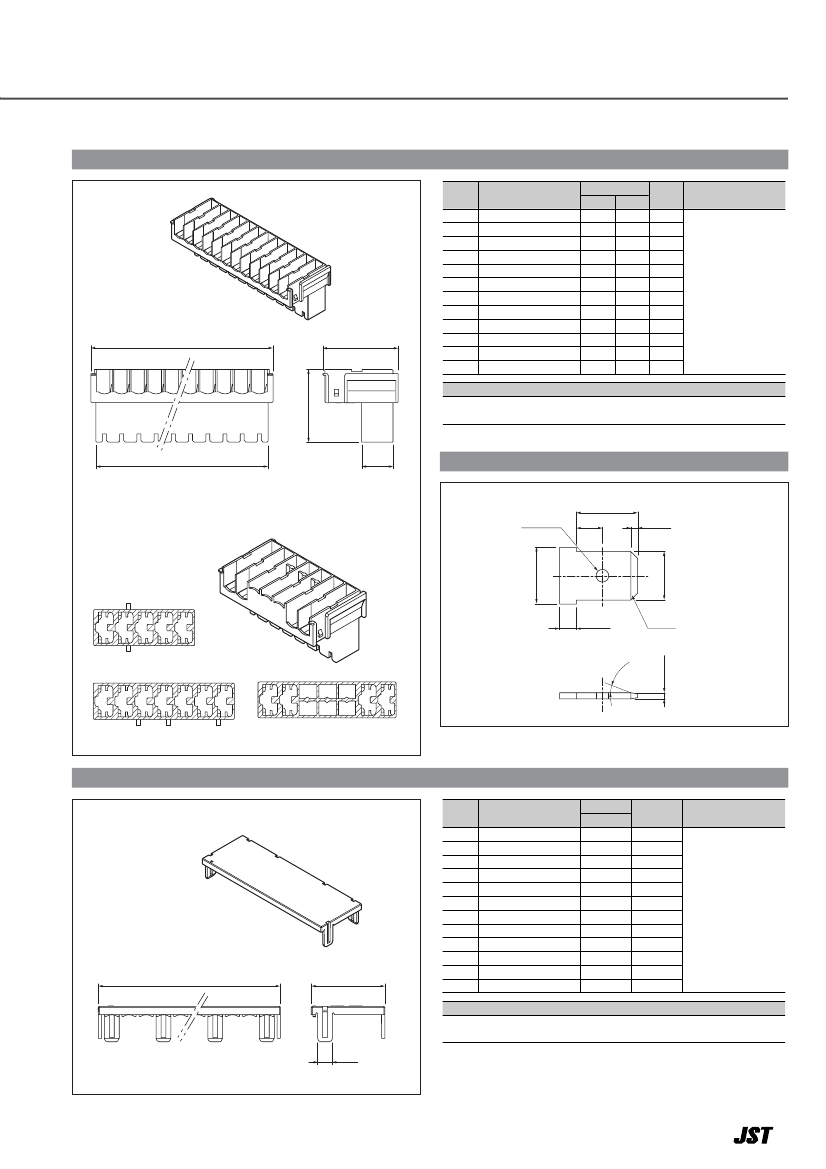

RARSF CONNECTOR
Housing
Circuits
1
2
3
4
5
6
7
8
9
A
21.9
Model No
RARSFP-1V-00
RARSFP-2V-00
RARSFP-3V-00
RARSFP-4V-00
RARSFP-5V-00
RARSFP-6V-00
RARSFP-7V-00
RARSFP-8V-00
RARSFP-9V-00
RARSFP-10V-00
RARSFP-11V-00
RARSFP-12V-00
Dimensions (mm) Q'ty
/ box
A
B
7.9
12.9
17.9
22.9
27.9
32.9
37.9
42.9
47.9
52.9
57.9
62.9
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
5,000
3,000
2,000
2,000
1,500
1,000
1,000
1,000
800
500
500
500
Applicable Contact
RASRSF-61-250A
RASRSF-61T-250A
10
11
12
Material
22.23
Glass-filled PBT, UL94V-0, natural (white)
B
9.1
Applicable tab
8
±0.15
φ1.65
＋0.1
0
3.4
±0.1
0.9
±0.1
Different keying and blocked
configurations available upon request
7.4 min
Examples
1
2
3
4
5
2.2 min
C1
±0.1
○
＋
2
○
-
1
1
2
3
4
5
6
7
1
2
3
4
5
6
7
Note: Make Sure there are no unneeded ribs or other protuberances on the tab
surfaces.
Cover
Circuits
1
12
JS
T
Model No
RARSFC-1V
RARSFC-2V
RARSFC-3V
RARSFC-4V
RARSFC-5V
RARSFC-6V
RARSFC-7V
RARSFC-8V
RARSFC-9V
RARSFC-10V
RARSFC-11V
RARSFC-12V
Dimensions (mm)
Q'ty / box
A
7.9
12.9
17.9
22.9
27.9
32.9
37.9
42.9
47.9
52.9
57.9
62.9
10,000
6,000
5,000
4,000
3,000
2,000
2,000
2,000
1,600
1,000
1,000
1,000
0.8
±0.025
10
○
6.35
±0.1
Applicable Contact
2
3
4
5
6
7
8
9
10
11
12
C-
A
RASRSF-61-250A
RASRSF-61T-250A
A
21.4
Material
Glass-filled PBT, UL94V-0, natural (white)
4.3
2
