Series FR01
10mm DIP Rotaries
General
Specifications
Electrical Capacity (Resistive Load)
Switching Rating:
Nonswitching Rating:
100mA @ 5V DC
100mA @ 50V DC
Rockers
Toggles
Pushbuttons
Other Ratings
Programmable Illuminated PB
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Torque:
Contact Timing:
100 milliohms maximum; 30 milliohms maximum for contact point
1,000 megohms minimum @ 250V DC
250V AC minimum for 1 minute minimum
10,000 detent operations minimum
10,000 detent operations minimum
Notes: A detent operation is one actuator position operation or stepping.
A cycle is one 360° rotation. 10,000 detent operations equal 625
cycles for hexadecimal devices or 1,000 cycles for decimal devices.
Metal Shaft: 0.009Nm for decimal devices; 0.011Nm for hexadecimal devices
All other Actuator types: 0.008Nm for decimal devices; 0.01Nm for hexadecimal devices
Nonshorting
Keylocks
Materials & Finishes
Actuators:
G
Slides
Bushing :
Outer Case:
Housing & Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Terminal Cover:
Bracket:
Screwdriver and Plastic Shaft - Glass fiber reinforced polyamide (UL94V-0);
Dial - Polyoxymethylene; Metal Shaft - Brass with nickel plating
Brass with nickel plating (for Metal Shaft model)
Glass fiber reinforced PBT (for Metal Shaft model)
Glass fiber reinforced polyamide (UL94V-0)
Copper alloy with gold plating
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Polyamide (Right angle model only)
Phospher bronze with tin plating (for Metal Shaft model)
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +85°C (–13°F through +185°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 5 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Processing
Soldering:
Cleaning:
Accessories
Wave Soldering Recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Note: During soldering process, set the switch to the following position:
FR01FR10P, FR01FR16P, FR01KR10P, FR01KR16P, FR01SR10P, FR01SR16P,
FR01AR10PB, FR01AR16PB, FR01AR10HB, FR01AR16HB: 0 position;
FR01FC10P, FR01KC10P, FR01FC10H, FR01KC10H,
FR01SC10P, FR01AC10PB, FR01AC10HB: 7 position;
FR01FC16P, FR01KC16P, FR01FC16H, FR01KC16H,
FR01SC16P, FR01AC16PB, FR01AC16HB: F position
These devices are not process sealed. Hand clean locally using alcohol based solution.
Custom process sealed version available; contact factory.
Indicators
Touch
Standards & Certifications
Flammability Standards:
Supplement
UL94V-0 rated actuator, housing and base
The FR01 Series rotaries have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current circuit.
When used as intended, the results do not produce hazardous energy.
www.nkkswitches.com
G4
10mm DIP Rotaries
Series FR01
Toggles
Distinctive
Characteristics
Compact dimensions and low profile allow high density mounting
and close stacking of PC boards.
G
Crimped terminals ensure secure PC mounting
and prevent dislodging during soldering.
Cam activated movable contact and gold contacts assure
contact reliability and continuity.
www.nkkswitches.com
G5
Supplement
Accessories
Indicators
Contact factory for custom models with .200” (5.08mm) terminal
spacing.
Actual Size
Touch
Surface mount model with screwdriver actuation available and
shown in the surface mount section.
Tilt
Tactiles
Slides
Rotaries

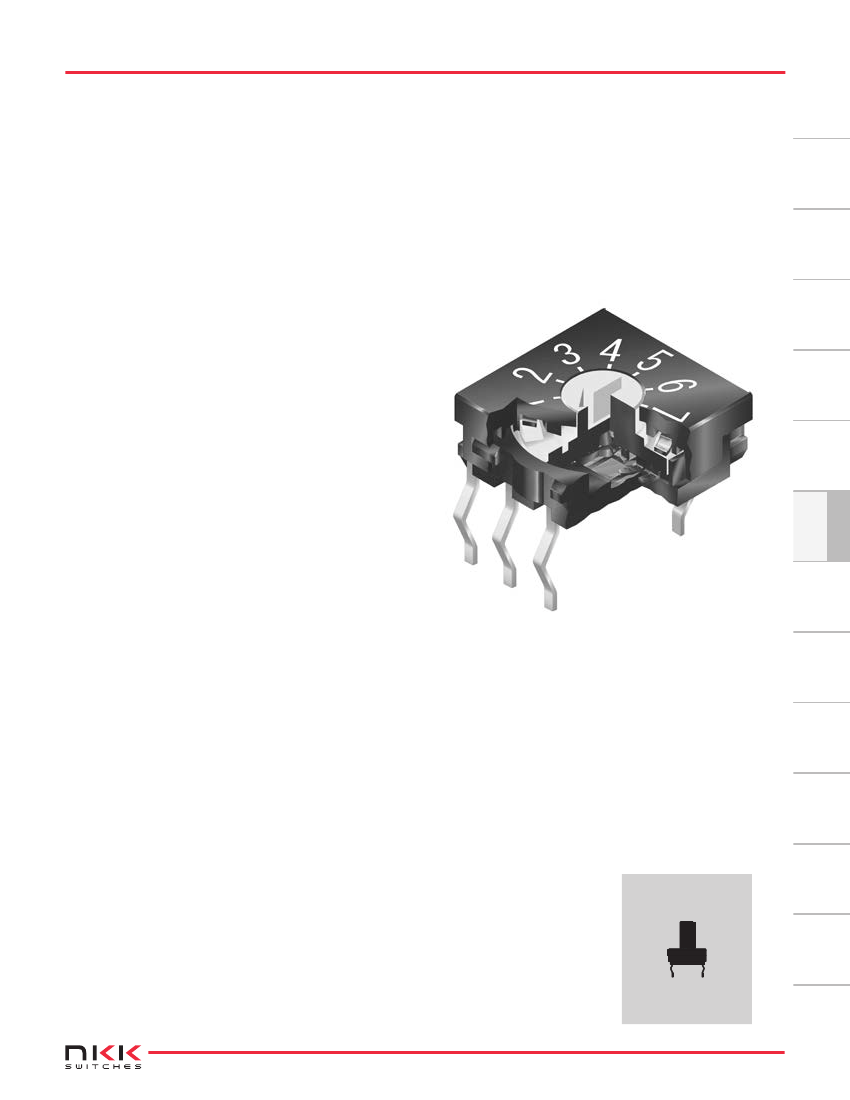

Detent mechanism gives crisp,
positive action for accurate
switch setting.
Keylocks
Real or complement code setting
identified by color-keyed actuator.
Programmable Illuminated PB
Highly visible legends and choice of screwdriver, shaft
or dial actuators with arrow position indication
provide trouble-free code setting. Knob
actuator also available.
Pushbuttons
Rockers

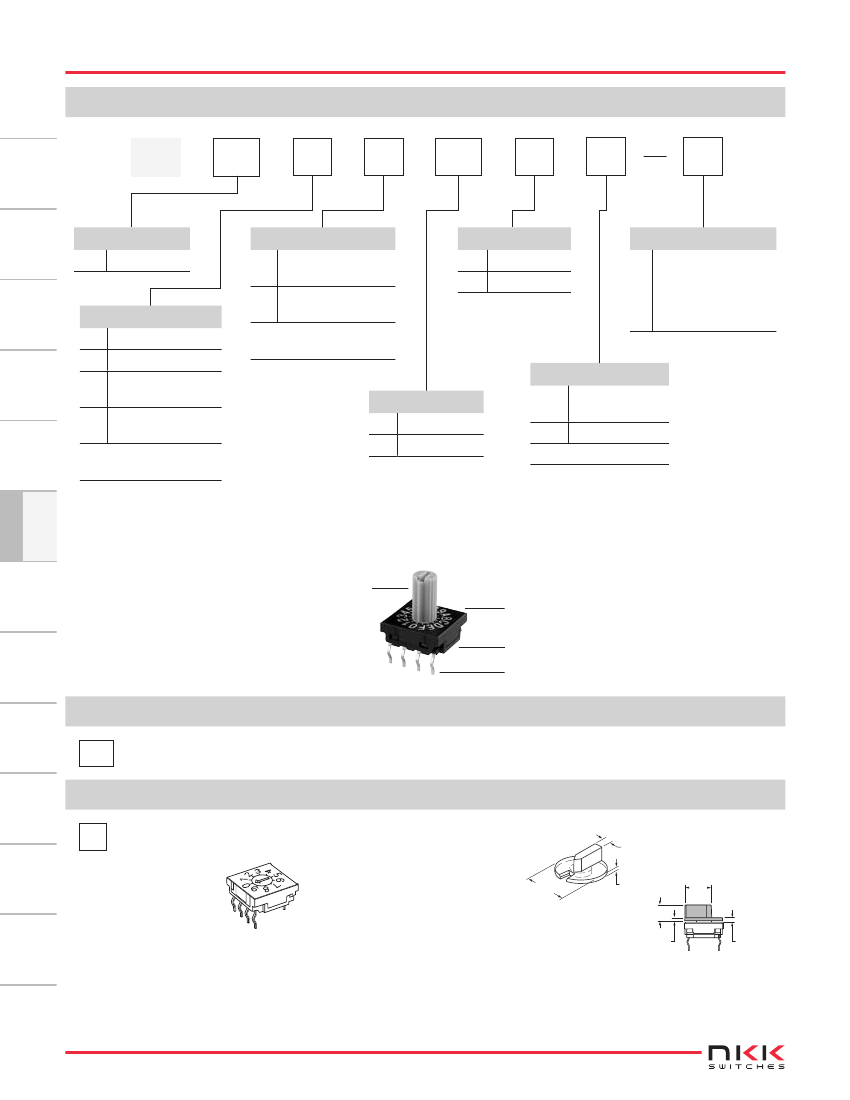

10mm DIP Rotaries

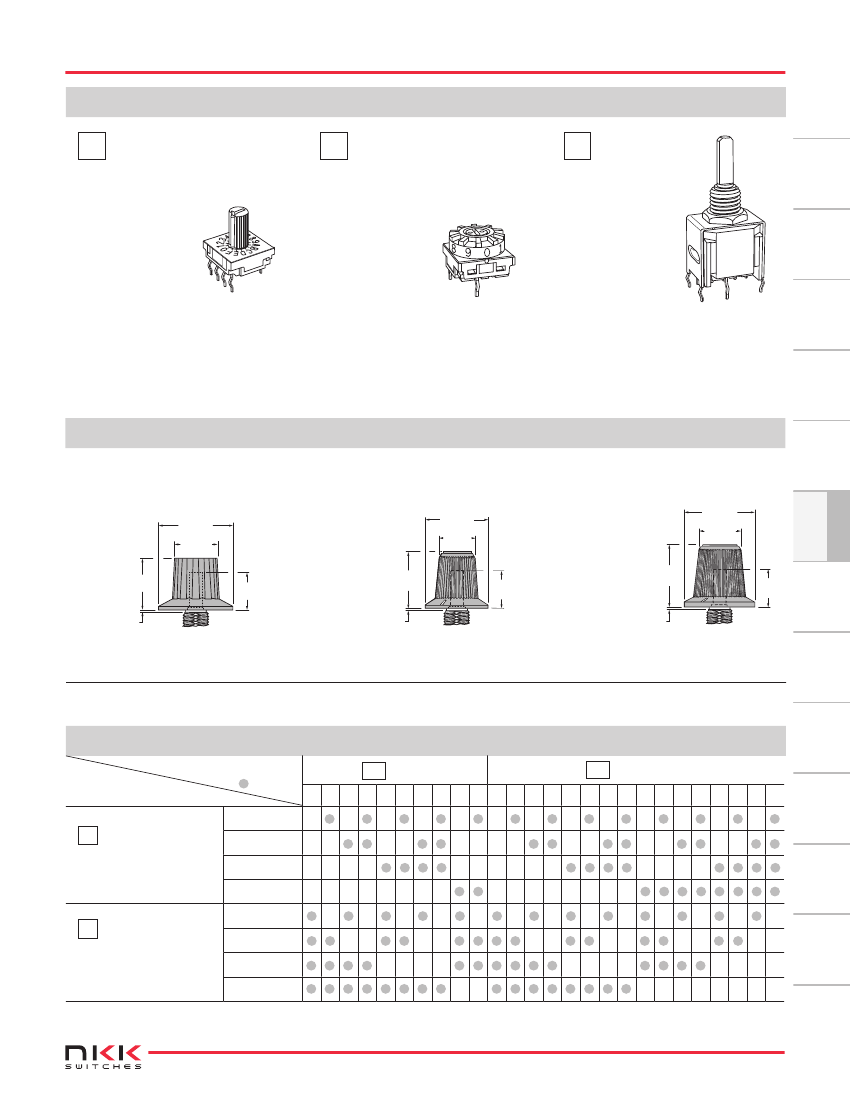

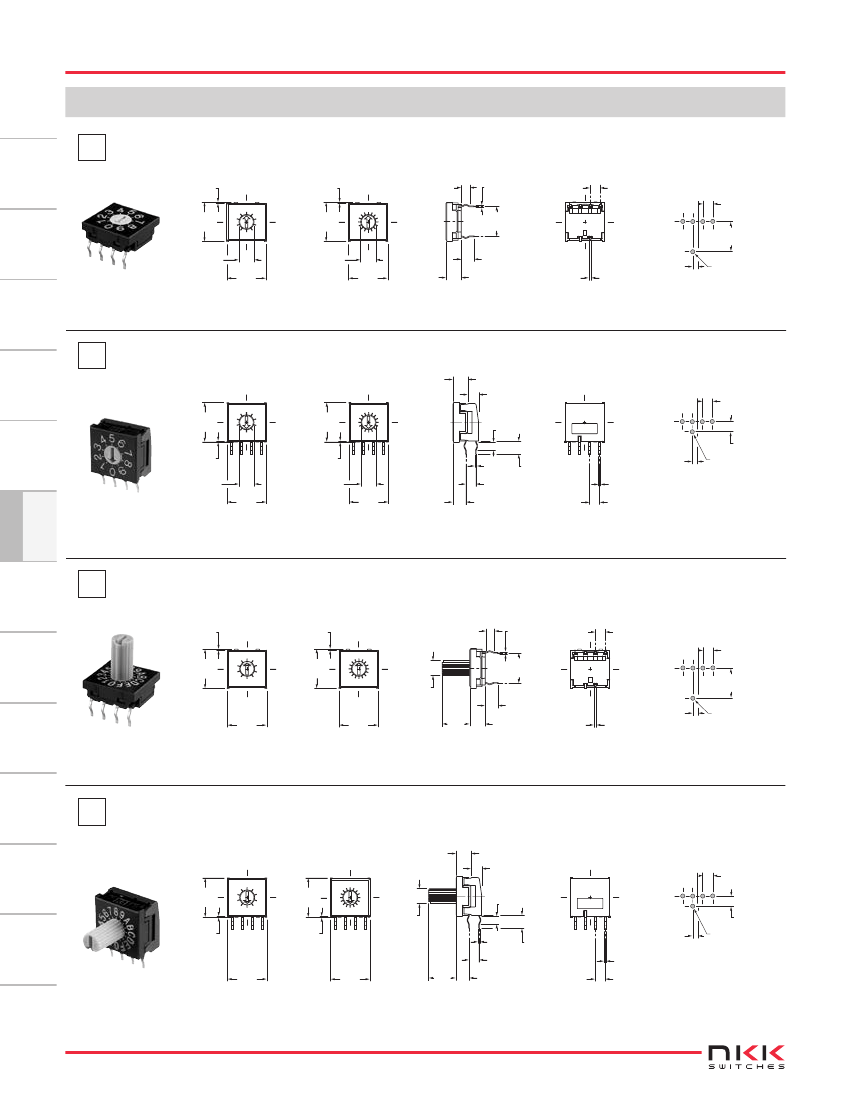

ACTUATION
K
Plastic Shaft
Series FR01
S
Dial
Actuators are fully rotational and operate either clockwise or counterclockwise.
Colors for Actuators K and S: Orange for real coded devices; Yellow for complement coded devices
Mounting hardware is available if needed for models with Actuator A:
Hexagon Nut AT513M, Locking Ring AT515M, and Lockwasher AT509; all are shown in the Accessories and Hardware section.
AT433
Plain Black
Material:
Polyacetal
Color:
Black
(13.0)
.512
(19.0) Dia
.748
(11.0) Dia
.433
AT4103 Small
Color Tipped
Polyester Base:
Black
(9.5)
.374
(16.0) Dia
.630
(9.5) Dia
.374
AT4104 Large
Color Tipped
Polyester Base:
Black
(9.5)
.374
(18.0) Dia
.709
(11.0) Dia
.433
G
(9.5)
.374
(0.5)
.020
A, B, C, E, F, G, H
(0.5)
.020
A, B, C, E, F, G, H
(0.5)
.020
Color Codes:
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
H
Gray
Tilt
TRUTH TABLES (CIRCUITS & POSITIONS)
Actuator Position
x = ON
Terminal No. (Output)
10
Decimal
16
Hexadecimal
Touch
Supplement
Accessories
Indicators
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 A B C D E F
1
R
Real Coded
Model Numbers:
FR01FR, FR01KR,
FR01SR, FR01AR
2
4
8
1
2
4
8
Terminal numbers are actually on the switch.
Above sequence shown for clockwise rotation.
www.nkkswitches.com
G7
C
Complement Coded
Model Numbers:
FR01FC, FR01KC
FR01SC, FR01AC
Tactiles
Knob Orientation: When installed with shaft flat rotated 180° from bushing flat as shown in “Typical Switch Dimensions,”
white line on cap points to Actuator Position 0 noted in truth tables below.
Slides
Polyamide Tip
Colors:
(14.3)
.563
Polyamide Tip
Colors:
(15.8)
.622
Rotaries
Keylocks
OPTIONAL KNOBS FOR METAL SHAFT
Programmable Illuminated PB
Pushbuttons
Adjusted by hand
or with flat tipped
screwdriver
Adjusted by hand
or with flat tipped
screwdriver
Knob options
illustrated below
with color choices
Rockers
A
Metal Shaft
Toggles
PCB Design
