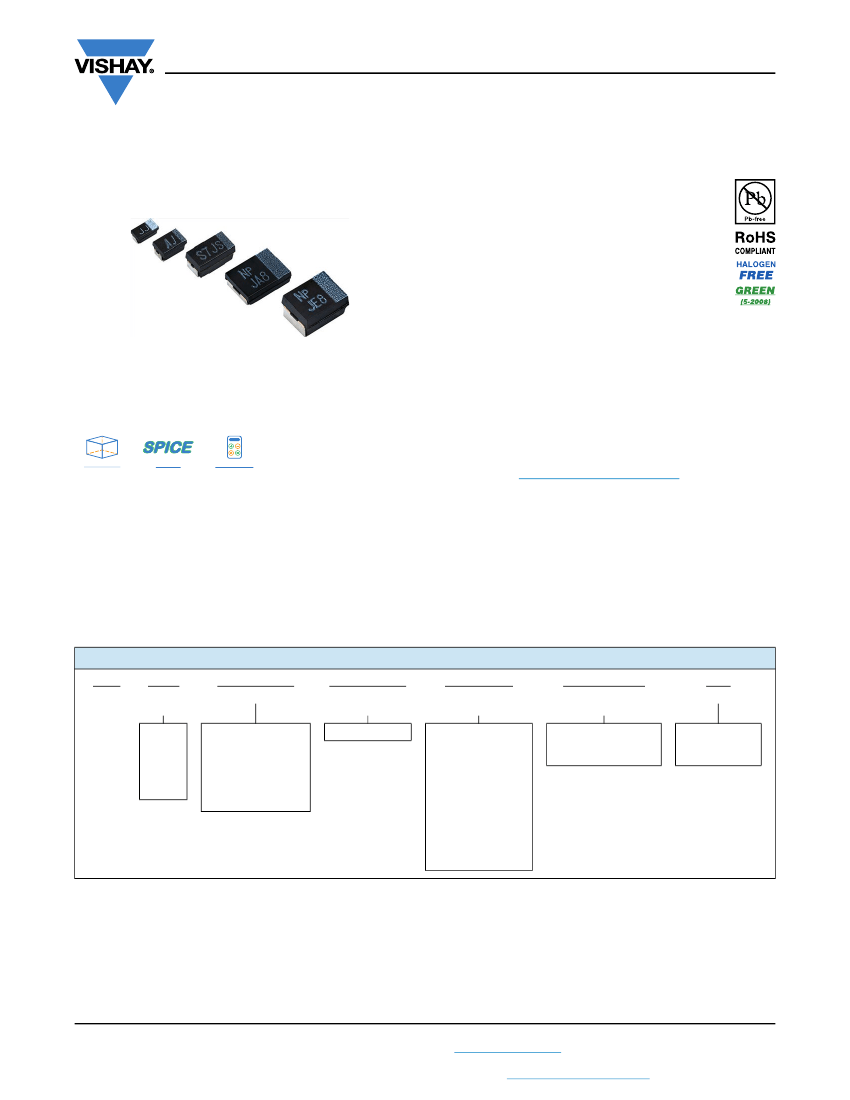

T55
www.vishay.com
Vishay Polytech
vPolyTan
TM
Polymer Surface-Mount Chip Capacitors,
Molded Case, High Performance Type
FEATURES
• Ultra low ESR
• 100 % surge current tested
• Accelerated voltage conditioning
• High ripple current capability
• Stable capacitance over operating temperature,
voltage, and frequency range
• No wear out effect
• Molded case available in 9 case codes
• Terminations:
cases C, J, P: 100 % tin
case A, T, B, Z, V, D: Ni / Pd / Au
LINKS TO ADDITIONAL RESOURCES
• Compatible with “high volume” automatic pick and place
equipment
• Moisture sensitivity level 3
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
D
D
3
3
3D Models
Models
Calculators
PERFORMANCE / ELECTRICAL
CHARACTERISTICS
Operating Temperature:
-55 °C to +105 °C / 125 °C
Capacitance Range:
3.3 μF to 1000 μF
Capacitance Tolerance:
± 20 %
Voltage Rating:
2.5 V
DC
to 63 V
DC
APPLICATIONS
• Decoupling, smoothing, filtering
• Bulk energy storage in wireless cards
• Infrastructure equipment
• Storage and networking
• Computer motherboards
• Smartphones and tablets
ORDERING INFORMATION
T55
TYPE
A
CASE
CODE
See
Ratings
and
Case
Codes
table
156
CAPACITANCE
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros
to follow.
M
CAPACITANCE
TOLERANCE
M = ± 20 %
6R3
DC VOLTAGE
RATING
2R5 = 2.5 V
004 = 4 V
6R3 = 6.3 V
007 = 7 V
010 = 10 V
12R = 12.5 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
063 = 63 V
C
TERMINATION /
PACKAGING
C = lead (Pb)-free
solderable coating,
7" reel
0500
ESR
Maximum
100 kHz ESR
in m
Revision: 15-Jul-2021
Document Number: 40174
1
For technical questions, contact:
polytech@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T55
www.vishay.com
Vishay Polytech

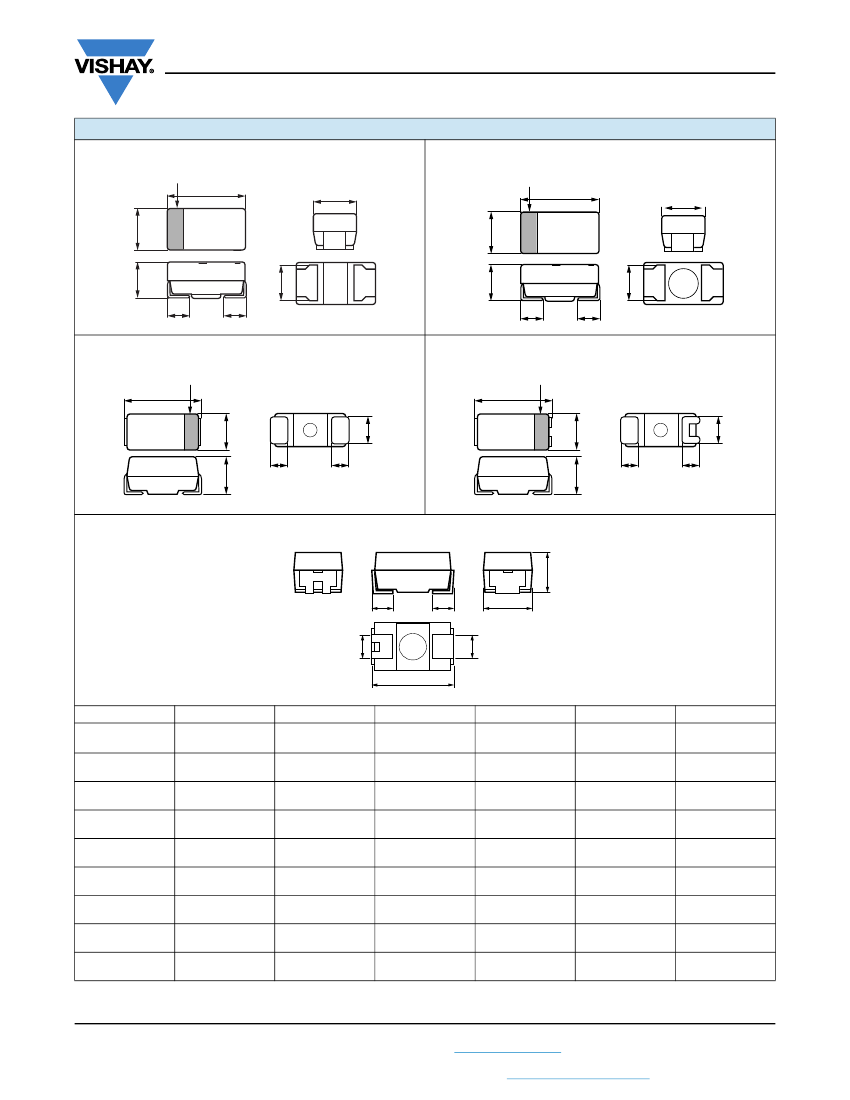

DIMENSIONS
in inches [millimeters]
J case
Anode indication belt mark
L
W
L
P case
Anode indication belt mark
W
W
W
H
l
l
a
H
l
l
a
A, B case
Anode indication belt mark
L
L
C, T case
Anode indication belt mark
W
l
H
l
a
W
l
H
l
a
D, V, Z case
H
l
l
W
a
L
a
CASE CODE
J
P
A
T
B
C
Z
V
D
EIA SIZE
1608-09
2012-12
3216-18
3528-12
3528-21
6032-28
7343-19
7343-20
7343-31
L
0.063 ± 0.004
[1.6 ± 0.1]
0.080 ± 0.008
[2.0 ± 0.2]
0.126 ± 0.008
[3.2 ± 0.2]
0.138 ± 0.008
[3.5 ± 0.2]
0.138 ± 0.008
[3.5 ± 0.2]
0.228 ± 0.008
[5.8 ± 0.2]
0.287 ± 0.008
[7.3 ± 0.2]
0.287 ± 0.008
[7.3 ± 0.2]
0.287 ± 0.008
[7.3 ± 0.2]
W
0.031 ± 0.004
[0.8 ± 0.1]
0.049 ± 0.008
[1.25 ± 0.2]
0.063 ± 0.008
[1.6 ± 0.2]
0.110 ± 0.008
[2.8 ± 0.2]
0.110 ± 0.008
[2.8 ± 0.2]
0.126 ± 0.008
[3.2 ± 0.2]
0.169 ± 0.012
[4.3 ± 0.3]
0.169 ± 0.012
[4.3 ± 0.3]
0.169 ± 0.012
[4.3 ± 0.3]
H
0.031 ± 0.004
[0.8 ± 0.1]
0.047 max.
[1.2 max.]
0.063 ± 0.008
[1.6 ± 0.2]
0.047 max.
[1.2 max.]
0.075 ± 0.008
[1.9 ± 0.2]
0.100 ± 0.008
[2.5 ± 0.2]
0.071 ± 0.004
[1.8 ± 0.1]
0.075 ± 0.004
[1.9 ± 0.1]
0.110 ± 0.012
[2.8 ± 0.3]
l
0.012 ± 0.006
[0.3 ± 0.15]
0.020 ± 0.008
[0.5 ± 0.2]
0.028 ± 0.012
[0.7 ± 0.3]
0.030 ± 0.012
[0.8 ± 0.3]
0.030 ± 0.012
[0.8 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
a
0.024 ± 0.004
[0.6 ± 0.1]
0.035 ± 0.004
[0.9 ± 0.1]
0.047 ± 0.008
[1.2 ± 0.2]
0.087 ± 0.008
[2.2 ± 0.2]
0.087 ± 0.008
[2.2 ± 0.2]
0.087 ± 0.008
[2.2 ± 0.2]
0.094 ± 0.008
[2.4 ± 0.2]
0.094 ± 0.008
[2.4 ± 0.2]
0.094 ± 0.008
[2.4 ± 0.2]
Revision: 15-Jul-2021
Document Number: 40174
2
For technical questions, contact:
polytech@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T55
www.vishay.com
Vishay Polytech
7.0 V
10 V
J/P
P/A
A
A
A
A/T/B
A/T/B
B
V
A
Z/V/D
Z/V/D
Z/V/D
D
D
T
B
B
B
B
V/D
Z/V/D
V
Z/V/D
D
D
B/V
V
V
Z/V
D
D
B
B
B/V
V
Z/V/D
B
B/D
V
Z/V/D
D
D
C/D
12.5 V
16 V
20 V
25 V
35 V
50 V
63 V
RATINGS AND CASE CODES
μF
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
A
A
A
A/B
A/T/B
B
B/V
B/Z/V/D
B/Z/V/D
D
D
J/P/A
P/A
A/B
A/B
A/T/B
A/T/B
A/T/B
B/Z/V
Z/V/D
Z/D
D
2.5 V
4.0 V
6.3 V
J/P
J/P/A
P/A
P/A
A
A/T/B
A/T/B
A/T/B
T/B
A/T/B/
Z/V/D
B/Z/V/D
V/D
V/D
D
B/Z/V/D B/Z/V/D
MARKING
A case
Simplified
code of nominal
capacitance (A7: 10 μF)
Anode indication belt mark
Type of
series
(N: T55)
T, B, Z, V, D, C case
Date code
Anode indication belt mark
A7JA
Simplified
code of rated
voltage (J: 6.3 (7) V)
Date code
+
NA
JS7
CAPACITANCE CODE
+
Simplified
code of
rated voltage (J: 6.3 V)
Simplified
code of
nominal capacitance (S7: 47 μF)
VOLTAGE CODE
V
2.5
4
6.3 (7)
10
12.5
16
20
25
35
50
63
CODE
e
G
J
A
B
C
D
E
V
H
J
CAP, μF
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
CODE
N6
S6
W6
A7
E7
J7
N7
S7
W7
A8
E8
J8
N8
S8
W8
A9
Revision: 15-Jul-2021
Document Number: 40174
3
For technical questions, contact:
polytech@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T55
www.vishay.com
Vishay Polytech
MARKING
J, P case
Simplified
code of nominal
capacitance (S: 4.7 μF)
Anode indication belt mark
SJ
Simplified
code of rated
voltage (J: 6.3 V)
+
RATED VOLTAGE
4
4
6.3
6.3
6.3
6.3
10
10
CAPACITANCE
10
15
3.3
4.7
6.8
10
3.3
4.7
MARKING
AG
EG
NJ
SJ
WJ
AJ
NA
SA
DATE CODE
MONTH
YEAR
1
2017
2018
2019
2020
2021
2022
2023
2024
A
N
a
n
A
N
a
n
2
B
P
b
p
B
P
b
p
3
C
Q
c
q
C
Q
c
q
4
D
R
d
r
D
R
d
r
5
E
S
e
s
E
S
e
s
6
F
T
f
t
F
T
f
t
7
G
U
g
u
G
U
g
u
8
H
V
h
v
H
V
h
v
9
J
W
j
w
J
W
j
w
10
K
X
k
x
K
X
k
x
11
L
Y
l
y
L
Y
l
y
12
M
Z
m
z
M
Z
m
z
Note
• Marking code repeats every four years in alphabetical order (letter of I, i, O, and o are excluded)
Revision: 15-Jul-2021
Document Number: 40174
4
For technical questions, contact:
polytech@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T55
www.vishay.com
Vishay Polytech
MAX. DF
AT 25 °C
120 Hz
(%)
MAX.
MAX. ESR MAX. RIPPLE
HIGH
AT 45 °C
OPERATING
AT + 25 °C
TEMPERATURE
100 kHz I
RMS
TEMPERATURE
100 kHz
LOAD, TIME
(°C)
(m)
(h)
(A)
0.75
0.79
0.75
0.79
0.75
0.79
0.67
0.75
1.36
0.75
1.07
1.22
1.36
1.53
1.36
1.53
1.36
1.53
1.69
1.93
2.08
2.28
2.73
3.22
3.53
1.36
1.70
1.93
2.28
2.73
3.22
2.16
2.73
3.22
3.53
5.00
5.30
5.66
2.28
2.73
2.73
3.94
2.12
2.37
3.00
3.87
4.33
5.00
5.30
5.66
5.00
5.30
5.66
5.00
5.30
5.67
6.12
1000
1000
1000
1000
1000
1000
1000
1000
2000
1000
1000
1000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
2000
1000
105
105
105
105
105
105
105
105
125
105
105
105
125
125
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
125
125
125
125
125
125
125
105
105
105
105
125
125
125
125
125
125
125
125
125
125
125
105
105
105
105
STANDARD RATINGS
CAPACITANCE CASE
(μF)
CODE
PART NUMBER
MAX. DCL
AT 25 °C
(μA)
22
22
33
33
47
47
68
68
68
100
100
100
100
100
150
150
220
220
220
220
220
220
220
220
220
330
330
330
330
330
330
330
330
330
330
330
330
330
470
470
470
470
470
470
470
470
470
470
470
470
680
680
680
1000
1000
1000
1000
A
A
A
A
A
A
A
A
B
A
A
T
B
B
B
B
B
B
B
B
B
B
V
V
V
B
B
B
B
Z
Z
V
V
V
V
D
D
D
B
Z
V
V
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
T55A226M2R5C0200
T55A226M2R5C0180
T55A336M2R5C0200
T55A336M2R5C0180
T55A476M2R5C0200
T55A476M2R5C0180
T55A686M2R5C0250
T55A686M2R5C0200
T55B686M2R5C0070
T55A107M2R5C0200
T55A107M2R5C0100
T55T107M2R5C0070
T55B107M2R5C0070
T55B107M2R5C0055
T55B157M2R5C0070
T55B157M2R5C0055
T55B227M2R5C0070
T55B227M2R5C0055
T55B227M2R5C0045
T55B227M2R5C0035
T55B227M2R5C0030
T55B227M2R5C0025
T55V227M2R5C0025
T55V227M2R5C0018
T55V227M2R5C0015
T55B337M2R5C0070
T55B337M2R5C0045
T55B337M2R5C0035
T55B337M2R5C0025
T55Z337M2R5C0025
T55Z337M2R5C0018
T55V337M2R5C0040
T55V337M2R5C0025
T55V337M2R5C0018
T55V337M2R5C0015
T55D337M2R5C0009
T55D337M2R5C0008
T55D337M2R5C0007
T55B477M2R5C0025
T55Z477M2R5C0025
T55V477M2R5C0025
T55V477M2R5C0012
T55D477M2R5C0050
T55D477M2R5C0040
T55D477M2R5C0025
T55D477M2R5C0015
T55D477M2R5C0012
T55D477M2R5C0009
T55D477M2R5C0008
T55D477M2R5C0007
T55D687M2R5C0009
T55D687M2R5C0008
T55D687M2R5C0007
T55D108M2R5C0009
T55D108M2R5C0008
T55D108M2R5C0007
T55D108M2R5C0006
2.5 V
DC
AT +105 °C, 1.7 V
DC
AT +125 °C
5.5
10
200
5.5
10
180
8.2
10
200
8.2
10
180
11.7
10
200
11.7
10
180
17.0
10
250
17.0
10
200
17.0
8
70
25.0
10
200
25.0
10
100
25.0
10
70
25.0
8
70
25.0
8
55
37.5
8
70
37.5
8
55
55.0
8
70
55.0
8
55
55.0
8
45
55.0
8
35
55.0
8
30
55.0
8
25
55.0
10
25
55.0
10
18
55.0
10
15
82.5
8
70
82.5
8
45
82.5
8
35
82.5
8
25
82.5
10
25
82.5
10
18
82.5
10
40
82.5
10
25
82.5
10
18
82.5
10
15
82.5
10
9
82.5
10
8
82.5
10
7
117.5
8
25
117.5
10
25
117.5
10
25
117.5
10
12
117.5
10
50
117.5
10
40
117.5
10
25
117.5
10
15
117.5
10
12
117.5
10
9
117.5
10
8
117.5
10
7
170.0
10
9
170.0
10
8
170.0
10
7
250.0
10
9
250.0
10
8
250.0
10
7
250.0
10
6
Note
• Termination code “C”: cases C, J, P: 100 % tin, case A, T, B, Z, V, D: Ni / Pd / Au
Revision: 15-Jul-2021
Document Number: 40174
5
For technical questions, contact:
polytech@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
