Series FR02
Toggles
10mm Ultra-Thin SMT DIP Rotaries
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Switching Rating:
Nonswitching Rating:
100mA @ 5V DC
100mA @ 50V DC
Pushbuttons
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Keylocks
Nominal Operating Torque:
Contact Timing:
100 milliohms maximum for circuit; 30 milliohms maximum for contact point
1,000 megohms minimum @ 250V DC
250V AC minimum for 1 minute minimum
10,000 detent operations minimum
10,000 detent operations minimum
Notes: A detent operation is one actuator position operation or stepping.
A cycle is one 360° rotation. 10,000 detent operations equal
625 cycles for hexadecimal devices or 1,000 cycles for decimal devices.
0.008Nm for decimal devices; 0.01Nm for hexadecimal devices
Nonshorting
Materials & Finishes
G
Actuator:
Housing & Base:
Leaf Spring:
Movable Contacts:
Stationary Contacts:
Terminals:
Screwdriver and Plastic Shaft - Glass fiber reinforced polyamide (UL94V-0)
Glass fiber reinforced polyamide (UL94V-0)
Stainless steel
Copper alloy with gold plating
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Slides
Rotaries
Environmental Data
Tactiles
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +85°C (–13°F through +185°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 5 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Processing
Soldering:
Reflow Soldering Recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Note: During soldering process, set the switch to the following position:
FR02FR10P, FR02FR16P, FR02KR10P, FR02KR16P: 0 position;
FR02FC10P, FR02KC10P: 7 position;
FR02FC16P, FR02KC16P: F position
These devices are not process sealed. Hand clean locally using alcohol based solution.
Touch
Indicators
Cleaning:
Standards & Certifications
Flammability Standards:
Supplement
Accessories
UL94V-0 rated actuator, housing, & base
The FR02 Series rotaries have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current circuit.
When used as intended, the results do not produce hazardous energy.
G12
www.nkk.com

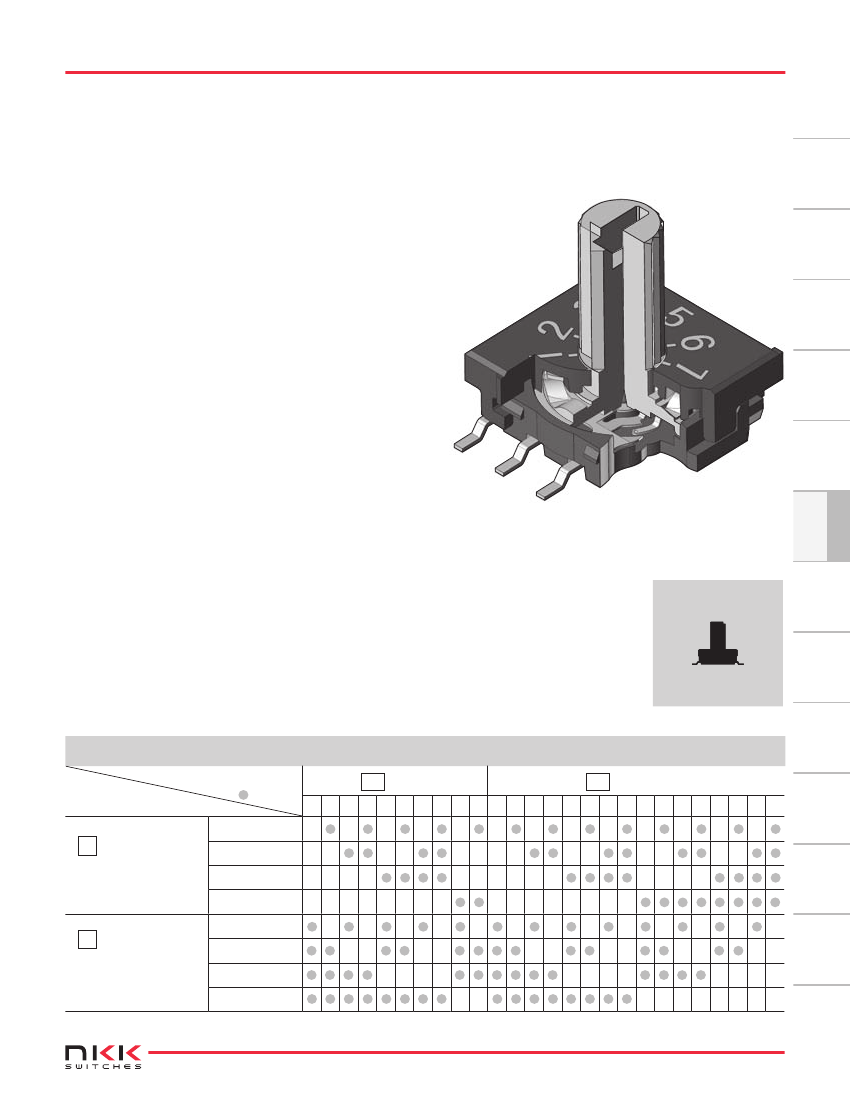

10mm Ultra-Thin SMT DIP Rotaries
Series FR02
Toggles
Detent mechanism gives crisp, positive action
for accurate switch setting.
Use of heat resistant resin allows infrared
convection reflow soldering.
Gull-winged terminals ensure mechanical stability
during soldering and simplify solder joint inspection.
Cam activated movable contact and gold contacts assure contact
reliability and continuity.
Tape-reel packaging meets EIA-481-2 Standard.
Coplanarity: all considered surfaces must lie between two parallel planes
that are a maximum distance apart of .0059” (0.15mm). (Additional co-
planarity details in Terms and Acronyms in the Supplement section.)
G
Actual Size
TRUTH TABLES (CIRCUITS & POSITIONS)
Actuator Position
x = ON
Terminal No. (Output)
10
Decimal
16
Hexadecimal
Touch
Supplement
Accessories
Indicators
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 A B C D E F
1
R
Real Coded
Model Numbers:
FR02FR, FR02KR
2
4
8
1
2
4
8
Terminal numbers are actually on the switch.
www.nkk.com
G13
C
Complement
Coded
Model Numbers:
FR02FC, FR02KC
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Highly visible legends and choice of screwdriver or shaft
actuators with arrow position indication provide
trouble-free code setting.
Pushbuttons
Slim .150” (3.8mm) body has the lowest profile in the industry and
allows close stacking of PC boards.
Rockers
Distinctive
Characteristics
Series FR02
Toggles
10mm Ultra-Thin SMT DIP Rotaries

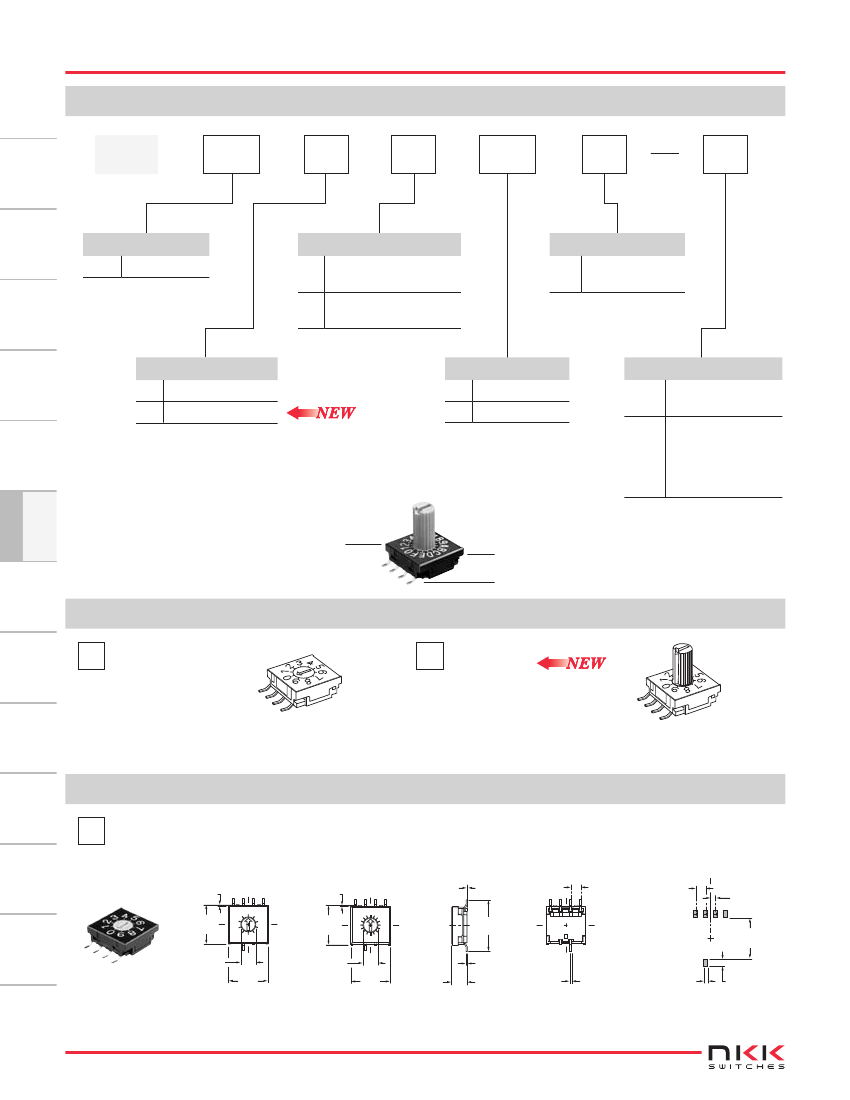

TYPICAL SWITCH ORDERING EXAMPLE
Pushbuttons
Rockers
FR
Mounting
02
SMT
02
F
Circuits
R
C
R
Real Coded
(Orange Actuator)
Complement Coded
(Yellow Actuator)
10
P
Terminals
P
Gull Wing for
Upright Mount
S
Programmable Illuminated PB
Actuation
F
K
Screwdriver
Plastic Shaft
10
16
Positions
Decimal
Hexadecimal
S
Packaging
Stick-Tube
50 Pieces/Stick
Tape-Reel
FR02F:
500 Pieces/Reel
FR02K:
200 Pieces/Reel
Keylocks
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
R
FR02KR16P-S
Rotaries
G
Shaft Actuated
Hexadecimal Actuator Positions
Packaged in Stick-Tube
Real Coded
Gull Wing Terminals for Upright Mount
Slides
ACTUATION
F
Screwdriver
Tactiles
K
Plastic Shaft
Adjusted with a flat
tipped screwdriver
Tilt
Adjusted by hand or with
flat tipped screwdriver
Actuators are fully rotational either clockwise or counterclockwise.
Actuator Colors: Orange for real coded devices; Yellow for complement coded devices.
Touch
TYPICAL SWITCH DIMENSIONS
P
Upright • Screwdriver
C
L
(0.2)
.008
(10.0)
.394
(3.8) Dia
.150
(10.0)
.394
78
9
01
Indicators
(0.2)
.008
(10.0)
.394
(3.8) Dia
.150
(10.0)
.394
(3.9)
.154
(0.1) Typ
.004
(2.54) Typ
.100
8
4
2
1
(2.54) Typ
.100
BCD
01
EF
2
(1.27) Typ
.050
1
2
4
8
Accessories
(13.0)
.512
(0.2) Typ
.008
3
45
Supplement
FR02FC10P
Decimal
Hexadecimal
G14
www.nkk.com
89
67
A
23
456
C
(10.5)
.413
C
(0.5) Typ
.020
(1.0) Typ
.039
(1.75) Typ
.069
10mm Ultra-Thin SMT DIP Rotaries

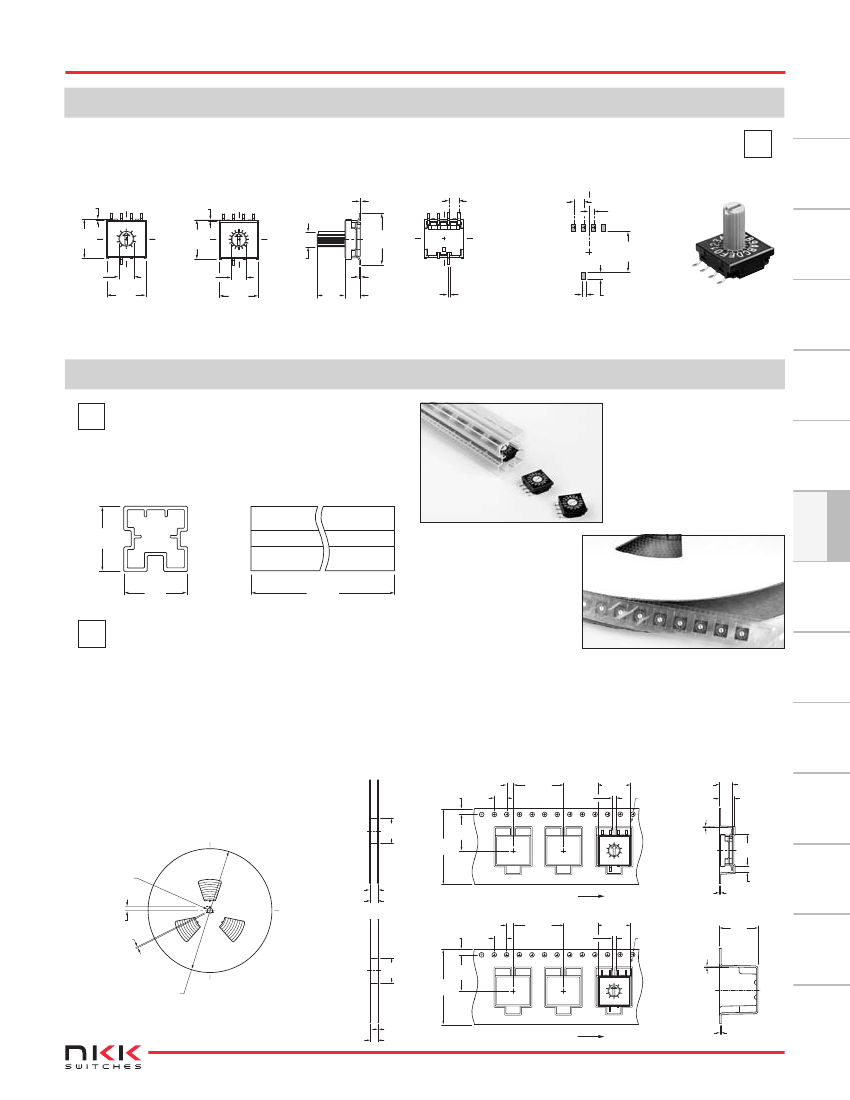

TYPICAL SWITCH DIMENSIONS
Series FR02
Upright • Plastic Shaft
C
L
P
Rockers
(0.2)
.008
(10.0)
.394
(3.8) Dia
.150
(10.0)
.394
78
9
01
23
D
BC
E
(10.0)
.394
(7.0) (3.9)
.276 .154
(0.5) Typ
.020
(1.0) Typ
.039
(1.75) Typ
.069
Decimal
Hexadecimal
FR02KC16P
PACKAGING
S
Stick-Tube
FR02F & FR02K
Each stick-tube contains 50 switches.
Switches must be ordered in 50-piece increments.
(16.6)
.654
G
(16.2)
.638
(540.0)
21.260
R
Tape-Reel
FR02K
Switches must be ordered in 200-piece increments.
This packaging meets EIA-481-2 Standard.
Each tape-reel of 250 pockets contains 200 switches.
Minimum Leader Length: 15.748” (400mm)
Minimum Trailer Length:
6.299” (160mm)
(2.0) Typ
.079
(4.0) Typ
.157
(16.0) Typ
.630
(10.3) Typ
.406
(4.1)
.161
(4.6)
.181
FR02F
Switches must be ordered in 500-piece increments.
This packaging meets EIA-481-2 Standard.
Each tape-reel of 550 pockets contains 500 switches.
Minimum Leader Length: 15.748” (400mm)
Minimum Trailer Length:
6.299” (160mm)
(6.5) R
.256
(24.4)
.961
(30.4) Max
1.197
Direction of Feed
(2.0) Typ
.079
(4.0) Typ
.157
(16.0) Typ
.630
(10.3) Typ
.406
(0.4)
.016
(2.1) Typ
.083
(1.75)
.069
(1.2) Typ
.047
(1.5) Dia Typ
.059
(24.0)
.945
(1.5)
.059
Direction of Feed
(0.5)
.020
www.nkk.com
G15
Supplement
456
Overall Dia (330.0)
13.0
FR02K
(80.0) Dia
3.150
(24.0)
.945
(11.5)
.453
3 Max
78
9
01
Accessories
(10.5) Typ
.413
(2.0) Typ
.079
(12.2)
.480
Indicators
456
78
FR02F
(80.0) Dia
3.150
(24.0)
.945
(11.5)
.453
3ϒMax
9
01
(10.0)
.394
Touch
(1.75)
.069
(1.2) Typ
.047
(1.5) Dia Typ
.059
Tilt
Tactiles
Slides
23
Rotaries
Keylocks
23
Programmable Illuminated PB
(3.8) Dia
.150
789A
(10.0)
.394
F
012
8
4
2
1
(13.0)
.512
(3.8)
.150
(0.2) Typ
.008
1
C
2
4
8
(10.5)
.413
C
Pushbuttons
(0.2)
.008
(0.1) Typ
.004
(2.54) Typ
.100
(2.54) Typ
.100
(1.27) Typ
.050
Toggles
3456
456
