UB2 Indicators
Toggles
Complement to UB2 Pushbuttons
TYPICAL INDICATOR ORDERING EXAMPLE
Pushbuttons
Rockers
UB2
01
K
W03 6CF
LEDs
Bright LED
5C
5D
5F
Red
Amber
Green
4J
01
Cap Types & Colors
Sculptured Cap Lens/Diffuser
Colors
1JB
1JC
1JD
1JF
2B
2C
2D
2F
Clear/White
Clear/Red
Clear/Amber
Clear/Green
Beveled Cap & Colors
White
Red
Amber
Green
Clear/White
Clear/Red
Clear/Amber
Clear/Green
Mounting Types
PCB Mounting
01
04
Square
Square
Snap-in Mounting
Programmable Illuminated PB
Housing
K
Black
Keylocks
Flat Cap Lens/Diffuser Colors
Rotaries
Terminals
W03
Silver PC/Turret
3JB
3JC
3JD
3JF
Slides
Super Bright LED
6B
White
Green
Blue
6F
6G
Sculptured Cap Lens/Diffuser
Color
1JB
2B
3JB
Clear/White
Beveled Cap & Color
White
Clear/White
Flat Cap Lens/Diffuser Color
Tilt
Tactiles
Super Bright Bicolor LED
Touch
Sculptured Cap Lens/Diffuser Color
1JB
2B
Clear/White
Beveled Cap & Color
White
Clear/White
Sculptured Cap with
Alternating Legend
4J
Clear Lens
Flat Cap with
Alternating Legend
5J
Clear Lens
01
02
04
6CF
Red/Green
Indicators
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
M
UB201KW036CF-4J01
Flat Cap Lens/Diffuser Color
3JB
Accessories
Sculptured Cap with ON–
OFF Dual Legend Filter
Red/Green Super Bright
Bicolor LED
Square with
PCB Mounting
Black
Housing
Silver PC/
Turret Terminals
www.nkk.com
Alternating
Legends
ON/OFF
START/STOP
OPEN/CLOSE
Supplement
M24
Complement to UB2 Pushbuttons
UB2 Indicators
Terminals
Toggles
MOUNTING TYPES, SHAPES, & TERMINALS
PCB Mounting
Snap-in Mounting
01
Square
04
Square with Built-in Bezel
W03
Silver PC/Turret
(1.0)
.039
Thk = (0.5)
.020
Panel Thickness:
.039 ~ .126” (1.0 ~ 3.2mm)
The electrical specifications shown are determined at a basic temperature of 25°C. Polarity marks are on the bottom of the device.
If the source voltage exceeds the rated voltage, a ballast resistor is required. The resistor value can be calculated by using the
formula in the Supplement section. The LED is an integral part of the indicator and not available separately.
Note for Super Bright:
ELECTROSTATIC
SENSITIVE DEVICES
Bright
Super Bright
Super Bright
ATTENTION
5C
Color
Red
30
20
1.85
5
0.40
5D
Amber
30
20
2.0
5
0.42
–25° ~ +50
5F
Green
25
20
2.1
5
0.46
6B
White
20
15
3.3
5
0.25
6F
Green
30
20
3.5
5
0.50
–20° ~ +50
6G
Blue
25
20
3.6
5
0.40
6CF
Red/Green
30/25
Amber 25/22
20/20
2.1/3.5
4/4
0.40/0.33
–25° ~ +50
Unit
mA
mA
V
V
mA/°C
°C
Forward Peak Current
Typical Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
I
FM
I
F
V
F
V
RM
∆I
F
M
(+)
(-)
(+)
(-)
LC (+)
L2 (-)
Green
Amber color can be achieved by lighting red and green simultaneously on the bicolor LED (not suitable for Alternating Legends).
www.nkk.com
M25
Supplement
Accessories
Bright
Single Color LED
with 1 element
Super Bright
Single Color LED
with 1 element
Super Bright
Bicolor LED
with 2 elements
L1 (-)
Red
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
LED COLORS & SPECIFICATIONS
Programmable Illuminated PB
(0.2)
.008
(4.0)
.157
Pushbuttons
Rockers
UB2 Indicators
Toggles
Complement to UB2 Pushbuttons
CAP TYPES & COLOR COMBINATIONS
1
AT3074
Scupltured
Lens/Diffuser
Colors
Available:
(6.1)
.240
2
Rockers
AT3075
Beveled
Cap
Colors
Available:
(5.6)
.220
3
AT3076
Flat
Lens/Diffuser
Colors
Available:
(5.6)
.220
JB
JC
JD
JF
Clear/
White
Clear/
Red
Clear/
Amber
Clear/
Green
B
C
D
White
Red
Amber
Green
JB
JC
JD
JF
Clear/
White
Clear/
Red
Clear/
Amber
Clear/
Green
Pushbuttons
(15.0) Sq
.591
(15.0) Sq
.591
(15.0) Sq
.591
Programmable Illuminated PB
Material: Polycarbonate
Finish: Glossy
Material: Polycarbonate
Finish: Glossy
F
Material: Polycarbonate
Finish: Glossy
Alternating Legend Caps for Super Bright Bicolor LED
4J
AT3069J Sculptured Cap
with Alternating Legend
Clear Lens
Alternating Legend Filter
Material: Polycarbonate
Finish: Glossy
(6.1)
.240
5J
AT3070J Flat Cap
with Alternating Legend
Clear Lens
Alternating Legend Filter
Material: Polycarbonate
Finish: Glossy
(5.6)
.220
FFFFFFFF
F
F
F
F
FF
F
FF
F
FF
F
F
F
F
F
F
FFF
N
N
N
N
N
N
N
N
N
N
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
F
F
F
FF
F
FF
F
FF
F
F
F
F
F
F
FFFFFFFFF
EE
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
OO
O
O
O
O
O
OOOOO
O
O
O
O
O
O
O
O
O
O
OOO
O
O
OO
O
O
O
O
EEEEEEE
SS
S
S
S
S
S
S
S
S
S
SS
S
S
S
S
S
S
S
NNNNNNN
OO
OOOO
CC
C
C
C
C
C
CC
CCCCCCC
C
C
C
C
C
C
C
C
C
C
CCC
LL
L
L
L
L
L
LLLLL
L
L
L
L
L
L
L
L
L
L
LLL
L
L
LL
PPPPP
Keylocks
(15.0) Sq
.591
(15.0) Sq
.591
Rotaries
Standard Alternating Legend Pairs
01
ON
Green
OFF
Red
02
START
Green
STOP
Red
04
OPEN
Green
CLOSE
Red
Slides
Cap illumination is alternating green/red; legend text is black.
Contact factory for other Alternating Legends.
Legend illustrations are approximate representations of the actual characters on the filters.
Tactiles
Note: Cap Removal Tool available for PCB Mount. See AT093ABC in Accessories & Hardware section for dimensions and other details.

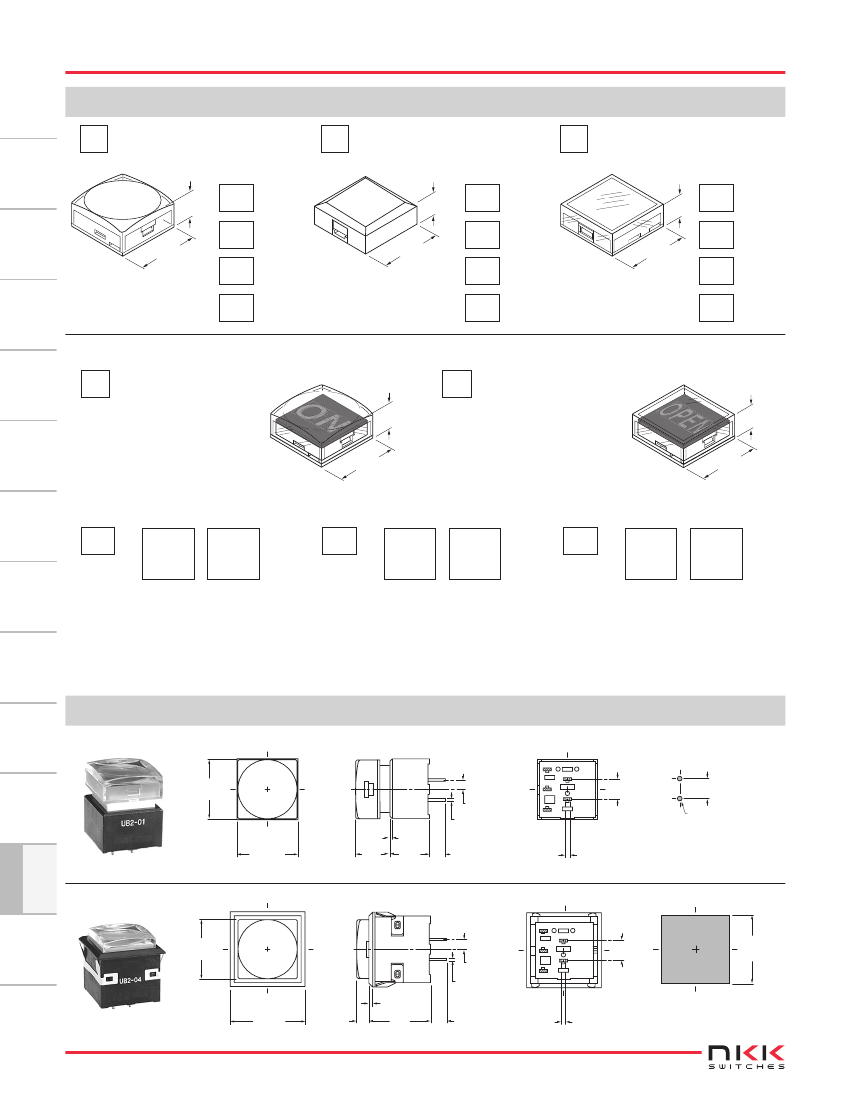

TYPICAL INDICATOR DIMENSIONS
PCB Mount
L+
N.C.
Tilt
L+
Touch
(15.0) Sq
.591
(2.54) Typ
.100
(0.5) Typ
.020
(15.24) Sq
.600
(8.5)
.335
(0.5)
.020
(10.0)
.394
(4.0)
.157
N.O.
COM
L–
(5.08)
.200
L-
(5.08)
.200
(1.2) Dia Typ
.047
(1.0)
.039
Indicators
M
UB201KW035C-1JC
Snap-in Mount
L+
Accessories
(15.0) Sq
.591
N.C.
(2.54) Typ
.100
(0.5) Typ
.020
(1.4)
.055
(15.5)
.610
N.O.
COM
L–
(5.08)
.200
(17.4) Sq
.685
Supplement
UB204KW035C-1JC
M26
(19.0) Sq
.748
(3.0)
.118
(4.0)
.157
(1.0)
.039
Panel Thickness:
.039 ~ .126” (1.0 ~ 3.2mm)
www.nkk.com
