INTRODUCTION
M O R E P O W E R . M O R E F L E X I B I L I T Y. M O R E S P E E D .
Like our popular C200H/HS mid-size PLC series, Omron’s new C200Hα
series offers the advantages of large PLC performance and I/O versatility
in a mid-size PLC package and price range. But there’s more to the
new C200Hα series—a lot more.
Improvements to the existing series, such as greater memory capacity
and faster processing speed, strengthen the C200Hα series’ capabilities
as a controller. Newly added features, such as a protocol macro and
an optional PCMCIA Card Module, transform the C200Hα series
into a powerful on-site data processing system—and transforms
your workplace into a highly responsive, information-based operation.
WHY OMRON?
Quality Recognized Industry-Wide
Omron performs 100% quality inspection and testing procedures
at every stage of manufacturing – your assurance of satisfaction.
Your 24-Hour Automation Solution
Get Omron’s SmartFactory advantage by utilizing our application
engineering know-how, extensive training, and 24-hour technical
support from anywhere in the USA. Through our commitment to
flexible manufacturing, Omron has become a leader in the manufacture
of Sensors, Digital Panel Meters, Digital Displays, Counters, Timers,
PLCs, Process and Temperature Controllers, and other control
devices.
Technical Information
FAST
Obtain up-to-date technical specifications for all Omron products
24 hours a day, 7 days a week from your fax machine. Call our
ControlFax at 847.843.1963.
Request #50 for a directory of
all documents available.
Information is also available on the internet. Visit our web site at
http://oei.omron.com
and get the latest information on Omron
products and literature.
Worldwide Sales and Support Network
You’ll find over 200 stocking distributors and local sales offices
across the United States. With distributors in Canada and Mexico,
and branch offices worldwide, Omron provides replacement
components, service and multilingual documentation virtually
anywhere in the world.
Expertise You Can Rely On
You can rely on the high quality PLC products you’ve come to
expect from Omron. Trust our nationwide network of local stocking
distributors and system integrators to offer expertise you can
depend on.
Just give us a call.
More I/O Points
C200HS
C200Hα
880
1,184 maximum
More Special I/O Modules
C200HS
C200Hα
10
16
Increased Processing Speed
C200HS
C200Hα
0.375
µs
LD execution
0.1µs LD execution speed
Increased Memory Capacity
C200HS
C200Hα
15.2k words
31.2k words maximum
Increased Data Memory
C200HS
C200Hα
6K words
24K words maximum
Enlarged SYSMAC LINK Data Link Area
C200HS
C200Hα
918 words
2,966 words
Increased Local Expansion
C200HS
C200Hα
2 expansion backplanes max.
3 expansion backplanes max.
TABLE OF CONTENTS
SECTION
PAGE NUMBER
1
2
6
8
9
10
11
14
15
17
18
19
21
22
26
SYSTEM COMPONENTS
System Overview
Introduction
Overview
PLC System specifications
CPU
Features
Selection Guide
Specifications and Characteristics
Communication Boards
Protocol Macro Function
Memory Cassettes
Power Supply Modules
Backplanes
Connecting I/O Cables
Discrete I/O Modules
Special I/O Modules
COMMUNICATIONS
Overview
Communication Modules
Fiber-optic Cable and Connections
PROGRAMMING
Programming Software
SSS and SYSWIN
Protocol Support Software
Programming Peripherals and Cables
Programming Instructions
STANDARD PARTS
COMPLEMENTARY
PRODUCTS
Operator Interface Terminals
PART NUMBER INDEX
69
70
72
89
91
92
94
97
99
123
141
142
149
NOTE: Specifications to change without notice.
Warranty:
Omron certifies all of its products either meet
or exceed stipulated specifications. Omron is not liable
for stenographic and/or clerical errors.
Omron's obligation under this warranty is limited solely
to repair or replacement at Omron's discretion. Omron
will not be liable for any design furnished by Buyer and
incorporated into equipment.
This warranty is voided if the product is altered in any
way or suffers consequential damage due to negligence
or misuse.
Omron is not to suffer risk due to the suitability or
unsuitability or the results of the use of its products used
in combination with any electrical or electronic
components, circuits, systems assemblies or any other
materials or substances or environments.
The foregoing warning is the only warranty which Omron
Electronics, Inc., provides with respect to the products
listed herein. No other warranties, expressed, implied,
or statutory shall apply, whether as to merchantability,
fitness for a particular purpose, description, or otherwise.
Limitation of Liability:
Notwithstanding any other
statement herein, Omron Electronics, Inc., its contractors
and suppliers, shall not be liable for any special, indirect,
incidental or consequential damages. The remedies of
the purchaser set forth herein are exclusive where so
stated and the total cumulative liability of Omron
Electronics, Inc., its contractors and suppliers, with
respect to this contract or anything done in connection
therewith, shall not exceed replacement price
reimbursement as to the product on which such liability
is based.
SYSTEM COMPONENTS
SYSTEM COMPONENTS
System Overview
Introduction
Overview
PLC System specifications
CPU
Features
Selection Guide
Specifications and Characteristics
Communication Boards
Protocol Macro Function
Memory Cassettes
Power Supply Modules
Backplanes
Connecting I/O Cables
Discrete I/O Modules
Special I/O Modules
1
2
6
8
9
10
11
14
15
17
18
19
21
22
26
1

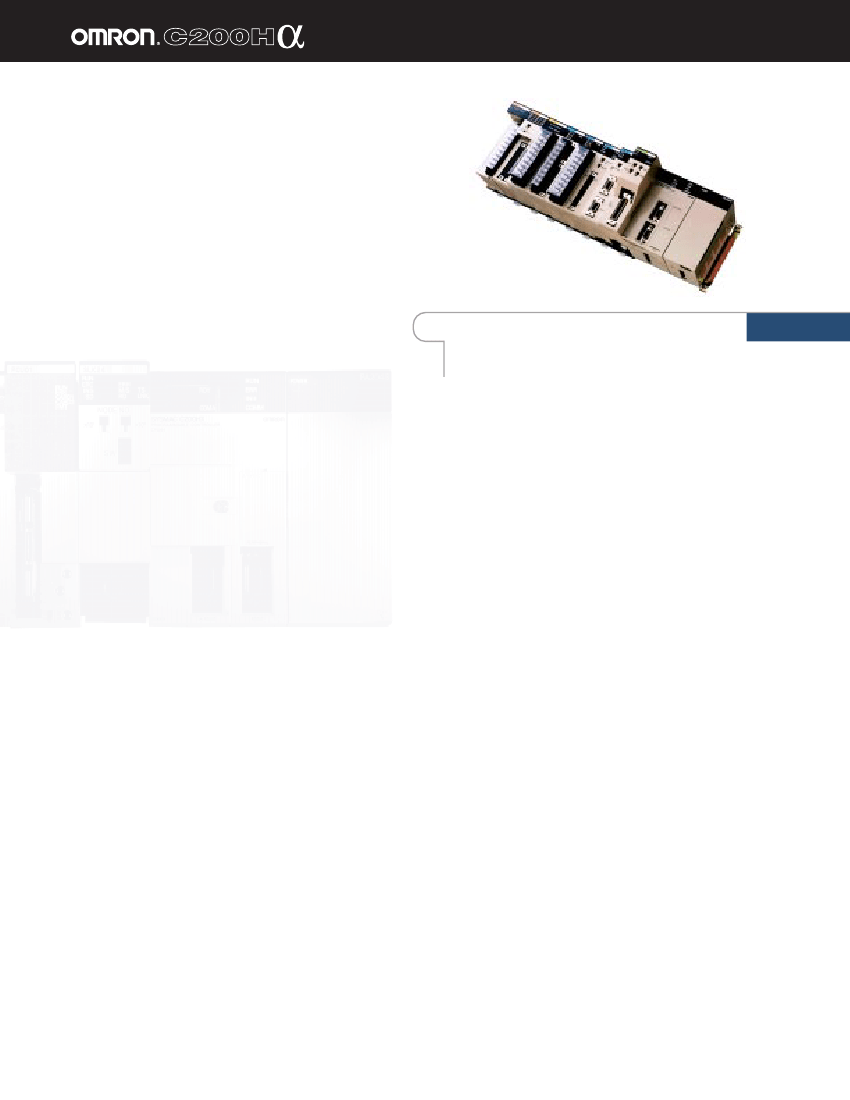

SYSTEM COMPONENTS
The New C200Hα Series:
Powerful Mid-Sized Machine Control, Powerful Onsite Data Processing
Migrate Easily
While the functions and capabilities of the
C200Hα series have been dramatically
enhanced, common languages and I/O
units allow smooth migration from
C200H/HS PLCs.
Improved Special
I/O Modules
The maximum number of Special I/O
Modules that can be mounted on the CPU
has been increased from 10 to 16 modules.
You can easily manage a control system
with the right combination of Special I/O
Modules.
The intelligent I/O read and intelligent I/O
write instructions can be executed to
transfer more than one word of data. All
of the C200HS Special I/O Modules can
be used without any modification. In
addition, a PC Card Module, Motion
Control Module, and Two-axis High-speed
Counter Module have been added.
Interface to Memory
or Ethernet via PC
Card Module
The
PC Card Module
provides two
PCMCIA interface slots. Either two type I
or II or one type III PC card can be installed.
The system accepts SRAM, FLASH and
ATA cards.
PC File Operations:
C200HX/HG/HE
memory contents may be written to
memory cards as files using ladder-
diagram instructions. File contents can be
compared and searched and word data
can be separated by commas in the file
format so that commercially available
spreadsheets may be used.
Ethernet Connection:
Using an Ethernet
PCMCIA card, data may be exchanged
using Omron’s FINS protocol via UDP/IP.
A Built-in Protocol
Macro Function
Previously, it was necessary to write a
communications program for the ASCII
Module or BASIC Module whenever a
measurement device or component was
connected to the PLC. The C200H Alpha
PLCs are equipped with the Protocol
Macro Function which incorporates these
communications programs into the ladder
program with just a few ladder instructions.
A variety of workplace data can be
processed in real-time improving quality
and reducing total product cost. System
development time can be reduced
substantially.
2
