Simple Fiber Amplifier
E3X-SD
The Standard for Fiber Amplifiers with
Simple Operation and High Performance
■
Operation so simple that essentially anyone can use the
amplifier right way.
■
Immediately determine operation and amount of light with a
simple, bright display.
■
General-purpose capabilities to simply handle a broad range of
applications.

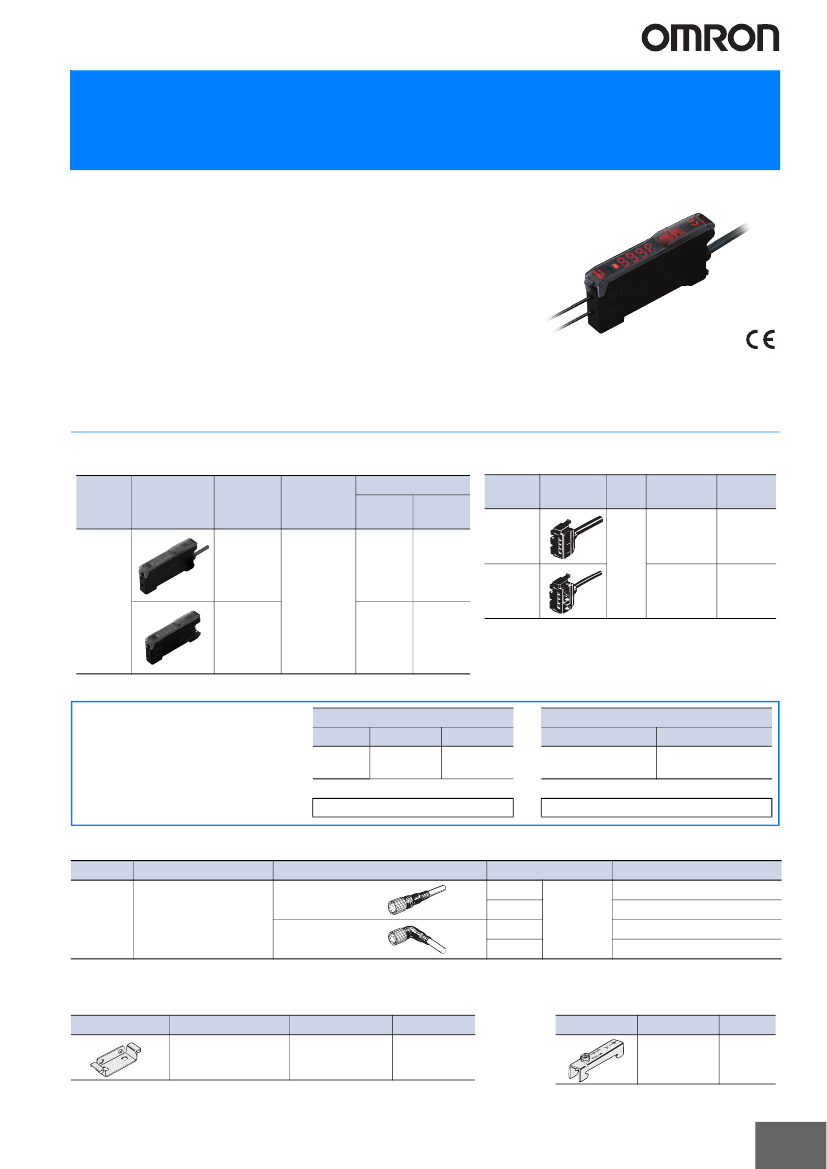

Ordering Information
Amplifier Units
Digital Display and Direct Key Setting
Item
Standard
models
Appearance
Connection Ratings and
method
Specifications
Model
NPN
output
PNP
output
Amplifier Unit Connectors (Order Separately)
Note:
Stickers for Connectors are included as accessories.
Item
Master
Connector
Appear-
ance
Cable
length
No. of
conductors
3
Model
E3X-CN11
Pre-wired
---
Wire-saving
connector
E3X-SD11 E3X-SD41
Slave
Connector
E3X-SD6 E3X-SD8
2m
1
E3X-CN12
Combining Amplifier Units and
Connectors
(Basically, Amplifier Units and Connectors are sold
separately)
Refer to the following tables when placing an order.
Amplifier Units
Type
Standard
models
NPN
E3X-SD6
PNP
E3X-SD8
Applicable Connectors (Order Separately)
+
Master Connector
E3X-CN11 (3-wire)
Slave Connector
E3X-CN12 (1-wire)
When Using 5 Amplifier Units
5 Amplifier Units
+
1 Master Connector + 4 Slave Connectors
Sensor I/O Connectors (Order Separately)
Size
Cable specifications
Appearance
Straight
connector
M8
Standard cable
L-shaped
connector
Cable type
2m
5m
2m
5m
Four-
conductor
cable
Model
XS3F-M421-402-A
XS3F-M421-405-A
XS3F-M422-402-A
XS3F-M422-405-A
Accessories (Order Separately)
Mounting Brackets
Appearance
Applicable models
E3X-SD@
Model
E39-L143
Quantity
1
End Plate
Appearance
Model
PFP-M
Quantity
1
1
E3X-SD
Ratings and Specifications
Amplifier Units
Type
Item
Model
Red LED (620 nm)
12 to 24 VDC
±10%,
ripple (p-p): 10% max.
960 mW max. (Power supply: 24 V, Current consumption: 40 mA max.)
Open-collector output (NPN or PNP)
Load power supply: 26.4 V max., Load current: 50 mA max. (Residual voltage: 1.5 V max.)
Light-ON/Dark-ON mode selector
Operate or reset: 200
μs
max.
UP/DOWN direct key setting, teaching
Power supply reverse polarity protection, output short-circuit protection, output reverse polarity protection
ON/OFF-delay timer: 10 ms (each fixed)
Up to 5 Amplifiers (optically synchronized)
Receiver side
Incandescent lamp: 10,000 lux max.
Sunlight: 20,000 lux max.
Operating: Groups of 1 to 3 Amplifiers:
−25°C
to 55°C
Groups of 4 to 11 Amplifiers:
−25°C
to 50°C
Groups of 12 to 16 Amplifiers:
−25°C
to 45°C
Storage:
−30°C
to 70°C (with no icing or condensation)
Operating and storage: 35% to 85% (with no condensation)
20 MΩ. min. (at 500 VDC)
1,000 VAC at 50/60 Hz for 1 minute (*)
Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Destruction: 500 m/s
2
, for 3 times each in X, Y and Z directions
IEC 60529 IP50 (with Protective Cover attached)
Pre-wired (standard cable length: 2 m), or connector
Pre-wired model: Approx. 100 g, Model with connector: Approx. 55 g
Case
Cover
Polybutylene terephthalate (PBT)
Polycarbonate
Instruction manual
Digital display and direct key setting
Standard models
E3X-SD@
Light source (wavelength)
Power supply voltage
Current consumption
Control output
Response time
Sensitivity adjustment
Protection circuits
Timer function
Mutual interference
prevention
Ambient illumination
Ambient temperature range
Ambient humidity range
Insulation resistance
Dielectric strength
Vibration resistance
Shock resistance
Degree of protection
Connection method
Weight (packed state)
Material
Accessories
* Models with connectors have a dielectric strength of 500 VAC.
Amplifier Unit Connectors
Item
Rated current
Rated voltage
Contact resistance
Number of insertions
Material
Housing
Contact
Model
2.5 A
50 V
20 mΩ max. (20 mVDC max., 100 mA max.)
(The above figure is for connection to the Amplifier Unit and the adjacent Connector. It does not include the conductor resistance
of the cable.)
Destruction: 50 times (for connection to the Amplifier Unit and the adjacent Connector)
Polybutylene terephthalate (PBT)
Phosphor bronze/gold-plated nickel
Approx. 55 g
E3X-CN11
Weight (packed state)
2
E3X-SD

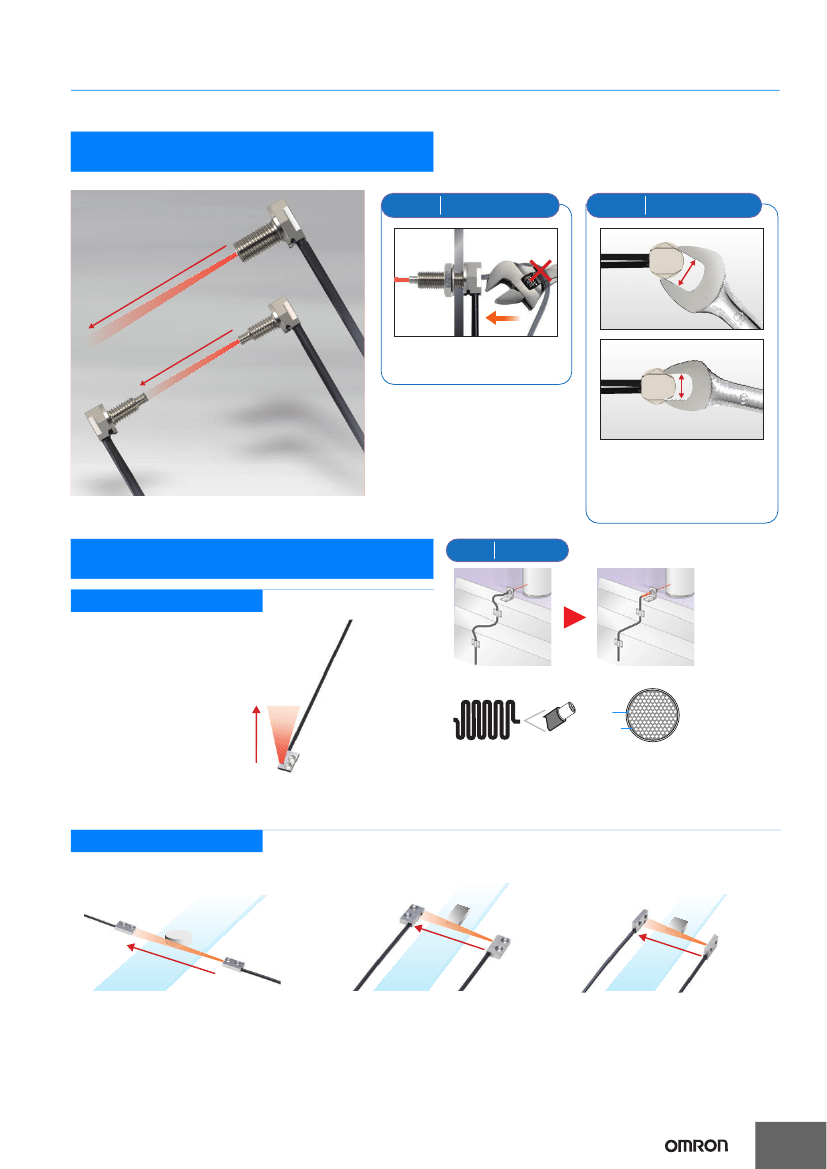

Fiber Unit Overview
No snagging, no breaking:
Right-angle (L-shaped) Models
Feature
1
L-shaped Attachment
Feature
2
New
Head Shape
90 mm
Reflective model,
M6 screw
E32-D11N
10 mm*
280 mm
Through-beam model,
M4 screw
E32-T11N
No
snagging during maintenance.
Fiber flexibility prevents
breaking.
8
mm*
Convenient design
accommodates two
wrench
sizes.
Allows quick tightening.
*For M6 models.
Flat and flexible fiber models are easy to mount
and will not break.
Reflective Fiber Units
Flat View
E32-D15ZR
Feature
No
Breaking
Conventional fiber
Flexible fiber
Cores
20 mm
Cladding
Size: 15
×
10
×
3 mm
A large number of ultrafine cores are all surrounded by cladding. As
a result, the fiber is flexible and can be bent without significantly
reducing the light intensity. This helps solve problems, such as
fiber being broken by getting caught on other objects.
Through-beam Fiber Units
Top View
E32-T15XR
Side View
E32-T15YR
Flat View
E32-T15ZR
110 mm
280 mm
110 mm
Size: 15
×
8
×
3 mm
3
E3X-SD
Sensing Distance
Through-beam Models
Model
Type
E32-T11R/E32-T12R/E32-T15XR/E32-TC200BR (B4R)
E32-T14LR/E32-T15YR/E32-T15ZR
Flexible
E32-T21R/E32-T22R/E32-T222R/E32-T25XR/
(new standard)
E32-TC200FR (F4R)
E32-T24R/E32-T25YR/E32-T25ZR
E32-TC200/E32-T12/E32-T15X/E32-TC200B (B4)
E32-T14L/E32-T15Y/E32-T15Z
Standard
models
Standard
E32-TC200A
E32-TC200E/E32-T22/E32-T222/E32-T25X/E32-TC200F (F4)
E32-T24/E32-T25Y/E32-T25Z
E32-T11/E32-T12B/E32-T15XB
Break resistant
E32-T21/E32-T221B/E32-T22B
E32-T25XB
Fluorine coating E32-T11U
E32-T17L
E32-TC200 + E39-F1
E32-T11R + E39-F1
E32-T11 + E39-F1
E32-T14
Long distance,
high power
E32-T11L/E32-T12L
E32-T11L + E39-F2
E32-T11R + E39-F2
E32-T11 + E39-F2
E32-T21L/E32-T22L
E32-T223R
Special-
E32-T33-S5
Ultracompact,
beam
ultrafine sleeve
E32-T333-S5
models
E32-T334-S5
E32-T22S
Fine beam
(narrow vision field) E32-T24S
E32-T16PR
E32-T16P
E32-T16JR
E32-T16J
Area sensing
E32-T16WR
E32-T16W
E32-T16
E32-M21
E32-T51
E32-T54
E32-T81R-S
Heat resistant
E32-T61-S + E39-F2
E32-T61-S + E39-F1
E32-T84S-S
E32-T61-S
E32-T11F
Environment
resistive
E32-T12F
Chemical
models
E32-T14F
resistant
E32-T51F
E32-T81F-S
E32-T51V
E32-T51V + E39-F1V
Vacuum
E32-T54V
resistant
E32-T54V + E39-F1V
E32-T84SV
E3X-SD@
Standard models
(Unit: mm)
280
110
60
30
400
240
360
100
90
360
100
75
360
14000
3000
2100
2000
1800
700
500
220
360
200
60
20
5
2.5
1000
700
450
600
390
520
690
920
1500
300
400
130
180
390
3000
700
300
1050
1600
200
700
350
100
600
65
390
250
For information on Fiber Units, refer to the
E32 Series Fiber Sensor Best Selection
(Cat. No. E354).
4
E3X-SD
Reflective Models
Model
Type
E32-D11R/E32-D12R/E32-D15XR/E32-DC200BR (B4R)
E32-D14LR
E32-D15YR/E32-D15ZR
E32-D211R/E32-D21R/E32-D22R/E32-D25XR/
E32-DC200FR (F4R)
E32-D24R
E32-D25YR/E32-D25ZR
E32-DC200/E32-D15X/E32-DC200B (B4)
E32-D12
E32-D14L
E32-D15Y/E32-D15Z
E32-D211/E32-DC200E/E32-D22/E32-D25X/
E32-DC200F (F4)
E32-D24
E32-D25Y/E32-D25Z
E32-D11/E32-D15XB
E32-D21B/E32-D221B
E32-D21/E32-D22B
E32-D25XB
E32-D11U
E32-D16
E32-D11L
E32-D21L/E32-D22L
E32-D33
E32-D331
E32-CC200R
E32-CC200
E32-D32L
E32-C31/E32-D32
E32-C42 + E39-F3A
Coaxial, small spot E32-D32 + E39-F3A
Special-
beam
models
E32-C41 + E39-F3A-5
E32-C31 + E39-F3A-5
E32-C41 + E39-F3B
E32-C31 + E39-F3B
E32-C31 + E39-F3C
E32-D36P1
E32-R21 + E39-R3 (provided)
Retro-reflective
E32-R16 + E39-R1 (provided)
E32-L25/E32-L25A
E32-L24S
E32-L24L
Convergent-
reflective
E32-L25L
E32-L86
E32-L16
E32-D51
Heat resistant
E32-D81R/E32-D61
E32-D73
E32-D12F
Chemical resistant
E32-D14F
Area sensing
E3X-SD@
Standard models
(Unit: mm)
Flexible
(new standard)
90
16
20
15
7
4
150
120
40
50
36
15
10
90
35
15
25
90
40 to 400
200
50
10
1.5
75
150
80
40
Spot diameter of 0.1 to 0.6 mm at
6 to 15 mm.
Spot diameter of 0.5 to 1 mm at
6 to 15 mm.
Spot diameter of 0.1 mm at 7 mm.
Spot diameter of 0.5 mm at 7 mm.
Spot diameter of 0.2 mm at 17 mm.
Spot diameter of 0.5 mm at 17 mm.
Spot diameter of 4 mm max. at
0 to 20 mm.
75
10 to 250
150 to 1500
3.3
0 to 4
2 to 6 (center 4)
5.4 to 9 (center 7.2)
4 to 10
0 to 15
120
45
30
50
20
Standard
models
Standard
Break resistant
Fluorine coating
Long distance,
high power
Ultracompact,
ultrafine sleeve
Environment
resistive
models
For information on Fiber Units, refer to the
E32 Series Fiber Sensor Best Selection
(Cat. No. E354).
5
