All Metals and Long-distance Types
E2V
CSM_E2V_DS_E_3_2
Aluminum and Iron Both
Detectable from Long Distances
Twice the max.
distance
2 times the
aluminum detection
distance of
previous models
Equipped with a
function to prevent
the detection of
aluminum chips
Long-distance
aluminum detection
Aluminum chip
protection
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Refer to
Safety Precautions
on page 8.
Features
Aluminum Detection Distance: 2 Times Previous Models
*
Immunity against aluminum chips has enabled achieving long-distance detection of aluminum workpieces. The same detection distance has also
been achieved for iron, allowing the E2V-X@ to be separated from workpieces made of either metal farther than any other Proximity Sensor.
Aluminum
Excellent Performance,
with
Aluminum Chip Immunity!
E2V
E2EZ
Aluminum Chip Immunity
Iron
Also Detects Iron at Long Distances!
E2V
E2EZ
E2EM
E2E
0
1
2
3
4
5
6
7
8
9
Sensing distance (mm)
E2EM
Long-distance (Ferrous Metals)
E2E
Standard Model
0
1
2
3
4
5
6
7
8
9
Sensing distance (mm)
* In-house comparison of M18 Shielded Long-distance Models
Detection Made Visible
An operation indicator that is visible from any direction is provided as a standard feature.
This indicator flashes under unstable conditions for easy installation condition verification at a glance.
Visible
The indicator
may be difficult
to see from
some
directions.
The indicator
is visible
from any
direction.
The indicator
is visible
from any
direction.
180°
Previous Sensor
180°
E2V Pre-wired Models
and Pre-wired Connector Models
180°
E2V Connector Models
Embeddable in Metal.
The first Long-distance Sensor that is shielded. Possible to be completely embedded in metal.
Embedded Mounting in Metal
Workpiece
E2EM
Workpiece
Protruding
distance
Bracket
E2V
1
E2V
Ordering Information
Sensors
(Dimensions
➜
page 9)
Standard-distance type
DC 3-wire, Pre-wired Models (Standard Cable Length: 2 m)
Appearance
M12
Shielded
Sensing distance
Output
PNP
Model
Operation mode NO
Operation mode NC
2 mm
5 mm
10 mm
NPN
PNP
NPN
PNP
NPN
M18
M30
E2V-X2B1 2M
E2V-X2C1 2M
E2V-X5B1 2M
E2V-X5C1 2M
E2V-X10B1 2M
E2V-X10C1 2M
E2V-X2B2 2M
E2V-X2C2 2M
E2V-X5B2 2M
E2V-X5C2 2M
E2V-X10B2 2M
E2V-X10C2 2M
Long-distance type
DC 3-wire, Pre-wired Models (Standard Cable Length: 2 m)
Appearance
M12
Shielded
Sensing distance
Output
PNP
Model
Operation mode NO
Operation mode NC
4 mm
8 mm
15 mm
NPN
PNP
NPN
PNP
NPN
M18
M30
E2V-X4B1 2M
E2V-X4C1 2M
E2V-X8B1 2M
E2V-X8C1 2M
E2V-X15B1 2M
E2V-X15C1 2M
E2V-X4B2 2M
E2V-X4C2 2M
E2V-X8B2 2M
E2V-X8C2 2M
E2V-X15B2 2M
E2V-X15C2 2M
Long-distance type
DC 3-wire, Connector Models
Appearance
M12
Shielded
Sensing distance
Output
PNP
Model
Operation mode NO
Operation mode NC
4 mm
8 mm
15 mm
NPN
PNP
NPN
PNP
NPN
M18
M30
E2V-X4B1-M1
E2V-X4C1-M1
E2V-X8B1-M1
E2V-X8C1-M1
E2V-X15B1-M1
E2V-X15C1-M1
E2V-X4B2-M1
E2V-X4C2-M1
E2V-X8B2-M1
E2V-X8C2-M1
E2V-X15B2-M1
E2V-X15C2-M1
Long-distance type
DC 3-wire, Smartclick Pre-wired Connector (M12) Models
Appearance
M12
Shielded
Sensing distance
Output
PNP
Model
Operation mode NO
4 mm
8 mm
15 mm
NPN
PNP
NPN
PNP
NPN
M18
M30
E2V-X4B1-M1TJ 0.3M
E2V-X4C1-M1TJ 0.3M
E2V-X8B1-M1TJ 0.3M
E2V-X8C1-M1TJ 0.3M
E2V-X15B1-M1TJ 0.3M
E2V-X15C1-M1TJ 0.3M
2
E2V
Accessories (Order Separately)
Sensor I/O Connectors (M12, Sockets on One Cable End)
is not provided with the Sensor. Be sure to order a Connector separately.
(Dimensions
➜
XS5)
Appearance
Type
Standard cable
5m
Oil-resistant polyurethane
cable
2m
5m
Cable length
2m
Model
Applicable Proximity Sensor Models
(Required for models with Pre-wired Connectors.) A Connector
Smartclick
Connector,
Straight
XS5F-D421-D80-F
XS5F-D421-G80-F
XS5F-D421-D80-P
XS5F-D421-G80-P
E2V-X@B1-M1TJ
E2V-X@C1-M1TJ
Sensor I/O Connectors (M12, Sockets on One Cable End) Standard type
(Required for models for Connectors.) A Connector is not
provided with the Sensor. Be sure to order a Connector separately.
(Dimensions
➜
XS2)
Appearance
Cable length
2m
Straight
Sensor I/O Connector
model number
Applicable Proximity Sensor Models
E2V-X@C1-M1
E2V-X@B1-M1
E2V-X@C@-M1
E2V-X@B@-M1
E2V-X@C1-M1
E2V-X@B1-M1
E2V-X@C@-M1
E2V-X@B@-M1
XS2F-D421-DC0-F
XS2F-D421-GC0-F
XS2F-D421-D80-F
XS2F-D421-G80-F
XS2F-D422-DC0-F
XS2F-D422-GC0-F
XS2F-D422-D80-F
XS2F-D422-G80-F
5m
2m
5m
2m
L-shape
5m
2m
5m
3
E2V
Ratings and Specifications
Size
Item
Set distance
Differential travel
Detectable object
Standard sensing
object
Response
frequency
*
Power supply
voltage
(operating voltage
range)
Current
consumption
Control
output
Load
current
Residual
voltage
Model
E2V-X2@@
2 mm±10%
0 to 1.6 mm
Sensing distance
M12
E2V-X4@@
4 mm±10%
0 to 3.2 mm
E2V-X5@@
5 mm±10%
0 to 4.0 mm
M18
E2V-X8@@
8 mm±10%
0 to 6.4 mm
E2V-X10@@
10 mm±10%
0 to 8.0 mm
M30
E2V-X15@@
15 mm±10%
0 to 12.0 mm
10% max. of sensing distance
Ferrous metals and non-ferrous metals (The sensing distance depends on the material of the sensing object. Refer to
Engineering Data (Reference value).)
Aluminum:
12
×
12
×
3 mm
150 Hz
Aluminum:
12
×
12
×
3 mm
40 Hz
Aluminum:
18
×
18
×
3 mm
70 Hz
Aluminum:
24
×
24
×
3 mm
40 Hz
Aluminum:
30
×
30
×
3 mm
70 Hz
Aluminum:
45
×
45
×
3 mm
30 Hz
12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
450 mW max. (Current consumption: 15 mA max. at power supply voltage of 30 V)
Open-collector output, 100 mA max.
2 V max. (Load current: 100 mA, Cable length: 2 m)
NO Models: Operation indicator (yellow) (flashing), Setting indicator (yellow) (lit); NC Models: Operation indicator (yellow)
(lit)
B1/C1 Models: NO
(Refer to the timing charts under
I/O Circuit Diagrams
for details.)
B2/C2 Models: NC
Power supply reverse polarity protection, reversed output polarity protection, load short-circuit protection, surge
suppressor
Operating/Storage: -25 to 70°C (with no icing or condensation)
Operating/Storage: 35% to 95% (with no condensation)
Based on the sensing distance at 23°C in the temperature range of -25 to 70°C
±10%
max.
±15%
max.
±10%
max.
±15%
max.
±10%
max.
±15%
max.
±1.5%
max. of sensing distance at rated voltage in the rated voltage
±15%
range
50 MΩ min. (at 500 VDC) between current-carrying parts and case
1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Destruction: 1,000 m/s
2
10 times each in X, Y, and Z directions
IEC IP67 (Pre-wired Models and Pre-wired Connector Models are oil-resistant to the OMRON in-house standard.)
Pre-wired Models (Standard cable length: 2 m), Connector Models, Pre-wired Connector Models (Standard cable length:
300 mm)
Approx. 120 g
Approx. 30 g
Approx. 50 g
Nickel-plated brass
Heat-resistant ABS
Nickel-plated brass
Zinc-plated iron
Instruction manual
Approx. 150 g
Approx. 45 g
Approx. 70 g
Approx. 200 g
Approx. 120 g
Approx. 140 g
Indicators
Operation mode
Protection circuits
Ambient
temperature
Ambient humidity
Temperature
influence
Voltage influence
Insulation
resistance
Dielectric strength
Vibration
resistance
Shock resistance
Degree of
protection
Connection
method
Cable
Weight
(packed
state)
Materials
Connector
Pre-wired
Connector
Models
Case
Sensing
surface
Clamping
nuts
Toothed
washer
Accessories
* The response frequency is an average value.
Measurement conditions are as follows: Standard sensing object, a distance between target objects of twice the size of the standard sensing object, and a set distance
of half the sensing distance.
4
E2V

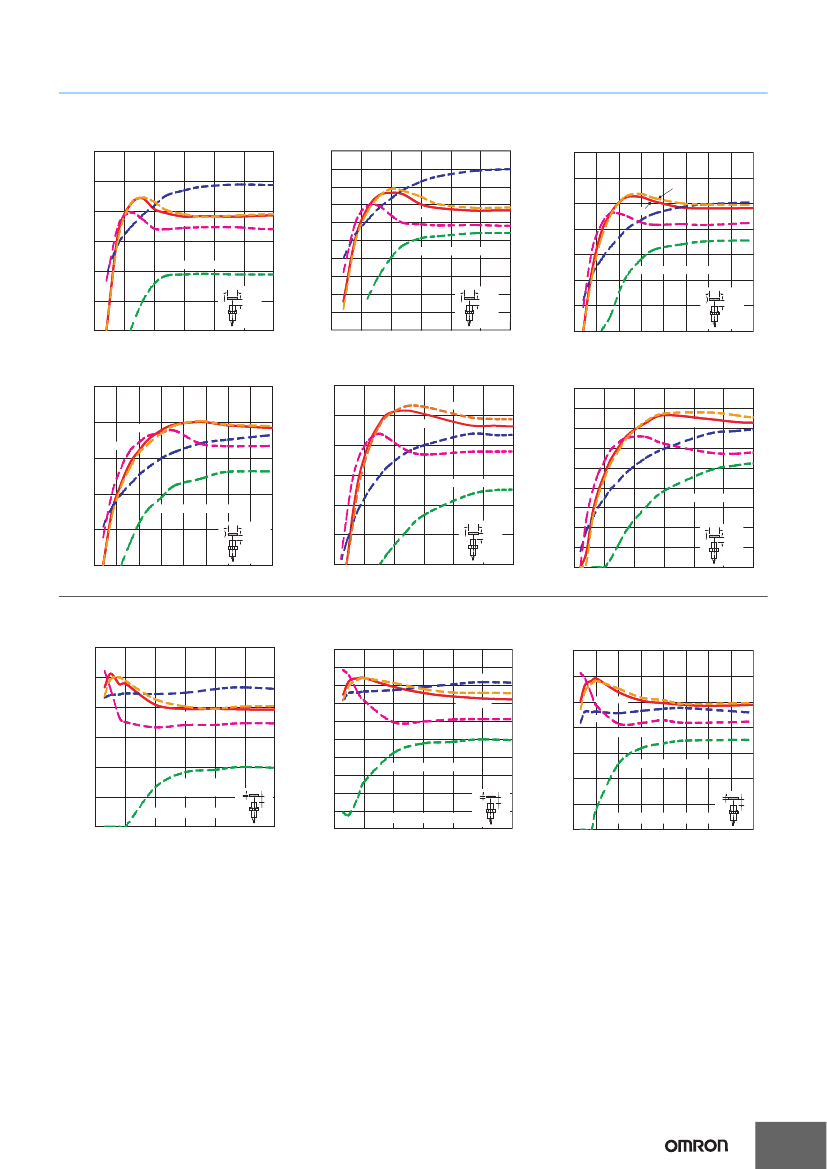

Engineering Data (Reference Value)
Influence of Sensing Object Size and Material
E2V-X2
3.0
2.5
Sensing distance X (mm)
Brass
2.0
Aluminum
1.5
Copper
Iron
4.0
Sensing distance X (mm)
3.5
Aluminum
3.0
Copper
2.5
2.0
1.5
1.0
0.5
0.0
0.0
0
5
10
15
20
25
Side length of sensing object d (mm)
30
0
5
10
15
20
25
Side length of sensing object d (mm)
30
@
d
X
E2V-X4
5.0
4.5
Brass
Iron
E2V-X5
7.0
6.0
Sensing distance X (mm)
5.0
Copper
4.0
Iron
3.0
Stainless steel (SUS304)
2.0
@
d
t= 3 mm
Brass
Aluminum
Stainless steel (SUS304)
1.0
Stainless steel (SUS304)
0.5
@
d
t= 3 mm
X
t= 3 mm
1.0
0.0
X
0
5
10
15
20
25
30
35
Side length of sensing object d (mm)
40
E2V-X8
10.0
Brass
E2V-X10
12.0
Brass
Sensing distance X (mm)
10.0
Aluminum
E2V-X15
18.0
16.0
14.0
Sensing distance X (mm)
12.0
10.0
8.0
Stainless steel (SUS304)
6.0
4.0
2.0
@
d
t= 3 mm
X
Brass
Aluminum
Copper
Iron
8.0
Sensing distance X (mm)
Aluminum
Copper
8.0
Copper
6.0
Stainless steel (SUS304)
4.0
Iron
6.0
Iron
4.0
Stainless steel (SUS304)
2.0
@
d
t= 3 mm
X
2.0
@
d
t= 3 mm
X
0.0
0
5
10
15
20
25
30
35
Side length of sensing object d (mm)
40
0.0
0
10
20
30
40
50
Side length of sensing object d (mm)
60
0.0
0
10
20
30
40
50
Side length of sensing object d (mm)
60
Influence of Sensing Object Size and Material
E2V-X2
3.0
2.5
Sensing distance X (mm)
E2V-X4
5.0
4.5
Brass
Iron
Sensing distance X (mm)
Brass
Aluminum
4.0
Iron
E2V-X5
7.0
6.0
Sensing distance X (mm)
5.0
4.0
3.0
Stainless steel (SUS304)
2.0
1.0
0.0
t
X
2.0
3.5
3.0
2.5
2.0
Aluminum
Copper
Aluminum
Iron
Brass
1.5
Copper
Copper
1.0
Stainless steel
(SUS304)
Stainless steel (SUS304)
1.5
1.0
t
X
0.5
t
X
Sensing object size: 12
×
12 mm
0.0
0
1
2
3
4
5
Thickness of sensing object: t (mm)
6
0.5
0.0
0
Sensing object size: 12
×
12 mm
1
2
3
4
5
Thickness of sensing object: t (mm)
6
0
1
Sensing object size: 18
×
18 mm
2
3
4
5
6
7
Thickness of sensing object: t (mm)
8
5
