QX–870
Intelligent
Raster
Industrial Raster
Laser Scanner

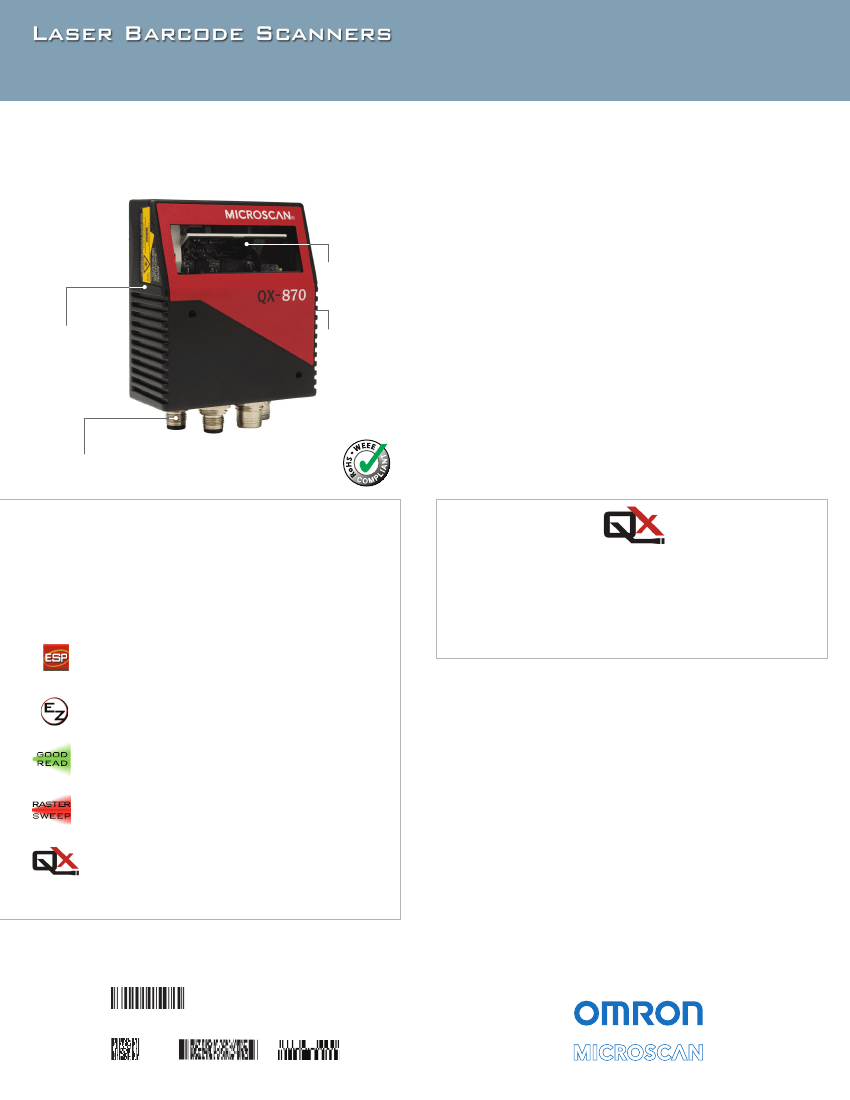

The QX-870 laser scanner partners the latest
technologies in barcode reading and connectivity
into an easy to use solution for barcode track,
trace and control applications. Simple to set up
and deploy, it features a programmable sweeping
raster to read multiple codes, in varying loca-
tions, even if they are damaged or mis-aligned.
With plug and play setup and the most
aggressive decode algorithms available, the
QX-870 an ideal laser scanner for any industrial
application.
IP65
Enclosure
EZ Button
Setup
M12 Connectors & Optional
Embedded Ethernet
QX–870: At a Glance
• Scans/second: 300 to 1400
• Read Range: 1 to 30” (25 to 762 mm)
• Optional Embedded Ethernet TCP/IP & EtherNet/IP
• IP65 Enclosure
ESP®Easy Setup Program:
Single-point software solution
provides quick and easy setup and configuration of all
Omron Microscan readers.
EZ Button:
This performs reader setup and configuration
with no computer required.
Visible Indicators:
Performance indicators include “good
read” green flash and LEDs.
Sweeping Raster:
This programmable feature enables
the reader for multiple symbols at varying distances and
locations.
QX Platform:
Quick Connect system and X-Mode technol-
ogy combine to provide simple connectivity, networking,
and high performance decoding.
Quick Connect System
•M12
connectors and
cordsets
•Plug
and play setup
•Single
or multi-scanner
solutions
High Performance
Aggressive decoding capa-
bilities allow reliable read-
ing of barcodes out to 30”
(762 mm), at up to a 10”
(254 mm) beam width.
Intelligent Raster
In addition to sweep angle
and speed controls, the
QX-870 features a program-
mable raster with intelligent
auto framing technology.
Advanced software will
automatically frame the
raster height and width
of the laser to match the
barcode, allowing selective
targeting of codes within a
single read cycle.
X-Mode Technology
•Decodes
damaged,
poorly printed, or mis-
aligned codes
•Ensures
high read rates
and throughput
Ethernet Protocols
The QX-870 includes
optional embedded Ethernet
TCP/IP and EtherNet/IP for
high speed communication.
Application Examples
•Any industrial environment
from light to heavy duty
• Automotive assembly
• Packaging and sortation
• Electronics production
•Embedded within machinery
For more information on this product, visit
www.microscan.com.
Q X – 8 7 0 : Av a i l a b l e C o d e s
Linear
Stacked
All Standard
MicroPDF
PDF417
GS1 Databar
QX–870 Industrial Raster Laser Scanner

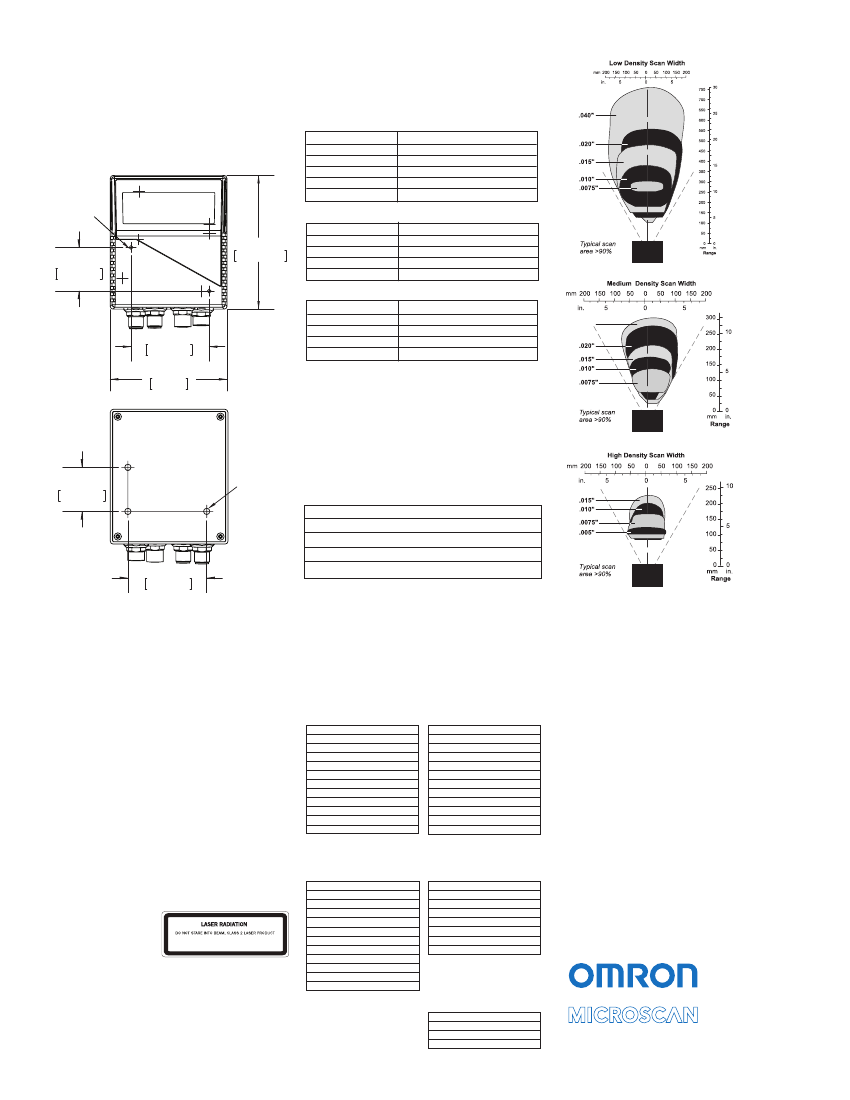

Specifications and Options
MECHANICAL
Height:
4.29” (109 mm)
Width
3.74” (95 mm)
Depth:
1.76” (45 mm)
Weight:
16 oz. (453 g)
READ RANGES
1
LOW DENSITY RANGE DATA
Narrow-bar-width
.0075" (0.191 mm)
.010" (0.254 mm)
.015" (0.381 mm)
.020" (0.508 mm)
.040" (1.02 mm)
Read Range
10 to 12" (254 to 305 mm)
7 to 15" (178 to 381 mm)
6 to 19" (152 to 483 mm)
5 to 22" (127 to 558 mm)
4 to 30" (102 to 762 mm)
2X M4x0.7
6mm DEPTH
MIN
1.40in
35.6mm
4.29in
108.8mm
MEDIUM DENSITY RANGE DATA
.0075" (0.191 mm)
.010" (0.254 mm)
.015" (0.381 mm)
.020" (0.508 mm)
.030" (0.762 mm)
2.5
1.5
1.5
1.5
1.0
to
to
to
to
to
5.5" (64 to 140 mm)
7.0" (38 to 178 mm)
8.5" (38 to 216 mm)
11" (38 to 280 mm)
12" (25 to 304 mm)
QX-870
HIGH DENSITY RANGE DATA
.0033" (0.084 mm)
.005" (0.127 mm)
.0075" (0.191 mm)
.010" (0.254 mm)
.015" (0.381 mm)
1
2.50in
63.6mm
3.74in
95mm
Call Omron Microscan
4 to 5.0" (102 to 127 mm)
3.5 to 6.75" (89 to 171 mm)
3.25 to 8" (82 to 203 mm)
3.25 to 9" (82 to 228 mm)
.030”
Ranges based on a Grade A, Code 39 label, at 500 scans per second.
Data subject to change.
SCANNING PARAMETERS
1.40in
35.6mm
3X M4x0.7
7mm
DEPTH
MIN
Mirror Type:
Rotating, 10-faceted
Scan Rate:
Adjustable from 300 to 1400
scans/sec; default is 500 scans/sec
Scan Width Angle:
Typically 60°
Pitch:
±50° max.
Skew:
±40° max.
Label Contrast:
25% min. absolute dark to
light differential at 655 nm wavelength
Raster Mirror Performance:
Raster sweep angle
Maximum sweeps per second
QX-870
2.50in
63.6mm
1°–10°
11°–20°
21°–34° (max.)
35°–36° (max.)
80
60
40
20
QX-870
Note: Data subject to change.
PROTOCOLS
Enclosure:
IP65 rated
Operating Temperature:
0° to 50° C
(32° to 122° F )
Storage Temperature:
-40° to 75° C
(-40° to 167° F )
Humidity:
Up to 90% (non-condensing)
ENVIRONMENTAL
Point-to-Point, Point-to-Point w/RTS/CTS,
Point-to-Point w/XON/XOFF, Point-to-Point
w/RTS/CTS & XON/XOFF, Multidrop, Daisy
Chain, User-Defined Multidrop, Ethernet
TCP/IP, EtherNet/IP
DISCRETE I/O
PIN ASSIGNMENTS
2
Connector A (Serial)
M12 12-pin plug:
Pin Assignment
9 Host RxD
10 Host TxD
2 Power
7 Ground
1 Trigger
8 Input Common
3 Default
4 New Master
5 Output 1
11 Output 2
6 Output 3
12 Output Common
Connector B (Serial)
M12 12-pin socket:
Pin Assignment
9 TxD/RTS
10 RxD/CTS
2 Power
7 Ground
1 Trigger
8 Input Common
3 Terminated
4 Input 1
5 422/485 TxD (+)
11 422/485 TxD (–)
6 422/485 RxD (+)
12 422/485 RxD (–)
Input 1/Trigger/New Master:
Bi-directional
optoisolated 4.5–28V rated (13 mA at 24 VDC)
Outputs (1, 2 & 3):
Optoisolated,
1–28V rated, (I
CE
<100 mA at 24 VDC,
current limited by user)
EMISSIONS
Heavy Industrial:
EN 61000-6-2:2005
Radiated Emissions:
EN 55022:2006
Class A 30-1000 MHz
Conducted Emissions:
EN 55022:2006
Class A .15-30 MHz
COMMUNICATION INTERFACE
SYMBOLOGIES
Interface:
RS-232/422/485 and/or Ethernet
Standard:
Code 39, Codabar, Code 93,
Interleaved 2 of 5, Code 128, PDF417,
Micro PDF417, Pharmacode, UPC, GS1 Databar
Applications Standard:
EAN-128, AIAG
Connector P (Serial) Connector B (Ethernet)
/M
M12 8-pin socket:
M12 12-pin plug:
Pin Assignment
9 N/C
10 N/C
2 Power
7 Ground
1 N/C
8 N/C
3 N/C
4 N/C
5 422/485 TxD (+)
11 422/485 TxD (–)
6 422/485 RxD (+)
12 422/485 RxD (–)
2
QMS CERTIFICATION
www.microscan.com/quality
LASER LIGHT
Type:
Laser diode
655nm 1.75mW 40~186µs
Output Wavelength:
655 nm nominal
Operating Life:
50,000 hours @ 25° C
Safety Class:
Visible laser: Class 2, 655 nm
IEC 60825-1 Ed. 2 (2007)
Pin
1
2
3
4
5
6
7
8
Assignment
Terminated
Terminated
Terminated
TX (–)
RX (+)
TX (+)
Terminated
RX (–)
©2019 Omron Microscan Systems, Inc. SP056L-EN-0719
Read Range and other performance data is determined using high-quality Grade-A
symbols per ISO/IEC 15415 and ISO/IEC 15416 in a 25° C environment.
For application-specific Read Range results, testing should be performed with
symbols used in the actual application. Omron Microscan Applications Engineering
is available to assist with evaluations. Results may vary depending on symbol
quality.
Warranty–For
current warranty information on this product, please visit
www.microscan.com/warranty.
Connector T (Trigger)
M12 4-pin socket:
Pin
1
2
3
4
Assignment
Power
Trigger
Ground
Input Common
ELECTRICAL
Power Requirement:
9 Watts (max.),
10–28 VDC, 200 mV p-p max ripple,
270mA at 24 VDC (typ.)
Note: Detailed connector pinout
information is available in the
User’s Manual.
www.microscan.com
