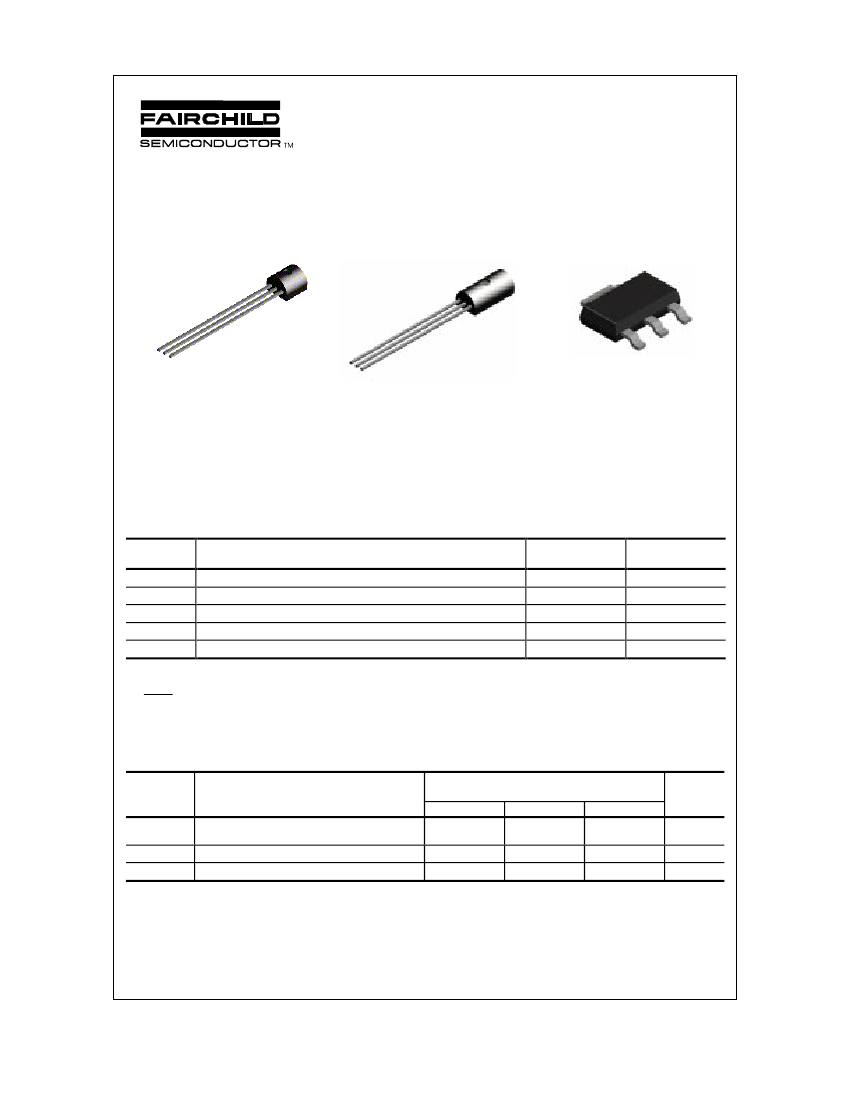

2N7052 / 2N7053 / NZT7053
Discrete POWER & Signal
Technologies
2N7052
2N7053
NZT7053
C
E
C
B
TO-92
E
C
B
E
C
TO-226
B
SOT-223
NPN Darlington Transistor
This device is designed for applications requiring extremely high
gain at collector currents to 1.0 A and high breakdown voltage.
Sourced from Process 06.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Value
100
100
12
1.5
-55 to +150
Units
V
V
V
A
°C
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJC
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Case
Thermal Resistance, Junction to Ambient
2N7052
625
5.0
83.3
200
Max
2N7053
1,000
8.0
125
50
*NZT7053
1,000
8.0
125
Units
mW
mW/°C
°C/W
°C/W
*
Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm
