FAN431AZXA_MATSUSHI datasheet, PDF

Datasheet> All Categories > semiconductor> Multi-channel IC (PMIC)> FAN431AZXA_MATSUSHI

FAN431AZXA_MATSUSHI: Description分流器电压基准 IC 36 V ±1% TO-92-3; Categorysemiconductor Multi-channel IC (PMIC); File Size989KB，10 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

FAN431AZXA_MATSUSHI Overview

分流器电压基准 IC 36 V ±1% TO-92-3

FAN431AZXA_MATSUSHI Parametric

Parameter Name	Attribute value
category
Maker	ON Semiconductor
series	-
Package	带盒（TB）
Reference type	shunt
Output type	Adjustable
Voltage - Output (minimum/fixed)	2.495V
Tolerance	±1%
Temperature Coefficient	标准为 50ppm/°C
Noise - 0.1Hz to 10Hz	-
Noise - 10Hz to 10Hz	-
Voltage - input	-
Current - power supply	-
Operating temperature	-25°C ~ 85°C（TA）
Installation type	Through hole
Package/casing	TO-226-3, TO-92-3 (TO-226AA) (formed lead)
Supplier device packaging	TO-92-3
Voltage - Output (maximum)	36 V
Current - Output	100 mA
Current - cathode	1 mA
Basic product number	FAN431

Preview

Download Datasheet

View All

May 2007

FAN431/FAN431A/FAN431L

Programmable Shunt Regulator

Features

• Programmable Output Voltage to 36 Volts

• Low Dynamic Output Impedance 0.20 Typical

• Sink Current Capability of 1.0 to 100mA

• Equivalent Full-Range Temperature Coefficient of

50ppm/°C Typical

• Temperature Compensated for Operation Over

Full Rated Operating Temperature Range

• Low Output Noise Voltage

• Fast Turn-on Response

Description

The FAN431/FAN431A/FAN431L are three terminal

output adjustable regulators with thermal stability over

operating temperature range. The output voltage can be

set any value between V

REF

(approximately 2.5 volts)

and 36 volts with two external resistors. These devices

have a typical dynamic output impedance of 0.2Ω Active

output circuit provides a sharp turn-on characteristic,

making these devices excellent replacement for Zener

Diodes in many applications

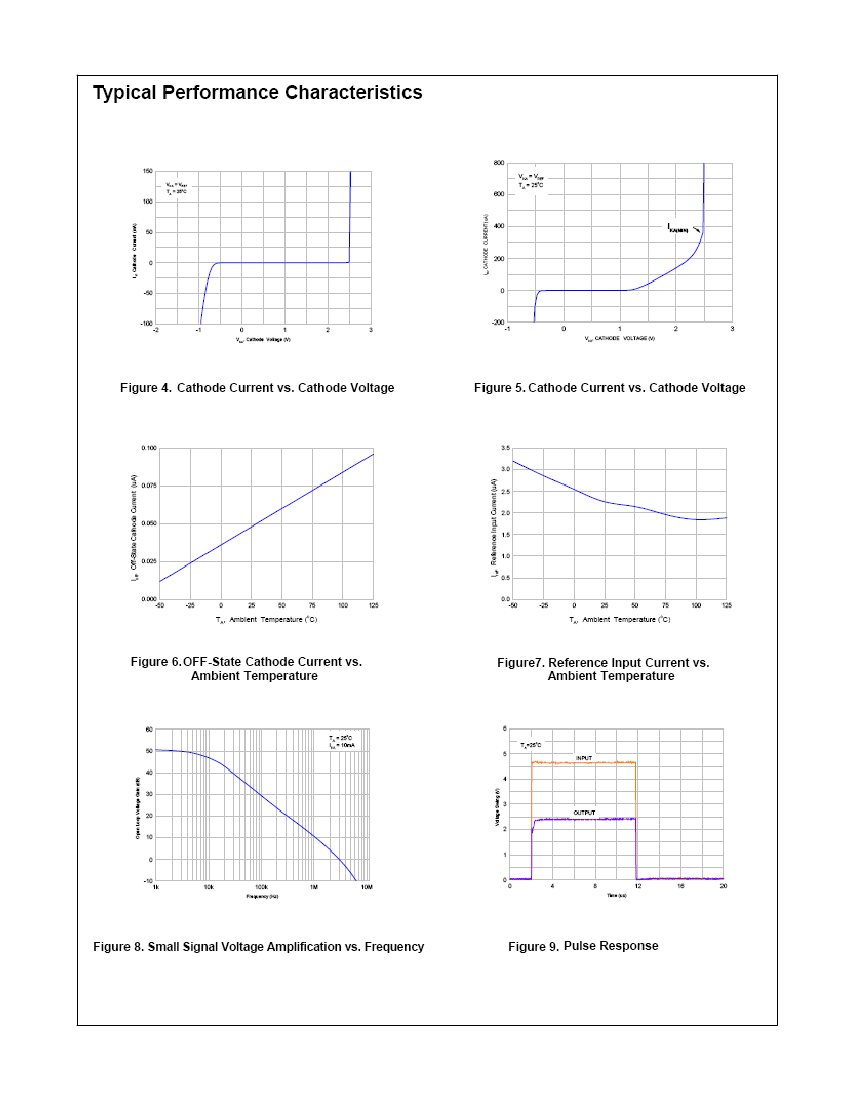

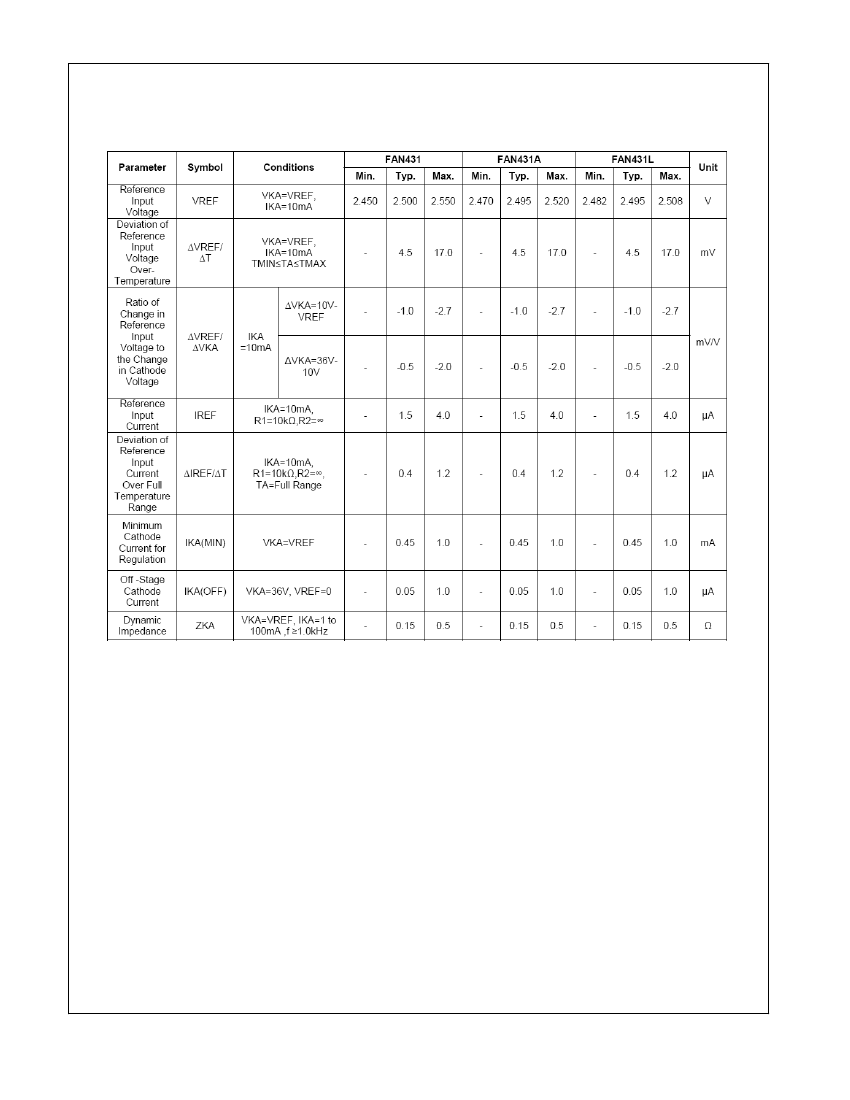

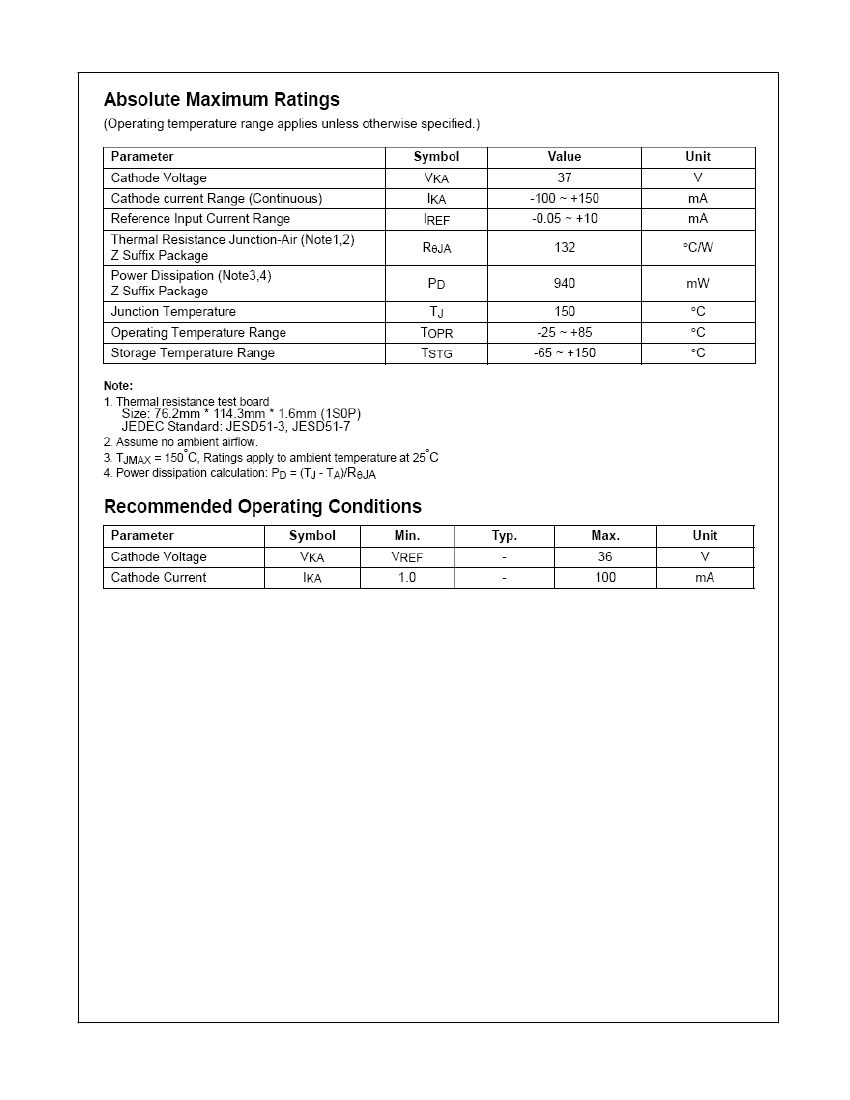

Device Number Rev. 1.0.2

www.fairchildsemi.com
