G6B
PCB Power Relay
High Capacity and High
Dielectric Strength Miniature
Relay with Fully Sealed
Construction in 5 A (8 A)
SPST-NO(1a),
SPST-NO+SPST-NC(1a1b),
DPST-NO(2a),
DPST-NC(2b) Types
• P6B model for connecting sockets are available.
• High insulation with dielectric strength of 3,000VAC
between coil and contacts (impulse withstand voltage of
6 kV).
• Standard model conforms to UL/CSA standards.
• AgSnIn contacts suitable for loads that generate surge voltage (inductive load, capacity load, etc.) are available. (-FD type)
• Ultrasonic cleanable models are available. (-U type)
• Operation indicator & built-in surge absorption diode models are available. (-ND type)
• 2-Pole type available.
• High-reliability models are available.

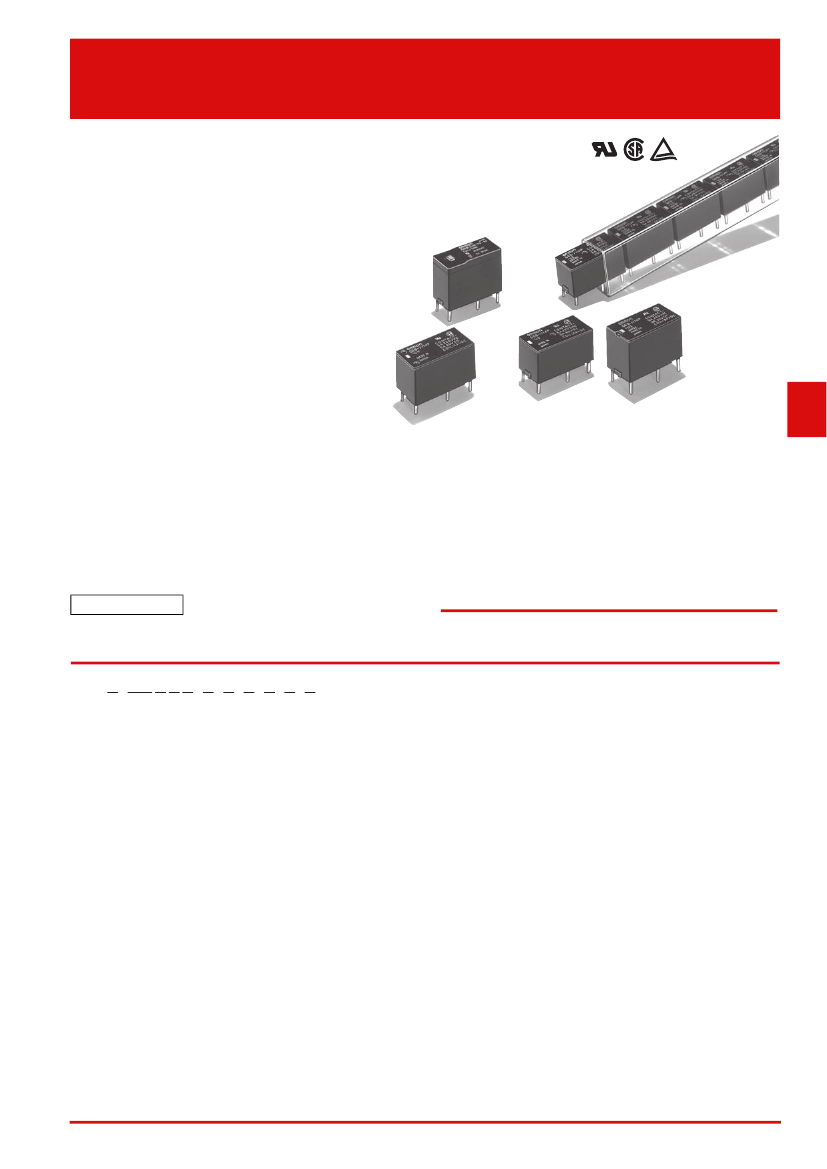

G6B-1184P-US model (The relay used in Terminal Relay G6B-48BND)
RoHS Compliant
G
6
B
■Application
Examples
• Ideal for output applications of control equipments
■Model
Number Legend
G6B@ -@
@@ @@
-
@- @-@- @-@
-@
-
1
2
3 4 5
6
7
8
9 10 11
4. Enclosure rating
4: Fully sealed
7: Flux protection
5. Terminal Shape
P: Straight PCB terminals
Socket mounting terminals
C: Self-clinching PCB
6. Contact material
None: Standard (Ag-alloy (Cd free))
FD : AgSnIn contact
(Suitable for DC inductive load with
high inrush current)
7. Coil Polarity
None: 5, 6 Terminal (+), 1, 2 Terminal (-)
1 : 5, 6 Terminal (-), 1, 2 Terminal (+)
8. Operation Indicator Diode
Availability
None: Standard
ND : Operation indicator & coil surge
absorption diode
(for -1177 type only)
9. Approved Standards
US: UL/CSA
10. Washability
None: Standard
U : For ultrasonically cleanable
11. Mounting
None: Mounted directly to PCB
P6B : Mounted to Socket
1. Relay Function
None: Single-side stable
U : Single-winding latching
(G6B@-1114 models only)
K : Double-winding latching
(G6B@-1114 models only)
2. Contact Form
21: SPST-NO + SPST-NC
22: DPST-NO
20: DPST-NC
11: SPST-NO
3. Classification
1: Standard
7: High-capacity
8: Single crossbar
1
G6B
■Ordering
Information
●
Standard Models (UL, CSA certified)
Number
of poles
Contact material
Relay Function
Contact form
SPST-NO (1a)
(Standard)
Single-side
stable
SPST-NO (1a)
(High-capacity)
SPST-NO (1a)
(High-reliability )
1-pole
Single-winding
latching
Double-winding
latching
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
Terminals
Straight PCB
Standard (Ag-alloy (Cd free))
Model
G6B-1114P-US
Rated coil voltage
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 12, 24 VDC
---
5, 6, 12, 24 VDC
12 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
5, 6, 12, 24 VDC
PCB Power Relay
AgSnIn contact
Model
G6B-1114P-FD-US
G6B-1114C-FD-US
G6B-1174P-FD-US
G6B-1174C-FD-US
---
---
G6BU-1114P-FD-US
---
G6BK-1114P-FD-US
G6BK-1114C-FD-US
G6B-1177P-FD-ND-US
Minimum
packing unit
Rated coil voltage
5, 6, 12, 24 VDC
12, 24 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
---
---
5, 12, 24 VDC
---
5, 6, 12, 24 VDC
24 VDC
5, 12, 24 VDC
100
pcs/tray
100
pcs/tray
20
pcs/tube
Self-clinching
G6B-1114C-US
PCB
Straight PCB
G6B-1174P-US
Self-clinching
G6B-1174C-US
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
G6B-1184P-US
---
G6BU-1114P-US
Self-clinching
G6BU-1114C-US
PCB
Straight PCB
G6BK-1114P-US
Self-clinching
G6BK-1114C-US
PCB
Single-side
stable
SPST-NO (1a)
Straight PCB
G6B-1177P-ND-US
(Built-in high-
capacity operation Self-clinching
G6B-1177C-ND-US
indicator & diode) PCB
SPST-NO (1a)+
SPST-NC (1b)
(Standard)
Straight PCB
G6B-2114P-US
Self-clinching
G6B-2114C-US
PCB
Straight PCB
G6B-2214P-US
Self-clinching
G6B-2214C-US
PCB
Straight PCB
G6B-2014P-US
Self-clinching
G6B-2014C-US
PCB
G6B-1177C-FD-ND-US
12, 24 VDC
G6B-2114P-FD-US
G6B-2114C-FD-US
G6B-2214P-FD-US
G6B-2214C-FD-US
G6B-2014P-FD-US
G6B-2014C-FD-US
5, 6, 12, 24 VDC
5, 12 VDC
5, 6, 12, 24 VDC
5, 12, 24 VDC
5, 6, 12, 24 VDC
12, 24 VDC
G
6
B
2-pole
Single-side
stable
DPST-NO (2a)
(Standard)
DPST-NC (2b)
(Standard)
Note: AgSnIn contact models are highly welding-resistant, and roughening of contacts due to inrush current and inductive load is lessened.
●
Models for Reverse Coil Polarity
Number
of poles
Contact material
Relay Function
Contact form
SPST-NO (1a)
(Standard)
Single-side
stable
SPST-NO (1a)
(High-capacity)
1-pole
Single-winding
latching
Double-winding
latching
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)+
SPST-NC (1b)
(Standard)
DPST-NO (2a)
(Standard)
Terminals
Straight PCB
Self-clinching
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
Self-clinching
PCB
Standard (Ag-alloy (Cd free))
Model
G6B-1114P-1-US
---
G6B-1174P-1-US
---
G6BU-1114P-1-US
---
G6BK-1114P-1-US
---
G6B-2114P-1-US
---
G6B-2214P-1-US
---
Rated coil voltage
5, 6, 12, 24 VDC
---
5, 12, 24 VDC
---
5, 12 VDC
---
5, 6, 12, 24 VDC
---
5, 6, 12, 24 VDC
---
5, 12, 24 VDC
---
AgSnIn contact
Model
G6B-1114P-FD-1-US
---
---
---
---
---
---
---
G6B-2114P-FD-1-US
---
---
---
Minimum
packing unit
Rated coil voltage
24 VDC
---
---
---
---
---
---
---
12, 24 VDC
---
---
---
100
pcs/tray
100
pcs/tray
20
pcs/tube
2-pole
Single-side
stable
Note: AgSnIn contact models are highly welding-resistant, and roughening of contacts due to inrush current and inductive load is lessened.
2
G6B
●
Models for Ultrasonically Cleanable
Number
of poles
Contact material
Relay Function
Single-side
stable
Single-winding
latching
Double-winding
latching
Contact form
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)
(Standard)
SPST-NO (1a)+
SPST-NC (1b)
(Standard)
2-pole
Single-side
stable
DPST-NO (2a)
(Standard)
DPST-NC (2b)
(Standard)
Terminals
Straight PCB
Standard (Ag-alloy (Cd free))
Model
G6B-1114P-US-U
Rated coil voltage
5, 6, 12, 24 VDC
5, 12, 24 VDC
24 VDC
---
5, 6, 12, 24 VDC
24 VDC
5, 12, 24 VDC
---
5, 6, 12, 24 VDC
12, 24 VDC
5, 12, 24 VDC
---
Model
G6B-1114P-FD-US-U
---
---
---
PCB Power Relay
AgSnIn contact
Minimum
Rated coil voltage packing unit
6, 12, 24 VDC
---
---
---
12, 24 VDC
---
5, 12, 24 VDC
---
5, 12, 24 VDC
---
5, 12, 24 VDC
---
100
pcs/tray
Self-clinching
G6B-1114C-US-U
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
G6BU-1114P-US-U
---
G6BK-1114P-US-U
1-pole
G6BK-1114P-FD-US-U
---
G6B-2114P-FD-US-U
---
G6B-2214P-FD-US-U
---
G6B-2014P-FD-US-U
---
Self-clinching
G6BK-1114C-US-U
PCB
Straight PCB
Self-clinching
PCB
Straight PCB
G6B-2114P-US-U
---
G6B-2214P-US-U
Self-clinching
G6B-2214C-US-U
PCB
Straight PCB
Self-clinching
PCB
G6B-2014P-US-U
---
Note: When ordering, add the rated coil voltage to the model number.
Example: G6B-1114P-US DC5
Rated coil voltage
However, the notation of the coil voltage on the product case as well as on the packing will be marked as
@@
VDC.
●
Connecting Sockets (Sold Separately)
Applicable relay
G6B-1114P(-FD)-US-P6B
G6B-1174P(-FD)-US-P6B
G6B-1177P(-FD)-ND-US-P6B
G6BU-1114P-US-P6B
G6BK-1114P-US-P6B
G6B-2114P-US-P6B
G6B-2214P-US-P6B
G6B-2014P-US-P6B
Removal Tool
Hold-down Clips
Model
P6B-04P
P6B-06P
P6B-26P
P6B-Y1
P6B-C2
1 pcs
20 pcs
Minimum ordering unit
G
6
B
Note 1. G6B-1174P-US-P6B and G6B-1177P-ND-US-P6B are rated for 8 A when mounted on a PCB. However,
when used with the P6B-04P socket models, the allowable current is derated to 5 A.
2. The P6B sockets are designed to be used with G6B-@@@@P(-FD)-US-P6B relays. Only use G6B relays
that include "-P6B" in their model numbers with the sockets. Do not use standard G6B's that omit "-P6B"
from their model numbers with the sockets.
3. The hold-down clips of the P6B-C2 model are not suitable for the G6B-1174P and G6B-1177P models
since they have different heights.
4. Products with UL/CSA certification marks will be supplied for orders of standard models.
3
G6B
■Ratings
●
Coil: 1-Pole, Single-side Stable Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
40
33.3
16.7
8.3
125
180
720
2,880
70% max.
10% min.
160%
(at 23°C)
Approx. 200
Must operate Must release
voltage (V)
voltage (V)
Max. voltage
Power consumption
(V)
(mW)
% of rated voltage
PCB Power Relay
●
Coil: 2-Pole, Single-side Stable Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
60
50
25
12.5
83.3
120
480
1,920
80% max.
10% min.
140%
(at 23°C)
Approx. 300
Must operate Must release
voltage (V)
voltage (V)
Max. voltage
Power consumption
(V)
(mW)
% of rated voltage
●
Coil: Single-winding Latching Type
(Including models for ultrasonically cleanable)
Item
Rated
current
(mA)
40
33.3
16.7
8.3
Coil
resistance
(Ω)
125
180
720
2,880
70% max.
70% max.
160%
(at 23°C)
200
200
Must set Must reset Max. voltage
voltage (V) voltage (V)
(V)
% of rated voltage
Power consumption
Set coil
(mW)
Reset coil
(mW)
Rated voltage
G
6
B
5 VDC
6 VDC
12 VDC
24 VDC
●
Coil: Double-winding Latching Type
(Including models for ultrasonically cleanable)
Item
Rated voltage
5 VDC
6 VDC
12 VDC
24 VDC
Rated current (mA)
Set coil
56
46.8
23.3
11.7
Reset coil
56
46.8
23.3
11.7
Coil resistance (Ω)
Set coil
89.2
128.5
515
2,060
Reset coil
89.2
128.5
515
2,060
70% max.
70% max.
130%
(at 23°C)
280
280
Must set voltage Must reset voltage Max. voltage
(V)
(V)
(V)
% of rated voltage
Power consumption
Set coil
(mW)
Reset coil
(mW)
●
Coil: Operation Indicator Model
(Flux-resistant type. Do not wash down with water.)
Item
Rated voltage
5 VDC
12 VDC
24 VDC
Rated current Coil resistance
(mA)
(Ω)
43
19.7
11.3
116
610
2,120
70% max.
10% min.
Must operate Must release
voltage (V)
voltage (V)
Max. voltage
Power consumption
(V)
(mW)
% of rated voltage
130%
(at 23°C)
Approx. 200
Approx. 240
Approx. 275
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
●
Contacts
G6B-1114P(-FD)(-1)-US
G6BU-1114P(-FD)(-1)-US
G6BK-1114P(-FD)(-1)-US
G6B-1114C(-FD)-US
G6BU-1114C-US
G6BK-1114C(-FD)-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
G6B-1174P(-FD)(-1)-US
G6B-1177P(-FD)-ND-US
G6B-1174C(-FD)-US
G6B-1177C(-FD)-ND-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
G6B-2114P(-FD)(-1)-US
G6B-2214P(-FD)(-1)-US
G6B-2014P(-FD)-US
G6B-2114C(-FD)-US
G6B-2214C(-FD)-US
G6B-2014C(-FD)-US
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
Model
G6B-1184P-US
Load
Item
Contact type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Resistive load
Inductive load
(cosφ = 0.4; L/R = 7 ms)
Single
Ag-Alloy (Cd free)
5 A (3 A) at 250 VAC 2 A (2 A) at 250 VAC 8 A (5 A) at 250 VAC 2 A (2 A) at 250 VAC
5 A (3 A) at 30 VDC 2 A (2 A) at 30 VDC 8 A (5 A) at 30 VDC 2 A (2 A) at 30 VDC
5 A (5 A)
5 A (5 A)
8 A (5 A)
Single crossbar
Au-alloy + Ag (Cd free)
2 A at 250 VAC
2 A at 30 VDC
Single
Ag-Alloy (Cd free)
0.5 A at 250 VAC 5 A (3 A) at 250 VAC 1.5 A (1.5 A) at 250 VAC
0.5 A at 30 VDC 5 A (3 A) at 30 VDC 1.5 A (1.5 A) at 30 VDC
2A
5 A (5 A)
5 A (5 A)
380 VAC, 125 VDC
8 A (5 A)
2A
Note 1. The values in the parentheses ( ) are for -FD models only.
2. Use the -FD type for inductive load and switching load which contact roughening is small.
4
G6B
■Characteristics
G6B-1114P(-FD)(-1)-US
G6B-1174P(-FD)(-1)-US
Model
G6B-1114C(-FD)-US
G6B-1174C(-FD)-US
Item
Classification
Single-side stable
G6BU-1114P(-FD)(-1)-US
G6BU-1114C-US
G6BK-1114P(-FD)(-1)-US
G6BK-1114C(-FD)-US
G6B-1177P(-FD)-ND-US
G6B-1177C(-FD)-ND-US
PCB Power Relay
G6B-1184P-US
G6B-2114P(-FD)(-1)-US
G6B-2214P(-FD)(-1)-US
G6B-2014P(-FD)(-1)-US
G6B-2114C(-FD)-US
G6B-2214C(-FD)-US
G6B-2014C(-FD)-US
Contact resistance *1
Operate (set) time
Release (reset) time
Min. set pulse width
Min. reset pulse width
Insulation resistance *2
Between coil and
contacts
Between contacts
Dielectric of the same polarity
strength
Between contacts
of different polarity
Between set and
−
reset coils
Impulse withstand voltage
6 kV 1.2
×
50
μs
(between coil and contacts)
Destruction
Vibration
resistance Malfunction
Destruction
Shock
resistance Malfunction
100 m/s
2
Mechanical
Durability
Electrical
Failure rate (P level)
(reference value) *3
Ambient operating temperature
Ambient operating humidity
Weight
Approx. 3.5 to 4.6 g
Single-winding
Double-winding
Built-in operation indicator
Single-side stable
Single-side stable
latching
latching
& surge absorption diode
30 mΩ max.
50 mΩ max.
30 mΩ max.
10 ms max.
10 ms max.
−
15 ms (at 23°C)
−
−
15 ms (at 23°C)
−
1,000 MΩ min.
2,000 VAC,
3,000 VAC, 50/60 Hz for 1 min
3,000 VAC, 50/60 Hz for 1 min
50/60 Hz for 1 min
1,000 VAC, 50/60 Hz for 1 min
−
250 VAC,
50/60 Hz for 1 min
4.5 kV 1.2
×
50
μs
6 kV 1.2
×
50
μs
−
−
6 kV 1.2
×
50
μs
2,000 VAC,
50/60 Hz for 1 min
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
1,000 m/s
2
300 m/s
2
100 m/s
2
50,000,000 operations min. (at 18,000 operations/hr)
100,000 operation min. (at 1,800 operations/hr under rated load)
10 mA at 5 VDC
-25°C to 70°C (with no icing or condensation)
5% to 85%
Approx. 3.7 g
Approx. 5.4 g
1 mA at 1 VDC
10 mA at 5 VDC
G
6
B
Approx. 3.5 g
Approx. 3.5 g
Approx. 4.5 g
Note 1. The values here are initial values.
2. The G6B-1177P(-FD)-ND model is flux-resistant. Do not wash it down with water.
*1. The contact resistance was measured with 1 A at 5 VDC using a voltage-drop method.
*2. Measurement conditions: The insulation resistance was measured with a 500 VDC megohmmeter at the same locations as the dielectric strength was
measured.(Except the location between set/reset coil)
*3. This value was measured at a switching frequency of 120 operations/min.
5
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD
