The KM1 platform solves the work and cost issues to visualize
Previous Problems
For mixed distribution panels that
contain both power and lighting
circuits, a separate power sensor
was required for each circuit.
Electrical
room
Previously, measuring electric power for multiple circuits or systems required
costly and difficult-to-install power sensors.
Inside power distribution facility
Multiple sensors were
required because each
circuit required its own
sensor.
Distribution panel
Distribution panel
Lighting
Power
Lighting
Distribution panel
Power
Voltage and communications
wiring is required for each
individual power sensor.
Measuring multiple circuits requires difficult installation and results in high costs.
Simple and Smart: The KM1 Platform
Dual System
Monitoring
Industry-first Dual System
Monitoring

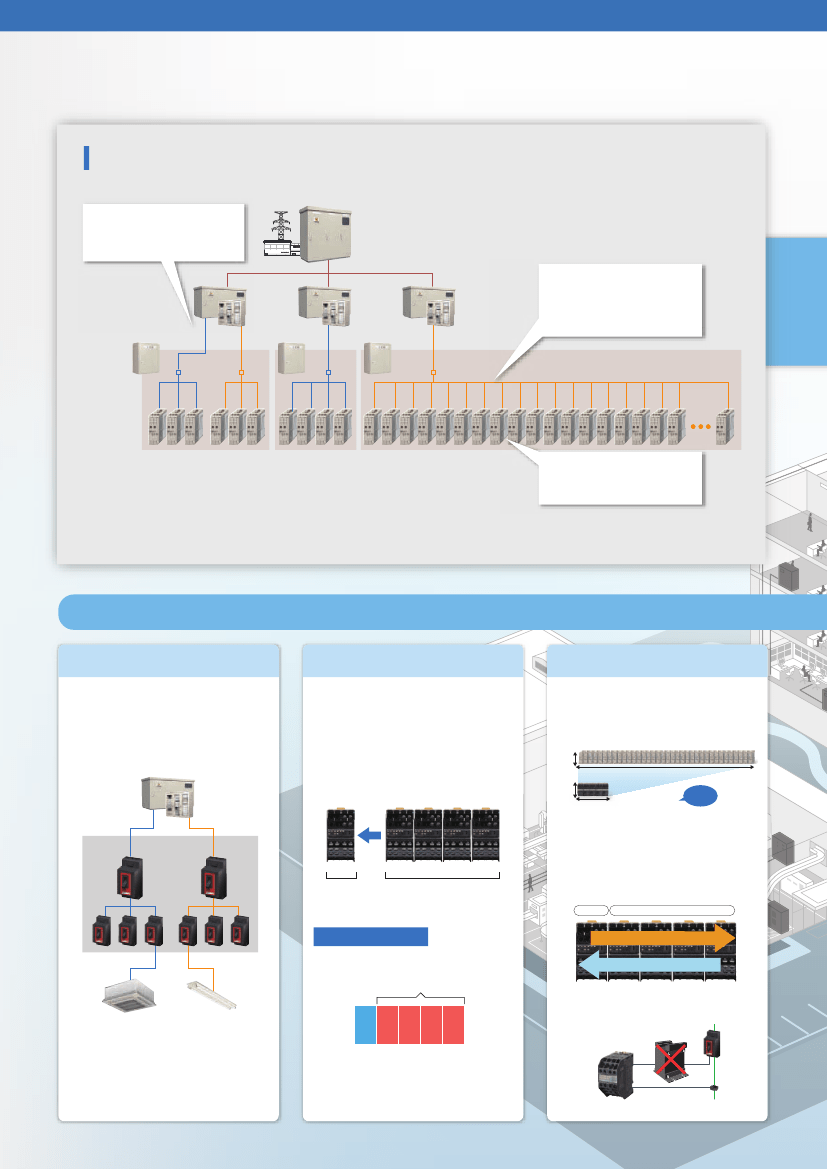

A single KM1 can perform measurements for
mixed distribution panels with circuits for both
air-conditioners and lighting equipment.
Electrical
room
Measure up to
36 circuits.
Add CT Expansion Units for
More Measurements
One Measurement Master Unit accepts up
to 4 CT inputs, and a CT Expansion Unit
accepts up to 8 CT inputs. (Up to four CT
Expansion Units can be added.) This
enables the measurement of up to 36
single-phase two-wire circuits.
Space-efficient Design and Reduced Wiring
Mounting Space Reduced to
1/4 That of Previous Models
With the KM1, all you need is five Power Monitors.
You can reduce the mounting space by 76%.
Previous product
80
mm
KM1
96
mm
225 mm
5 Units
1080 mm
36 Units
864
Approx
cm
2
202.5
cm
2
1/4
Power/Lighting
Mixed Distribution
Panel
Measurement
Master Unit
CT Expansion Unit
Linked design eliminates the
need for voltage and
communications wiring.
The elimination of communications and
power line crossovers results in less time
and work required for wiring.
Master
Slaves
Single-phase, two-wire
CT Connection
Unit
KE1-CTD8E
Power supply voltage from the Master
High-speed inner-bus communications
Measurement
Master Unit
KM1-PMU2A
Direct Measurement of 480 V
without a VT
8
Air-conditioners
Lighting equipment
Single-phase,
two-wire
4
8
8
8
Total =
36 circuits
No VT equipment is required, even for
480 V measurements.
KM1
VT
4
Multi-circuit Smart Power Monitor KM1
power consumption across all distribution panels.
With the KM1...
The KM1 solves both the time and cost issues even for multiple
circuits and systems.
Inside power distribution facility
A single KM1 can perform
measurements even for
mixed distribution panels.
Electrical
room
Power
Distribution
panel
Lighting
Power
Lighting
Distribution
panel
A single KM1 can perform
measurements for up to 36
circuits in a distribution panel.
Distribution
panel
The KM1 accepts up to
7 pulse inputs. The KM1
can also collect
production information.
Pulses

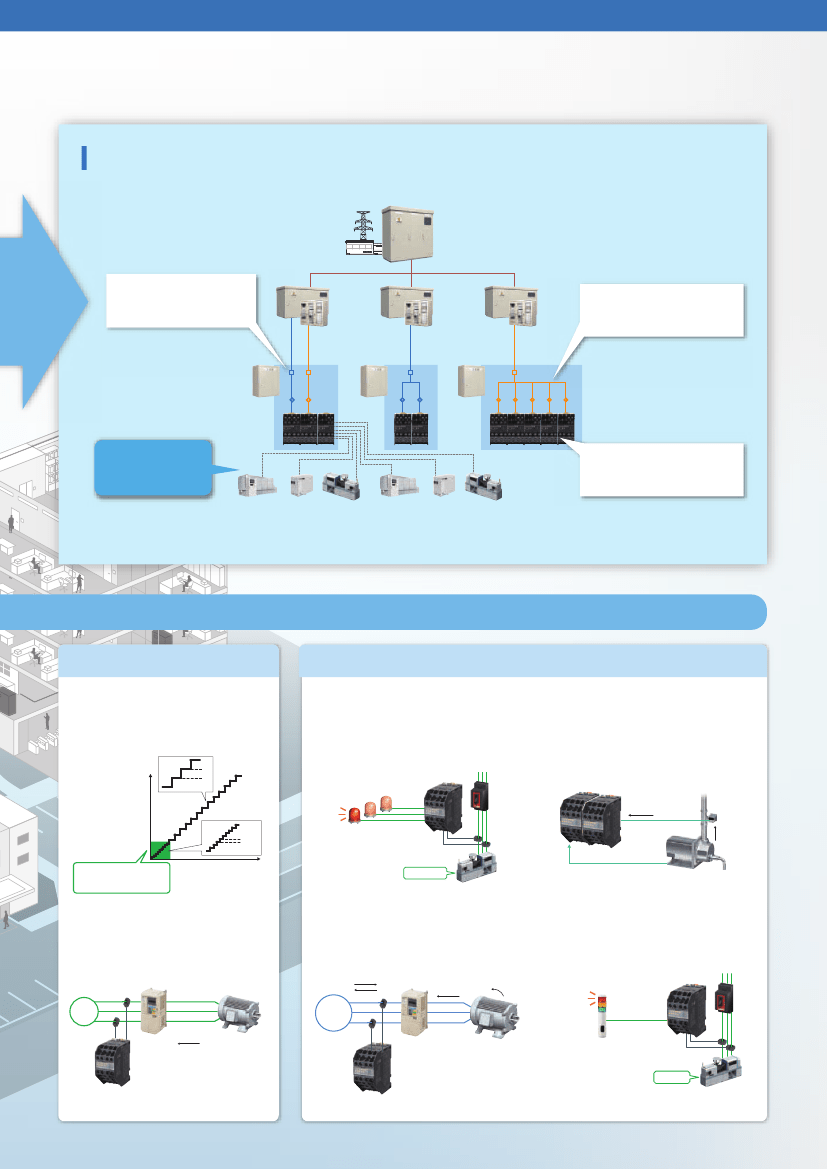

The KM1 Power Monitors are
linked so voltage and commu-
nication wiring is not required.
Machine 4
Machine 5 Machine 6
Machine 1
Machine 2 Machine 3
The KM1 provides a simple and smart solution to the issues encountered with traditional power sensors.
High-precision Measurements
High-precision Micropower
Measurements
The KM1 performs high-precision measurement
even below 5% of the rated current.
Even standby energy can be measured dependably.
1A
Measurement current (A)
Additional Measurements to Aid in Energy Conservation
Visualization to Help Maintenance
With the wide range of output capabilities on the
KM1, you can see exactly when you should
perform maintenance.
G
Overcurrent, Undercurrent, Overvoltage,
and Undervoltage Alarm Output
KM1
Visualization of Specific Power
Consumption through
Pulse/Temperature Input Units
Use pulse inputs to measure production information at
the same time, including flow rates, throughput,
temperature inputs, and more. When this information is
combined with other electric power data, you can
easily visualize the specific power consumption.
KM1-
PMUA-FLK
KM1-
EMU8A-FLK
Flow rate pulse
75 mA
Automatic range switching.
Automatically range switching
for small electrical currents.
Actual current (A)
An alarm is output based on
threshold values to determine
overcurrents, undercurrents,
overvoltages, and undervoltages
Device
for the device.
Overcurrent
Gas or liquid
Power consumption
* Input is performed with the KM1-EMU8A-FLK.
Primary-side Inverter Support
The KM1 can provide accurate measurements
without any current waveform distortion even after
an inverter is installed. Measurement accuracy:
±2% FS This enables measuring the effectiveness
of energy conservation measures after installation.
Inverter
Motor
Power
supply
Regenerative
power
•
Compressors
•
Air-conditioning fans
•
Pumps
•
Freezers
Visualization of Power Generation
Effectiveness
The effectiveness of power generation can be
visualized by measuring the power consumption
and regenerative power together at the same time.
Consumption
Generation
Energy Classification
Inverter
Regenerative
power
The total power consumption and total time can
be divided up between the three states of
stopped, standby, and operating based on the
power consumption value and pulse input.
Classifying energy helps to clearly identify areas
where improvement is possible.
Stopped
KM1
Standby
Operating
Regeneration
Power
supply
Motor
KM1
Displays the stopped, standby,
or operating status of the device
Device
KM1
Stopped
* This function is supported only by the KM1-PMUA-FLK.
