Solid-state Timer
H3DS
CSM_H3DS_DS_E_5_2
DIN Track Mounted, Standard 17.5-mm Width Timer Range
• A wide AC/DC power supply range (24 to 230 VAC/ 24 to 48 VDC) reduces the number of timer models kept in stock. (24 to
230 VAC/VDC with H3DS-XL@)
• Smart Dial/Selector-locking Mechanism: Prevents the dials and selectors on the Timer’s front panel from being inadvertently op-
erated or being operated without authorization. The lock can only be unlocked and locked with an optional pen-type Lock Key.
• Screw-Less Clamp type available. (H3DS-@LC)
• Sticker provided for easy timer identification and management.
• Terminal clamp left open when delivered (screw terminal type).
• Finger protection terminal block to meet VDE0106/P100.
• Enables easy sequence checks through instantaneous outputs for a zero set value at any time range.
• Incorporates environment-friendly, cadmium-free contacts.
• Conforms to EN61812-1 and IEC60664-1 4 kV/2 for Low Voltage, and EMC Directives.
■

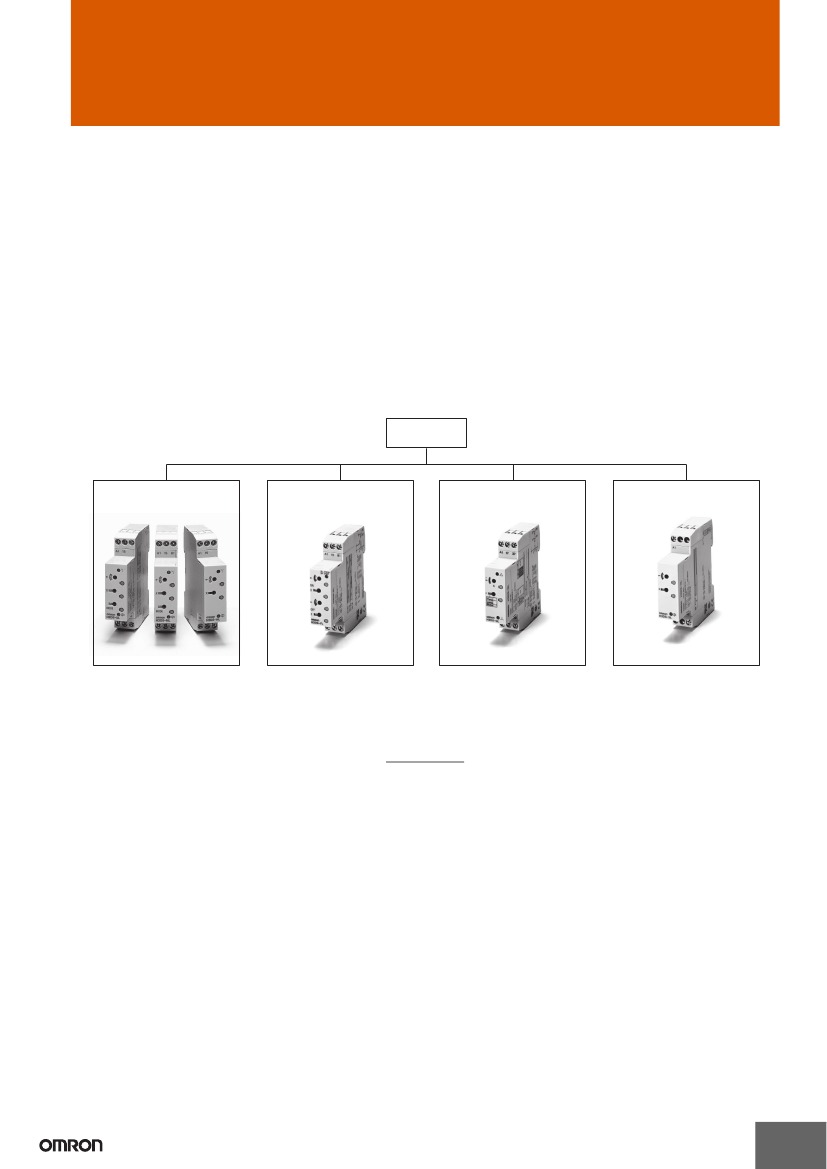

Broad Line-up of H3DS Series
H3DS
H3DS-M/S/A
H3DS-F
H3DS-G
H3DS-X
Standard Timer
H3DS-M (eight multi-modes)
H3DS-S (four multi-modes)
H3DS-A (single mode)
Twin Timer
H3DS-F
Star-delta Timer
H3DS-G
Two-wired Timer
H3DS-X
Contents
Solid-state Timer
H3DS-M/-S/-A...........................................................................................
H3DS-F.....................................................................................................
H3DS-G ....................................................................................................
H3DS-X ....................................................................................................
2
13
20
27
Common to ALL Timers
Installation of Screw-Less Clamp Models.................................................
Accessories ..............................................................................................
Precautions...............................................................................................
33
36
37
1

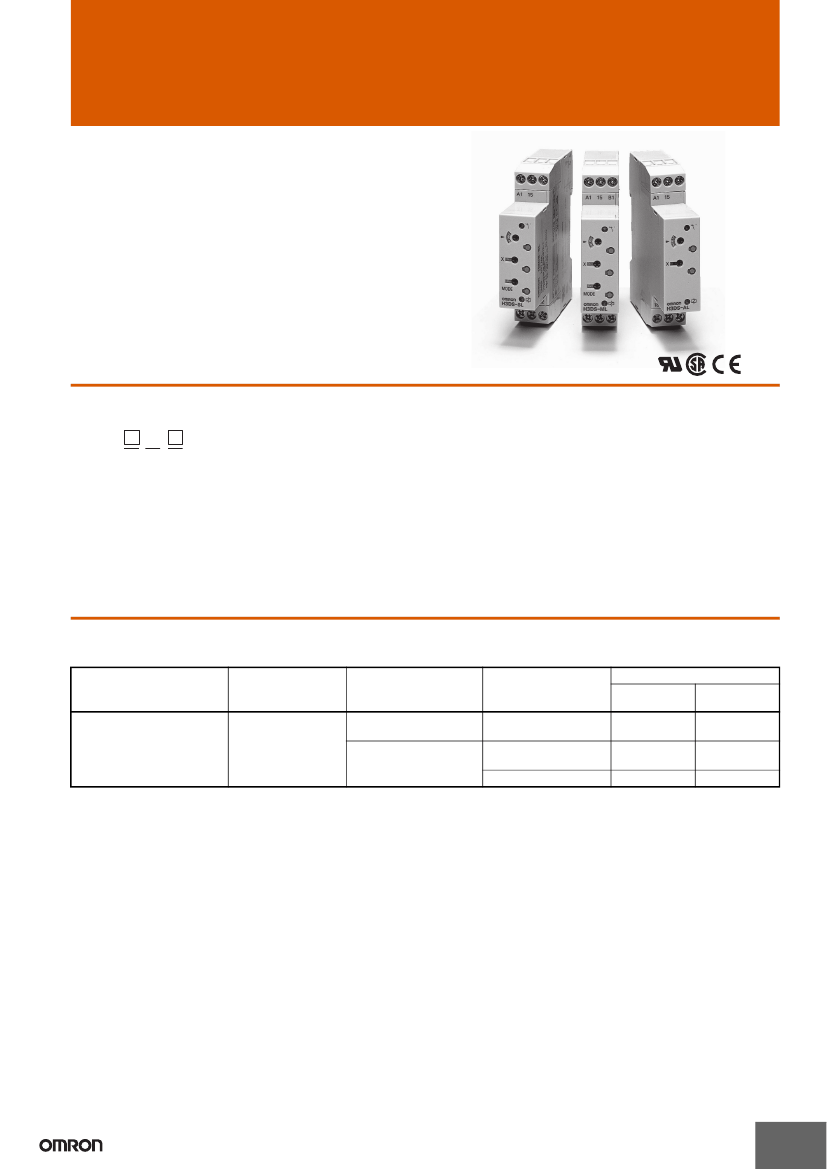

Solid-state Multi-functional Timer
H3DS-M/-S/-A
• Eight operating modes (H3DS-M) and four operating modes
(H3DS-S) cover a wide range of applications.
• A wide time setting range of 0.10 s to 120 h.
• Two LEDs indicate power and relay status
respectively.
Model Number Structure
■
Model Number Legend
H3DS -
1
L
2
3
1.
2.
3.
M: Multi-function type
S: Standard type
A: Single-function type
L: Smart lock mechanism
None:
Screw terminal type
C:
Screw-Less Clamp type
Ordering Information
■
List of Models
Supply voltage
Control output
Input type
Operating mode
(see note)
Model
Screw terminal
type
Screw-Less
Clamp type
H3DS-MLC
H3DS-SLC
H3DS-ALC
24 to 230 VAC (50/60Hz)/
24 to 48 VDC
Contact output: SPDT Voltage input
(time-limit output SP-
DT)
No-input available
Eight multi-modes: A, B, H3DS-ML
B2, C, D, E, G, J
Four multi-modes: A, B2, H3DS-SL
E, J
Single mode: A
H3DS-AL
Note:
The operating modes are as follows:
A: ON-delay
B: Flicker OFF start
B2: Flicker ON start
C: Signal ON/OFF-delay
D: SIgnal OFF-delay
E: Interval
G: Signal ON/OFF-delay
J: One shot
2
H3DS-M/-S/-A
■
Accessories (Order Separately)
Lock Key
Mounting Track
50 cm (l) x 7.3 mm (t)
1 m (l) x 7.3 mm (t)
1 m (l) x 16 mm (t)
End Plate
Spacer
Y92S-38
PFP-50N
PFP-100N
PFP-100N2
PFP-M
PEP-S
3
H3DS-M/-S/-A
Specifications
■
General
Item
Operating mode
A:
B:
B2:
C:
D:
E:
G:
J:
H3DS-ML@
ON-delay (Signal or Power)
Flicker OFF start (Signal or Power)
Flicker ON start (Signal or Power)
Signal ON/OFF-delay
Signal OFF-delay
Interval (Signal or Power)
Signal ON/OFF-delay
One-shot (Signal or Power)
A:
B2:
E:
J:
H3DS-SL@
ON-delay
Flicker ON start
Interval
One-shot
H3DS-AL@
A: ON-delay (fixed)
Input type
Output type
External connections
Terminal block
Terminal screw
tightening torque
Mounting method
Attachment
Approved standards
Voltage input
Relay: SPDT
Screw terminal, Screw-Less Clamp
---
Screw terminal type:
Clamps two 2.5-mm
2
max. bar terminals without sleeves.
Screw-Less Clamp type: Clamps two 1.5-mm
2
max. bar terminals without sleeves.
0.98 N·m max.
DIN track mounting (see note)
Nameplate label
UL508, CSA C22.2 No.14
Conforms to EN61812-1, IEC60664-1 4 kV/2, VDE0106/P100
Output category according to IEC60947-5-1 (AC-13; 250 V 5 A/AC-14; 250 V 1 A/AC-15; 250 V 1 A/DC-13; 30 V 0.1 A/
DC-14; 30 V 0.05 A)
Note:
Can be mounted to 35-mm DIN Track with a plate thickness of 1 to 2.5 mm.
■
Time Ranges
Time scale display
0.1 s
1s
0.1 m
1m
0.1 h
1h
10 h
1 to 12 s
0.1 to 1.2 min
1 to 12 min
0.1 to 1.2 h
1 to 12 h
10 to 120 h
Time range
0.1 to 1.2 s
Note:
When the time setting dial is set to “0” for any time scale, the output will operate instantaneously.
■
Ratings
Rated supply voltage
(see notes 1 and 2)
Operating voltage range
Power reset
Reset voltage
Power consumption (see note 3)
24 to 230 VAC (50/60 Hz)/24 to 48 VDC
85% to 110% of rated supply voltage
Minimum power-off time: 0.1 s
2.4 VAC/DC max.
AC: 32 VA max./3.0 W max. (typical: 30 VA/2.7 W) at 230 VAC
DC: 0.7 W max. (typical: 0.6 W) at 24 VDC
1.4 W max. (typical: 1.3 W) at 48 VDC
Max. permissible capacitance between inputs lines (terminals B1 and A2): 2,000 pF
Load connectable in parallel with inputs (terminals B1 and A1).
H-level: 20.4 to 253 VAC/20.4 to 52.8 VDC
L-level: 0 to 2.4 VAC/DC
Contact output: 5 A at 250 VAC with resistive load (cosφ = 1)
1 A at 250 VAC with inductive load (cosφ = 0.3)
5 A at 30 VDC with resistive load (cosφ = 1)
0.15 A max. at 125 VDC with resistive load,
0.1 A max. at 125 VDC with L/R of 7 ms.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Contact materials : Ag-alloy
Operating: –10°C to 55°C (with no icing)
Storage: –25°C to 65°C (with no icing)
Operating: 35% to 85%
Voltage input
Control output
Ambient temperature
Ambient humidity
Note: 1.
DC ripple rate: 20% max.
2.
Since an inrush current of 0.5 A will occur when using the power supply voltage at 24 VDC, pay careful attention when turning on or off
the power supply to the Timer with a solid-state output such as a sensor.
3.
The power consumption is for mode A after the Timer counts the time-up time and for the AC input at 50 Hz. The power consumption of
the H3DS-ML includes the input circuit with the B1 and A1 terminals short-circuited.
4
H3DS-M/-S/-A
■
Characteristics
Accuracy of operating time
Setting error
Signal input time
Influence of voltage
Influence of temperature
Insulation resistance
Dielectric strength
±1%
max. of FS (±1%
±10
ms max. at 1.2-s range)
±10% ±50
ms max. of FS
50 ms min.
±0.7%
max. of FS (±0.7%
±10
ms max. at 1.2-s range)
±5%
max. of FS (±5%±10 ms max. at 1.2-s range)
100 MΩ min. at 500 VDC
Between current-carrying metal parts and exposed non-current-carrying metal parts: 2,000 VAC for 1 min.
Between control output terminals and operating circuit: 2,000 VAC for 1 min.
Between contacts not located next to each other: 1,000 VAC for 1 min.
Malfunction: 0.5-mm single amplitude at 10 to 55 Hz
Destruction: 0.75-mm single amplitude at 10 to 55 Hz
Malfunction: 100 m/s
2
3 times each in 6 directions
Destruction: 1,000 m/s
2
3 times each in 6 directions
5 kV (between power terminals)
5 kV (between current-carrying metal parts and exposed non-current-carrying metal parts)
Square-wave noise generated by noise simulator (pulse width: 100 ns/1
μs,
1-ns rise)
±1.5
kV
Malfunction: 4 kV
Destruction: 8 kV
Mechanical: 10 million operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h)
(see note)
(EMI)
Emission Enclosure:
Emission AC Mains:
Harmonic Current:
Voltage Fluctuation and Flickering:
(EMS)
Immunity ESD:
Immunity RF-interference:
Immunity Burst:
Immunity Surge:
Immunity Conducted Disturbance:
Immunity Voltage Dip/Interruption:
Light gray (5Y7/1)
IP30 (Terminal block: IP20)
Approx. 70 g
EN61812-1
EN55011 Group 1 class B
EN55011 Group 1 class B
EN61000-3-2
EN61000-3-3
EN61812-1
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
Vibration resistance
Shock resistance
Impulse withstand voltage
Noise immunity
Static immunity
Life expectancy
EMC
Case color
Degree of protection
Weight
Note:
For reference:
In both cases, a life of 100,000 operations can be expected.
5
