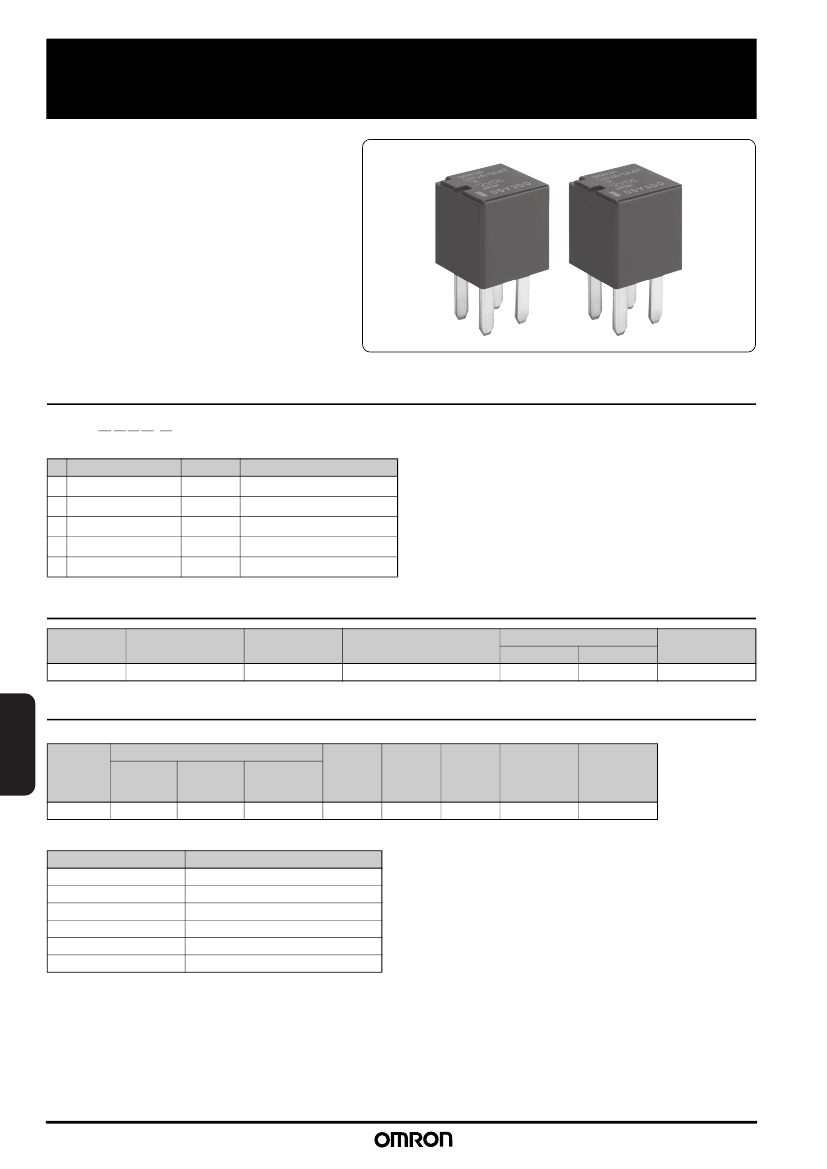

G8VA
Automotive low profile micro 280 terminal layout relay
This world's smallest Plug-in
relay. Versatile usage for sever-
al different kinds of applica-
tions inside the relay boxes.
• Miniaturized package (reduced footprint and
height)
• L x W x H = 15.5 x 15.0 x 16.4 mm nominal
• 280-terminal type
• Full automated assembly
■
Type standard
G8VA-@@@@-@
➀➁➂➃ ➄
Classification
Symbol
1
A
4
T
R
Meaning of the symbol
Number of contact poles
1a contact
Simple plastic seal
Plug-in type
Built-in resistor
➀
➁
➂
➃
➄
Number of contact poles
Contact structure
Protective structure
Terminal form
Surge suppressor
■
Classification
Classification
Micro 280
Terminal form
Plug-in 280 terminal
Contact structure
SPST (1a)
Protective structure
Simple plastic seal
Rated coil voltage
Voltage (V)
DC12
Resistance ()
132
Type
G8VA-1A4T-R
■
Ratings
280 Relay
●
Operation coil
Rated
voltage
(V)
DC12
Coil resistance ()
Between
terminals
132
Internal coil
150
Surge
suppressor
resistance
1/4W 1.1k
Rated
current
(mA)
90.9
Operating
voltage
(V)
7.5 or less
Release
voltage
(V)
1.0 or more
Service voltage
range
(V)
DC10 to 16
Rated power
consumption
(mA)
1091
●
Switching area
Item
Contact material
Rated voltage
Rated load
Inrush current
Continuous carry current
*1
Min. Carry / Switching Current
Performance
Silver alloy
DC12V
Resistance load, 15A
80A
15A
DC12V 1A
Please confirm Omron Safety Precautions for all automotive relays first.
Omron can not guarantee automotive relays before finish making a contract with product specifications.
G8VA
■
Performance
Item
Voltage drop between terminals
Operating time
*2
Release
time
*2
Between coil and terminal
Between homopolar contacts
Between coil and terminal
Between homopolar contacts
Durability
Malfunction
Durability
Malfunction
Automotive low profile micro 280 terminal layout relay
Value of Standard
200mV or less, 15A
10ms or less
10ms or less
10M or more
10M or more
AC500V for 1minute
AC500V for 1minute
33Hz 44.1m/s
2
33Hz 44.1m/s
2
1000m/s
2
(Operating time:6ms)
100m/s
2
(Operating time:11ms)
1,000,000 times
100,000 times
30
to +100C
35 to 85%RH
10g
Insulation
resistance
*3
Withstand
voltage
*4
Vibration
tolerance
Shock
resistance
Mechanical endurance
Electrical endurance
Ambient temperature
Ambient humidity
Weight
■
Packing
Packing form
MOQ
*5
Note:
*1.
*2.
*3.
*4.
*5.
Tray
500pcs (50pcs×10 trays)
All values above are measured in early time under an ambient temperature of +20C and humidity of 65% unless stated.
The value stated is at maximum temperature in a guaranteed ambient temperature.
It changes depend on how a rated voltage is operated, but bounce-time is not included.
Measured at DC500V.
Measured under 1mA of leak current, 50/60Hz for 1minute.
Minimum Order Quantity is subject to change, please feel free to contact our sales representatives.
■
Dimensions
(Unit: mm)
G8VA-1A4T-R
Customer part No. or type
5
1
Rated voltage
Lot No.
Country of origin
2
3
Terminal arrangement /
Internal connections
(BOTTOM VIEW)
15.5±
0.5
R0.8 (All round)
15±
0.5
16.4±
0.3
11±
0.5
2.8±
0.1
0.8
−0.03
+0.05
8.1±
0.15
5
1
2
7.8±
0.15
3
* Tolerance unless otherwise specified Less than 1 mm: ±0.1 mm
Less than 1 to 3 mm: ±0.2 mm
3 mm or more: ±0.3 mm
Please confirm Omron Safety Precautions for all automotive relays first.
Omron can not guarantee automotive relays before finish making a contract with product specifications.
280 Relay
