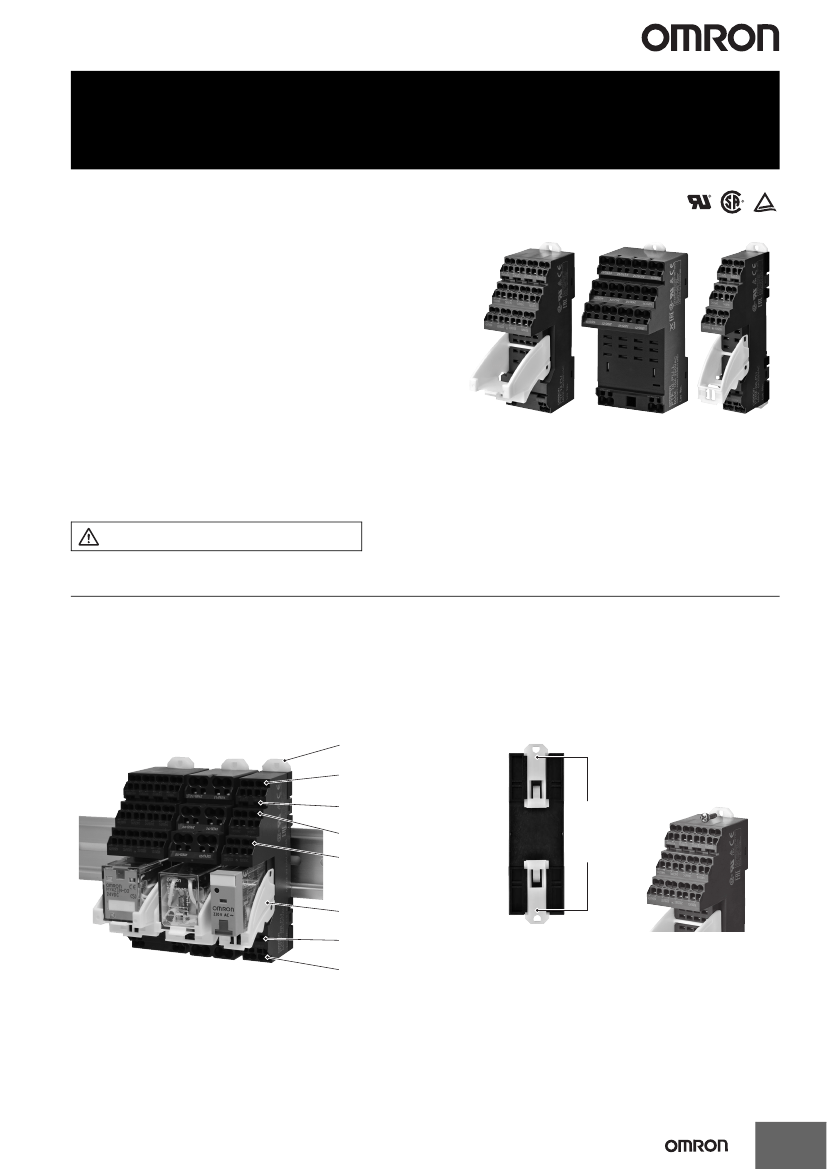

Sockets with Push-In Plus technology
PYF-@@-PU/PTF-@@-PU/P2RF-@@-PU
Sockets with Push-In Plus technology
to Save Work Added to Series for MY, LY
and G2R-S Relays
• Sockets with Push-In Plus technology are used to save wiring
work in comparison with traditional screw terminals.
(Wiring time is reduced by 60%* in comparison with
traditional screw terminals.)
• No screw loosening means maintenance-free application.
• Light insertion force and strong pull-out strength to achieve
both less wiring work and high reliability.
• ‘Hand-free’ structure that holds an inserted screwdriver to
achieve easier wiring work for stranded wires.
• Two wires can be independently inserted into each terminal
hole.
• DIN Track mounting or screw mounting.
*
According to OMRON actual measurement data from November 2015.
Refer to
Safety Precautions
on page 10.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Features
•
•
•
•
•
•
•
•
Coil terminals and contact terminals are completely separated in an organized wiring layout.
A Release Lever is provided as a standard feature. (except -L models)
DIN terminal numbers are indicated.
The double fixture rail with DIN hook tabs attached to the top and bottom lets you mount the Socket from either the top or bottom.
One-touch Installation onto DIN-track.
Front-in short bar enables easy installation without interference in duct when wiring.
Please refer short bar correspondence table in page 9 for further information of short bar.
There are screw mounting holes in the DIN hooks on the PYF-@@-PU, PTF-@@-PU and P2RF-@@-PU. Pull out the DIN hook tabs to mount
the Sockets with screws.
DIN hook tab
(the fixture rail)
Contact terminals
(commons)
Contact short bar
insertion holes
*
NO contact terminals
NC contact terminals
The fixture rails can be
pulled out to mount the
Relays with screws.
Double
fixture
rails
Release lever
Coil short bar
insertion holes
*
Coil terminals
*
The PTF-@@-PU Sockets do not have short bar insertion holes.
Back of Push-In Plus
Terminal Block Socket
1
PYF-@@-PU/PTF-@@-PU/P2RF-@@-PU
Ordering Information
Sockets
PYF Series
Applicable model (typical example)
MY2@
MY2IN(S)
General Purpose Relays
MY Series
MY4@
MY4H
MYQ4@
MY4@(S)
MY2K
G3FM
G3F
G3FD
H3Y(N)-2-B
H3Y(N)-4-B
2
4
PYF-08-PU-L
PYF-14-PU-L
1
PYF-08-PU
No. of poles
2
Socket
Model
*
PYF-08-PU
4
PYF-14-PU
G3FM Series
SSR
G3F/G3FD Series
H3Y Series
H3YN Series
Timers
*
The PYF-@@-PU-L Sockets do not have release levers.
PTF Series
Applicable model (typical example)
LY2@
General Purpose Relays
LY Series
LY2@-CR
LY4@
G3H Series
SSR
G9H Series
Note:
Hybrid Power Relay
Temperature Controller
E5L
G3H
G3HD
G9H
E5L-A
@
E5L-C
@
---
PTF-14-PU-L
1
PTF-08-PU
No. of poles
Socket
Model
*
PTF-08-PU
PTF-08-PU-L
PTF-14-PU-L
2
4
*
The PTF-@@-PU-L Sockets do not have release levers.
P2RF Series
Applicable model (typical example)
General Purpose Relays
SSR
Timers
General Purpose Relays
Timers
Liquid Leakage Sensors
G2R-@-S (S) Series
G3R-I/O Series
G3RZ Series
H3RN Series
G2R-@-S (S) Series
H3RN Series
K7L Series
G2R-1-S (S)
G3R
G3RZ
H3RN-1-B
G2R-2-S (S)
H3RN-2-B
K7L-@B
2
---
P2RF-08-PU
1
P2RF-05-PU
No. of poles
Socket
Model
2
PYF-@@-PU/PTF-@@-PU/P2RF-@@-PU
Accessories (Order Separately)
Short Bars
Pitch
Applicable models
No. of poles
2
7.75 mm
PYF-@@-PU and
P2RF-@@-PU
3
4
20
15.5mm
31.0 mm
P2RF-@@-PU
PYF-@@-PU
8
8
Red (R)
Blue (S)
Yellow (Y)
Colors
Model
*
PYDN-7.75-020@
PYDN-7.75-030@
PYDN-7.75-040@
PYDN-7.75-200@
PYDN-15.5-080@
PYDN-31.0-080@
10
Minimum order (quantity)
Note:
Use the Short Bars for crossover wiring within one Socket or between Sockets.
*
Replace the box (@) in the model number with the code for the covering color.
Labels
Applicable models
PYF-@@-PU/
PTF-@@-PU/
P2RF-@@-PU
Model
Minimum order
(sheet)
(quantity per sheet)
5
(1 sheet/60 pieces)
Parts for DIN Track Mounting
Type
DIN Tracks
End Plate
*
Spacer
1m
0.5 m
Model
PFP-100N
PFP-50N
PFP-M
PFP-S
Minimum order (quantity)
1
10
XW5Z-P4.0LB1
Hold-down Clip
Applicable models
(Combinations)
PYF-08-PU-L
H3Y(N)-2-B
PYF-14-PU-L
H3Y(N)-4-B
PTF-08-PU-L
LY2@-CR
PTF-14-PU-L
LY4@
PTF-14-PU-L
E5L
PYC-A1
Y92H-10
*
100
1
Y92H-3
10
Model
Minimum order (quantity)
*
When mounting DIN rail, please use End Plate (Model PFP-M).
*
Included with the E5L unit.
If you lose or damage the hold-down clip (Y92H-10), order it
separately.
3
PYF-@@-PU/PTF-@@-PU/P2RF-@@-PU
Ratings/Characteristics
Characteristics
Sockets
PYF-@@-PU(-L)
Item
Ambient operating humidity
Continuous carry current
*
Between contact terminals
of same polarity
Dielectric Between contact terminals
strength of different polarity
Between coil and
contact terminals
Insulation resistance
Weight (approx.)
Model
PYF-08-PU (-L)
-40 to 70°C
5 to 85%
10 A
6A
PYF-14-PU (-L)
Ambient operating temperature
P2RF-@@-PU
Item
Ambient operating humidity
Continuous carry current
*
Between contact terminals
of same polarity
Dielectric Between contact terminals
strength of different polarity
Between coil and
contact terminals
Insulation resistance
Weight (approx.)
Model
P2RF-05-PU
-40 to 70°C
5 to 85%
10 A
6A
P2RF-08-PU
Ambient operating temperature
2,000 VAC, 1 min 2,000 VAC, 1 min
2,000 VAC, 1 min 2,000 VAC, 1 min
2,000 VAC, 1 min 2,000 VAC, 1 min
1,000 MΩ min. (at 500 VDC)
80 g
87 g
1,000 VAC, 1 min 1,000 VAC, 1 min
---
3,000 VAC, 1 min
4,000 VAC, 1 min 4,000 VAC, 1 min
1,000 MΩ min. (at 500 VDC)
40 g
45 g
*
The continuous carry current of 10 A for PYF-08-PU(-L) is for an
ambient temperature of 55°C. At an ambient temperature of 70°C,
the value is 7 A.
PTF-@@-PU(-L)
Item
Ambient operating humidity
Continuous carry current
*
Between contact terminals
of same polarity
Dielectric Between contact terminals
strength of different polarity
Between coil and
contact terminals
Insulation resistance
Weight (approx.)
Model
PTF-08-PU (-L)
-40 to 70°C
5 to 85%
10 A
2,000 VAC, 1 min 2,000 VAC, 1 min
2,000 VAC, 1 min 2,000 VAC, 1 min
2,000 VAC, 1 min 2,000 VAC, 1 min
1,000 MΩ min. (at 500 VDC)
65 g
100 g
PTF-14-PU-L
Ambient operating temperature
*
The continuous carry current of 10 A for P2RF-05-PU is for an
ambient temperature of 55°C. At an ambient temperature of 70°C,
the value is 7 A.
The continuous carry current of 6 A for P2RF-08-PU is for an
ambient temperature of 55°C. At an ambient temperature of 70°C,
the value is 5 A.
*
The continuous carry current of 10 A for PTF-08-PU(-L) is for an
ambient temperature of 55°C. At an ambient temperature of 70°C,
the value is 7 A.
The continuous carry current of 10 A for PTF-14-PU-L is for an
ambient temperature of 40°C. At an ambient temperature of 70°C,
the value is 7 A.
Accessories (Order Separately)
Short Bars
Application
Applicable sockets
PYF-08-PU(-L)
PYF-14-PU(-L)
P2RF-05-PU
P2RF-08-PU
P2RF-05-PU
P2RF-08-PU
PYF-08-PU(-L)
PYF-14-PU(-L)
Model
PYDN-7.75-020@
PYDN-7.75-030@
PYDN-7.75-040@
PYDN-7.75-200@
PYDN-15.5-080@
20 A
PYDN-31.0-080@
-40 to 70°C
5 to 85% Rh
20 A
-40 to 70°C
5 to 85% Rh
Maximum carry current
Ambient operating
temperature
Ambient operating
humidity
For Contact terminals
(common)
For Coil terminals
4
PYF-@@-PU/PTF-@@-PU/P2RF-@@-PU
Approved Standards
CSA certification (File No. LR031928)
Model
PYF-08-PU
PTF-08-PU
P2RF-05-PU
PYF-14-PU
PTF-14-PU
P2RF-08-PU
Ratings
10 A 250 V
6A 250V
*
10 A 250 V
(Same polarity)
6 A 250 V
3211 07
CSA C22.2 No14
Class No.
Standard No.
*
When power is supplied to all four poles, use with a total power current that does not exceed 20 A.
UL standard certification (File No. E87929)
Model
PYF-08-PU
PTF-08-PU
P2RF-05-PU
PYF-14-PU
PTF-14-PU
P2RF-08-PU
Ratings
10 A 250 V
6 A 250 V
*
10 A 250 V
(Same polarity)
6 A 250 V
UL508
SWIV2
Recognized
Standard No.
Category
Listed/
Recognized
*
When power is supplied to all four poles, use with a total power current that does not exceed 20 A.
TÜV Rheinland certification
Model
PYF-08-PU
PTF-08-PU
P2RF-05-PU
PYF-14-PU
PTF-14-PU
P2RF-08-PU
Ratings
10 A 250 V
*1
6 A 250 V
10 A 250 V
*2
6 A 250 V
*3
EN 61984
R50327595
Standard No.
Certification No.
*1.
Ratings are for an ambient temperature of 55°C. At an ambient temperature of 70°C, the value is 7 A.
*2.
Ratings are for an ambient temperature of 40°C. At an ambient temperature of 70°C, the value is 7 A.
*3.
Ratings are for an ambient temperature of 55°C. At an ambient temperature of 70°C, the value is 5 A.
5
