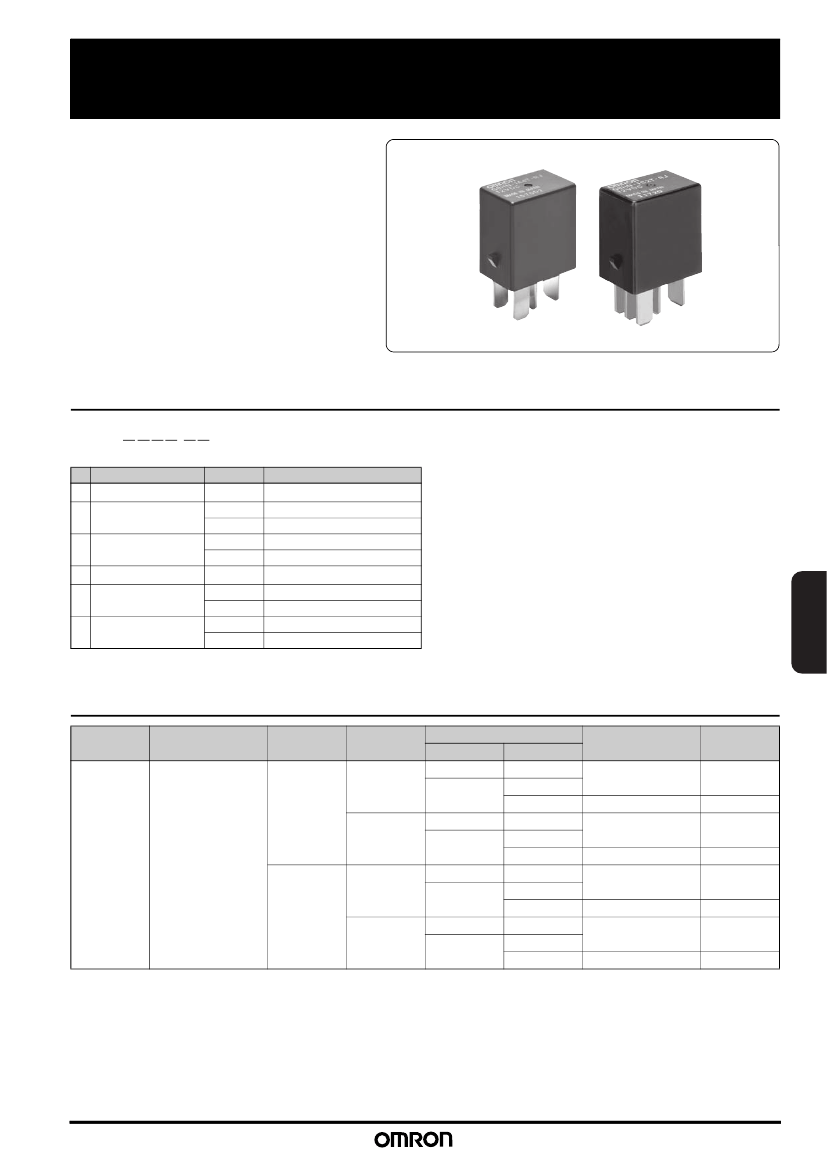

G8HN
• 12VDC, 24VDC coil
• High-wattage
Automotive Micro ISO relay
General, multi-purpose relay
• Surge suppression, diode type available
• Fully sealed type (Protective structure)
• Bracket and rubber suspension type available
• High wattage type meets mini ISO wattage specifi-
cation
• High contact reliability due to low terminal temper-
ature rise.
■
Type standard
G8HN-@@@@-@@
➀➁➂➃ ➄➅
Classification
Symbol
1
A
C
2
4
T
D
R
J
H
Meaning of the symbol
Number of contact poles
1a contact
1c contact
Unsealed (In a case)
Simple plastic seal
Plug-in terminal
➀
➁
➂
➃
➄
➅
Number of contact poles
Contact structure
Protective structure
Terminal form
Surge suppressor
Kind
Built-in resistor
Standard spec
High current spec
Note: Built-in diode available
■
Classification
Classification
Terminal form
Contact
structure
Protective
structure
Unsealed
(In a case)
SPST(1a)
Simple
plastic seal
Micro ISO
Plug-in ISO terminal
Unsealed
(In a case)
SPDT(1c)
Simple
plastic seal
Rated coil
Voltage (V)
DC24
DC12
DC24
DC12
DC24
DC12
DC24
DC12
Resistance (Ω)
315.1
95.9
124.2
315.1
95.9
124.2
315.1
95.9
124.2
315.1
95.9
124.2
Type
Characteristics
G8HN-1A2T-RJ
G8HN-1A2T-RH
G8HN-1A4T-RJ
G8HN-1A4T-RH
G8HN-1C2T-RJ
G8HN-1C2T-RH
G8HN-1C4T-RJ
G8HN-1C4T-RH
Standard
High-current
Standard
High-current
Standard
High-current
Standard
High-current
Please confirm Omron Safety Precautions for all automotive relays first.
Omron can not guarantee automotive relays before finish making a contract with product specifications.
49
ISO Relay
Built-in diode
G8HN
■
Ratings
●
Operation coil
Rated
voltage
(V)
12
DC
12
24
Coil resistance(Ω)
Between terminals (Surge suppression)
95.9
124.2
315.1
(1.1k, 1/4W)
(4.3k, 1/4W)
Rated
current
(mA)
125
97
76
Operating
voltage
(V)
8.0 or less
8.0 or less
16.0 or less
Release
voltage
(V)
1.2 or more
1.2 or more
2.4 or more
Automotive Micro ISO relay
Service voltage
range
(V)
DC10 to 16
DC10 to 16
DC20 to 32
Rated power
consumption
(mW)
1502
1159
1828
●
Switching area
Item
Contact material
Kinds
Rated voltage
Rated load
Inrush cur-
rent
Continu-
ous carry
current
*1
N.O. side
N.C. side
N.O. side
N.C. side
N.O. side
N.C. side
DC12V
Resistance load, 20A
Resistance load, 10A
100A
60A
20A
10A
Standard
DC24V
Resistance load, 10A
Resistance load, 5A
50A
30A
10A
5A
DC12V 1A
Performance
Silver alloy
High-current
DC12V
Resistance load, 35A
Resistance load, 20A
120A
60A
35A
20A
(Reference)
Min. Carry / Switching
Current
■
Performance
Item
Standard value
Standard
Rated voltage
DC12V
200 mV or less, 20A
200 mV or less, 10A
DC24V
200 mV or less, 10A
200 mV or less, 5A
10ms or less
15ms or less
10MΩ or more
10MΩ or more
AC500V for 1minute
AC500V for 1minute
33Hz 43.1m/s
2
20 to 500Hz 43.1m/s
2
1000m/s
2
(Operation time:6ms)
100m/s
2
(Operation time:11ms)
1,000,000 times or more
100,000 times
−40
to +100°C
35 to 85%RH
Approx. 20.0 g
High-current
DC12V
200 mV or less, 35A
200 mV or less, 20A
ISO Relay
Voltage drop
between terminals
Operating
time
*2
N.O. side
N.C. side
Release time
*2
Insulation
resistance
*3
Withstand
voltage
*4
Vibration
tolerance
Between coil and terminal
Between homopolar contacts
Between coil and terminal
Between homopolar contacts
Durability
Malfunction
(Detection:1ms)
Durability
Malfunction
(Detection:1ms)
Shock re-
sistance
Mechanical endurance
Electrical endurance
Ambient temperature
Ambient humidity
Weight
■
Packing
Packing form
MOQ
*5
Note:
*1.
*2.
*3.
*4.
*5.
Tray
500pcs(50pcs × 10 trays)
All values above are measured in early time under an ambient temperature of +20°C and humidity of 65% unless stated.
The value stated is at maximum temperature in a guaranteed ambient temperature.
It changes depend on how the rated voltage is operated, but bounce-time is not included.
Measured at DC500V.
Measured under 1mA of leak current, 50/60Hz for 1minute.
Minimum Order Quantity is subject to change, please feel free to contact our sales representatives.
Please confirm Omron Safety Precautions for all automotive relays first.
Omron can not guarantee automotive relays before finish making a contract with product specifications.
50
G8HN
■

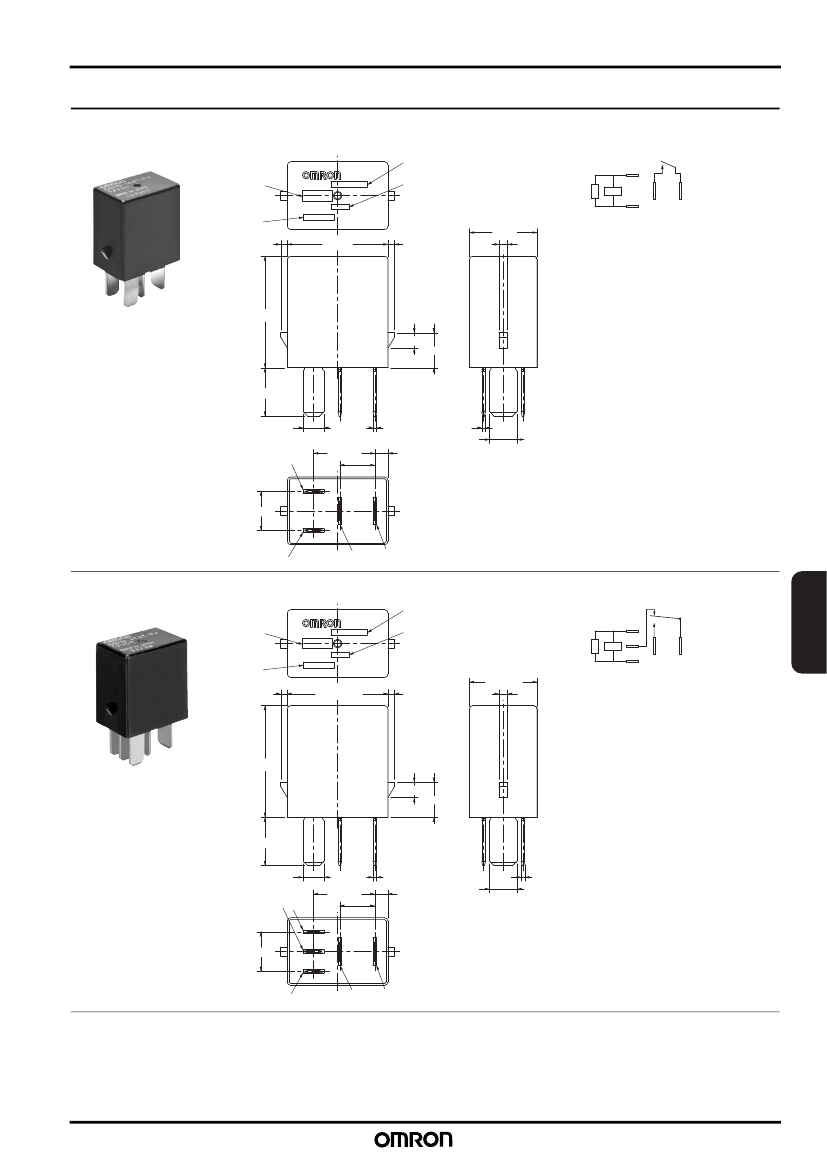

Dimensions
(Unit: mm)
G8HN(SPST)
Type
Rated
voltage
Automotive Micro ISO relay
Terminal arrangement /
Internal connections
(BOTTOM VIEW)
G8HN-
MADE IN
Country of origin
2
5
N.O.
15
±0.5
3
1
Lot
No.
1.5
22.5
±0.5
1.5
2
25
±0.5
3.5
8.0
11
±0.5
4.8
±0.1
14
±0.15
8
±0.15
0.8
±0.1
3
±0.5
0.8
±0.1
6.3
±0.1
2
9
±0.15
1
5
3 (Polarity + side)
G8HN(SPDT)
Type
Rated
voltage
G8HN-
MADE IN
Country of origin
2
4
1
TR
5
3
Lot
No.
15
±0.5
1.5
22.5
±0.5
1.5
2
25
±0.5
3.5
8.0
11
±0.5
4.8
±0.1
14
±0.15
8
±0.15
0.8
±0.1
3
±0.5
6.3
±0.1
0.8
±0.1
4 2
9
±0.15
1
5
3 (Polarity + side)
* Tolerance unless otherwise specified Less than 1 mm: ±0.1 mm
Less than 1 to 3 mm: ±0.2 mm
3 mm or more: ±0.3 mm
Please confirm Omron Safety Precautions for all automotive relays first.
Omron can not guarantee automotive relays before finish making a contract with product specifications.
51
ISO Relay
Terminal arrangement /
Internal connections
(BOTTOM VIEW)
