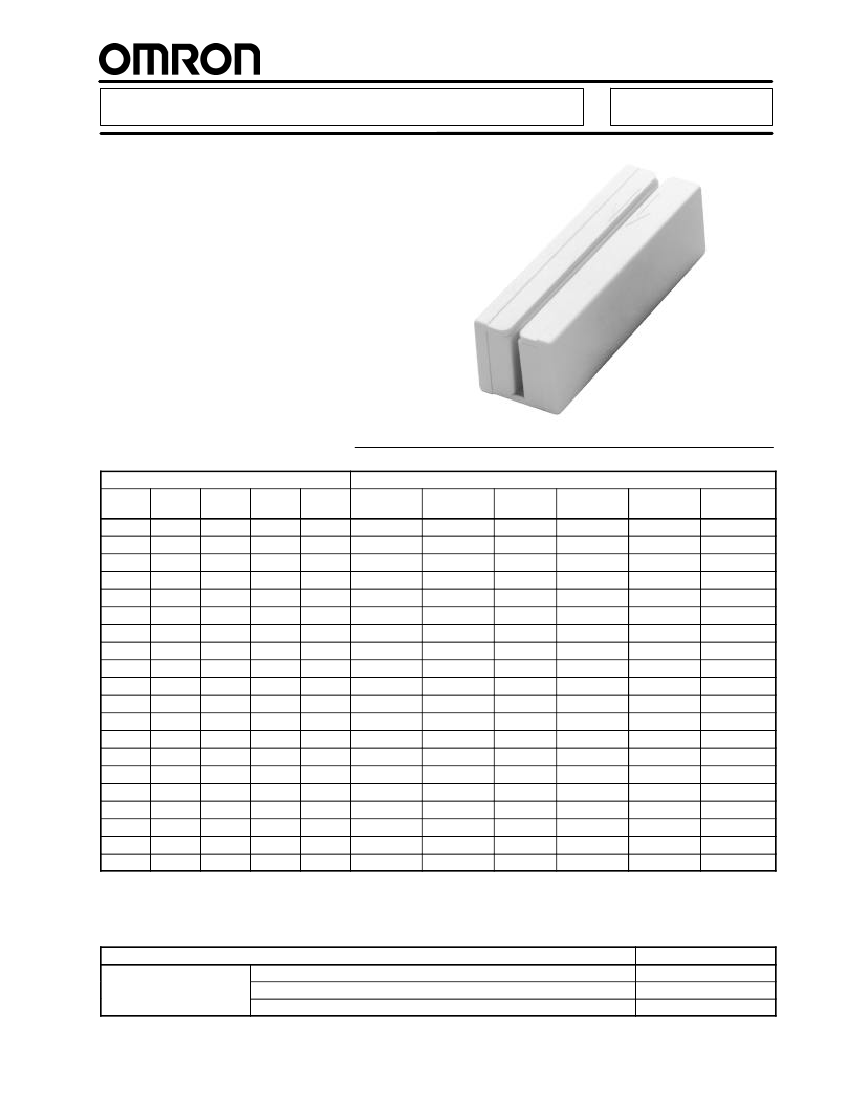

Manual Swipe Magnetic Card Reader
Low Cost, Ultra-Compact, Manual
Swipe Reader
H
H
H
H
Low power C-MOS technology
Multiple configurations
TTL-compatible interface (clock & data)
Available with or without cover
V3A
Ordering Information
Magnetic Tracks Supported (R, R/W)
1
R
R
R
R
—
—
—
—
R
R
—
—
R
R
—
—
R
R
—
—
2
R
R
—
—
R
R
—
—
R
R
R
R
R
R
R
R
R
R
R
R
3
R
R
—
—
—
—
R
R
—
—
R
R
R
R
—
—
—
—
R
R
Center
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
JIS II
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
IC Contact
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Interface
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
TTL
Cover
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Cable
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Color
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Ivory
Black
Black
Black
Black
Black
Black
Black
Black
Part
Number
V3A-1K
V3A-1
V3A-3K
V3A-3
V3A-4K
V3A-4
V3A-5K
V3A-5
V3A-6K
V3A-6
V3A-7K
V3A-7
V3A-1KB
V3A-1B
V3A-4KB
V3A-4B
V3A-6KB
V3A-6B
V3A-7KB
V3A-7B
Note: Cable harness is included with all V3B models. It is optional for V3A.
J
ACCESSORIES
Item
Cable harnesses
V3A-1
V3A-3, 4, 5
V3A-6, 7
Part Number
V3A/B-1 CN Harness
V3A-4 CN Harness
V3A/B-6/7 CN Harness
V3A
J
TYPICAL APPLICATIONS
·
Point-of Sale (POS) systems
·
ID card checkers
·
Club membership
·
Access management
·
Remote terminals for computers
V3A

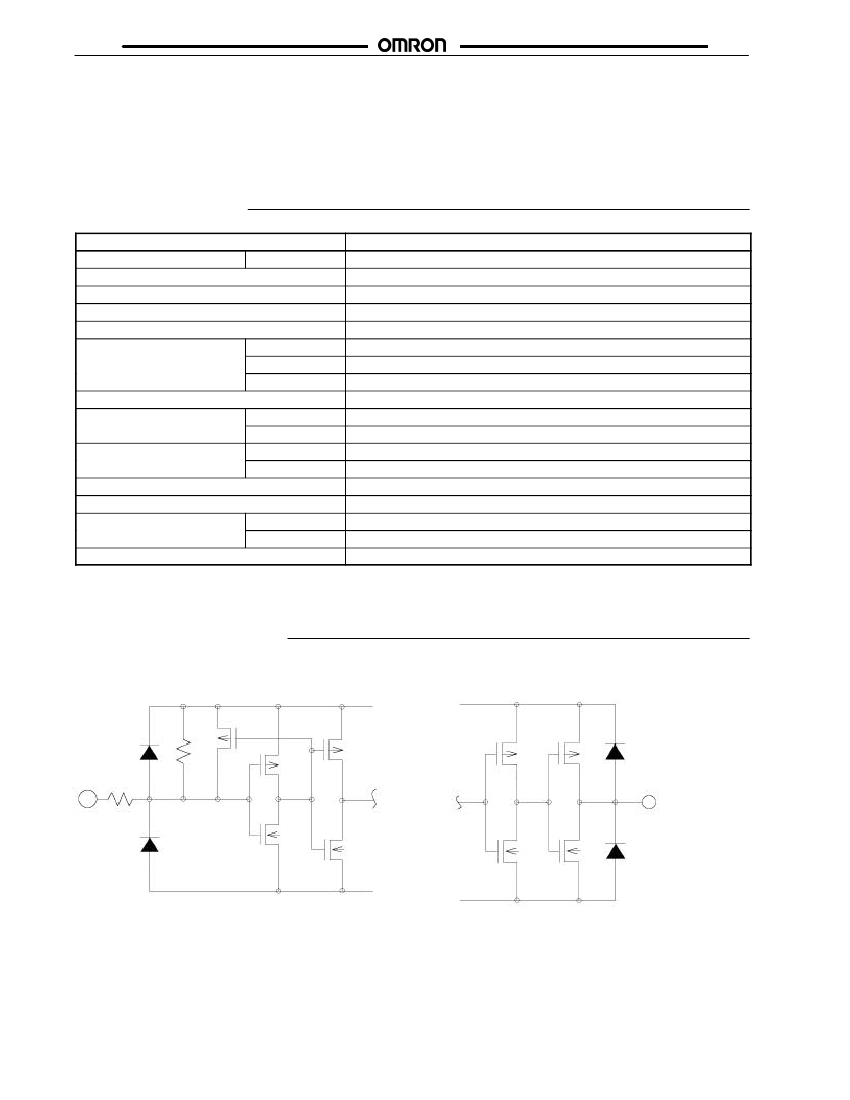

Specifications
Part Number
Recommended card type
Recording method
Card feeding speed
Service life of magnetic head
Operating power supply
Current consumption
Single track
Dual track
Triple track
Mounting location
Ambient temperature
Ambient humidity
Vibration
Shock
Dimensions
Weight
With cover
Without cover
Operation
Storage
Operation
Storage
Magnetic card
V3A-jj
ISO 7810, 7811/1-6
FM decoding (F2F)
10 to 120 cm/second (10 to 100 cm/sec triple track)
300,000 passes
+5 VDC
±10%
3 mA typical, 5 mA maximum
6 mA typical, 10 mA maximum
9 mA typical, 15 mA maximum
Indoors—away from direct sunlight or wet, humid environment
--10_ to 55_C (14_F to 131_F)
--30_ to 70_C (--22_F to 158_F)
30% to 85% RH
20% to 90% RH
10 to 150 Hz, single vibration width of 0.15 mm
Peak acceleration 19.6 m/sec
2
90 W x 26.5 H x 28 D mm (3.54 W x 1.04 H x 1.10 D in)
90 W x 24 H x 24 D mm (3.54 W x 0.94 H x 0.94 D in)
Approx. 45g with cover (30g without cover)
Engineering Data
J
INPUT CIRCUIT DIAGRAM
+5 VDC
J
OUTPUT CIRCUIT DIAGRAM
DC+5 V
Input
R1
Output
R1: 100 k¦p
0V
0V
2
V3A
V3A
J
I/O INFORMATION
Single Track Connector
9-pin Molex connector part number 53261--0990. Applicable
Molex socket housing part number 51021--0900.
Pin #
1
2
3
4
5
6
7
8
9
Signal
0V
+5 VDC
CSV
CLS
RCP
RDP
Not used
Not used
Not used
Input/Output
—
—
Input
Output
Output
Output
—
—
—
Description
—
—
Current save
Card loaded
Read clock
Read data
—
—
—
Triple Track Connector
12-pin Molex connector part number 53048--1210. Applicable
Molex socket housing part number 51021--1200.
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
Signal
0V
+5 VDC
CSV
CLS3
RCP3
RDP3
CLS2
RCP2
RDP2
CLS1
RCP1
RDP1
Input/Output
—
—
Input
Output
Output
Output
Output
Output
Output
Output
Output
Output
Description
—
—
Current save
Card loaded 3
Read clock 3
Read data 3
Card loaded 2
Read clock 2
Read data 2
Card loaded 1
Read clock 1
Read data 1
Double Track Connector
9-pin Molex connector part number 53261--0990. Applicable
Molex socket housing part number 51021--0900.
Pin #
1
2
3
4
5
6
7
8
9
Signal
0V
+5 VDC
CSV
CLS2
RCP2
RDP2
CLS1/3
RCP1/3
RDP1/3
Input/Output
—
—
Input
Output
Output
Output
Output
Output
Output
Description
—
—
Current save
Card loaded 2
Read clock 2
Read data 2
Card loaded 1/3
Read clock 1/3
Read data 1/3
3
V3A
V3A

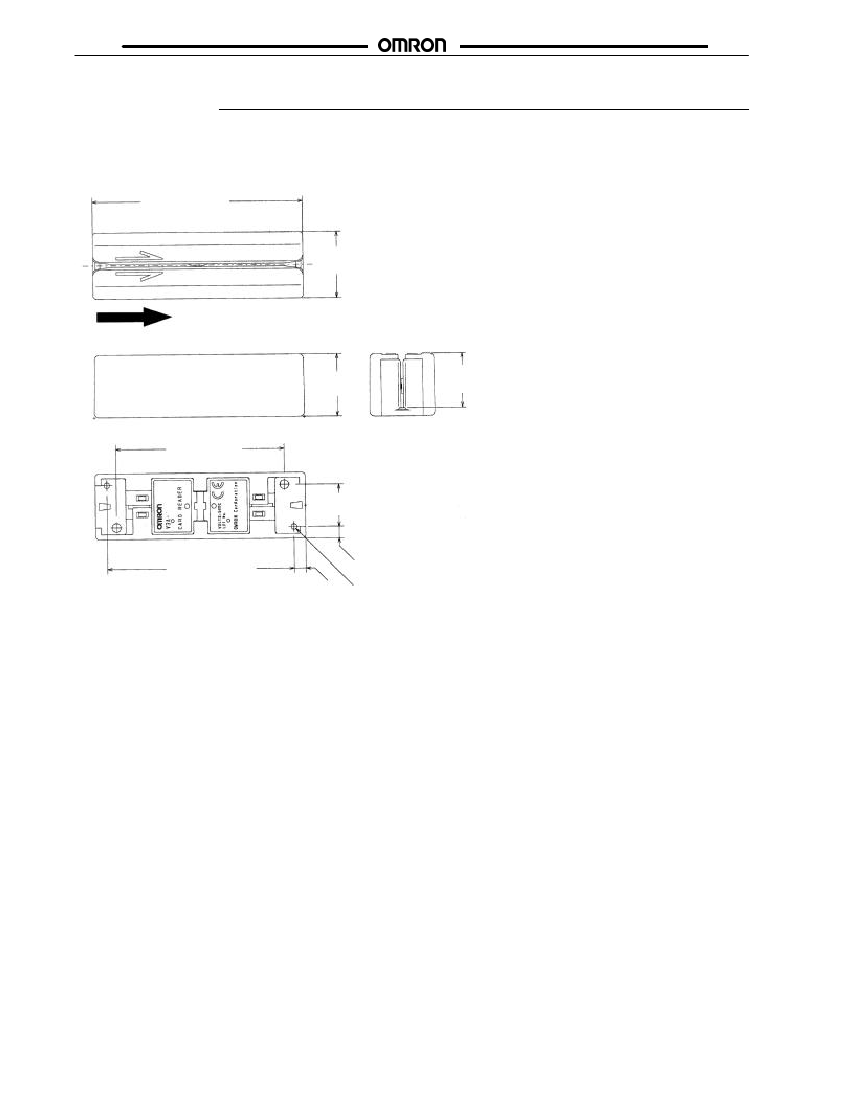

Dimensions
Unit: mm (inch)
J
V3A-4K
90
(3.54)
28
(1.10)
Card Feed Direction
26.5
(1.04)
23
(0.91)
72
±
0.2
(2.83
±
0.008)
18
±
0.2
(0.71
±
0.008)
80
±
0.2
(3.15
±
0.008)
5
(0.20)
5
(0.20)
2 --
f
2.5 dia. Depth 7
for Mounting Screw
(Applicable Screw: M3 Tapping)
Note: Tolerances
±0.3mm
unless specified
4
V3A
V3A

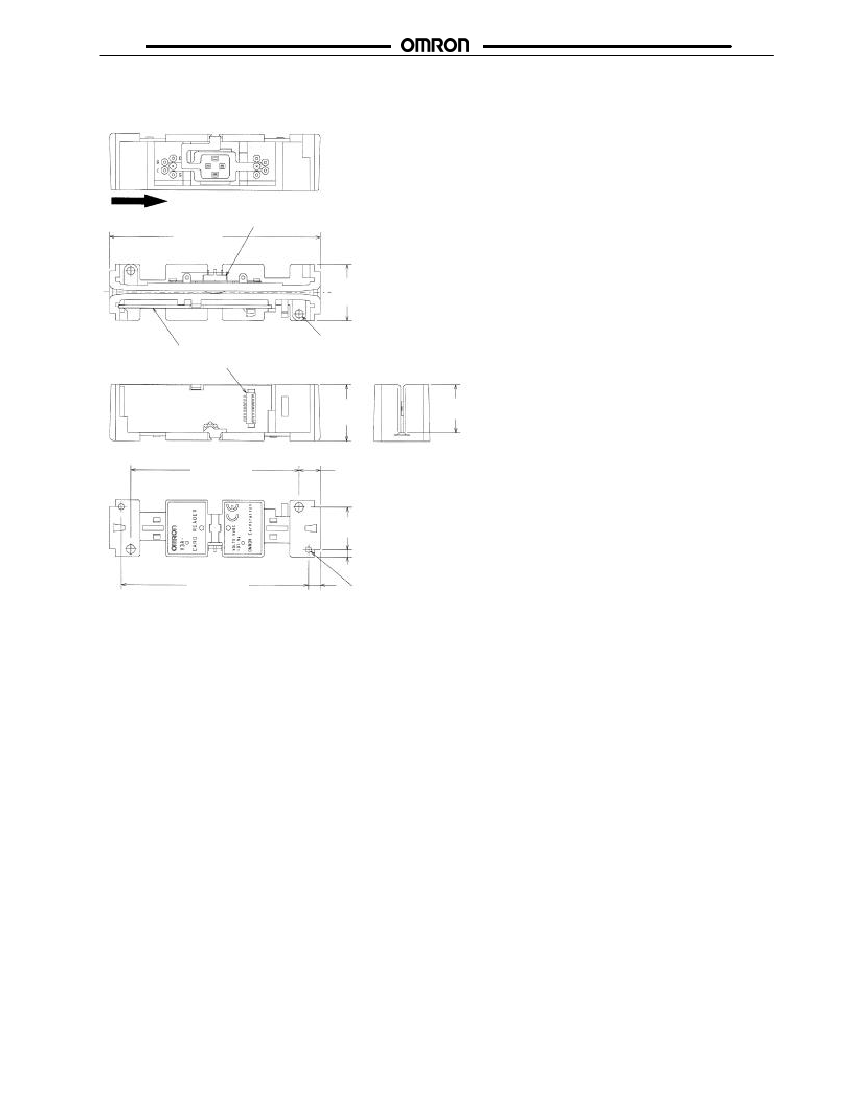

J
V3A-4
Card Feed Direction
90
(3.54)
Mag. Head
24
(0.94)
Circuit Board
Output Connector
2 --
f
3.5 dia.
for Front Side Mounting Screw
(Applicable Screw: M3)
pin 9
pin 1
24
(0.94)
20.5
(0.81)
72
±
0.2
(2.83
±
0.008)
9
(0.35)
18
±
0.2
(0.71
±
0.008)
80
±
0.2
(3.15
±
0.008)
3
(0.12)
5
(0.20) 2 --
f
2.5 dia. Depth 7
for Reverse Side Mounting Screw
(Applicable Screw: M3 Tapping)
Note: Tolerances
±0.3mm
unless specified
5
