208457032001051: DescriptionBoard Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

208457032001051 Overview

Board Euro Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle, ROHS COMPLIANT

208457032001051 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612, POLARIZED
body width	0.315 inch
body length	2.162 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	8457
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

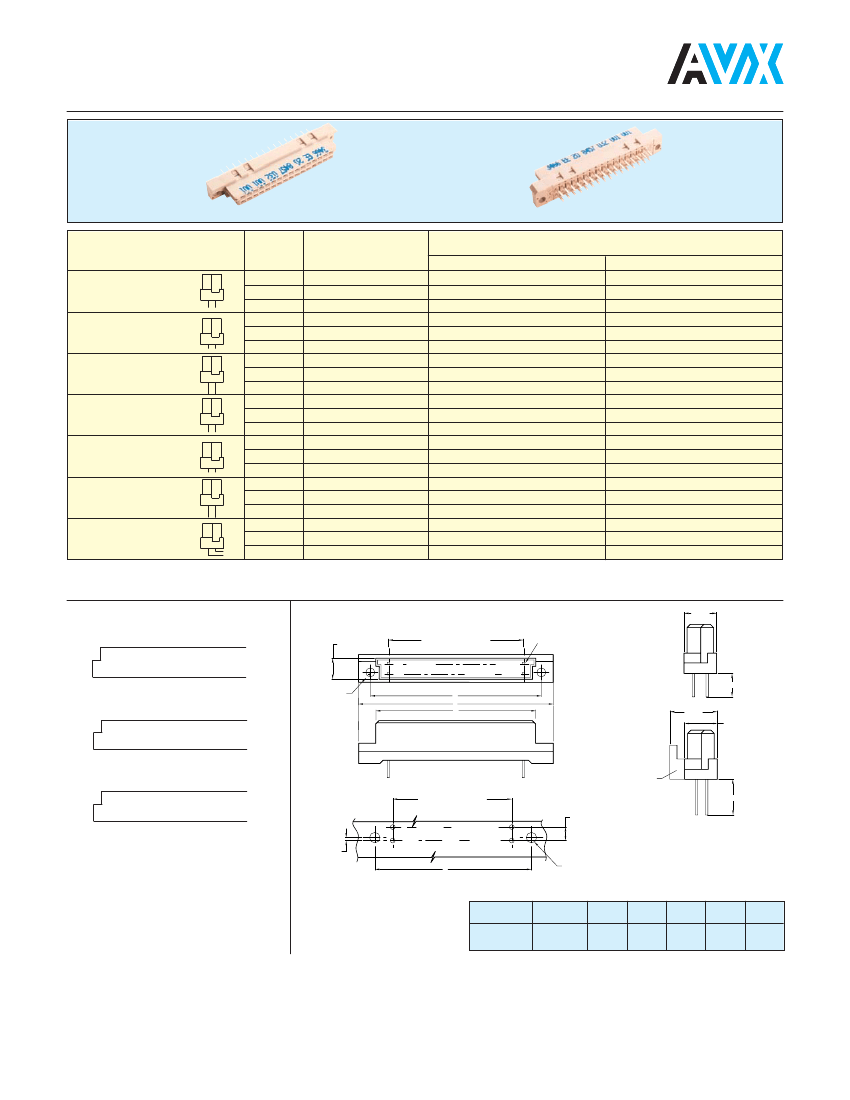

Female Style 1/2 B

Series 8457 – 2 rows (2 x 16)

Contact Design

and

Termination Length

0.6 x 0.6 mm post profile

4.5 mm (Y) Straight

0.6 x 0.6 mm post profile

2.9 mm (Y) Straight

0.6 x 0.6 mm post profile

13.0 mm (Y) Straight

0.6 x 0.6 mm post profile

7.0 mm (Y) Straight

0.6 x 0.6 mm post profile

3.5 mm (Y) Straight

0.6 x 0.6 mm post profile

19.4 mm (Y) Straight

0.6 x 0.6 mm post profile

4.5 mm (Y) Right Angled

Number of

Contacts

32

16

32

16

32

16

32

16

32

16

32

16

32

16

Loading Description

a

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

+ b even loading

+ b fully loaded

loading only

+ b fully loaded

+ b even loading

loading only

+ b fully loaded

+ b even loading

loading only

20

Part Number

Performance classes according to DIN 41612

II

I

8457

032

001

002

005

010

011

012

013

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

025

031

027

20

8457

032

001

002

005

010

011

012

013

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

049

055

051

NB: Alternative Prefix Variations Available: 22, 24, 25, 26 & 27, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

5.94

[0.234]

A EQ SP @ 2.54 [0.100] = B

1

ROW A

ROW B

2.84

[0.110] DIA.

8.00

[0.315]

b

a

32 contacts, rows a + b fully loaded

✕

●

✕

●

✕

Y For Y dimension

see contact design

D

E

C

10.9

[0.429]

8.00

[0.315]

b

a

16 contacts, rows a + b even loading

KEYING

For Y dimension

Y see contact design

2.54

[0.100]

ROW A

✕

●

✕

●

✕

●

✕

●

✕

●

b

a

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

16 contacts, row a loading only

0.30

[0.012]

D

HOLE PATTERN

ROW B

2.84

[0.112] DIA.

Unit: millimeters (inches)

No. Contact

Positions

32

Contact

Rows

2 (2 x 16)

A

15

B

38.10

(1.500)

C

44.30

(1.744)

D

49.99

(1.968)

E

54.91

(2.162)

14
