MMBT3640 — PNP Switching Amplifier
March 2014
MMBT3640
PNP Switching Amplifier
Description
This device is designed for very high-speed saturated
switching at collector currents to 100 mA. Sourced
from process 65.
C
E

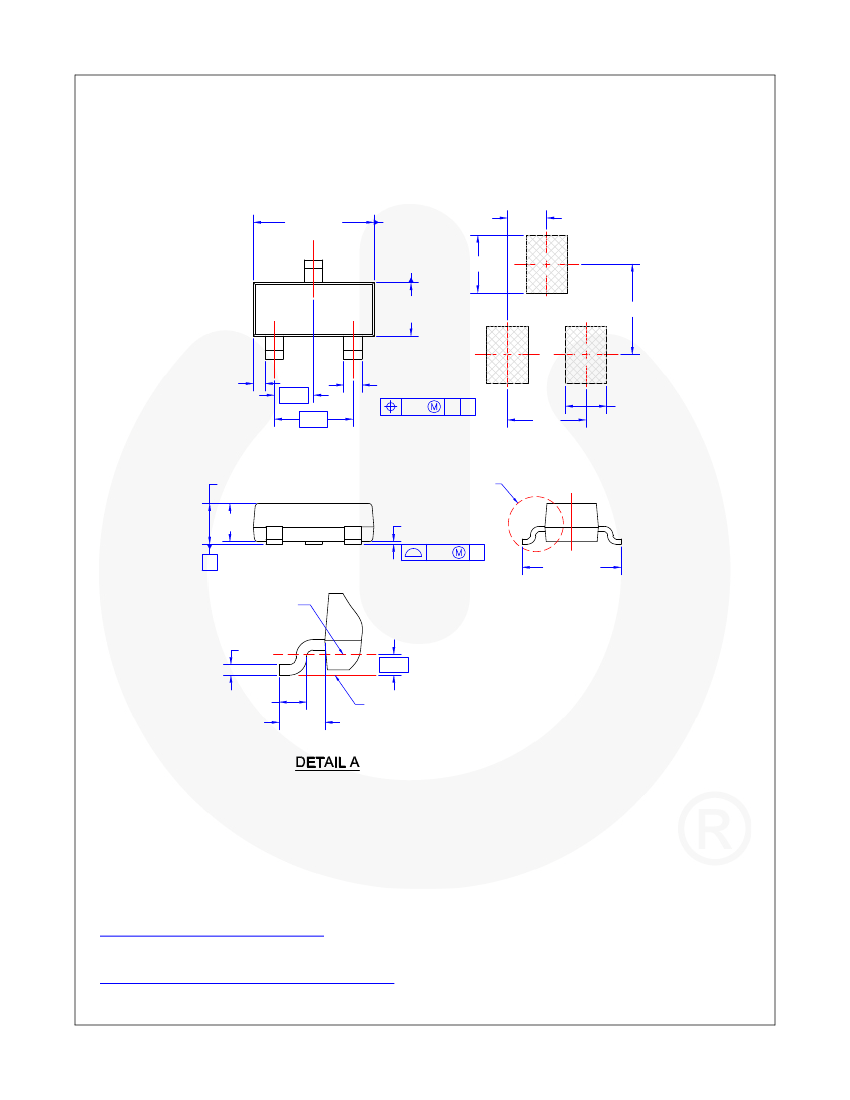

SOT-23
Mark: 2J
B
Ordering Information
Part Number
MMBT3640
Marking
2J
Package
SOT-23 3L
Packing Method
Tape and Reel
Absolute Maximum Ratings
(1),(2)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J ,
T
STG
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Parameter
Value
-12
-12
-4
-200
-55 to +150
Unit
V
V
V
mA
°C
Collector Current - Continuous
Junction and Storage Temperature Range
Notes:
1. These ratings are based on a maximum junction temperature of 150°C.
2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or
low-duty-cycle operations.
Thermal Characteristics
(3)
Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
D
R
θJA
Total Device Dissipation
Derate Above T
A
= 25°C
Parameter
Max.
225
1.8
556
Unit
mW
mW/°C
°C/W
Thermal Resistance, Junction to Ambient
Note:
3. Device mounted on FR-4 PCB 1.6 inch X 1.6 inch X 0.06 inch.
