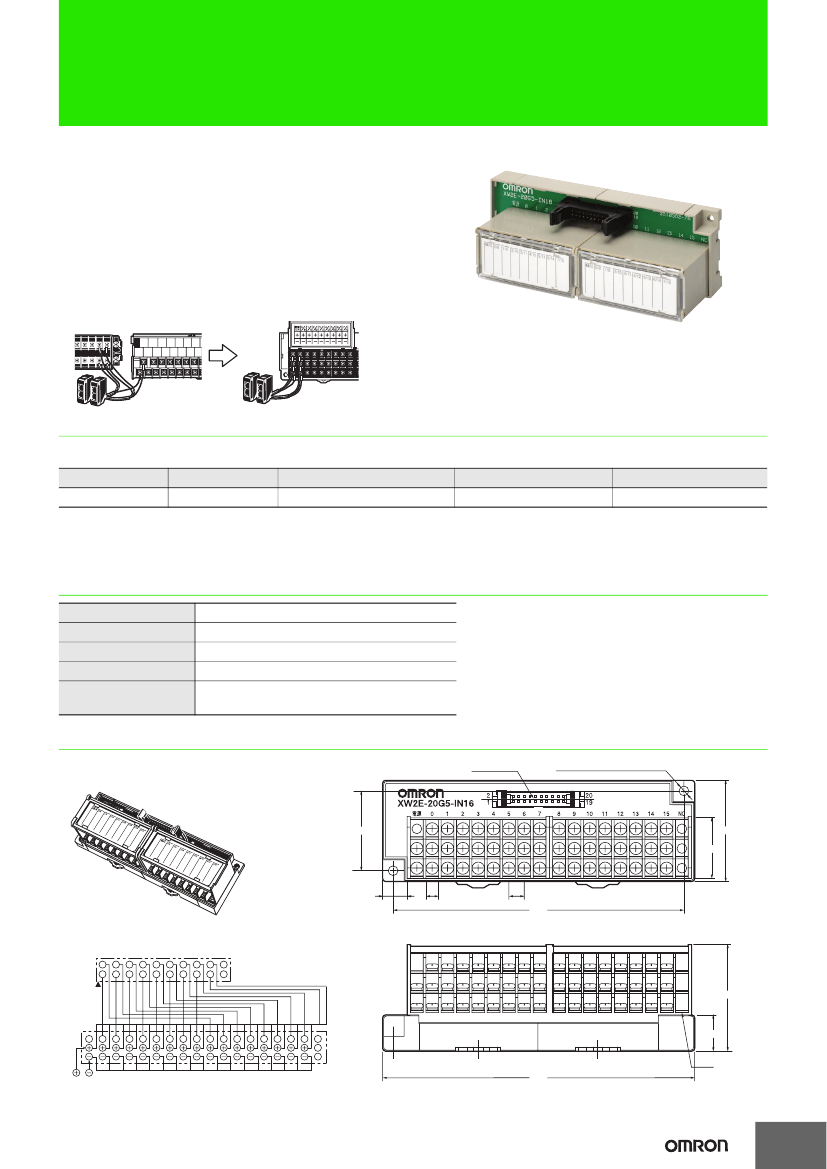

Connector-Terminal Block Conversion Units with Three-tiered Terminal Block with Common
XW2E
CSM_XW2E_DS_E_1_2
A common terminal is provided for
device power supply and the three-
tiered structure means easier wiring.
• For 16 inputs only.
• The three-tiered terminal block simplifies wiring
because the power supply terminal block is wired
with just one crimp terminal.
Ordering Information
Connector-Terminal Block Conversion Unit
No. of inputs
16
No. of poles
20
Model
XW2E-20G5-IN16
Mounted Connector model
XG4A-2031
Cable Connector model
XG4M-2030-T
Accessories (Order Separately)
Connecting Cables for Connector-Terminal Block Conversion Units
Refer to the
XW2Z datasheet.
Ratings and Specifications
Rated current
Rated voltage
Insulation resistance
Dielectric strength
Ambient operating
temperature
1A
12 to 24 VDC
100 MΩ min. (at 500 VDC)
500 VAC for 1 min (leakage current: 1 mA max.)
0 to 55°C
Dimensions
XW2E-20G5-IN16
XG4A-2031
Two, 4.5-dia. (mounting holes)
(Unit: mm)
40
30
50
11.5
6.3
7.3 (terminal pitch)
139
Wiring Diagram
Mounted Connector
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
NC
19
NC
Triangular
mark
18
53
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
*
External power
supply
Terminal Block
149
*This is not a row of terminals.
