Pulse Jack
SMT Power Inductors
Power Beads - PA3790.XXXHL Series
Current Rating:
Over 98 Apk
Inductance Range:
150nH to 220nH
Height:
8.0 mm Max
Footprint:
12.5mm x 8.0mm Max
Halogen Free
Electrical Specifications @ 25°C — Operating Temperature - 40°C to +130°C
7
Part
Number
PA3790.151HL
PA3790.181HL
PA3790.201HL
PA3790.221HL
Inductance
1
@ 0A
DC
(nH +/- 15%)
150
180
200
220
Inductance
2
@Irated
(nH TYP)
148
175
195
200
Irated
(ADC)
57
57
57
55
3
Electronics
DCR
(mΩ nominal)
4
Saturation Current
5
(A TYP)
25°C
98
84
73
63
100°C
80
70
61
55
Heating Current
6
(A TYP)
0.29 +/- 5%
57
NOTES:
1. Inductance measured at 100kHz, 100mVrms.
2. Inductance at Irated is the value of the inductance at 25°C at the listed rated current.
3. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on
which value is lower.
4. The nominal DCR is measured from point a to point b , as shown below on the mechanical drawing.
5. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient
temperatures (25°C, 100°C and 125°C). This current is determined by placing the component in the specified ambi-
ent environment and applying a short duration pulse current
(to eliminate self-heating effects) to the component.
6. The heating current is the DC current which causes the part temperature
to increase by approximately 40°C when used in a typical application.
7. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor
which may neccessitate derating the current in order to limit the temperature rise of the component. To deter-
mine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature
rise curves can be used.
8. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PA3790.151HL
becomes PA3790.151HLT).
Pulse complies to industry standard tape and reel specification EIA481. The tape and reel for this product has a
width (W=24mm), pitch (Po=16.0mm) and depth (Ko=8.7mm).
9. The temperature of the component (ambient plus temperature rise) must be within the stated operating tem-
perature range.

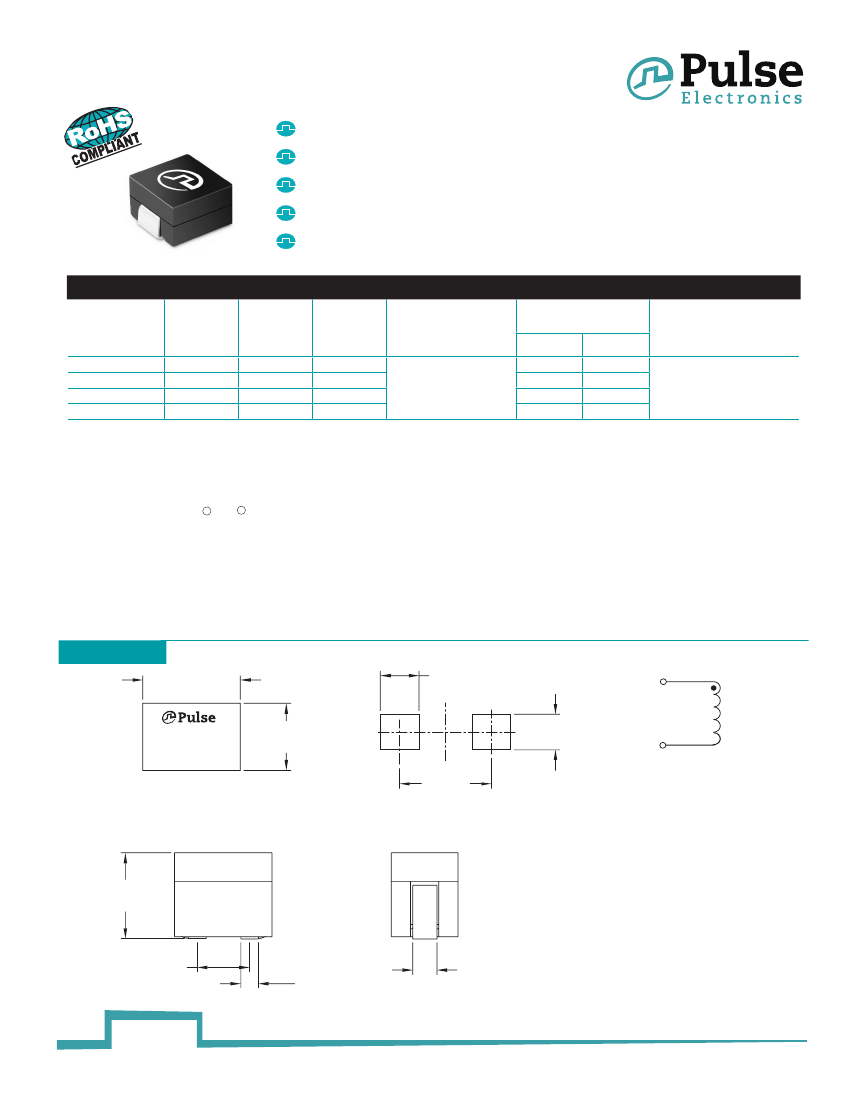

Mechanical
PA3790.XXXHL
12.50 MAX
(3.0)
Schematics
1
(3.50)
PA3790.XXXHL
D/C
CTRY
8.00 MAX
2
(8.00)
SUGGESTED LAND PATTERN
Weight
. . . . . . . . . . . . . . . . . . . . . . . . .3.4 grams
Tape & Reel
. . . . . . . . . . . . . . . . . . . . . .400/reel
Dimensions:
mm
Unless otherwise specified,
all tolerances are ± 0,25
8.00 MAX
(8.00)
2X (2.00)
(1.90)
1
pulseelectronics.com
P720.A (3/13)
Pulse Jack
SMT Power Inductors
Power Beads - PA3790.XXXHL Series
Electronics
PA3790.XXXHL, L vs I curve at 25C
240
220
200
180
.221HL
.201HL
.181HL
.151HL
Inductance (nH)
160
140
120
100
80
60
40
20
0
0
5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Current I (A)
PA3790.XXXHL, L vs I curve at 100C
240
220
200
180
.221HL
.201HL
.181HL
.151HL
Inductance (nH)
160
140
120
100
80
60
40
20
0
0
5
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
Current I (A)
2
pulseelectronics.com
P720.A (3/13)
Pulse Jack
SMT Power Inductors
Power Beads - PA3790.XXXHL Series
PA3790.XXXHL CoreLoss (W)
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Electronics
CoreLoss (W)
700
KHz
600
KHz
500
KHz
400
KHz
300
KHz
200
KHz
0
500
1000
1500
2000
where B = 0.29 * L(nH) * I
B
(Gauss)
PA3790.XXXHL Temp Rise vs Power Dissipation
Temp Rise above Ambient (C)
80
70
60
50
40
30
20
10
0
0
0.25
0.5
0.75
1
Power (W)
1.25
1.5
1.75
2
Total Power Dissipation (W) = CopperLoss + CoreLoss
CopperLoss = Irms^2 * Rdc(mOhms) / 1000
CoreLoss = (from table)
