2279-T039: DescriptionVariable Inductor, 1uH Max, Shielded, ROHS COMPLIANT; CategoryPassive components inductor; File Size151KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

2279-T039 Overview

Variable Inductor, 1uH Max, Shielded, ROHS COMPLIANT

2279-T039 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum inductance(L)	1 µH
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	S-5
Number of functions	1
Number of terminals	2
Minimum quality factor (at nominal inductance)	40
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	100 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

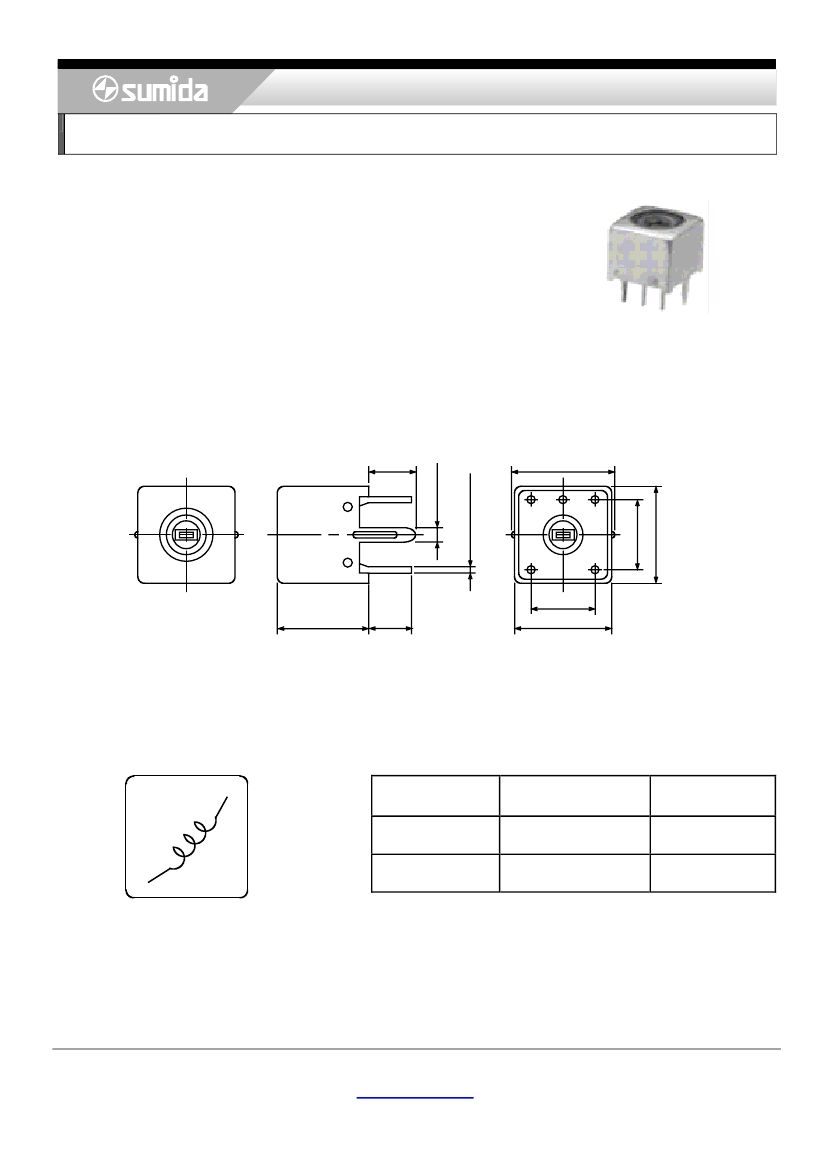

RF COILS < Pin Type: S-5 Series>

Type: S-5E

◆

Product Description

・5.9×5.9mm

Max.(L×W), 5.2mm Max. Height.

・Inductance:

1.0μH Max.

・Operating

frequency: 300MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Variable

shielded type.

・RoHS

Compliance

◆

Dimensions (mm)

2.6±0.3

0.8±0.2

＋0.1

φ0.4－0.05

5.8

4.7±0.5

±0.5

2.5

3.6±0.2

5.6±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

＊

Dimensions without tolerance are approx.

◆

Connection (Bottom View)

◆

Specification

(Part No. 2279-T039)

(1-4)

52pF±1% Variable

Min.40

Measuring

Condition

100MHz

③

②

S

①

④

Item

Tuning Capacity

⑥

Unloaded Qu

“S”is

winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

3.6±0.2

5.6±0.3

1/1
