Rotary Pulse Indicator
K3HB-R
CSM_K3HB-R_DS_E_9_1

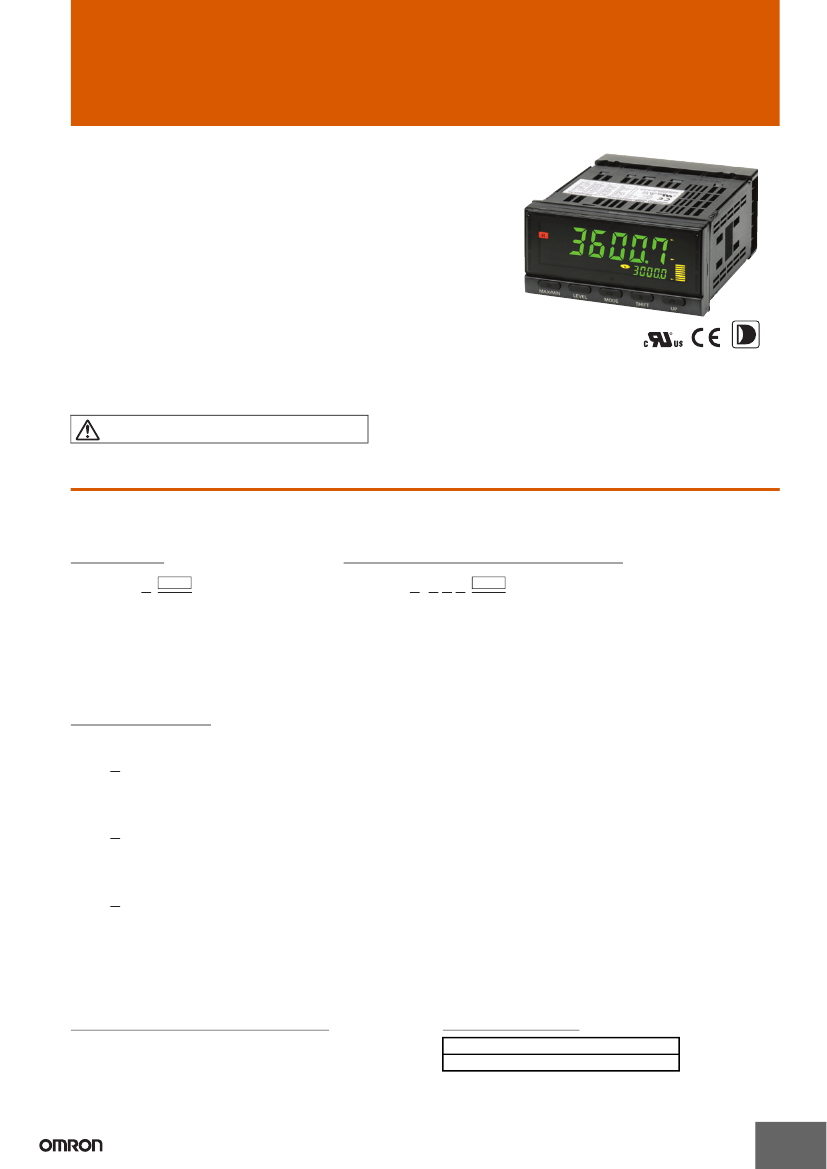

Digital Rotary Pulse Meter Capable of 50 kHz Measurements
• Visual confirmation of judgement results through display colors that switch
between red and green.
*1
• Measures High-speed Pulses at 50 kHz.
Provides high-speed pulse measurements up to 50 kHz of rotary encoder or ON/OFF
pulse signals and can perform rotating measurement of high-speed rotating objects.
Note:
No-voltage contacts of up to 30 Hz are supported.
• Six Measurement Operations Including Rotation (rpm)/Circumferential
Speed, Ratio, and Cumulative
One Rotary Pulse Meter has 6 rotary pulse measurement functions to support a
variety of pulse measurement applications. Select the best function for your
application from the following: Rotation (rpm)/circumferential speed/instantaneous
flowrate (value proportional to frequency), absolute ratio, error ratio, error, flow rate
ratio, and passing speed (value inversely proportional to frequency).
• DeviceNet models added to the series.
*2
*1
Visual confirmation of judgement results is not supported on models that do not have an output
or models that do not support DeviceNet.
You can change the display color by setting it, but you cannot switch it based on the judgement results.
*2
DeviceNet models have a depth of 97 mm.
Refer to
Safety Precautions for All Digital Panel
Meters.
Model Number Structure
■
Model Number Legend
Base Units and Optional Boards can be ordered individually or as sets.
Base Units
K3HB-R
@
1
5
1. Input Sensor Code
NB: NPN input/voltage pulse input
PB: PNP input
5. Supply Voltage
100-240 VAC:100 to 240 VAC
24 VAC/VDC: 24 VAC/VDC
Base Units with Optional Boards
K3HB-R@-@@@
1
2 3 4
5
2. Sensor Power Supply/Output Type Code
None: None
CPA: Relay output (PASS: SPDT) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 1.)
L1A:
Linear current output (0 to 20 or 4 to 20 mA DC) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
L2A:
Linear voltage output (0 to 5, 1 to 5, or 0 to 10 VDC) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
A:
Sensor power supply (12 VDC ±10%, 80 mA)
FLK1A: Communications (RS-232C) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
FLK3A: Communications (RS-485) + Sensor power supply
(12 VDC±10%, 80 mA) (See note 2.)
3. Relay/Transistor Output Type Code
None: None
C1:
Relay contact (H/L: SPDT each)
C2:
Relay contact (HH/H/LL/L: SPST-NO each)
T1:
Transistor (NPN open collector: HH/H/PASS/L/LL)
T2:
Transistor (PNP open collector: HH/H/PASS/L/LL)
BCD
*:BCD
output + transistor output (NPN open collector: HH/H/PASS/L/LL)
DRT: DeviceNet (See note 2.)
*
A Special BCD Output Cable (sold separately) is required.
4. Event Input Type Code
None: None
1:
5 inputs (M3 terminal blocks), NPN open collector
2:
8 inputs (10-pin MIL connector), NPN open collector
3:
5 inputs (M3 terminal blocks), PNP open collector
4:
8 inputs (10-pin MIL connector), PNP open collector
Optional Boards
Sensor Power Supply/Output Boards
K33-@
2
Relay/Transistor Output Boards
K34-@
3
Event Input Boards
K35-@
4
Note: 1.
CPA can be combined with relay outputs only.
2.
Only one of the following can be used by each Digital Indicator: RS-232C/RS-485 communications, BCD communications, or DeviceNet
communications.
Accessories (Sold Separately)
K32-DICN: Special Cable (for event inputs with 8-pin connector)
K32-BCD: Special BCD Output Cable
Rubber Packing
Model
K32-P1
Note:
Rubber packing is provided with the Controller.
1
K3HB-R
Specifications
■
Ratings
Supply voltage
Allowable power supply voltage
range
Power consumption
(See note 1.)
Current consumption
Input
External power supply
Event inputs
(See note 2.)
Startup compen-
sation timer input
Hold input
Reset input
Bank input
Output ratings Relay output
(depends on
the model)
Transistor output
Linear output
250 VAC, 30 VDC, 5 A (resistive load)
Mechanical life expectancy: 5,000,000 operations, Electrical life expectancy: 100,000 operations
Maximum load voltage: 24 VDC, Maximum load current: 50 mA, Leakage current: 100
µA
max.
Linear output 0 to 20 mA DC, 4 to 20 mA DC:
Load: 500
Ω
max, Resolution: Approx. 10,000, Output error: ±0.5% FS
Linear output 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC:
Load: 5 kΩ max, Resolution: Approx. 10,000, Output error: ±0.5% FS
(1 V or less: ±0.15 V; no output for 0 V or less)
Negative LCD (backlit LED) display
7-segment digital display (Character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green))
Scaling function, measurement operation selection, averaging, output hysteresis, output OFF delay, output test,
teaching, display value selection, display color selection, key protection, bank selection, display refresh period, max-
imum/minimum hold, reset
100 to 240 VAC, 24 VAC/VDC, DeviceNet power supply: 24 VDC
85% to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
100 to 240 VAC: 18 VA max. (max. load)
24 VAC/DC: 11 VA/7 W max. (max. load)
DeviceNet power supply: 50 mA max. (24 VDC)
No-voltage contact, voltage pulse, open collector
12 VDC ±10%, 80 mA (models with external power supply only)
NPN open collector or no-voltage contact signal
ON residual voltage: 2 V max.
ON current at 0
Ω:
4 mA max.
Max. applied voltage: 30 VDC max.
OFF leakage current: 0.1 mA max.
Display method
Main functions
Ambient operating temperature
Ambient operating humidity
Storage temperature
Altitude
Accessories
−10
to 55°C (
with no icing or condensation
)
25% to 85%
−25
to 65°C (
with no icing or condensation
)
2,000 m max.
Watertight packing, 2 fixtures, terminal cover, unit stickers, instruction manual. DeviceNet models also include a De-
viceNet connector (Hirose HR31-5.08P-5SC(01)) and crimp terminals (Hirose HR31-SC-121) (See note 3.)
Note: 1.
DC power supply models require a control power supply capacity of approximately 1 A per Unit when power is turned ON. Particular
attention is required when using two or more DC power supply models. The OMRON S8VS-series DC Power Supply Unit is
recommended.
2.
PNP input types are also available.
3.
For K3HB-series DeviceNet models, use only the DeviceNet Connector included with the product. The crimp terminals provided are for
Thin Cables.
2
K3HB-R
■
Characteristics
Display range
Measurement accuracy
(at 23±5°C)
Measurement range
Input signals
−19,999
to 99,999
Functions F1, F6: ±0.006% rgd ±1 digit (for voltage pulse/open collector sensors)
Functions F2 to F5: ±0.02% rgd ±1 digit (for voltage pulse/open collector sensors)
Functions F1 to F6: 0.5 mHz to 50 kHz (for voltage pulse/open collector sensors)
Contact input (dry contact input) (30-Hz max. with ON/OFF pulse width of 15 ms min.)
No contact voltage pulse (50-KHz max. with ON/OFF pulse width of 9 µs min.; ON voltage: 4.5 to 30 V;
OFF voltage:
−30
to 2 V; input impedance: 10 kΩ)
Open collector (50-KHz max. with ON/OFF pulse width of 9 µs min.)
ON residual voltage: 3 V max.
OFF leakage current: 1.5 mA max.
Load current:
Must have a switching capacity of 20 mA or higher.
Must be able to properly switch load currents of 5 mA or less.
Functions F1 to F6: 100 ms max. (time until the comparative output is made when there is a forced sudden
change in the input signal from 15% to 95% or 95% to 15%.)
Functions F1 to F6: 110 ms max. (time until the final analog output value is reached when there is a forced
sudden change in the input signal from 15% to 95% or 95% to 15%.)
20 MΩ min. (at 500 VDC)
2,300 VAC for 1 min between external terminals and case
100 to 240 VAC models:
±1,500
V at power supply terminals in normal or common mode
(waveform with 1-ns rising edge and pulse width of 1
μs/100
ns)
24 VAC/VDC models:
±1,500
V at power supply terminals in normal or common mode
(waveform with 1-ns rising edge and pulse width of 1
μs/100
ns)
Frequency: 10 to 55 Hz; Acceleration: 50 m/s
2
, 10 sweeps of 5 min each in X, Y, and Z directions
150 m/s
2
(100 m/s
2
for relay outputs) 3 times each in 3 axes, 6 directions
Approx. 300 g (Base Unit only)
Front panel
Conforms to NEMA 4X for indoor use (equivalent to IP66)
Rear case
Terminals
Memory protection
Applicable standards
IP20
IP00 + finger protection (VDE0106/100)
EEPROM (non-volatile memory)
Number of rewrites: 100,000
UL61010-1, CSA C22.2 No. 1010.1 (evaluated by UL)
EN61010-1 (IEC61010-1): Pollution degree 2/Overvoltage category II
EN61326: 1997, A1: 1998, A2: 2001
EMI: EN61326 industrial applications
Electromagnetic radiation interference
CISPR 11 Group 1, Class A
Terminal interference voltage
CISPR 11 Group 1, Class A
EMS: EN61326 industrial applications
Electrostatic Discharge Immunity
EN61000-4-2: 4 kV (contact), 8 kV (in air)
Radiated Electromagnetic Field Immunity
EN61000-4-3: 10 V/m 1 kHz sine wave amplitude modulation (80 MHz to 1 GHz, 1.4 to 2 GHz)
Electrical Fast Transient/Burst Noise Immunity
EN61000-4-4: 2 kV (power line), 1 kV (I/O signal line)
Surge Immunity
EN61000-4-5: 1 kV with line (power line), 2 kV with ground (power line)
Conducted Disturbance Immunity
EN61000-4-6: 3 V (0.15 to 80 MHz)
Power Frequency Magnetic Immunity
EN61000-4-8: 30 A/m (50 Hz) continuous time
Voltage Dips and Interruptions Immunity
EN61000-4-11: 0.5 cycle, 0°/180°, 100% (rated voltage)
Connectable sensors
Comparative output response
time (transistor output)
Linear output response time
Insulation resistance
Dielectric strength
Noise immunity
Vibration resistance
Shock resistance
Weight
Degree of
protection
EMC
3
K3HB-R
Operation
■

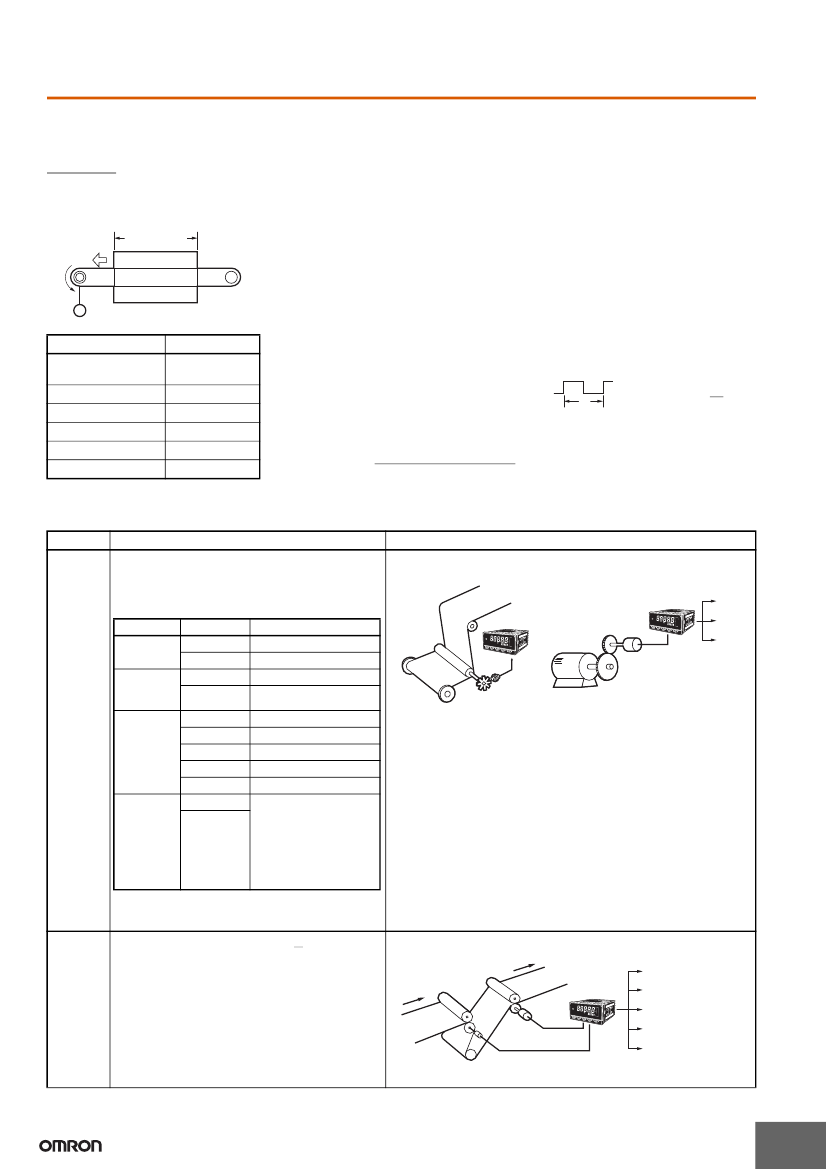

Functions (Operating Modes)
F1 to F6
Functions F1 to F6 provide rpm/circumferential speed and other calculation displays by measuring continuous pulses (frequencies).
Example
Length of
processing stage
F1:
F6:
Displays rotation (rpm) or circumferential speed for one input.
Displays the passing time calculated from the circumferential speed and the length
of the processing stage for one input.
F2 to F5: Displays the calculation result for two rotation (rpm) speeds.
Function name
Rpm/circumferential
speed
Absolute ratio
Error ratio
Rotational difference
Flow rate ratio
Passing time
Function No.
f1
f2
f3
f4
f5
f6
The basic principle used by the Digital Indicator to calculate the rotation speed (rpm) display is
to count the ON/OFF time (T) for input sensor or other device inputs using the internal system
clock, and then automatically calculate the frequency. This frequency (f) is multiplied by 60 and
displayed as the rotation (rpm) speed.
1
T
Input sensor or other input pulse ON/OFF time (T) =
T
Frequency (f) =
•
Rotation speed (rpm) = f
×
60
•
Circumferential speed = Roll circumference
×
Rotation speed (rpm)
•
Passing time= Length of processing stage
Circumferential speed
These calculations are automatically made internally and displayed whenever any input pulse
is received.
Function
F1
Rpm/
circumfer-
ential
speed/
Instanta-
neous
flowrate

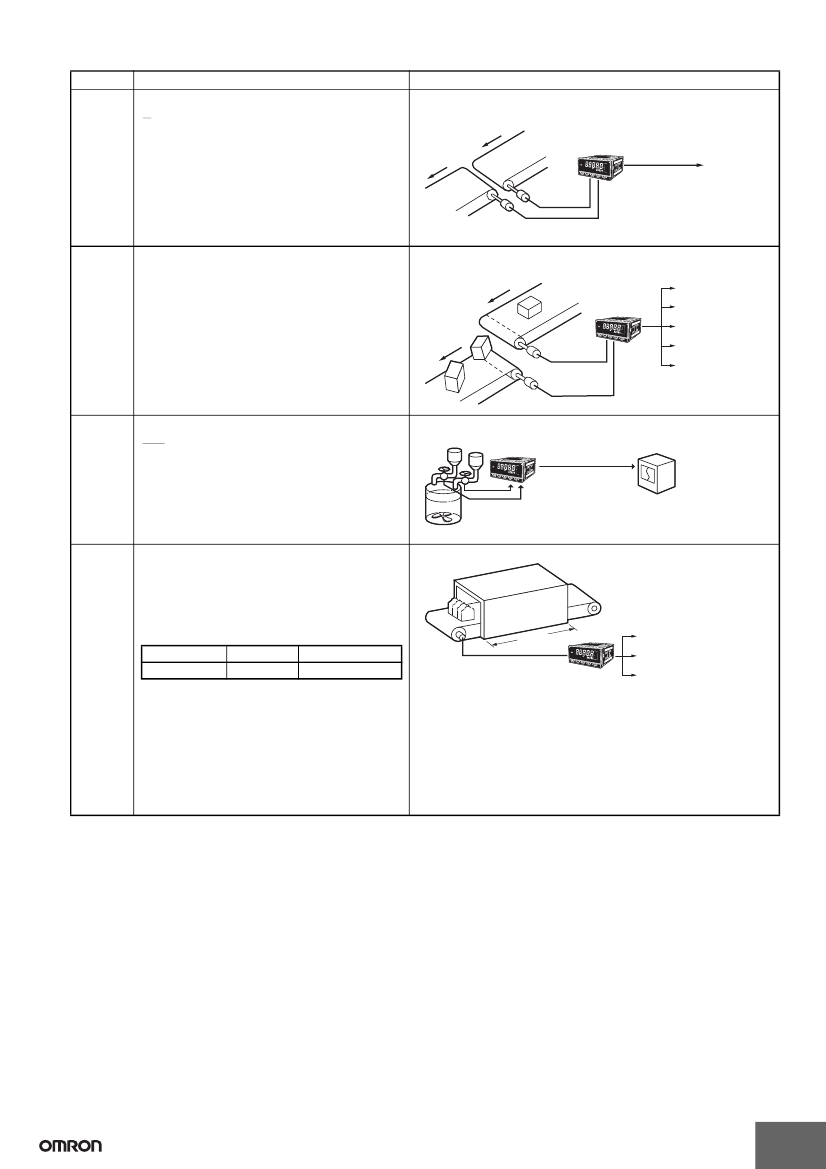

Operation
Operation image (application)
Measuring motor speed
(for product testing)
H
PASS
L
OK/NG
judgment
Measures frequency for input A and displays the
Measuring roller winding speed
rotation (rpm) or circumferential speed proportional to
the input frequency.
Display value D = fa
×
60
× α
fa: Input frequency (Hz)
Calculation Display unit
Rotation
speed
Frequency
(of input
pulse)
Circumfer-
ential
speed
rpm
rps
Hz
kHz
mm/s
cm/s
m/s
m/min
km/h
Instanta-
neous
flowrate
l/min
l/h
Prescale value (α)
1/N
1/60 N
1/60
1/60000
1000
πd/60
N
100
πd/60
N
πd/60
N
πd/N
0.06
πd/N
Check the output
specifications of the input
device and calculate the
prescale value from the
following equation:
Display value D =
ƒa
×
60
×
α
N = Pulses per rotation
πd
= Circumferential length per rotation (m)
F2
Absolute
ratio
Multiples input B divided by input A ( B ) by 100 and
A
displays the ratio as a percentage (%).
Display unit: %
Measuring the speed ratio between two rollers
HH
H
PASS
L
LL
Warning
4
K3HB-R
Function
F3
Error ratio
Operation
Multiplies the error between input A and input B
( B
−1)
by 100 and displays the ratio as a percentage
A
(%).
Display unit: %
Operation image (application)
Measuring the line speed error ratio between two conveyors
Communications
output
To computer
(remote monitoring)
F4
Rotational
difference
Displays the difference between input A and input B
(B
−
A) as the rotation (rpm) speed error or
circumferential speed error.
Display unit:
rpm, rps, rph,
Hz, kHz, mm/s, m/s
m/min, km/h
l/min, l/h, etc.
Measuring the rotation (rpm)/circumferential speed error (absolute error)
between two conveyors
HH
H
PASS
L
LL
Warning
F5
Flow rate
ratio
Displays the flow rate ratio of B from inputs A and B
( B ) as a ratio (%).
A+B
Display unit: %
Monitoring liquid mixture flow rate ratio
Linear output
Recording meter
F6
Passing
time
The passing time for the desired distance is displayed
by measuring the frequency of input A.
Passing time (s) = 1/ƒa
×
α
ƒa:
Input frequency (Hz)
Set the prescale value for the desired display unit using
the following table for reference.
Displaying the passing time for a conveyor line
Distance
H
PASS
L
Warning
output
Calculation
Passing time
Display unit Prescale value (α)
s
L/(πd/N)
N = Pulses per rotation
πd
= Circumferential length per rotation (m)
L = Length of process (m)
Display unit:
Seconds (s), minutes (min),
hours/minutes/seconds (h.min.s),
minutes/seconds/tenths of seconds
(min.s.1/10s), etc.
5
京公网安备 11010802033920号
EEWORLD
