BV020-5480.0

CategoryPower/power management    Power transformer
File Size125KB,3 Pages
ManufacturerPulse Electronics
Download Datasheet Parametric View All

BV020-5480.0 Parametric

Parameter NameAttribute value
category
MakerPulse Electronics
series-
typelaminated core
Voltage - Primary230V
Voltage - Secondary (full load)6V
Current - Output (maximum)13.3mA
primary windingsingle path
secondary windingsingle path
center tapnone
Power - Max0.08VA
Installation typeBase installation
Termination stylePC pin
size/dimensions22.00mm length x 23.00mm width
Height - Installation (maximum)12.00mm
Voltage - Isolation-
weight0.077 磅(34.93 g)

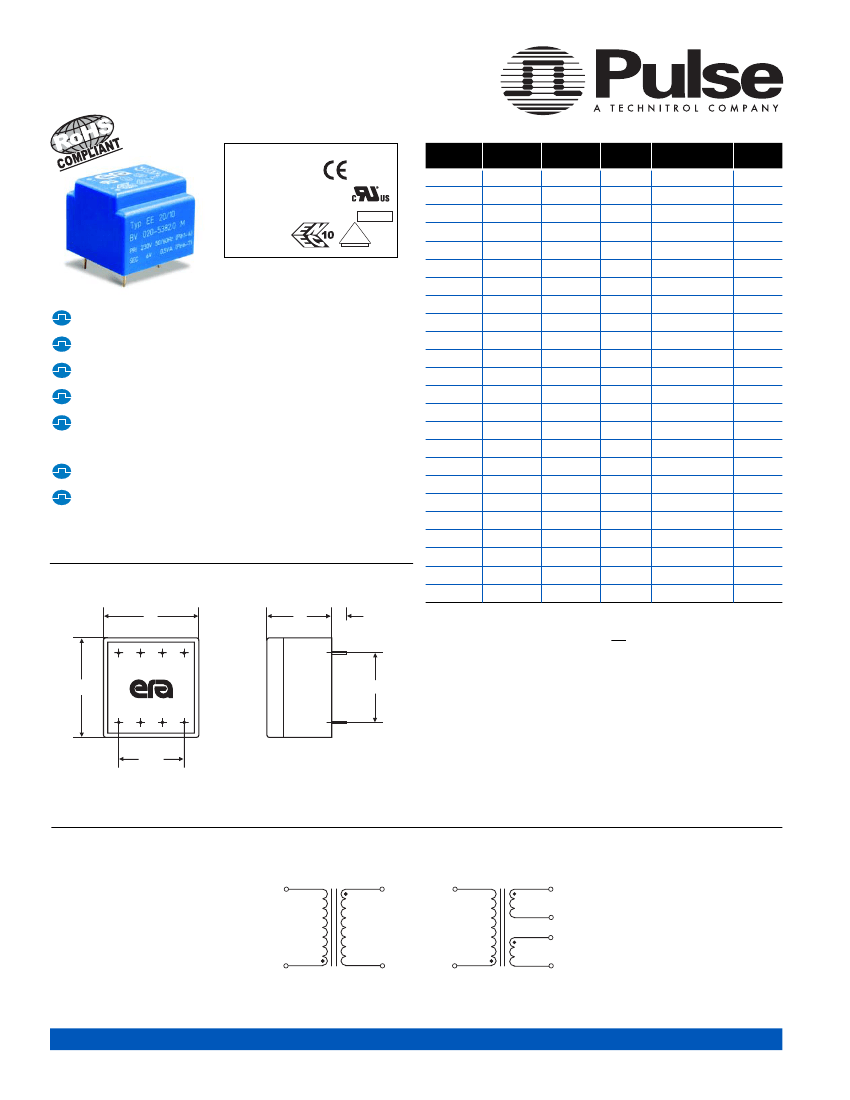

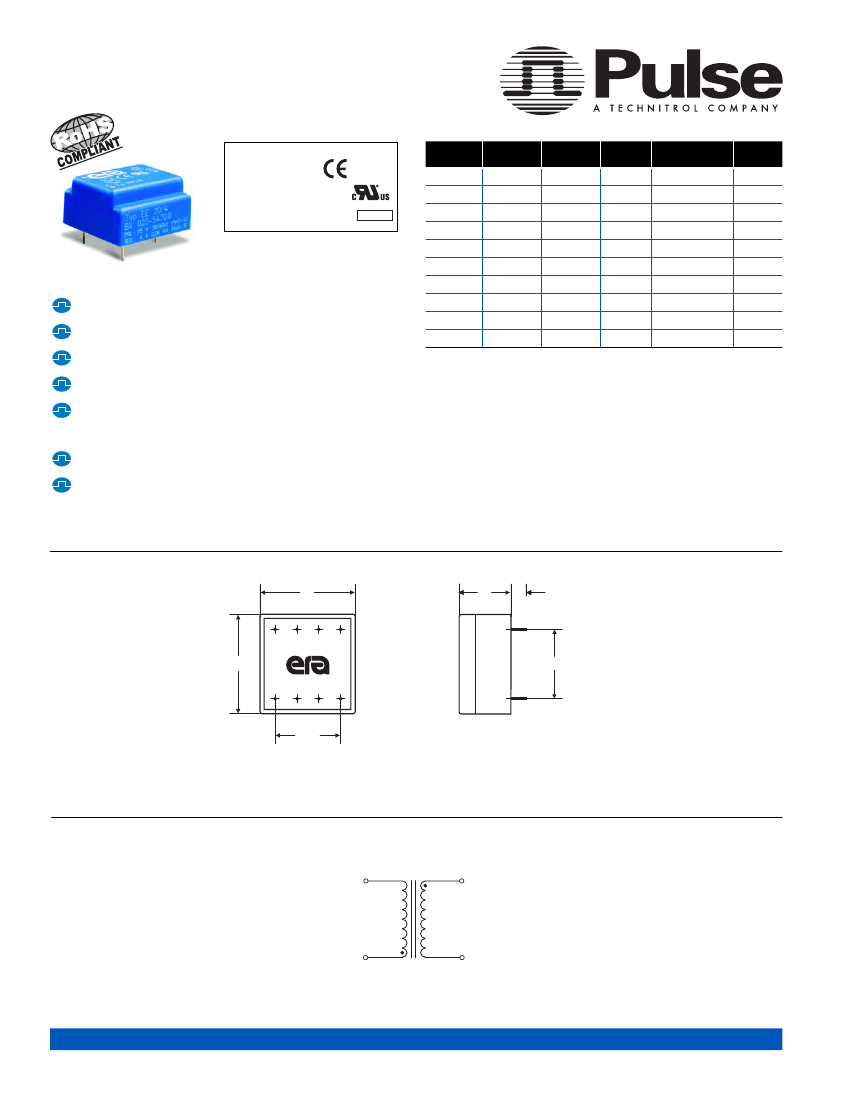

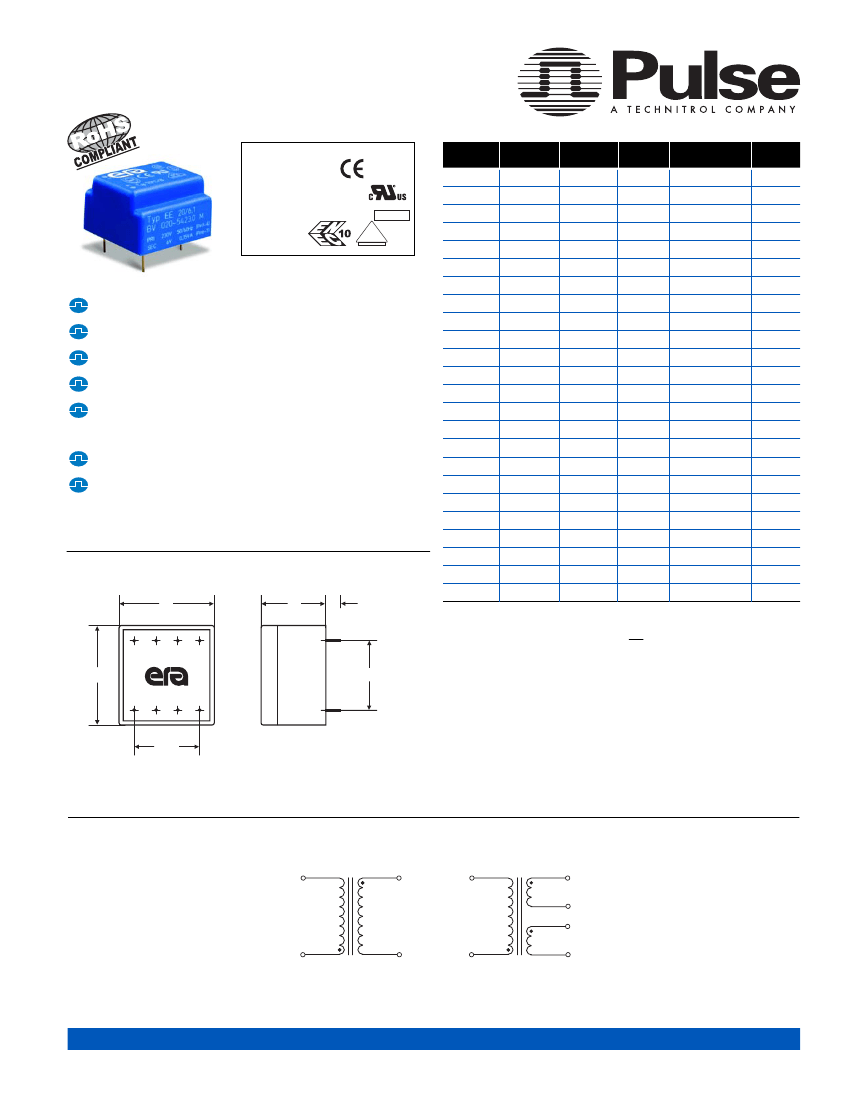

LAMINATED TRANSFORMERS
Type EE20 / 4
- 0.08VA
AGENCY
APPROVALS
1.
UL 506, File E113449
2.
UL 1585, File E175197
Class 2/3
Primary
(V)
230
230
230
230
230
115
115
Secondary
(V / mA)
6 / 13.30
9 / 8.88
12 / 6.67
15 / 5.33
18 / 4.44
6 / 13.3
9 / 8.88
12 / 6.67
15 / 5.33
18 / 4.44
No-Load Schematic
Voltage
(V)
No.
9.20
13.60
18.30
22.60
27.20
9.20
13.60
18.30
22.60
27.20
1
1
1
1
1
1
1
1
1
1
Part
Number
020-5480.0
020-5481.0
020-5482.0
020-5483.0
020-5484.0
020-5470.0
020-5471.0
020-5472.0
020-5473.0
020-5474.0
Agency
Approvals
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Frequency 50/60Hz
Potted under vacuum
Split-bobbin
Temperature class ta 70°C/B
Short-circuit-proof (where noted:
1/2/3* under Agency Approvals)
Weight: 0.018kg
Packaging unit: 40 pieces (tray)
115
115
115
Mechanical
22
(0.87)
12
(0.472)
4,5
(0.177)
5
23
(0.90)
6
7
8
15
(0.60)
4
3
2
1
Pin Ø 0,6 mm
(Pin DIA. 0.024)
3x5
(3 x 0.20)
Schematic
No. 1
4
6
1
7
USA 858 674 8100
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai
86 21 54643211 / 2
China 86 769 85538070
Taiwan 886 3 4641811
www.pulseeng.com
2
LT2007 (9/07)
