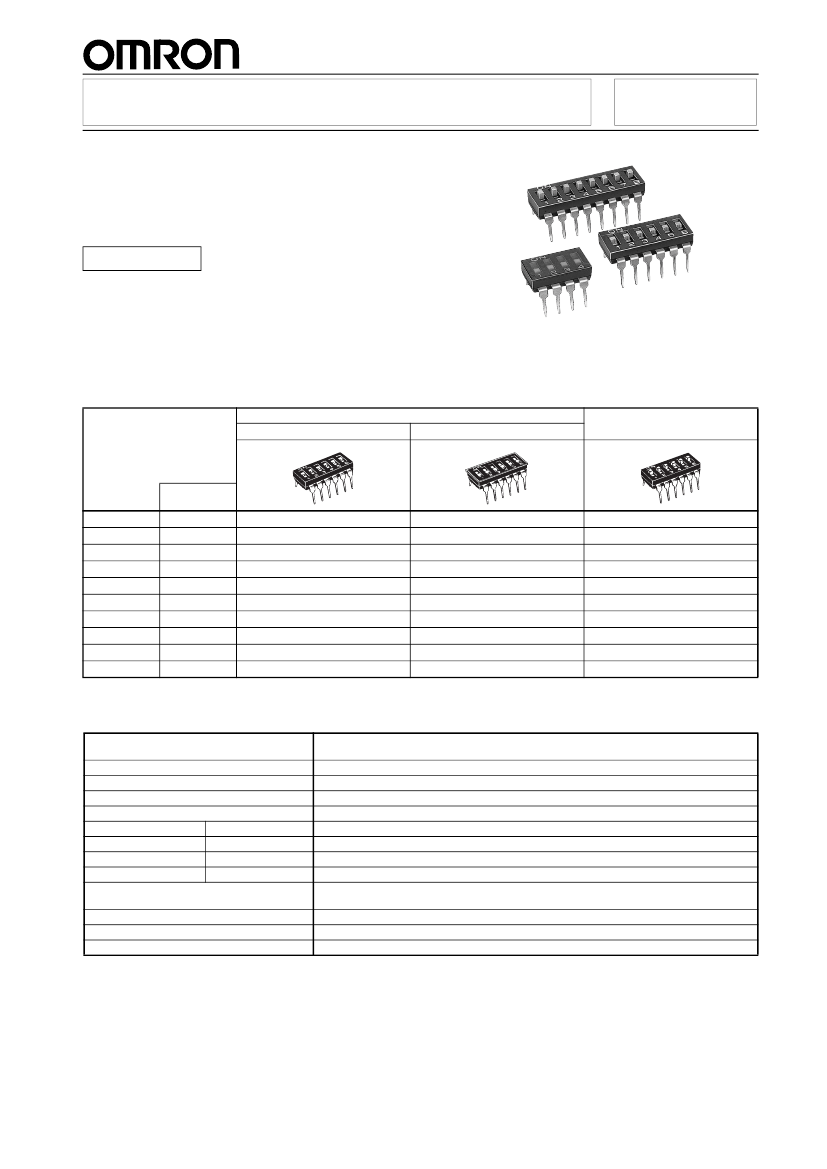

Slide DIP Switch
Standard Through-hole Mounting Slide
DIP Switches
●
Gold-plated twin contacts ensure high reliability.
●
Washable, with seal tape available.
●
Models with from 1 to 10 poles meet wide needs.
RoHS Compliant
A6T
■List
of Models
Tube packaging
Type
Standard
Flat actuator
Raised actuator
With seal tape
No. of poles
1
2
3
4
5
6
7
8
9
10
Quantity per
tube
130
76
55
42
35
28
25
22
20
18
A6T-1101
A6T-2101
A6T-3101
A6T-4101
A6T-5101
A6T-6101
A6T-7101
A6T-8101
A6T-9101
A6T-0101
A6T-1102
A6T-2102
A6T-3102
A6T-4102
A6T-5102
A6T-6102
A6T-7102
A6T-8102
A6T-9102
A6T-0102
A6T-1104
A6T-2104
A6T-3104
A6T-4104
A6T-5104
A6T-6104
A6T-7104
A6T-8104
A6T-9104
A6T-0104
Note:
Order in multiples of the package quantity.
■Ratings/Characteristics
Rating (resistive load)
Ambient operating temperature
Ambient operating humidity
Insulation resistance
Contact resistance (initial value)
Dielectric strength
Vibration resistance
Shock resistance
Durability
Washing
Degree of protection
Operating force
Weight
Between terminals
Malfunction
Malfunction
Electrical
25 mA at 24 VDC
10
μA
(minimum current) at 3.5 VDC
–20 to +70°C at 60% max. (with no icing or condensation)
35% to 95% (at +5 to +35°C)
100 MΩ min. (at 250 VDC with insulation tester)
200 mΩ max.
500 VAC for 1 min
10 to 55 Hz, 1.5-mm double amplitude
300 m/s
2
min.
1,000 operations min.
Standard models: Not possible, Models with seal tape: Possible,
Models with raised actuators: Not possible
IEC IP40
0.29 to 9.8 N {30 to 1,000 gf}
0.26 g (2 poles), 0.44 g (4 poles), 0.62 g (6 poles), 0.79 g (8 poles), 0.96 g (10 poles)
1
A6T

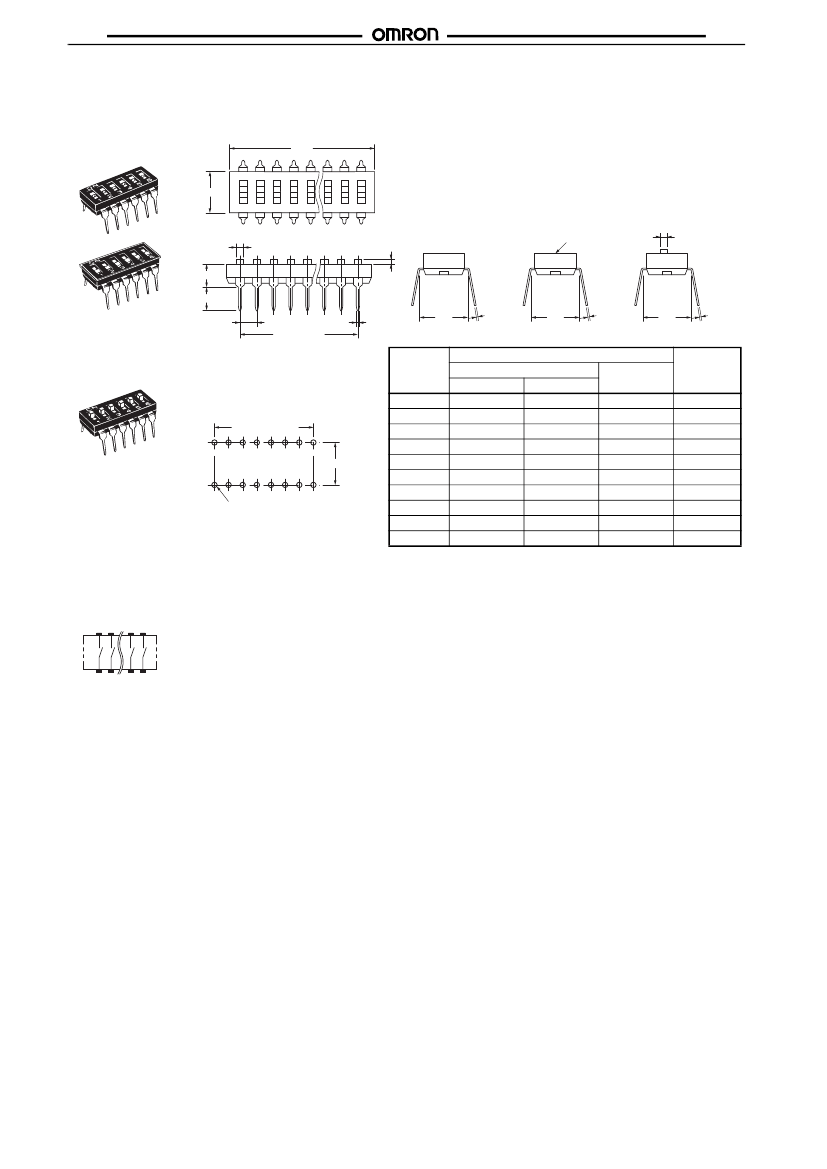

■Dimensions
(Unit: mm)
A6T
●
Flat Actuator
Standard/With Seal Tape
A6T-@101
A6T-@102
O
N
6.2
±0.2
1
2
3
A
±0.2
4
5
6
7
8
Flat Actuator
Standard
0.7
Flat Actuator
With Seal Tape
Seal tape
(t = 0.06)
Raised Actuator
1
1.1
3.6
3.5
2.54
2.54
×
(P−1)
0.5
7.62
0.25
7.62
0.25
7.62
0.25
●
Raised Actuator
A6T-@104
PCB Dimensions (Reference)
(Top View)
2.54
×
(P−1)
±0.1
Model
No. of poles
1
2
3
4
7.62
±0.1
Flat Actuator
Standard
A6T-1101
A6T-2101
A6T-3101
A6T-4101
A6T-5101
A6T-6101
A6T-7101
A6T-8101
A6T-9101
A6T-0101
With Seal Tape
A6T-1102
A6T-2102
A6T-3102
A6T-4102
A6T-5102
A6T-6102
A6T-7102
A6T-8102
A6T-9102
A6T-0102
Raised
Actuator
A6T-1104
A6T-2104
A6T-3104
A6T-4104
A6T-5104
A6T-6104
A6T-7104
A6T-8104
A6T-9104
A6T-0104
Dimension A
3.48
6.02
8.56
11.10
13.64
16.18
18.72
21.26
23.80
26.34
5
6
7
1.0
±0.05
dia.
P:
Number
of poles
8
9
10
Note:
Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
■Internal
Connections
Contact Form (Top View)
ON
1 2
9 10
