4420P-601-101/201L datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 4420P-601-101/201L

4420P-601-101/201L: Descriptionresistor networks & arrays rnet-RC nets, T-filters; CategoryAnalog mixed-signal IC filter; File Size230KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4420P-601-101/201L Overview

resistor networks & arrays rnet-RC nets, T-filters

4420P-601-101/201L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, SOIC-20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
capacitance	200 µF
Maximum DC resistance	100 Ω
filter type	DATA LINE FILTER
high	2.777 mm
Minimum insulation resistance	10000 MΩ
JESD-609 code	e3
length	12.95 mm
Installation type	SURFACE MOUNT
Number of functions	10
Maximum operating temperature	85 °C
Minimum operating temperature	10 °C
physical size	L12.95XB7.493XH2.777 (mm)/L0.51XB0.295XH0.109 (inch)
Rated voltage	25 V
Terminal surface	Tin (Sn)
width	7.493 mm
Base Number Matches	1

Preview

Download Datasheet

View All

V E S CO

AV R M

AI SIO PL

LA N IA

BL S NT

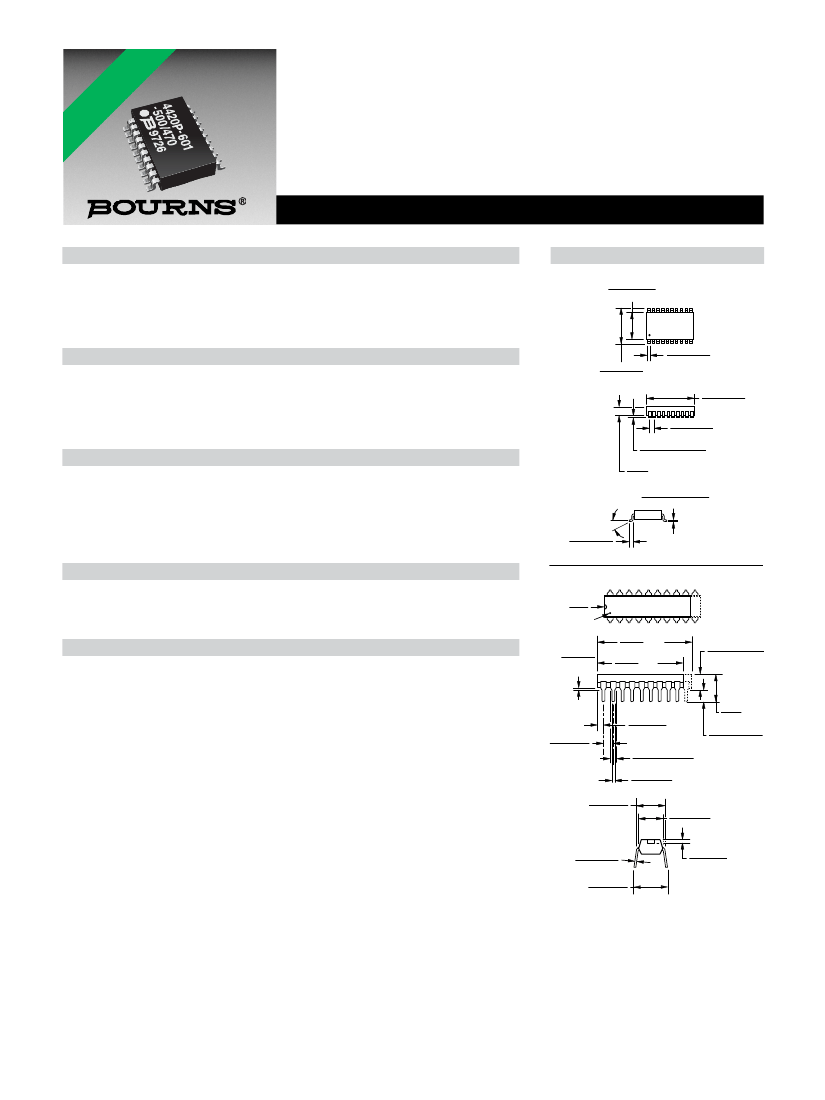

Features

■

Cost-effective R-C construction

■

Insulation resistance testing for reliability

■

Molded surface mount or DIP packaging

■

Compatible with automatic assembly

■

RoHS compliant version available

(“L” part number sufﬁx)

For information on EMI/RFI Filters, download

Bourns’ EMI/RFI Filters Application Note.

equipment

■

Custom value capability

601 Series - RC Network T-Filters

General Description

Continual advances in digital IC technology are creating stringent demands on EMI/RFI

levels in equipment.

EMI/RFI low pass ﬁlters are required in personal computers, data terminals, test

equipment and process controllers for high frequency suppression into or out of

electronic equipment.

Electrical Speciﬁcations - Resistors

Standard Resistance Range* ...........................................................10 ohms - 100 ohms

Series Resistance Tolerance ................................................................................. ±10 %

Temperature Coefﬁcient of Resistance ....................................................... ±300 ppm/°C

Operating Voltage ................................................................................ 25 volts maximum

Operating Temperatures ....................................................................... +10 °C to +85 °C

*Other Resistance Values Available, 10 ohms - 1 megohm

10.34

.25

(.407

.010)

.432

.056

TYP.

(.017

.002)

Product Dimensions

4420P

7.493

.076

(.295

.003)

12.95

.07

(.510

.003)

1.27

.076

TYP.

(.050

.003*)

.127 + .127/ - .000

(.005 + .005/ - .000)

2.65

MAX.

(.104)

.305 + .000/ - .076

(.012 + .000/ - .003)

8° MAX.

.940 + .355

(.037

.014)

Electrical Speciﬁcations - Capacitors

Standard Capacitance Range ................................................................ 50 pF to 200 pF

Capacitance Tolerance ........................................................................................... ±30 %

Temperature Characteristic .......................................................................................Z5U

Operating Temperatures ........................................................................ +10 °C to +85 °C

Voltage Rating ...................................................................................................... 25 volts

Dielectric Withstand Voltage ...............................................................2.5 x rated voltage

Insulation Resistance ........................................................... 10,000 megohms minimum

Environmental Speciﬁcations - Resistors

∆R MAXIMUM

Thermal Shock ..................................................................................................... ±0.5 %

Resistance to Solder Heat .................................................................................... ±0.5 %

Terminal Strength ................................................................................................. ±0.5 %

Mechanical Speciﬁcations

Flammability ..................................................................................Conforms to UL94 V-0

Leadframe .................................................................................... Copper, solder coated

Body Material............................................................................................ Epoxy/Novolac

Lead Solderability .................................Meet requirements of MIL-STD-202 Method 208

4118R AND 4120R

.635

(.025)

PIN #1 REF.

27.05

(1.065) MAX.

24.51

MAX.

(.965)

4.57 + .12/ - .28

(.180 + .005/ - .011)

.89

.25

(.035

.010)

TYP.

For Standard Values Used in Capacitors, Inductors, and Resistors,

click here.

2.54

.25

(.100

.010*)

TYP.

NON-ACCUM.

2.03

.12

(.080

.005)

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

.050

TYP.

(.019

.002)

8.40

MAX.

(.331)

3.43 + .38/ - .25

(.135 + .015/ - .010)

7.87

.25

(.310

.010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254

.050

(.010

.002)

8.64

.50

(.340

.020)

6.71

.10

(.264

.004)

.76

.25

(.030

.010)

Governing dimensions are metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
