T8151NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> filter> T8151NL

T8151NL: Description4 线路共模扼流圈表面贴装型 - DCR 150 毫欧; CategoryPassive components filter; File Size63KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

T8151NL Overview

4 线路共模扼流圈表面贴装型 - DCR 150 毫欧

T8151NL Parametric

Parameter Name	Attribute value
category
Maker	Pulse Electronics
series	-
Package	Pipe fittings
filter type	signal line
Number of lines	4
Rated current (maximum)	-
DC resistance (DCR) (maximum value)	150 milliohms
Rated voltage - DC	-
Rated voltage - AC	-
Operating temperature	-40°C ~ 85°C
grade	-
certification body	-
characteristic	-
Installation type	surface mount type
size/dimensions	0.320" long x 0.198" wide (8.13mm x 5.03mm)
Height (maximum value)	0.165"（4.19mm）
Package/casing	Vertical, 8 flat leads

Preview

Download Datasheet

View All

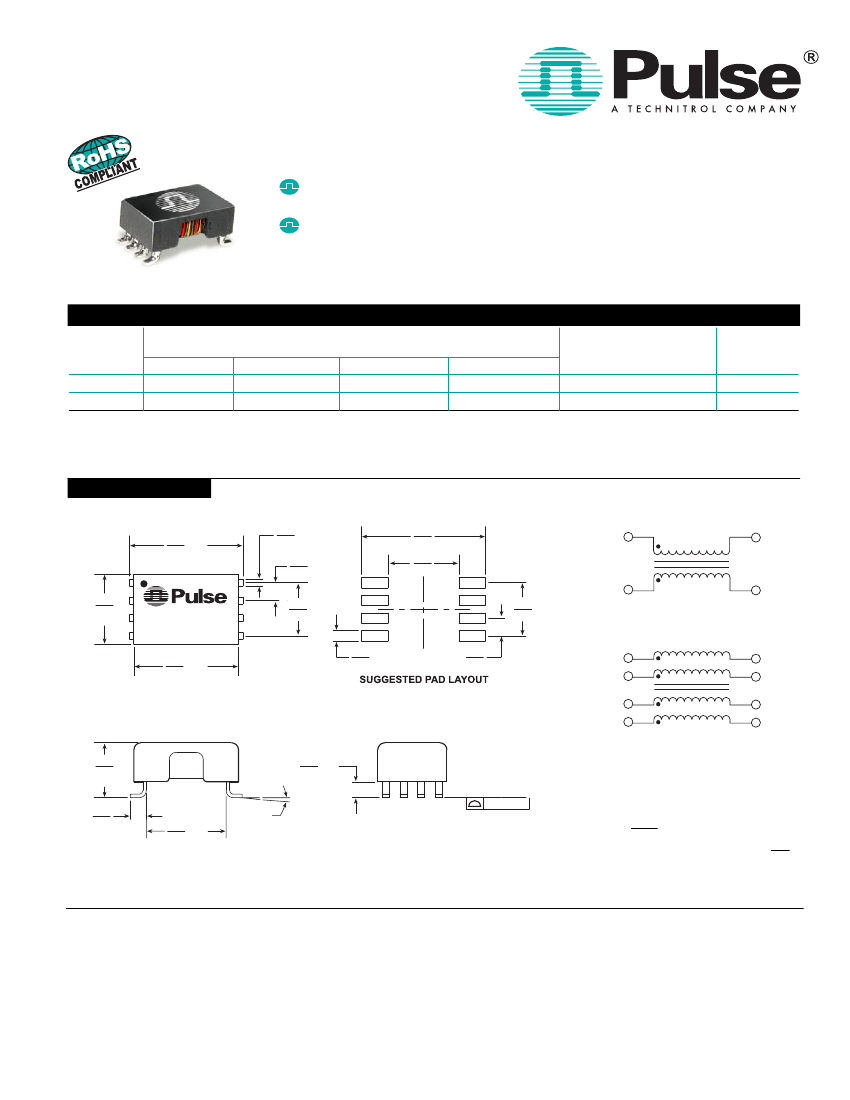

COMMON MODE CHOKES

For Telecom Applications, Extended

Temperature Range

8-pin, low-profile small surface mount package

Optimized for radiated emissions to improve

noise immunity

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

Part

Number

T8151NL

T8155NL

Common Mode Attenuation

(dB MIN)

10MHz

100MHz

-15

-12

-15

Primary Inductance

OCL

(µH MIN)

DCR

(Ω MAX)

.15

.25

1MHz

-10

-8

500MHz

-5

Mechanical

T8151NL / T8155NL

.020

0,51

.050

1,27

.150

3,81

.030

0,76

.050

1,27

.350

8,90

.200

5,08

.150

3,81

Schematics

.320

MAX

8,13

T8151NL

.198

5,03

MAX

Date Code

Rev

Country of Origin

T815XNL

T8155NL

.295

MAX

7,49

.155

3,94

MAX

.045

REF

1,14

.004 / 0,10

8 SURFACES

.045

1,15

.225

REF

5,71

8X 0°

8°

Weight

. . . . . . .0.2 grams (max)

Tape & Reel

. . . . . . . .1000/reel

Tube

. . . . . . . . . . . . . .100/tube

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

T693.A (9/06)
