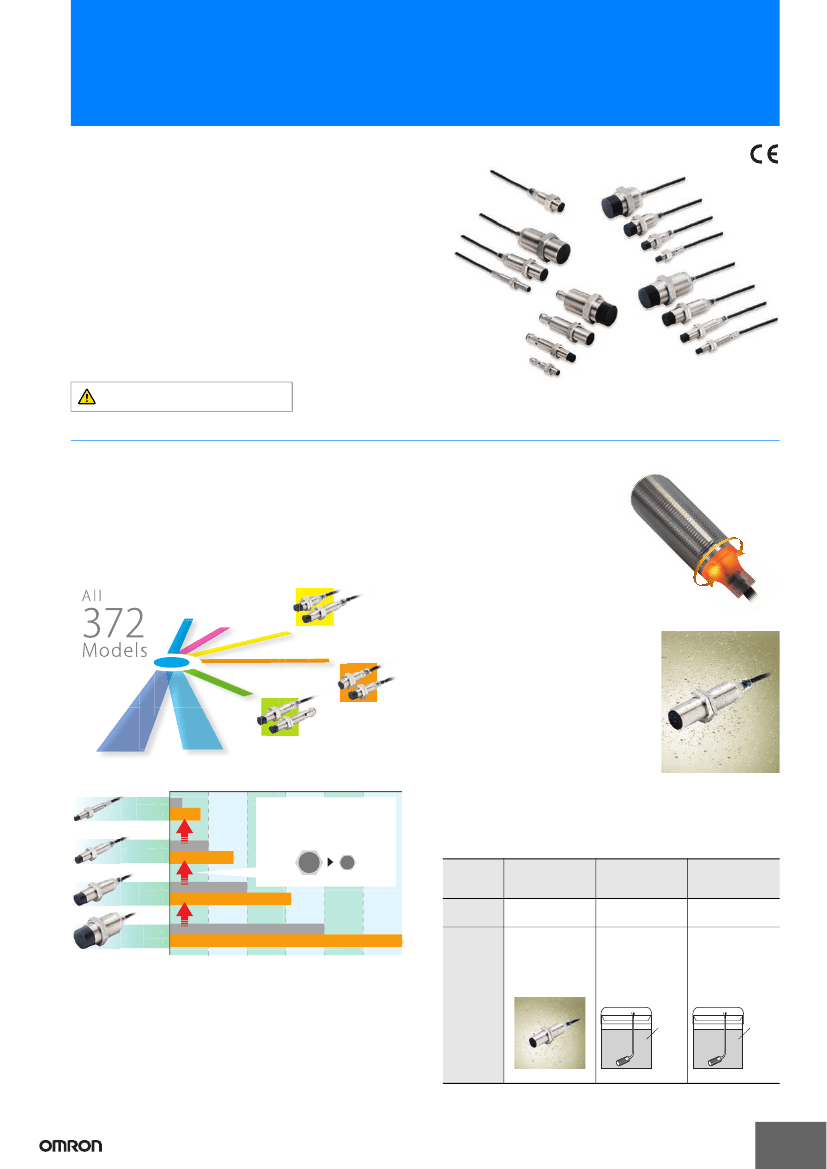

Cylindrical Proximity Sensor
E2B
Perfect fit
for standard environments
• Embody two seemingly contradictory characteristics: value-for-
money and high reliability
• All 372 Models
• Four different sizes: M8, M12, M18 and M30
• Single and double sensing distances, Shielded and unshielded
• A choice of short and long bodies, two connecting methods and four
output types
• Operating temperature: –25ºC to 70ºC
• Water resistance: IP67
• With an all-round 360º visible indicator
Refer to
Safety Precautions
on page 20.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Features
Wide Variation
“Double Distance” Close at Hand
Perfect Fit to Your Application Needs
With no less than 372 models in the family.
You can choose the one that exactly meets your needs.
E2B series can save cost & your time via single source.
Short/
Long Bodies
Output configuration:
PNP/NPN Operation mode:
NO/NC
Long body for easy
adjustment after mounting
Reliable Performance
360-degree indication
Easy visibility for 360º even in
dark locations so you can mount
the sensor in any direction.
* The 360-degree indication is only for
Pre-wired Models of M12, M18, and
M30.
* The other models (Pre-wired Models
of M8 and all the Connector Models)
have 4 LEDs at 90-degree intervals,
which realize clear visibility from a
360-degree angle.
All
ar
ou
n
d
sib
Vi
le
Oil-mist environment resistant!
Shielded/
Unshielded
Unshielded
Pre-wired/
Conn ctors
Connectors
ne
Shielded models for
better noise immunity
Connectors for easy maintenance
Wide range of size
Lineup of models from
M8 to M30
Sensing distance
Models available with standard distance(×1) and double distance (×2)
0
5
10
15
20
25
30
IP67
We have performed not only a specified
test for rating the degree of protection
(IP67) for catalogs, but also tests with oil mist which appears onsite.
Simulation tests has been performed with attachment of high
concentration of oil mist.
Degree of
Protection
Water
resistance
IP67
In oil-mist of solu-
ble cutting oil dilut-
ed, 250 hours, the
temperature of at-
mosphere is 23ºC
Oil
resistance
E2B
E2E
(M8/M12/M18/
M30 size)
IP67
IP69K *1
Small Dia E2E
(3 dia./4 dia./
6.5 dia/M4/M5)
IP67
M8
8
×1
×2
4
mm
“Double distance” saves space and
reduces costs
With the double distance, you can get
almost the same sensing distance with a
sensor that is one size smaller.
M18
M12
M
1
2
×1
×2
8
mm
Single
distance
(×1)
×1
×2
Double
distance
(×2)
M
1
8
×1
×2
2
16
mm
M
3
0
×1
×2
30
Sensing distances of unshielded models
mm
Soaked in oil (solu- Soaked in insoluble
ble type and insolu- oil 250 hours, tem-
ble) 500 hours,
perature of oil 50ºC
temperature of oil
50ºC
10 cm
under
10 cm
under
*1. There are so many kinds of E2E, not all IP69K rated. In detailed part#,
please contact your OMRON representative.
1
E2B
Model Number Legend
E2B-@@@@@-@-@@
@
1
2 3 4 5 6
7
8 9 10
M12, Brass, Long body, Shielded, Sn = 4 mm, M12 connector, PNP, NO
M8, stainless steel, Short body, Unshielded, Sn = 2 mm, Pre-wired PVC cable, NPN, NC,
Cable length = 5 m
7. Kind of connection
WZ:
Pre-wired, PVC, dia 4 mm
Conductor cross section : 0.3 mm
2
Insulator diameter : 1.3 mm
(See note 1.)
WP:
Pre-wired, PVC, dia 4 mm
Conductor cross section : 0.141 mm
2
Insulator diameter : 0.85 mm
M1:
M12 connector
MC:
M8 connector (3 pin)
(See note 2.)
8. Power source and output
B:
PNP
C:
NPN
9. Operation mode
1:
NO (Normally open)
2:
NC (Normally closed)
10.Cable length
Blank:
Connector type
Numeral: Cable length (2M and 5M are available.)
Example: E2B-M12LS04-M1-B1
E2B-S08KN02-WP-C2 5M
1. Basic name
E2B
2. Housing shape and material
M:
Cylindrical, metric threaded, brass
S:
Cylindrical, metric threaded, stainless steel
3. Housing size
08:
8 mm
12:
12 mm
18:
18 mm
30:
30 mm
4. Barrel length
K:
Short body
L:
Long body
5. Shield
S:
N:
Shielded
Unshielded
6. Sensing distance
Numeral: Sensing distance:
01 = 1.5 mm, 02 = 2 mm, 04 = 4 mm, 05 = 5 mm,
08 = 8 mm, 10 = 10 mm, 15 = 15 mm, 16 = 16 mm,
20 = 20 mm, 30 = 30 mm
Note: 1. Only M12, M18, M30 type.
2. "WP", "M1" and "MC" are listed products of UL.
5
