5962H9657701QEX

Description
Look-Ahead Carry Generator, ACT Series, 4-Bit, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Categorylogic    logic
File Size112KB,6 Pages
ManufacturerCobham Semiconductor Solutions
Download Datasheet Parametric View All

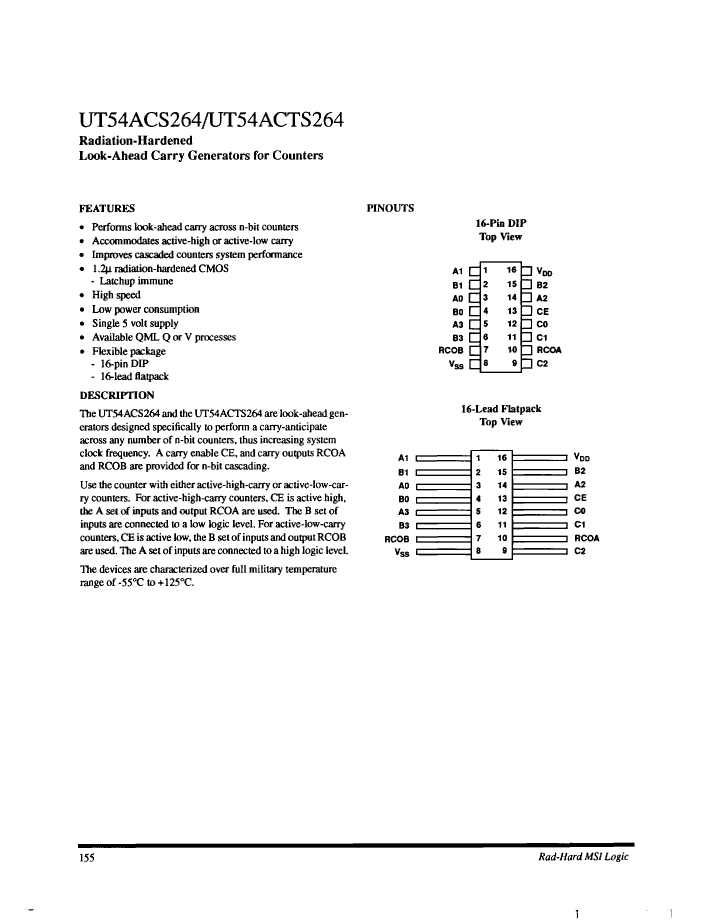

5962H9657701QEX Overview

Look-Ahead Carry Generator, ACT Series, 4-Bit, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962H9657701QEX Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts16
Reach Compliance Codeunknown
ECCN code3A001.A.1.A
Other featuresWITH HIGHER ORDER LOOKAHEAD
seriesACT
JESD-30 codeR-CDIP-T16
JESD-609 codee0/e4
length19.05 mm

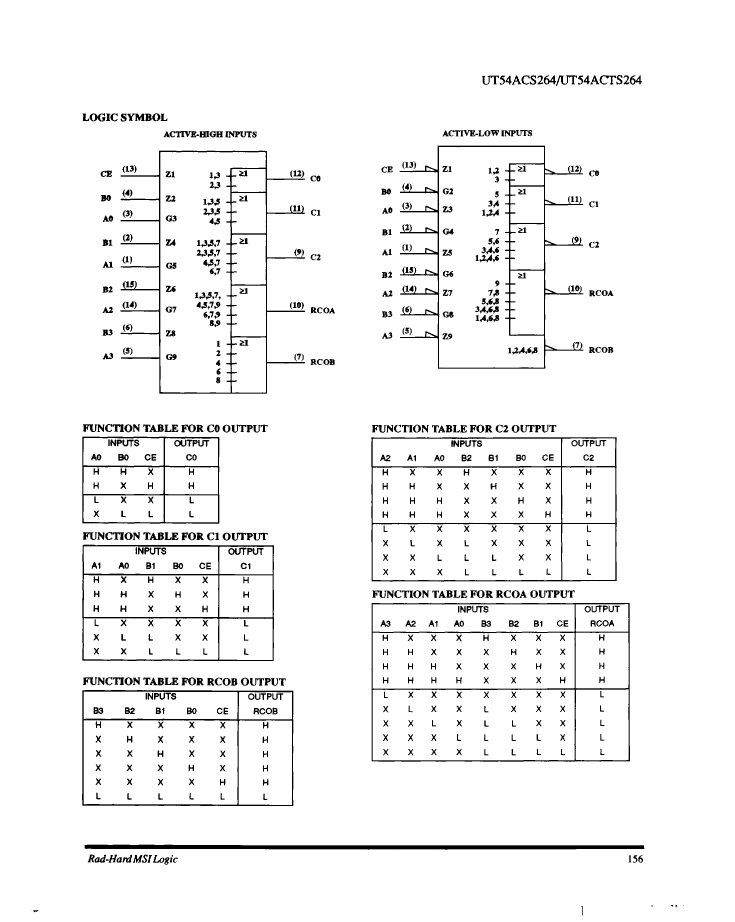

Logic integrated circuit typeLOOK-AHEAD CARRY GENERATOR
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE

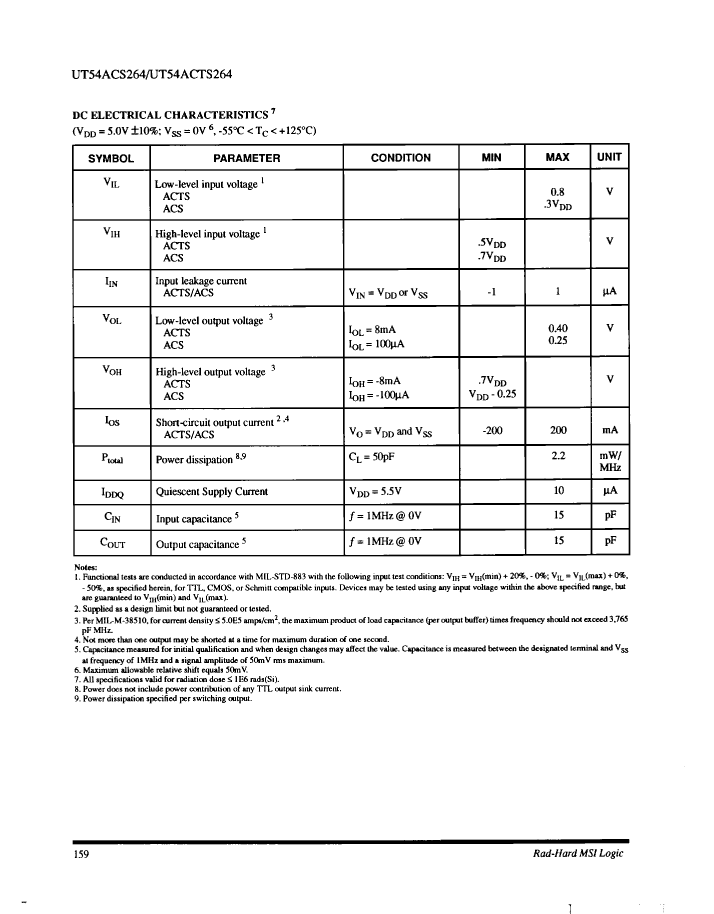

propagation delay (tpd)17 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD/GOLD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

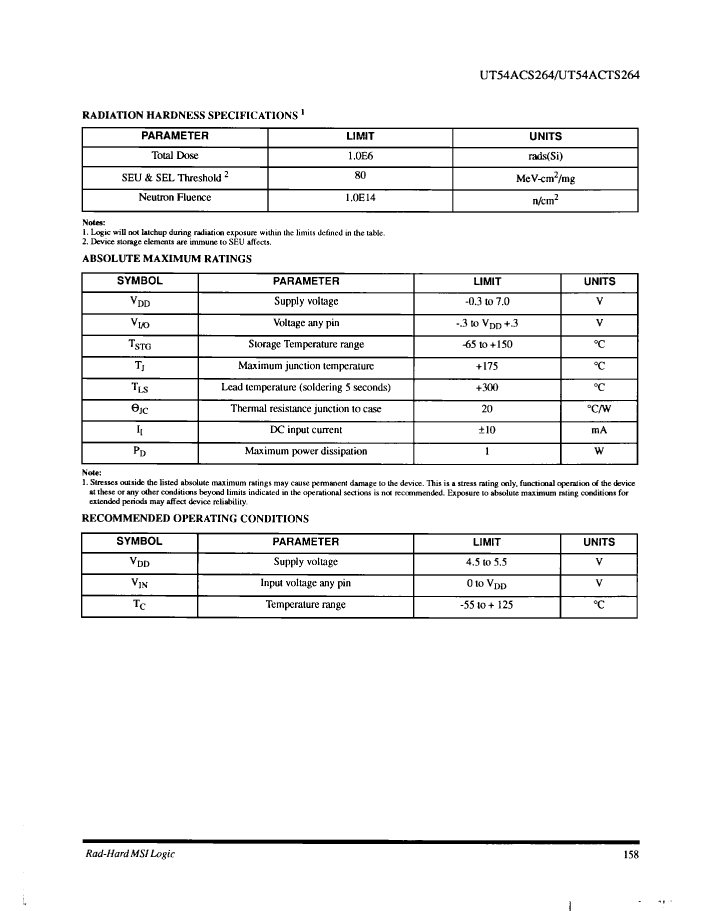

total dose1M Rad(Si) V
width7.62 mm
Base Number Matches1
