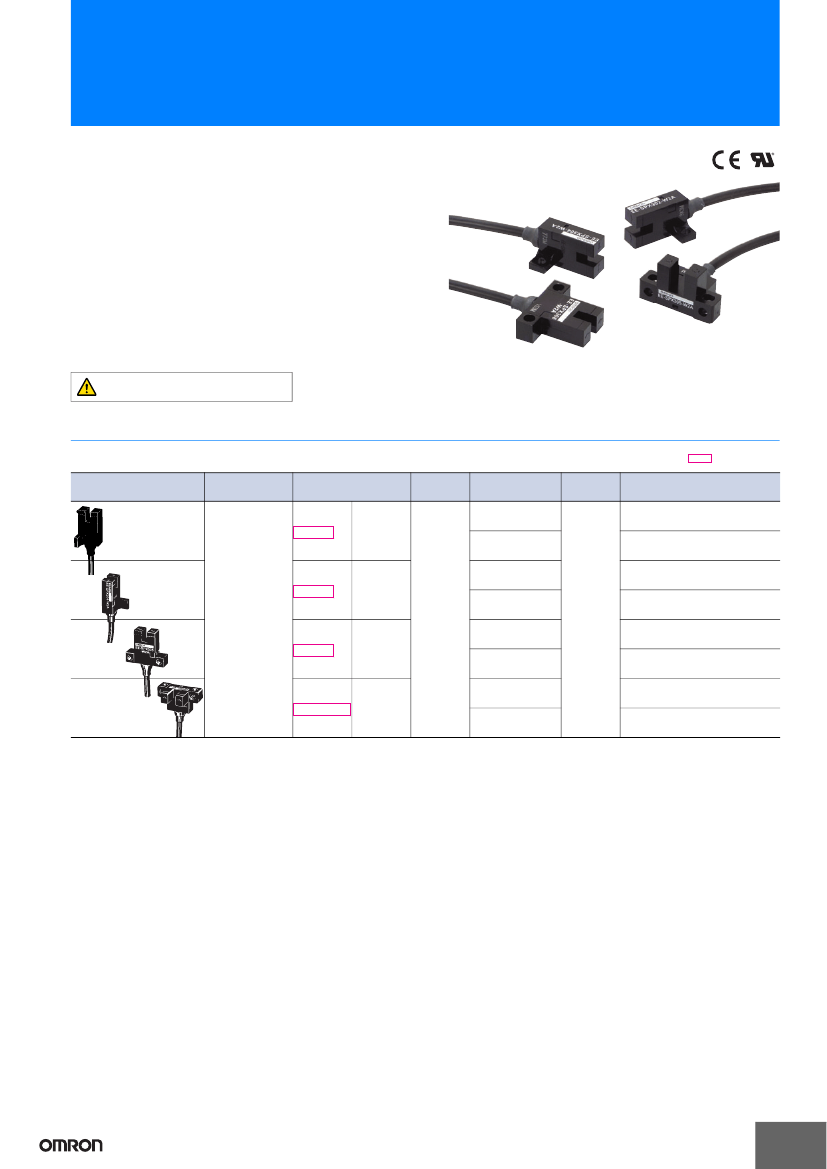

EE-SPX-W
Ratings and Specifications
Models
Item
Sensing distance
Sensing object
Differential distance
Light source
Indicator
*1
Supply voltage
Current consumption
EE-SPX302-W2A, EE-SPX402-W2A
EE-SPX304-W2A, EE-SPX404-W2A
EE-SPX306-W2A, EE-SPX406-W2A
3.6 mm (slot width)
Opaque: 1
×
0.5 mm min.
0.05 mm max.
GaAs infrared LED (pulse lighting) with a peak wavelength of 940 nm
Light indicator (red)
5 to 24 VDC ±10%, ripple (p-p): 5% max.
Average: 15 mA max.; Peak: 50 mA max.
NPN voltage output:
Load power supply voltage: 5 to 24 VDC
Load current: 80 mA max.
OFF current: 0.5 mA max.
80 mA load current with a residual voltage of 1.0 V max.
10 mA load current with a residual voltage of 0.4 V max.
500 Hz min.
3,000 lx max. with incandescent light or sunlight on the surface of the
receiver
Operating:
−10
to +55°C
Storage:
−25
to +65°C
Operating: 5% to 85%
Storage: 5% to 95%
Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X,
Y, and Z directions
Destruction: 500 m/s
2
for 3 times each in X, Y, and Z directions
IEC IP50
Pre-wired (standard cable length: 1 m)
18.5 g
Case
Holder
Polycarbonate
EE-SPX302-W2A
EE-SPX306-W2A
EE-SPX305-W2A
2 mm 2 mm
2 mm
Disk
EE-SPX305-W2A
EE-SPX405-W2A
5 mm (slot width)
Opaque: 2
×
0.8 mm min.
*1. The indicator is a GaP red LED
(peak wavelength: 700 nm).
*2. The response frequency was measured by
detecting the following rotating disk.
Control output
Disk
Disk
Response frequency
*2
Ambient illumination
Ambient temperature
range
Ambient humidity range
Vibration resistance
Shock resistance
Degree of protection
Connecting method
Weight
Material
I/O Circuit Diagrams
NPN Output
Model
Output
configuration
Timing charts
Incident
Interrupted
ON
Light indicator
(red)
OFF
ON
Output
transistor
OFF
Operates
Load 1
(relay)
Releases
H
Load 2
L
Incident
Interrupted
ON
Light indicator
(red)
OFF
ON
Output
transistor
OFF
Operates
Load 1
(relay)
Releases
H
Load 2
L
Output circuit
EE-SPX402-W2A
EE-SPX404-W2A
EE-SPX405-W2A
EE-SPX406-W2A
Light-ON
Light indicator (red)
1.5 to
3 mA
Main
circuit
Brown
Load 1
Black
∗
Load 2
Blue
5 to 24 VDC
EE-SPX302-W2A
EE-SPX304-W2A
EE-SPX305-W2A
EE-SPX306-W2A
Dark-ON
* Voltage output (when the sensor is connected to a transistor circuit)
2
EE-SPX-W
Engineering Data (Reference
Value)
Sensing Position Characteristics
EE-SPX302-W2A
EE-SPX304-W2A
EE-SPX306-W2A
EE-SPX302-W2A
EE-SPX304-W2A
EE-SPX306-W2A
Tr ON
Dark-ON
Tr ON
Dark-ON
d
d
d
Tr OFF
0
1
2
3
4
5
6
Tr OFF
0
1
2
3
4
5
6
Distance d (mm)
Distance d (mm)
EE-SPX305-W2A
EE-SPX305-W2A
Tr ON
Dark-ON
Tr ON
Dark-ON
EE-SPX305-W2A
d
d
Tr OFF
0
1
2
3
4
5
6
Tr OFF
0
1
2
3
4
5
6
Distance d (mm)
Distance d (mm)
Safety Precautions
Refer to
Warranty and Limitations of Liability.
WARNING
This product is not designed or rated for ensuring
safety of persons either directly or indirectly.
Do not use it for such purposes.
Precautions for Correct Use
Make sure that this product is used within the rated ambient
environment conditions.
●
Wiring
•
When extending the cable, use an extension cable with conductors
having a total cross-section area of 0.3 mm
2
. The total cable length
must be 2 m maximum.
•
To use a cable length longer than 2 m, attach a capacitor with a
capacitance of approximately 10
μF
to the wires as shown below.
The distance between the terminal and the capacitor must be within
2 m. (Use a capacitor with a dielectric strength that is at least twice
the Sensor's power supply voltage.)
+
5 to 24 VDC
A capacitance of
+
10
μF
min.
−
−
2 m max.
0V
Extension cable
•
Make sure the total length of the power cable connected to the
product is less than 10 m even if a capacitor is inserted.
3
EE-SPX-W
(Unit: mm)

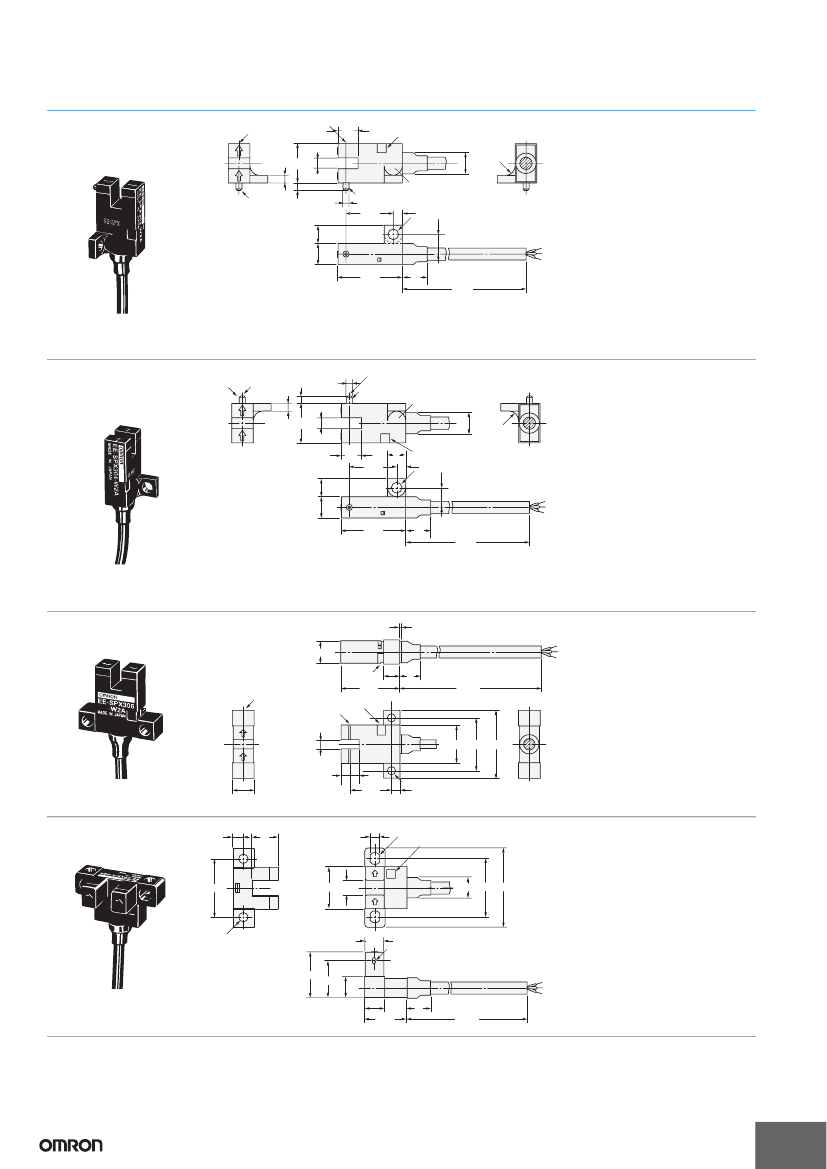

Dimensions
EE-SPX302-W2A
EE-SPX402-W2A
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Optical axis
Optical axis
(0.5-mm wide) (1-mm wide)
6.6
Indicator window
R3.2
13 3.6
R3.2
2.5
2 dia.
C0.5
15.6
6
6.5
7
21.2
8
3
3.5 dia.
hole
7 dia.
2.5
See note.
∗
1,000
* Vinyl-insulated round cable of 3.5 dia., 3 cores,
(0.14 mm
2
with 1.0-dia. insulator); Standard length: 1 m
Note: The lug is used to prevent turning and to indicate the optical axis.
When installing, make a fixed hole of 2.1 to 2.3 mm dia.
EE-SPX304-W2A
EE-SPX404-W2A
Optical axis
See note. (0.5-mm wide) 2.5
2.5
Optical axis (1-mm wide)
2 dia.
C0.5
R3.2
13 3.6
7 dia.
R3.2
6.6
15.6
6
6
3
Indicator window
3.5 dia.
hole
6.5
∗
7
21.2
8
1,000
* Vinyl-insulated round cable of 3.5 dia., 3 cores,
(0.14 mm
2
with 1.0-dia. insulator); Standard length: 1 m
Note: The lug is used to prevent turning and to indicate the optical axis.
When installing, make a fixed hole of 2.1 to 2.3 mm dia.
EE-SPX306-W2A
EE-SPX406-W2A
7
Indicator
window
21.2
6
1.5 max.
∗
8
1,000
Optical axis
(0.5-mm wide)
Indicator window
Optical axis
(1-mm wide)
13.8 19
3.6
6.6
7.4
15.6
Two, 3.5 dia. holes
3
25
* Vinyl-insulated round cable of 3.5 dia., 3 cores,
(0.14 mm
2
with 1.0-dia. insulator); Standard length: 1 m
EE-SPX305-W2A
EE-SPX405-W2A
3.6
9
3.2
Four, R2
Indicator window
20
14.4
5
7 dia. 20 27.2
Two, 3.2 dia.
6.35
Optical axis window (2
×
0.8)
15.5
12.7
7.2
6.95
14.5
8
1,000
∗
* Vinyl-insulated round cable of 3.5 dia., 3 cores,
(0.14 mm
2
with 1.0-dia. insulator); Standard length: 1 m
4
