E2EV
E2EV

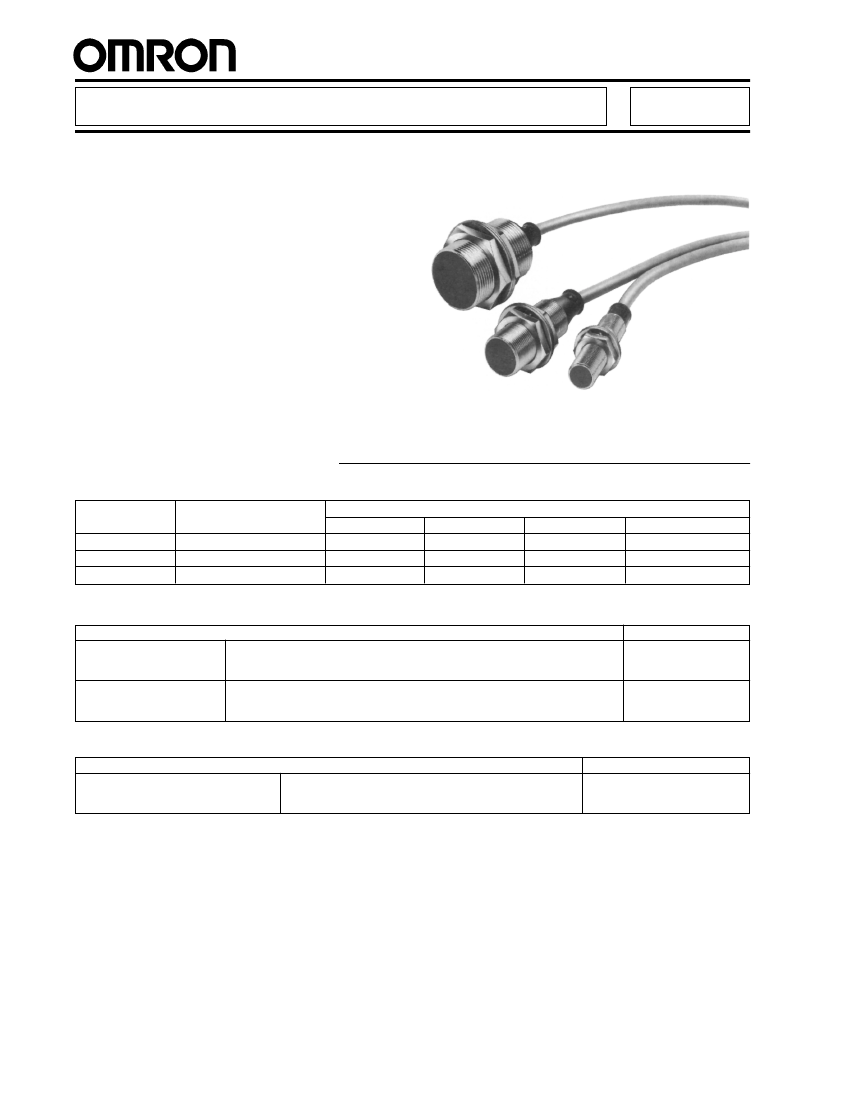

All Metal Sensing Inductive Prox
One Sensor Detects All Kinds of
Metal at Equal Distance
s
Ideal for use on conveyors with work pieces
of different metals
s
Detects aluminum and copper at the same
distance as iron and stainless steel
s
Offers up to three times the detection
distance for aluminum compared to
conventional inductive sensors
s
Shielded for flush mounting in metal
s
Prewired with 2 meters (6.56 ft) of cable
E2EV
Ordering Information
s
SENSORS
Sensing
head
M12
M18
M30
Detecting
distance
2 mm (0.08 in)
5 mm (0.20 in)
10 mm (0.39 in)
Output
NPN-NO
E2EV-X2C1
E2EV-X5C1
E2EV-X10C1
NPN-NC
E2EV-X2C2
E2EV-X5C2
E2EV-X10C2
PNP-NO
E2EV-X2B1
E2EV-X5B1
E2EV-X10B1
PNP-NC
E2EV-X2B2
E2EV-X5B2
E2EV-X10B2
s
ACCESSORIES
Description
Mounting brackets
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Fits M12 size sensors
Fits M18 size sensors
Fits M30 size sensors
Part number
Y92E-B12
Y92E-B18
Y92E-B30
Y92E-E12-2
Y92E-E18-2
Y92E-E30-2
Protective covers
for shielded sensors
s
REPLACEMENT PARTS
Description
Mounting hardware including one
pair of metal nuts and washers
Fits M12 size sensors (supplied with each sensor)
Fits M18 size sensors (supplied with each sensor)
Fits M30 size sensors (supplied with each sensor)
Part number
M12-MHWS
M18-MHWS
M30-MHWS
2
E2EV
E2EV
Specifications
Part number
Sensor type
Body
Size
Type
Supply voltage
Current consumption
Detectable object type
Effective detecting distance
(with standard target)
Usable detecting range
(with standard target)
Standard target size
aluminum, L x W x H)
Differential travel
Control DC
Type
output
solid-
state
Max. load
Max. on-state
voltage drop
Response frequency
Circuit protection
Indicators
Materials
Mounting
Connections
Weight
Enclosure
ratings
Approvals
Prewired
UL
NEMA
IEC 144
Housing
Sensing face
E2EV-X2s
s
Inductive
M12
E2EV-X5s
s
M18

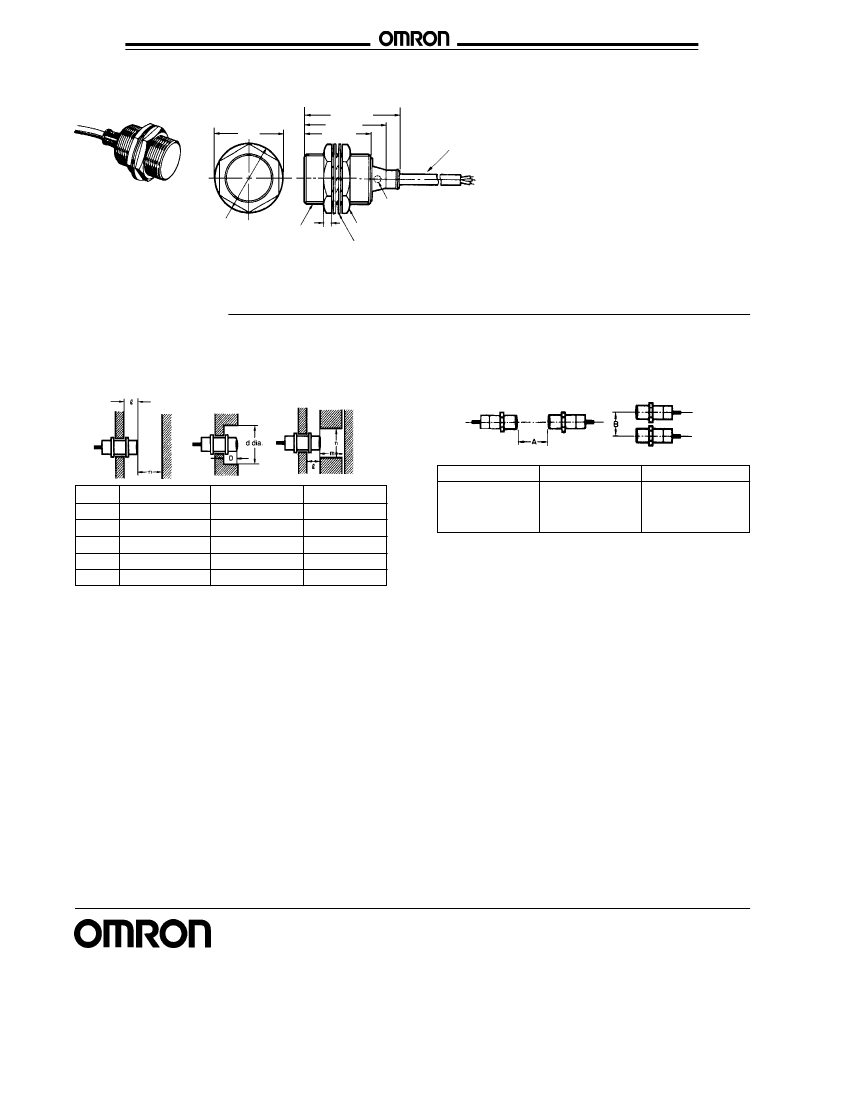

E2EV-X10s
s
M30
Shielded
10 to 30 VDC, max. ripple 10% peak-to-peak
15 mA max.
Ferrous and non-ferrous metals
2 mm
±10%
5 mm
±10%
(0.08 in)
(0.20 in)
0 to 1.4 mm
0 to 3.5 mm
(0 to 0.06 in)
(0 to 0.14 in)
12 x 12 x 1 mm
18 x 18 x 1 mm
(0.47 x 0.47 x 0.04 in)
(0.71 x 0.71 x 0.04 in)
10% max. of effective detecting distance
NPN-NO (E2EV-XsC1)
NPN-NC (E2EV-XsC2)
PNP-NO (E2EV-XsB1)
PNP-NC (E2EV-XsB2)
100 mA max.
2 VDC (See graph in Engineering Data section)
150 Hz
70 Hz
Output short circuit, surge voltage, reverse polarity
Target present (red LED)
Nickel-plated brass
ABS
Two M12 nuts included.
Two M18 nuts included.
Bracket Y92E-B12 optional.
Bracket Y92E-B18 optional.
3-conductor cable, 2 m (6.56 ft) length
120 g (4.23 oz.)
140 g (5.5 oz.)
—
1, 3, 4, 6, 12, 13
IP67
—
—
-10° to 55°C (14° to 131°F)
10 to 55 Hz, 1.5 mm (0.06 in) double amplitude for 2 hours each in X, Y, and Z directions
Approx. 100 G's, 10 times each in X, Y, and Z directions
Two M30 nuts included.
Bracket Y92E-B30 optional.
190 g (7.5 oz.)
70 Hz
10 mm
±10%
(0.39 in)
0 to 7 mm
(0 to 0.28 in)
30 x 30 x 1 mm
(1.18 x 1.18 x 0.04 in)
UL
CSA
Ambient operating temperature
Vibration
Shock
3
E2EV
E2EV
Operation
s

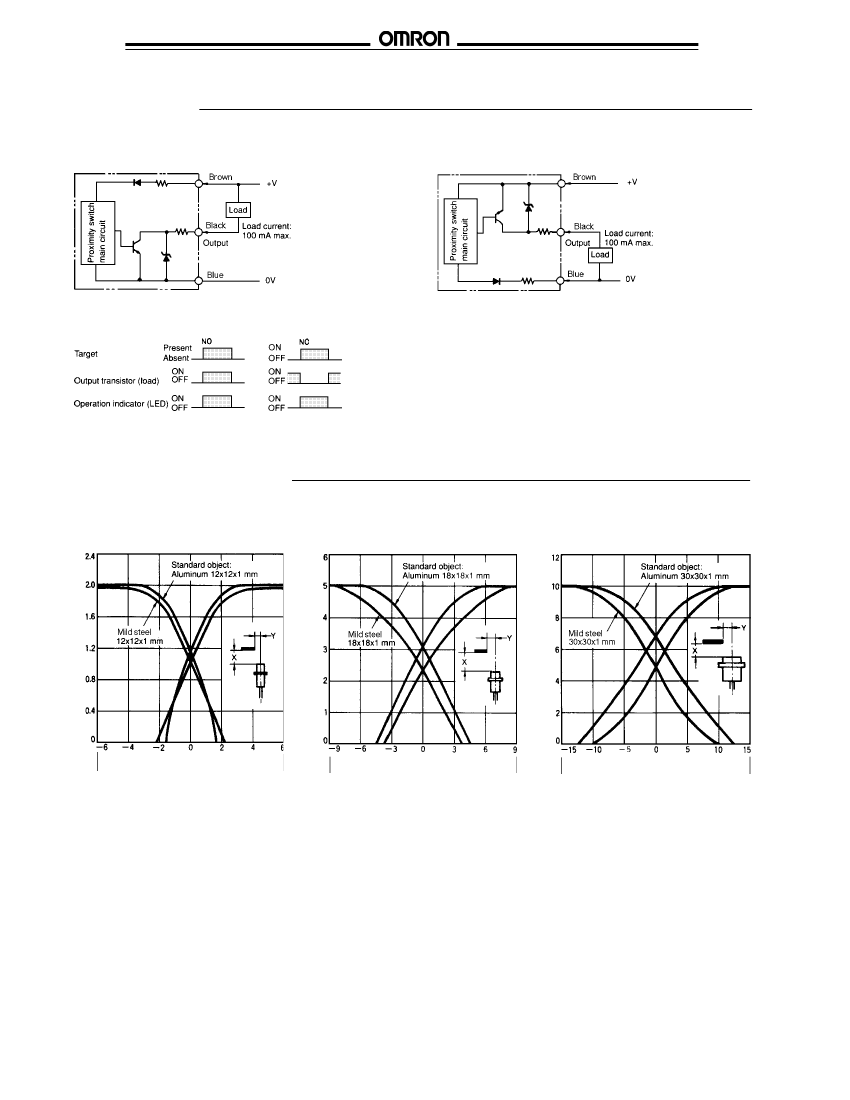

OUTPUT CIRCUIT DIAGRAMS AND CONNECTIONS
NPN Output Type
PNP Output Type
s
TIMING CHARTS
Engineering Data
s
OPERATING RANGE
E2EV-X2s
s
E2EV-X5s
s
E2EV-X10s
s
Operating distance X (mm)
Sensing head diameter
Parallel offset Y (mm)
Operating distance X (mm)
Sensing head diameter
Parallel offset Y (mm)
Operating distance X (mm)
Sensing head diameter
Parallel offset Y (mm)
4
E2EV
s

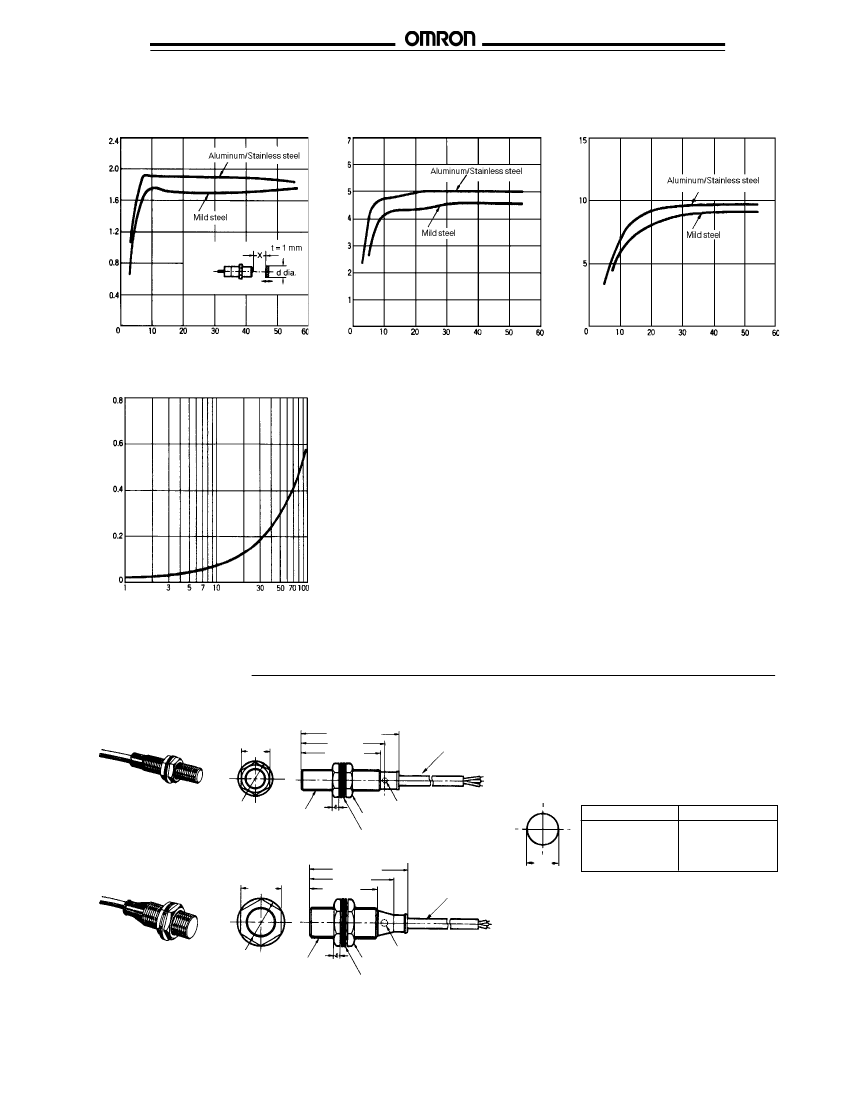

SENSING DISTANCE vs. SIZE AND MATERIAL OF TARGET
E2EV-X2s
s
E2EV-X5s
s
E2EV-X10s
s
E2EV
Operating distance X (mm)
Operating distance X (mm)
Size of target d (mm)
Size of target d (mm)
Operating distance X (mm)
Size of target d (mm)
s
ON-STATE VOLTAGE DROP
Load voltage (V)
Load current (mA)
Dimensions
Unit: mm (inch)
E2EV-X2s
s
17
(0.67)
60 (2.36)
50 (1.97)
47 (1.85)
2 m (6.56 ft) cable
Mounting holes
21 (0.83) dia.
M12 x 1
Operation indicator
Two clamping nuts
Two toothed washers
Model
E2EV-X2s
s
E2EV-X5s
s
E2EV-X10s
s
Diameter
12.5 mm (0.49 in)
18.5 mm (0.73 in)
30.5 mm (1.20 in)
E2EV-X5s
s
24
(0.94)
60 (2.36)
50 (1.97)
40 (1.57)
dia.
2 m (6.56 ft) cable
29 (1.14) dia.
M18 x 1
Operation indicator
Two clamping nuts
Two toothed washers
5
E2EV
E2EV-X10s
s
36
(1.42)
60 (2.36)
50 (1.97)
40 (1.57)
2 m (6.56 ft) cable
E2EV
Operation indicator
42 (1.65)
5
Two clamping nuts
Two toothed washers
M30 x 1
Precautions
s
EFFECTS OF SURROUNDING METALS
When mounting a proximity sensor flush with a metallic panel,
provide the minimum distance shown. This prevents the
sensor from being affected by metallic objects other than the
target.
s
MUTUAL INTERFERENCE
To prevent mutual interference between two sensors mounted
opposite or parallel to each other, be sure to space the two
sensors at a distance greater than that shown here.
Model
l
d
D
m
n
E2EV-X2s
s
0
12 mm (0.47 in)
0
8 mm (0.31 in)
18 mm (0.71 in)
E2EV-X5s
s
0
18 mm (0.71 in)
0
20 mm (0.79 in)
27 mm (1.06 in)
E2EV-X10s
s
0
30 mm (1.18 in)
0
40 mm (1.57 in)
45 mm (1.77 in)
Model
E2EV-X2s
s
E2EV-X5s
s
E2EV-X10s
s
A
30 mm (1.18 in)
50 mm (1.97 in)
100 mm (3.94 in)
B
20 mm (0.79 in)
35 mm (1.38 in)
70 mm (2.76 in)
OMRON ELECTRONICS LLC
One East Commerce Drive
Schaumburg, IL 60173
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.omron.com/oei
Canada - http://www.omron.com/oci
OMRON CANADA, INC.
885 Milner Avenue
Scarborough, Ontario M1B 5V8
1-800-55-OMRON
Cat. No. CEDSAX4
11/01
416-286-6465
Printed in the U.S.A.
Specifications subject to change without notice.
