4058620000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 4058620000

4058620000: DescriptionPower/Signal Relay, DPDT, Momentary, 750mW (Coil), AC Input, AC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size79KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

4058620000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4058620000	-	-	View	Buy Now

4058620000 Overview

Power/Signal Relay, DPDT, Momentary, 750mW (Coil), AC Input, AC Output, Through Hole-Straight Mount,

4058620000 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Other features	COIL OPERATE VOLTAGE(AC): 172.5 V; COIL RELEASE VOLTAGE(AC): 34.5 V
body width	12.7 mm
body height	15.7 mm
Body length or diameter	29 mm
Coil current (AC) maximum value	0.003 A
Coil power	750 mW
Coil resistance	8100 Ω
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	8A@250VAC
Maximum contact current (AC)	8 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	29mm x 12.7mm x 15.7mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	2 ms
seal	IP20
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

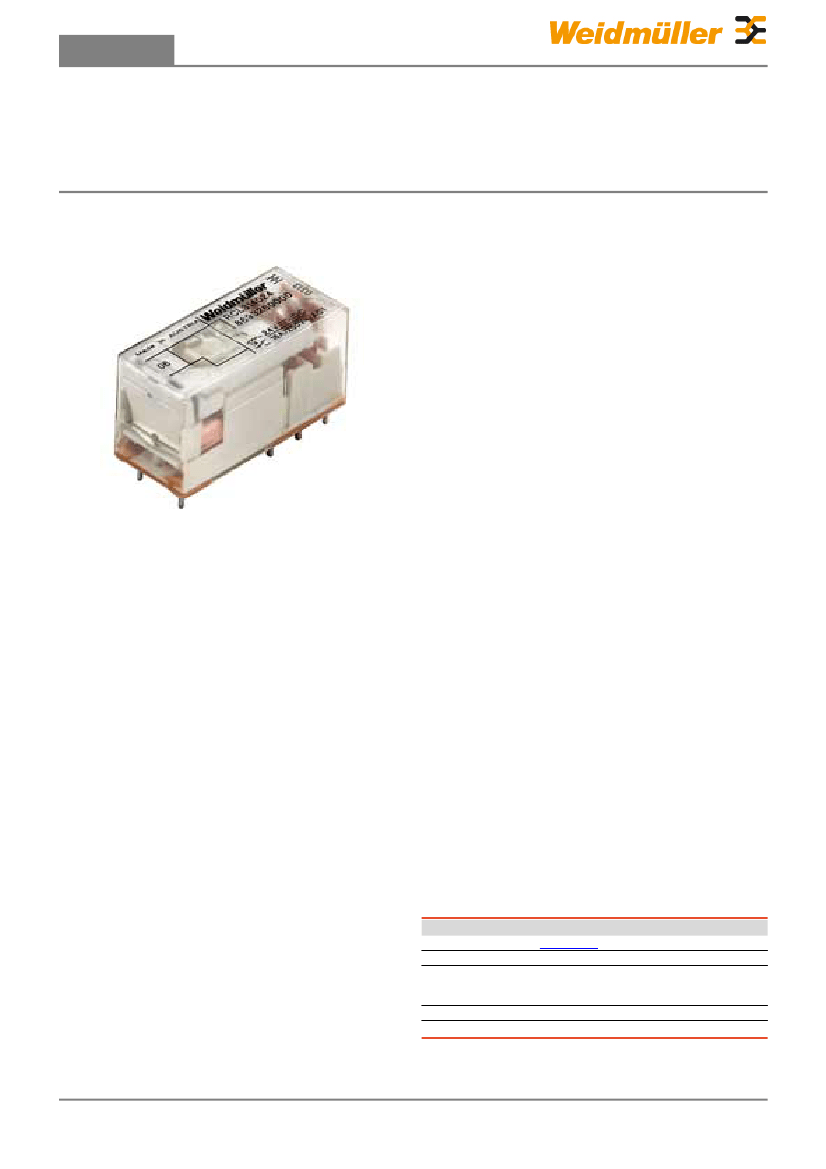

Datasheet

RIDERSERIES

RCL425615

Weidmüller Interface GmbH & Co. KG

Klingenbergstraße 16

D-32758 Detmold

Germany

Fon: +49 5231 14-0

Fax: +49 5231 14-2083

www.weidmueller.com

Weidmüller RIDERSERIES relays guarantee a noise-free,

decoupled signal transmission in industrial automation

concepts.

They are available in various forms, are quickly installed, are

compact, and can be fitted in the smallest of spaces.

• 1 or 2 NO contacts

• 1, 2, 3 or 4 changeover contacts

• optionally available with hard gold-plated contacts

General ordering data

Order No.

Part designation

Version

GTIN (EAN)

Qty.

4058620000

RCL425615

RIDERSERIES, Relays, No. of contacts: 2, CO

contact, Rated control voltage: 115 V AC, Plug-in

connection

4032248415069

1 pc(s).

Creation date November 5, 2010 10:01:39 PM CET

Last update 27.09.2010 / We reserve the right to make technical changes.
