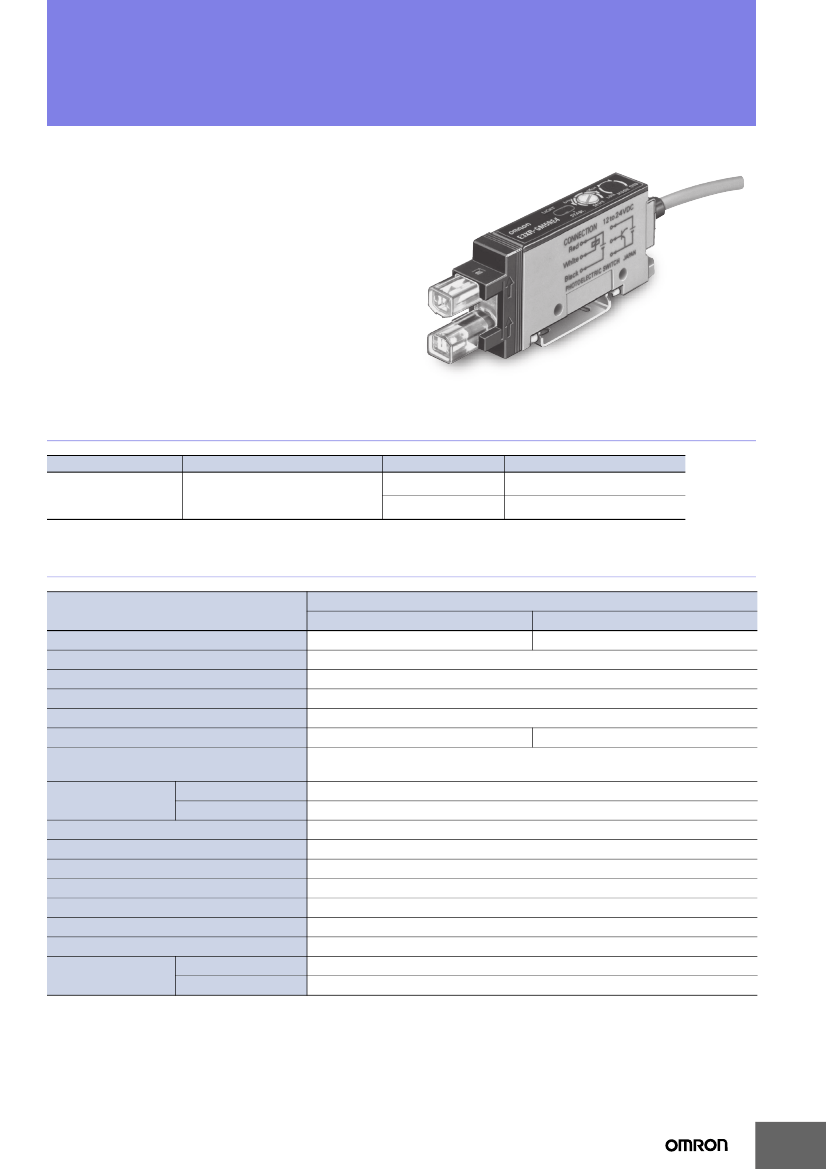

Grooved Photoelectric Mark Sensor
E3XR-GM
CSM_E3XR-GM_DS_E_2_1
Detect Register Marks for Packaging.
Ordering Information
Power supply voltage
12 to 24 VDC
Operation mode
Light-ON
Dark-ON
(selectable)
Light source
Red LED
Green LED
Model
E3XR-GM5RE4
E3XR-GM5GE4
Note: Models with PNP output are also available.
Ratings and Specifications
Sensing method
Item
Light source (wavelength)
Power supply voltage
Current consumption
Sensing distance
Sensing object
Response time
Control output
Ambient illumination Incandescent lamp
(receiver side)
Sunlight
Ambient temperature range
Ambient humidity range
Vibration resistance (destruction)
Shock resistance (destruction)
Dielectric strength
Degree of protection
Indicators
Material
Case
Lens
Model
Red LED (660 nm)
12 to 24 VDC±10%, ripple (p-p): 10% max.
40 mA max.
Groove width of 5 mm
Marks on transparent sheets (2 x 3 mm min.)
Operate or reset: 0.5 ms max.
Operate or reset: 1 ms max.
Output transistor: NPN
Output current: 1.5 to 4 mA, Load current: 80 mA max. (residual voltage: 1 V max.)
3,000 lx max.
10,000 lx max.
Operating:
−25
to 55°C, Storage:
−25
to 70°C
Operating: 35% to 85%, Storage: 35% to 95%
10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
500 m/s
2
3 times each in X, Y, and Z directions
500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
IEC IP65
Light indicator (red), stability indicator (green)
PBT (polybutylene terephthalate)
Acrylics
Through-beam (grooved models)
E3XR-GM5RE4
E3XR-GM5GE4
Green LED (565 nm)
1
E3XR-GM
Safety Precautions
WARNING
This product is not designed or rated for
ensuring safety of persons.
Do not use it for such purposes.
Precautions for Correct Use
• Do not use the product in atmospheres or environments that
exceed product ratings.
• Light may be received if there is a reflective object at the tip
of the lens. If this occurs, attached the supplied black
stickers to the lens tips (E3XR-GM5@E4).
Stickers
(Unit: mm)

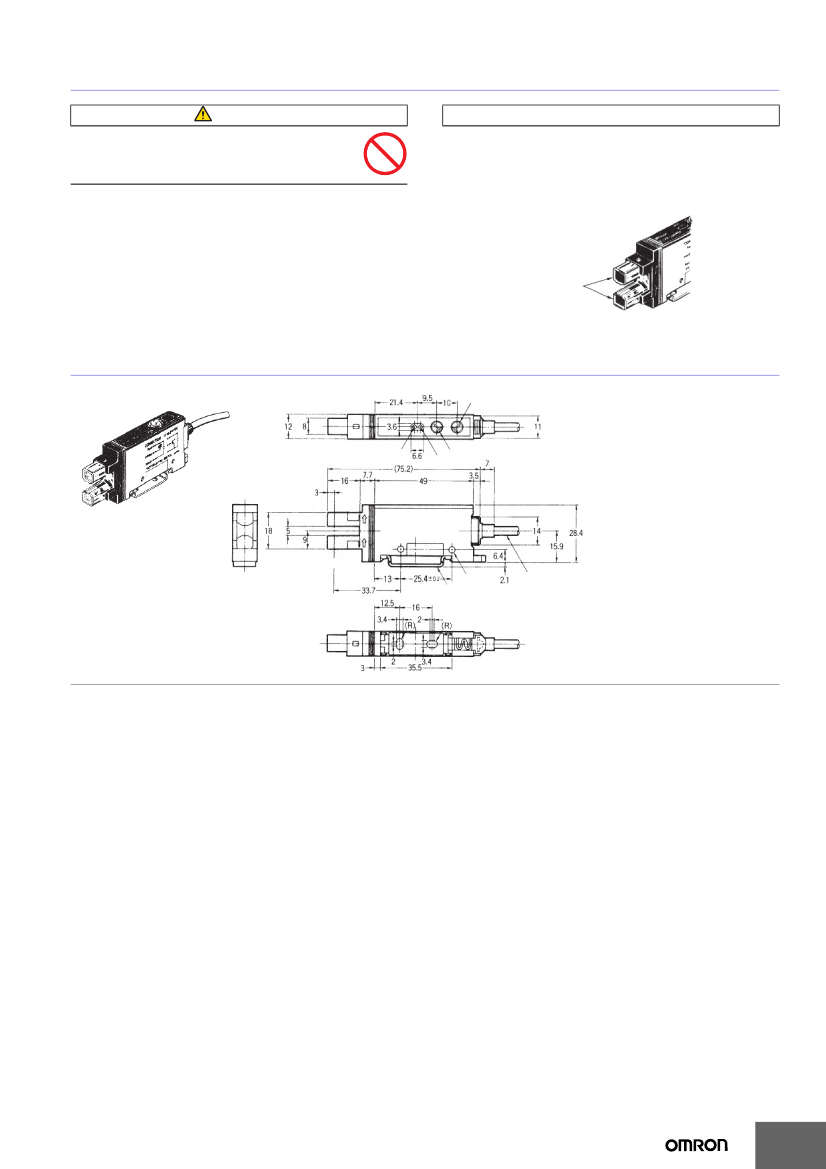

Dimensions
E3XR-GM
Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.
Operation mode selector switch (5.4 dia.)
Light Indicator
Sensitivity adjuster (5.4 dia.)
Stability indicator
Optical axis
3.2 dia
Mounting bracket
4-dia. vinyl-insulated round cable with 3
conductors (Conductor cross section:
0.12 mm
2
, Insulator diameter: 1.1 mm),
Standard length: 2 m
In the interest of product improvement, specifications are subject to change without notice.
