Solid-state Timer
H3CA
CSM_H3CA_DS_E_4_5

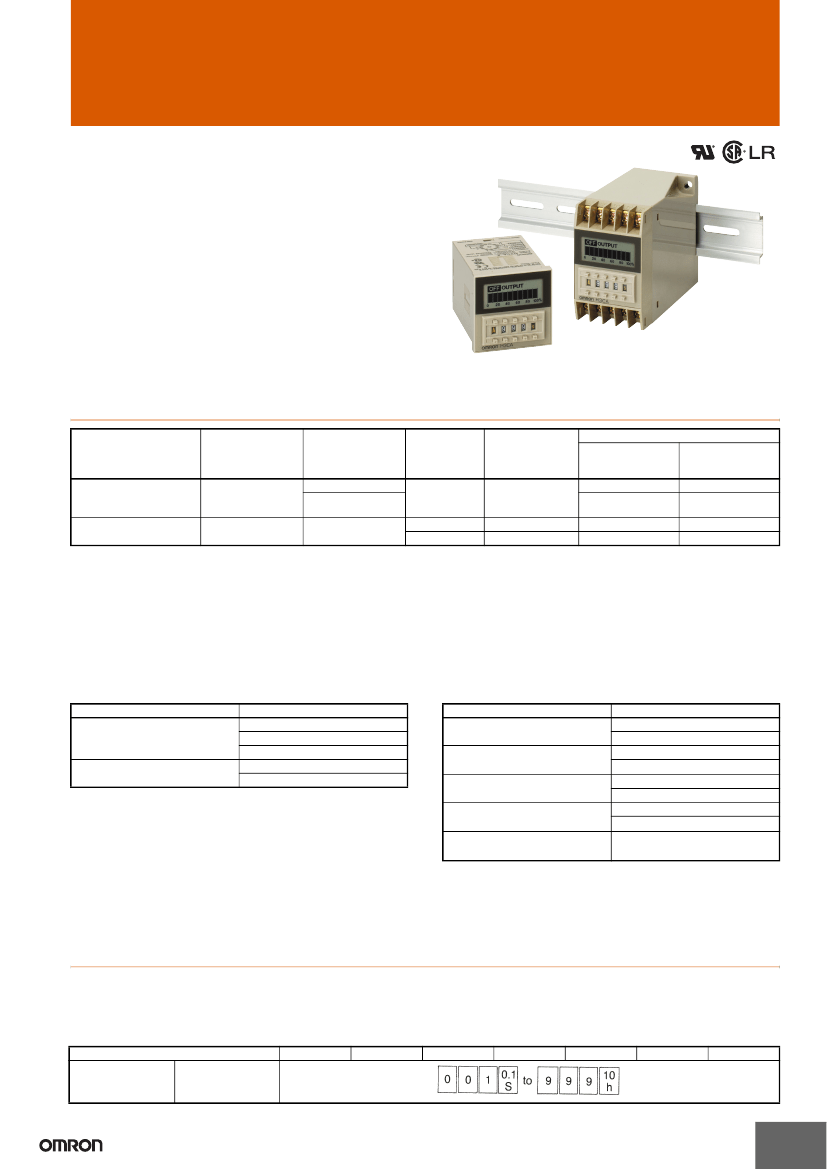

DIN-sized (48 x 48, 45 x 75 mm) Timer with
Digital Setting and LCD Display
• Dual power supplies for free AC/DC.
• Eight operation modes selectable with one unit.
• Any desired time can be set digitally within a range from 0.1
seconds to 9,990 hrs.
• Four external signal inputs.
• ON/OFF indicator for control output and bar indicator for
remaining time.
• Conforms to UL, CSA, and CE marking.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Ordering Information
Operation/resetting
system
Operation mode
Terminal
Time-limit
contact
Instantaneous
contact
Mounting
Surface
Flush mounting
mounting/
track mounting
H3CA-A
H3CA-A
H3CA-FA
---
H3CA-8
H3CA-8H
H3CA-8
H3CA-8H
Time-limit operation/self-
resetting/external
resetting (see note 2)
Time-limit operation/
self-resetting
8 operation modes 11-pin round socket SPDT
(selectable)
Front screw
(see note 3)
ON-delay operation 8-pin round socket DPDT
SPDT
---
---
SPDT
Note: 1.
Specify both the model number and supply voltage when ordering for the H3CA-8H and H3CA-8.
2.
The operation/resetting system depends on the selected operation mode. For details, see
“Timing Chart”.
3.
The 8 operation modes are as follows:
A:
B:
C:
D:
ON-delay operation
Repeat cycle operation
Signal ON/OFF-delay operation (1)
Signal OFF-delay operation (1)
E:
F:
G:
H:
Interval operation
One-shot and flicker operation
Signal ON/OFF-delay operation (2)
Signal OFF-delay operation (2)
■
Accessories (Order Separately)
Name/specifications
Flush mounting adapter
Model
Y92F-30
Y92F-70
Y92F-71
Y92A-48B
Y92A-48D
Name/specifications
Front connecting socket
Front connecting socket
Finger protection (see note 1)
Back connecting socket
Back connecting socket
Solder terminal
Terminal block cover
for P3G-08/P3GA-11 (see note 2)
Model
P2CF-08
P2CF-11
P2CF-08-E
P2CF-11-E
P3G-08
P3GA-11
PL08
PL11
Y92A-48G
Front cover
Note: 1.
Round crimp terminals cannot be used with finger-
protection structure sockets. Use forked crimp terminals.
2.
A terminal cover (Y92A-48G) can be used with P3GA-11
and P3G-08 for finger protection.
Specifications
■
Time Ranges
A desired time can be set within a range of 0.1 s to 9,990 hrs by combining the three thumbwheel switch modules for time setting and one module
for time unit selection.
Time unit
Time range
0.1 s
1 to 999 (3 digits)
1s
0.1 min
1 min
0.1 hrs
1 hr
10 hrs
1
H3CA
■
Ratings
Item
Rated supply voltage
(See note 2.)
Operating voltage range
Power consumption
Control outputs
H3CA-A/H3CA-FA
24 to 240 VAC (50/60 Hz),
12 to 240 VDC (permissible ripple:
20% max.)
AC: approx. 4 VA
DC: approx. 2 W
H3CA-8
H3CA-8H
100/110/120, 200/220/240 VAC, (50/60 Hz),
24 VDC, 110 VDC (permissible ripple: 20% max.) (See note 1.)
90% to 110% of rated supply voltage 85% to 110% of rated supply voltage
AC: approx. 10 VA/1 W
DC: approx. 1 W
AC: approx. 10 VA/1.5 W
DC: approx. 2 W
3 A at 250 VAC, resistive load (cosφ = 1)
Minimum applicable load H3CA-8, H3CA-A and H3CA-FA: 10 mA at 5 VDC (failure level: Preference value)
H3CA-8H:
100mA at 5 VDC (failure level: Preference value)
Contact materials : Ag-alloy
Note: 1.
Single-phase, full-wave rectified power sources may be used for 24 to 240 VDC.
2.
Refer to
Safety Precautions for All Times
when combining the Timer with an AC 2-wire proximity sensor.
■
Characteristics
Accuracy of
operating time
Influence of voltage
Influence of
temperature
Setting error
Reset time
±0.5% ±0.05
s max.
H3CA-A/-FA: 0.5 s max.
H3CA-8H/-8: 0.1 s max.
2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying parts and between contact and control
circuit)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
A wide AC/DC power supply range, 200/220/240 V specifications
Between power terminals: 5 kV, Between current-carrying terminal and exposed non-current-carrying metal parts: 5 kV
100/110/120 VAC, 100/110 VDC specifications
Between power terminals: 3 kV, Between current-carrying terminal and exposed non-current-carrying metal parts: 4.5 kV
24 VDC specifications
Between power terminals: 1 kV, Between current-carrying terminal and exposed non-current-carrying metal parts: 1.5 kV
Destruction: 10 to 55 Hz with 0.75-mm double amplitude for 1 h each in three directions
Malfunction: 10 to 55 Hz with 0.5-mm double amplitude for 10 min each in three directions
Destruction: 980 m/s
2
Malfunction: 98 m/s
2
Operating: 35% to 85%
Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical:
100,000 operations min. (3 A at 250 VAC, cosφ = 1 at 1,800 operations/h)
See
Lift-test Curve
for more details.
±0.3% ±0.05
s
Insulation resistance
100 MΩ min. (at 500 VDC)
Dielectric strength
Impulse withstand
voltage
Vibration resistance
Shock resistance
Ambient temperature
Operating: –10°C to 55°C
Ambient humidity
Life expectancy
Approved standards
UL508, CSA C22.2 No. 14, LR, NK
Conforms to EN61812-1.
EMC
(EMI)
Emission Enclosure:
Emission AC mains:
(EMS)
Immunity ESD:
Immunity RF-interference:
Immunity Burst:
Immunity Surge:
Immunity Conducted Disturbance:
Immunity Voltage Dip/Interruption:
H3CA-A: approx. 110 g
H3CA-FA: approx. 190 g
EN61812-1
EN55011 Group 1 class A
EN55011 Group 1 class A
EN61812-1
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
Weight
2
H3CA
Engineering Data
■

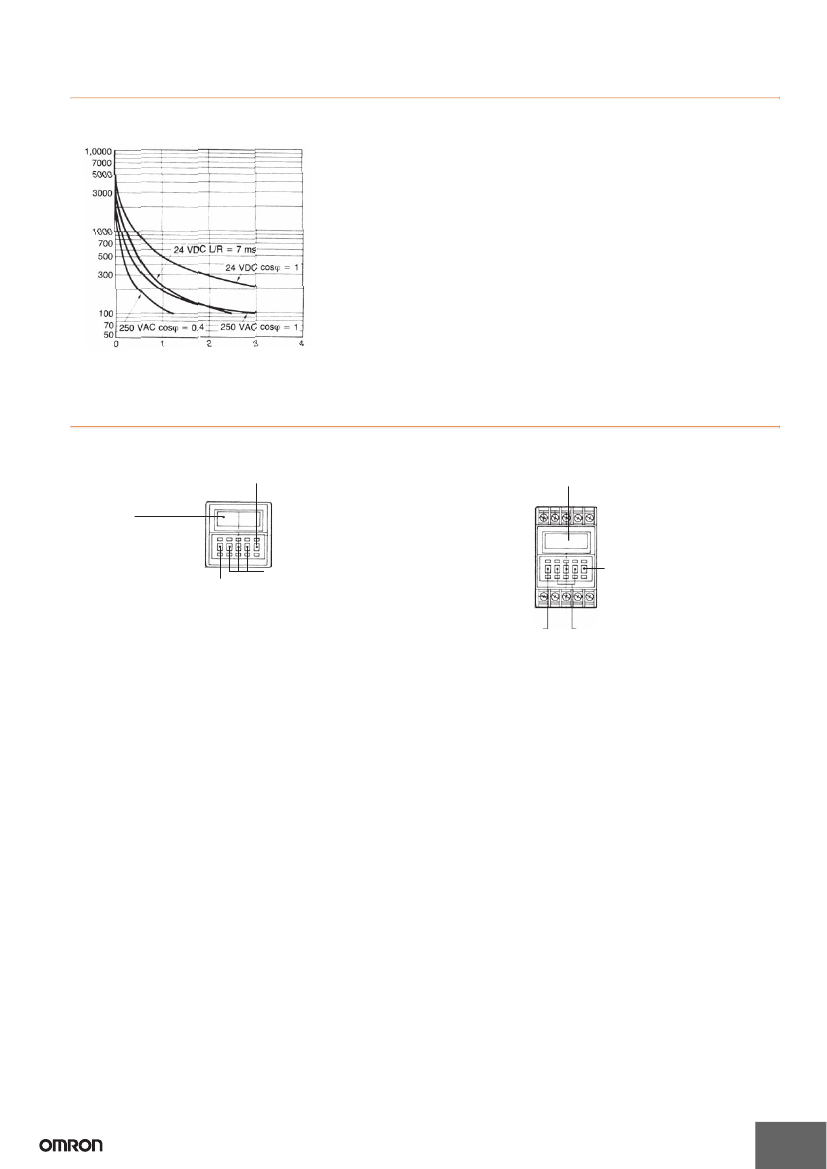

Life-test Curve
Switching operations (×10
3
)
Reference: A maximum current of 0.15 A can
be
switched at 125
VDC
(cosφ = 1).
Maximum current of 0.1 A can
be
switched if L/R is 7 ms. In
both
cases, a
life of 100,000 operations can
be
expected.
Note:
1. The H3CA Series has
been
tested for the following: impulse
voltages,
noise
(via noise simulator, for L loads, and for relay oscillation), and resistance to
static electricity.
2. Minimum applicable load (P reference
values):
H3CA-A(FA), H3CA-8H: 100 mA at 5
VDC
H3CA-8: 10 mA at 5
VDC
Load current (A)
Nomenclature
H3CA-A/H3CA-8H
Time Unit Selector
H3CA-FA
LCD Display
LCD Display
Control output ON/OFF indication
Remaining time elapses, the
remaining time is indicated
by
a
pattern of
bars
in tenth of 1/10 of
the set time.
Set Time Indicators (3 Digits)
Time Unit Selector
Operation Mode Selector (Fixed to "A" in H3CA-8H)
A: ON-delay operation
B: Flicker operation
C: Signal ON/OFF-delay operation (1)
D: Signal OFF-delay operation (1)
E: Interval operation
F: One-shot and flicker operation
G: Signal ON/OFF-delay operation (2)
H: Signal OFF-delay operation (2)
Operation Mode Selector
Set Time Indicators (3 Digits)
3
H3CA
Operation
■

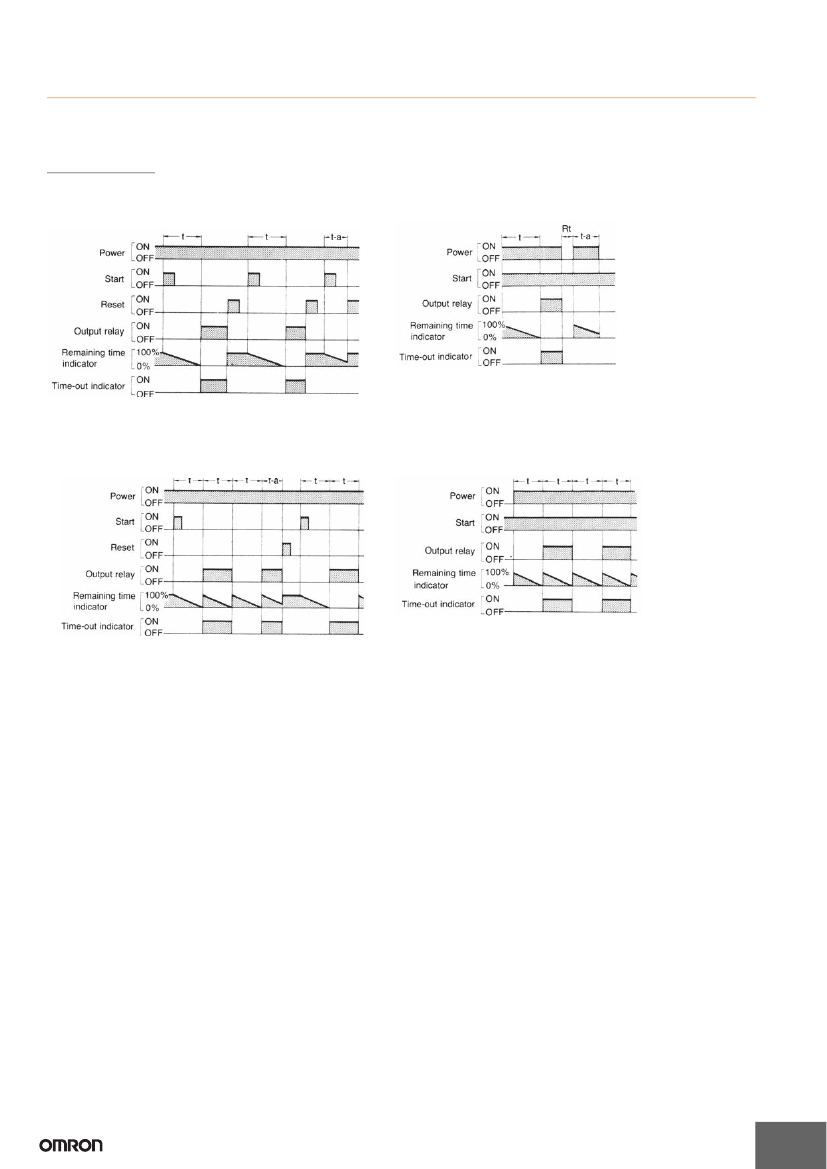

Timing Chart
H3CA-A (FA)
ON-delay Operation (A Mode)
Signal Start
Power-ON Start/Power-OFF Reset
t: Set time; R: Resetting time; t-a: Time
within
the set time
t: Set time; t-a: Time
within
the set time
Note:
The minimum signal input time is 0.05 s.
Flicker Operation (B Mode)
Signal Start
Power-ON Start/Power-OFF Reset
t: Set time
t: Set time; t-a: Time
within
the set time
Note:
The minimum signal input time is 0.05 s.
4
H3CA
Signal ON/OFF-delay Operation 1 (C Mode)
Signal OFF-delay Operation 1 (D Mode)
t: Set time; t-a: Time
within
the set time
t: Set time; t-a: Time
within
the set time
Note:
1. The minimum signal input time is 0.05 s.
2. Operation 1 refers to the
version
in
which
the output relay operates
when
the Start signal is ON.

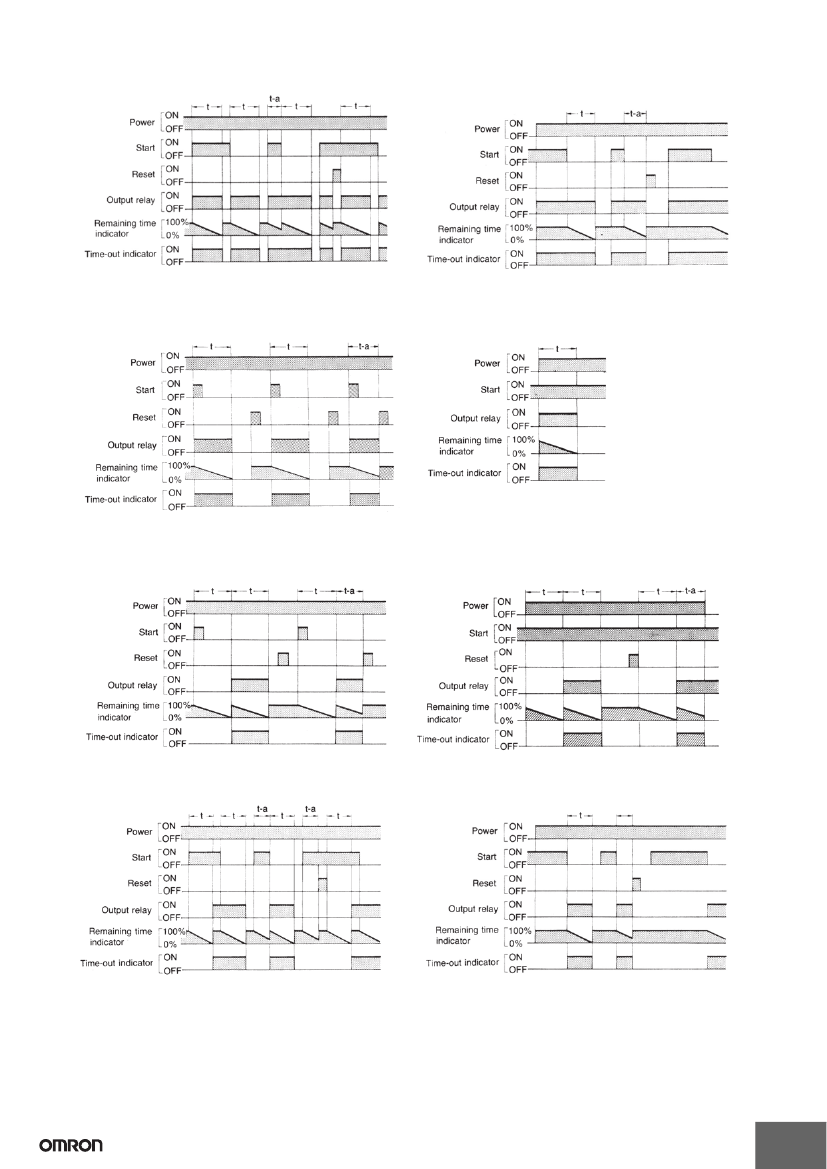

Interval Operation (E Mode)
Signal Start
t: Set time
t: Set time; t-a: Time
within
the set time
Note:
The minimum signal input time is 0.05 s.
One-shot and Flicker Operation (F Mode)
Signal Start
Power-ON Start/Power-OFF Reset
t: Set time; t-a: Time
within
the set time
t: Set time; t-a: Time
within
the set time
Note:
The minimum signal input time is 0.05 s.
Note:
The minimum signal input time is 0.05 s.
Signal ON/OFF-delay Operation 2 (G Mode)
Signal ON/OFF-delay Operation 2 (H Mode)
t-a
t: Set time; t-a: Time
within
the set time
t: Set time; t-a: Time
within
the set time
Note:
1. The minimum signal input time is 0.05 s.
2. Operation 2 refers to the
version
in
which
the output relay does not operate
when
the Start signal is ON.
5
