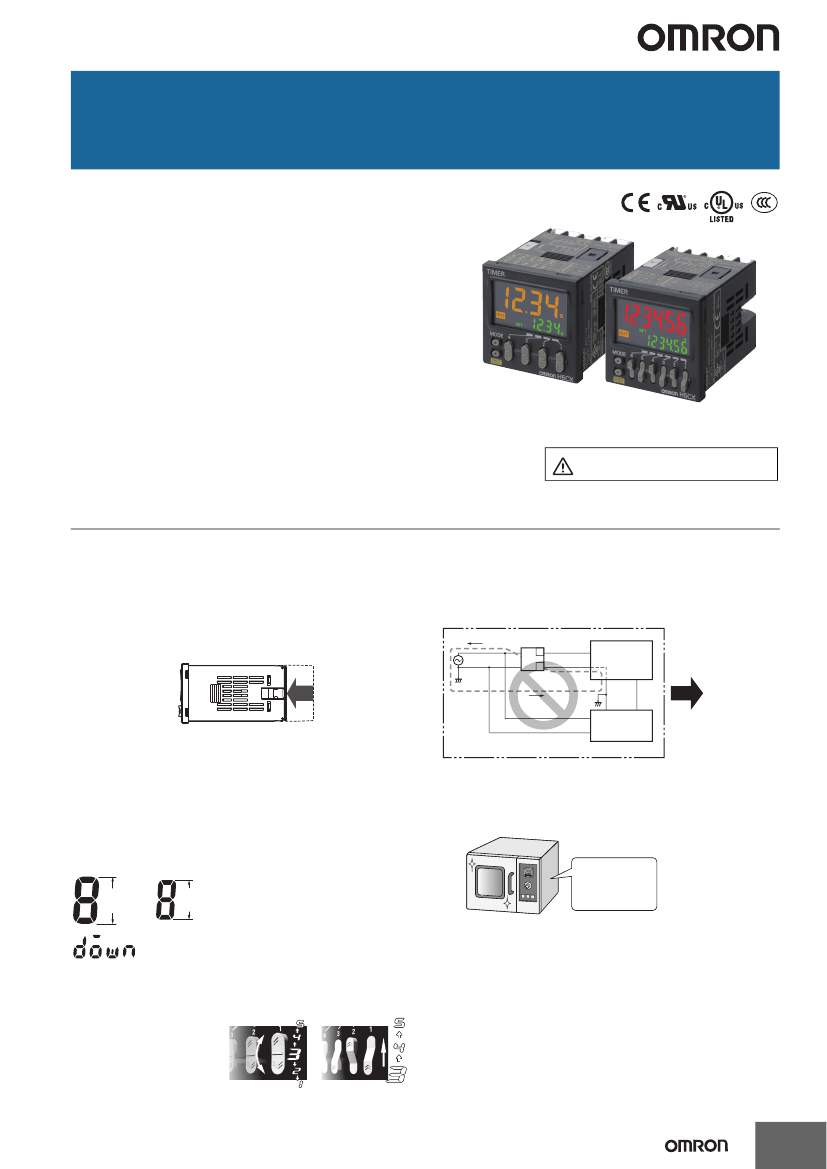

Digital Timer
H5CX-@-N
Ultra-compact Timer Provides Advanced
Functions and Security Settings.
Basic Features
• Short body with depth of only 59 mm (for 24-VAC / 12 to 24-VDC Models with
Screw Terminals).
*1
• Character height of 12 mm for better readability (on models with 4 digits).
• The present value display characters can be switched between red, green,
and orange.
*2
Safety and Reliability
• Power supply circuit and input circuits are isolated for safety and reliability.
*3
• New set value limit and output counter functions have been added.
*4
Other Features
• Front Panel can be changed to white or light gray.
*5
• Models with instantaneous contact output added to the series.
*1.
For 100 to 240 VAC Models with Screw Terminals 78 mm, Models with Sockets: 63.7 mm
(case dimension).
*2.
The H5CX-A11, H5CX-L8 and H5CX-B Timers have only red characters.
*3.
Specifications: 100 to 240 VAC
*4.
The value of the output counter can only be monitored. It cannot be reset.
*5.
Replacement Front Panels sold separately.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Refer to “Safety
Precautions”
on
page 41.
Features
Basic Features
Ultra Short Body
The body depth has been greatly reduced. Helps in making thinner
control panels. (Models with Screw Terminals)
24-VAC / 12 to 24-VDC Models with Screw Terminals: 59 mm
100 to 240-VAC / VDC Models with Screw Terminals: 78 mm
*
Models with Sockets: 63.7 mm (case dimension)
*
The shortest body for a timer with isolated power supply and input circuits and a maximum
ambient temperature of 55°C (according to OMRON investigation in June 2009).
Safety and Reliability
Isolated Power Supply and Input Circuits
*1
Power supply circuit and input circuits are isolated for safety and
reliability.
Previous non-isolated timers had wiring restrictions and could be damaged if
wired incorrectly. The New H5CX removes these worries.
Previous
H5CX
AC power
supply
*2
Output terminal on PLC
or other device
Input terminal
0-V terminal
COM terminal
–V
+V
Forget These
Worries with the
New H5CX
New models
Previous
models
Stabilized DC
power supply
*2.
The AC power supply ground is on the commercial power supply side.
Easier to Read
For better readability, the character height for the present value display
is 12 mm (on models with 4 digits), the largest class in the industry. The
wide viewing angle and brightness provide excellent visibility.
The number of display segments has also been increased to make settings
easier to understand, and the present value display can be switched between
red, green and orange so that output status can be seen from a distance.
*1.
New Models (H5CX-@-N) with 100 to 240-VAC specifications.
Set Value Limit
You can set an upper limit for the set value to prevent unexpected
operation of output devices caused by setting mistakes.
Model with 4 Digits Model with 6 Digits
12 mm
(actual size)
10 mm
(actual size)
Worry-free operation
is achieved with the
New H5CX by
restricting the time
that can be set.
(Display example)
Note:
The H5CX-A11 and H5CX-L8 Timers have only red characters.
Output Counter
An output counter counts the number of times that the output turns
ON. (An alarm can be set and the value of the output counter can be
monitored, Unit: 1,000 operations.) This counter is useful in managing
the service life of the Timrrer or the load.
The Easiest Operation
Operation is simplified by the
Up/Down Keys for each digit
on 4-digit models and Up Keys
for each digit on 6-digit
models.
Model with 4 Digits
Model with 6 Digits
1
H5CX-@-N
Other Features

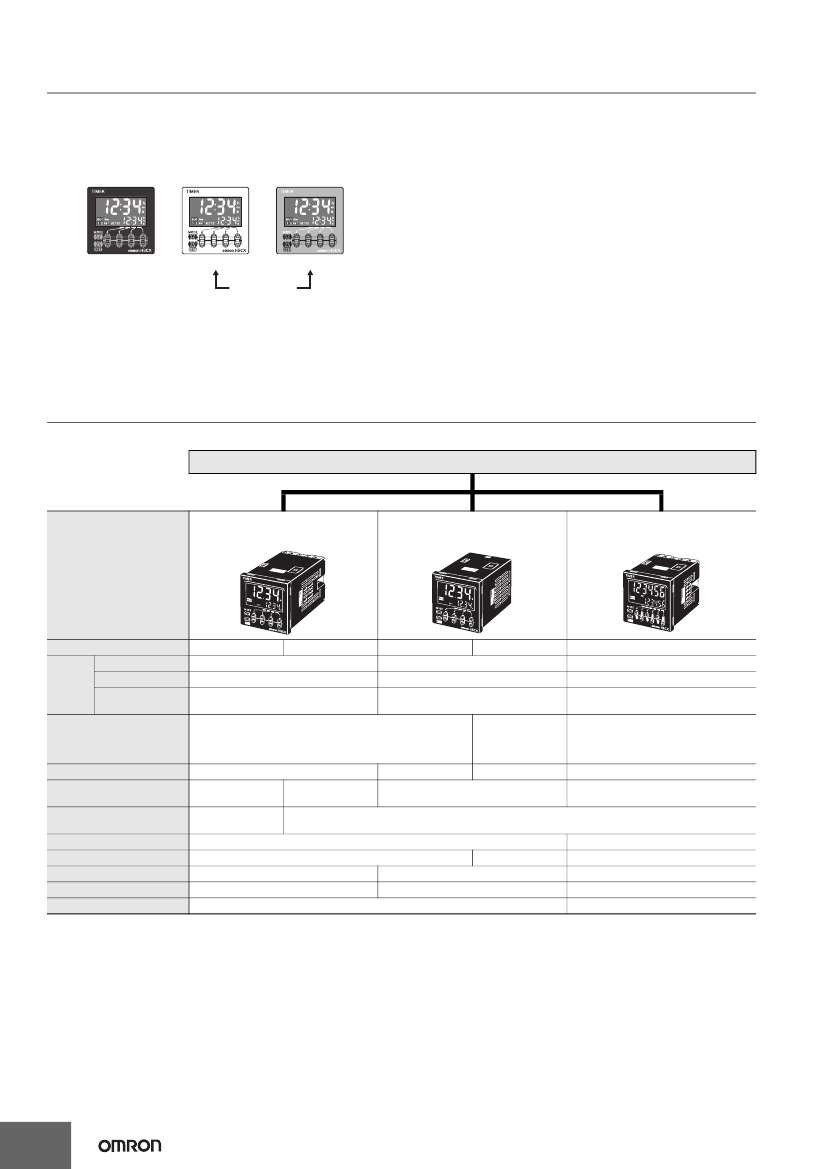

Change the Front Panel Color
The Front Panel can be replaced with an optional Front Panel (order
separately) with a different color to match the installation site. Select
from black, white, and light gray.
Universal NPN/PNP Input
DC 2-wire sensors can be connected for a wide range of input
devices.
Waterproof, Dust-proof Structure (UL508 Type
4X and IP66)
Worry-free
application is possible in locations subject to water.
Note:
When
the Y92S-29
Waterproof
Packing is used.
Key Protection
Black
(standard)
White
Light gray
You can replace
the Front Panel.
Select from any of seven protection patterns. Use the best one for the
application.
New Modes
Modes, such as a stopwatch mode (Mode S), have been added.
Select any of 15 modes.
Models with Instantaneous Contact Output
Models with instantaneous contact outputs have been added to the
lineup for use with self-holding circuits and as auxiliary relays. These
models are also convenient when replacing analog timers.
Model Number Structure
Model Configuration
H5CX Series
Standard Type
H5CX-A Series
Economy Type
H5CX-L Series
Six-digit Type
Type
Model
Timer
Function
Twin timer
Two-stage settings/
forecast output
Operating modes
Input
External connections
Present value display
character color
Number of display digits
Instantaneous contacts
Gate input
DIP switch settings
Power supply voltage
H5CX-A@-N
Yes
Yes
No
H5CX-A11@-N
H5CX-L8@-N
Yes
Yes
No
H5CX-L8E@-N
H5CX-BWSD-N
No
No
Yes
Timer Mode: 11 modes
Twin Timer Mode: 4 modes
NPN/PNP input
Screw terminal
block
Red, green, or
orange
4
None
Supported
Provided
11-pin socket
NPN input
Timer Mode
: 4 modes
Twin Timer Mode
: 2 modes
None
Timer Mode: 2 modes
NPN/PNP input
Screw terminal block
8-pin socket
Red
6
Provided
Not supported
None
None
Supported
Provided
12 to 24 VDC
100 to 240 VAC or 24 VAC/12 to 24 VDC
2
H5CX-@-N
Model Number Legend
(Not all possible combinations of functions are available.)
H5CX-
@@@@@-N
–––––
1 2 3 4 5
1.
Type Classifier
Symbol
A
B
L
Meaning
Standard type
6-digit type
Economy type
2.
External Connections
Symbol
None
8
11
Meaning
Screw terminals
8-pin socket
11-pin socket
3.
Settings
Symbol
None
W
Meaning
One stage
Two stages
4.
Output type
Symbol
None
E
S
Meaning
Contact output (time-limit SPDT)
Contact output (time-limit
SPDT + instantaneous SPDT)
*
Transistor output
5.
Supply voltage
Symbol
None
D
Meaning
100 to 240 VAC 50/60 Hz
12 to 24 VDC/24 VAC 50/60 Hz
*
*
The H5CX-BWSD-N is available only for 12 to 24 VDC.
*
Can be used as a time-limit DPDT output.
Note:
Estimates can be provided for coatings and other specifications that are not given in the datasheet. Ask your OMRON representative for details.
Ordering Information
List of Models
Type
Time specifications
Operating modes
External
connections
Inputs
Outputs
Contact output
(time-limit
SPDT)
Screw terminals
Signal, Reset,
Gate (NPN/
PNP inputs)
11-pin socket
Transistor
output (SPST)
Contact output
(time-limit
SPDT)
Transistor
output (SPST)
8-pin socket
Timer Mode
A-2: Power ON Delay I
b: Repeat cycle 1
E: Interval
Z: ON/OFF-duty-adjustable flicker
Twin Timer Mode
toff: Flicker OFF Start 1
ton: Flicker ON Start 1
H5CX-B
0.01 to 9999.99 s
1 s to 99 h 59 min 59 s A: Signal ON Delay I
0.1 to 99999.9 min
F-1: Cumulative
0.1 to 99999.9 h
Screw terminals
Signal, Reset,
Gate (NPN/
PNP inputs)
Transistor
output (SPST)
Contact output
(time-limit
SPDT)
Supply voltage
100 to 240 VAC
12 to 24 VDC/
24 VAC
100 to 240 VAC
12 to 24 VDC/
24 VAC
100 to 240 VAC
12 to 24 VDC/
24 VAC
100 to 240 VAC
12 to 24 VDC/
24 VAC
100 to 240 VAC
12 to 24 VDC/
24 VAC
100 to 240 VAC
12 to 24 VDC/
24 VAC
Models
H5CX-A-N
H5CX-AD-N
H5CX-AS-N
H5CX-ASD-N
H5CX-A11-N
H5CX-A11D-N
H5CX-A11S-N
H5CX-A11SD-N
H5CX-L8-N
H5CX-L8D-N
H5CX-L8S-N
H5CX-L8SD-N
H5CX-A
0.001 to 9.999 s
0.01 to 99.99 s
0.1 to 999.9 s
1 to 9999 s
1 s to 99 min 59 s
0.1 to 999.9 min
1 to 9999 min
1 min to 99 h 59 min
0.1 to 999.9 h
1 to 9999 h
Timer Mode
A: Signal ON Delay I
A-1: Signal ON Delay II
A-2: Power ON Delay I
A-3: Power ON Delay II
b: Repeat cycle 1
b-1: Repeat cycle 2
d: Signal OFF Delay
E: Interval
F: Cumulative
Z: ON/OFF-duty-adjustable flicker
S: Stopwatch
Twin Timer Mode
toff: Flicker OFF Start 1
ton: Flicker ON Start 1
toff-1: Flicker OFF Start 2
ton-1: Flicker ON Start 2
Signal, Reset
(NPN inputs)
H5CX-L
None
Contact output
(time-limit SPDT 100 to 240 VAC
+ instantaneous
SPDT)
Models with
12 to 24 VDC/
instantaneous
contact outputs 24 VAC
H5CX-L8E-N
H5CX-L8ED-N
Transistor
output (DPST)
12 to 24 VDC
H5CX-BWSD-N
Note: 1.
The functions that are provided depend on the model. Check detailed specifications before ordering.
2.
Refer to
page 33
and later for information on H5CX-B Timers (6-digit display).
3
H5CX-@-N
Accessories (Order Separately)
Front Panels (Replacement Parts)
Models
Y92P-CXT4G
Y92P-CXT4S
Y92P-CXT4B
Color
Light gray (5Y7/1)
White (5Y9.2 / 0.5)
Black (N1.5)
Four-digit models
12
Applicable Timers
Page
Note: 1.
You can change the color of the front panel when mounting the Timer. The Timer is shipped with a black (N1.5) Front Panel.
2.
"TIMER" is printed on the front of Replacement Front Panels.
Soft Cover
Models
Y92A-48F1
Remarks
---
Page
12
Hard Cover
Models
Y92A-48
Remarks
---
Page
12
Flush Mounting Adapter
Models
Y92F-30
Y92F-45
Y92F-38
Remarks
Included with models with terminal blocks.
Use this Adapter to install the Timer in a cutout
previously made for a DIN 72 x 72 mm device
(panel cutout: 68 x 68 mm).
Use for replacement of the 81-dia. hole device
(H3AM).
12
Page
Waterproof Packing
Models
Y92S-29
Remarks
Included with models with terminal blocks.
Page
12
Connection Sockets
Models
P2CF-08
P2CF-08-E
P2CF-11
P2CF-11-E
P3G-08
P3GA-11
Type
Front Connecting
Socket
Front Connecting
Socket
(Finger-safe Type)
Front Connecting
Socket
Front Connecting
Socket
(Finger-safe Type)
Back Connecting Socket
H5CX-A11@
Round crimp terminals cannot be used on Finger-safe
Sockets. Use forked crimp terminals.
A Y92A-48G Terminal Cover can be used with the
Socket to create a finger-safe construction.
H5CX-L8@
Round crimp terminals cannot be used on Finger-safe
Sockets. Use forked crimp terminals.
13
Connectable Timers
Remarks
Page
H5CX-L8@
H5CX-A11@
Terminal Covers for P3G-08 and P3GA-11 Back-connecting Sockets
Models
Y92A-48G
Remarks
---
Page
14
4
H5CX-A@-N/-L@-N
H5CX-A@-N/-L@-N Digital Timers
• Switch the display color* between red, green, and orange
to see the output status from a distance.
• Up/Down Keys for each digit enable easy operation.
• Cyclic control is easy with the Twin Timer and Variable
ON/OFF Duty modes.
*
Not supported by the H5CX-A11@ or H5CX-L8@.
Specifications
Ratings
Item
Models
Classification
Power supply
voltage
*1
Ratings Operating voltage
fluctuation range
Power consumption
Mounting method
External connections
Degree of protection
Digits
Time ranges
Timer mode
Input signals
H5CX-A@-N
Standard Type
• 100 to 240 VAC 50/60 Hz
• 12 to 24 VDC/24 VAC 50/60 Hz
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
H5CX-A11@-N
H5CX-L8@-N
Economy Type
85% to 110% of rated supply voltage (90% to 110% at 12 to 24 VDC)
Approx. 6.2 VA at 100 to 240 VAC, Approx. 5.1 VA/2.4 W at 24 VAC/12 to 24 VDC
*2
Flush mounting
Flush mounting, surface mounting, DIN track mounting
Screw terminals
11-pin socket
8-pin socket
IEC IP66, UL508 Type 4X (indoors) for panel surface only and when Y92S-29 Waterproof Packing is used
4 digits
0.001 s to 9.999 s, 0.01 s to 99.99 s, 0.1 s to 999.9 s, 1 s to 9999 s, 1 s ti 99 min 59 s
0.1 m to 999.9 min, 1 min to 9999 min, 1 min to 99 h 59 min, 0.1 h to 999.9 h, 1 h to 9999 h
Elapsed time (Up), remaining time (Down) (selectable)
Signal, Reset
Signal, Reset, Gate
(no inputs on models with instantaneous
contact outputs)
No-voltage (NPN) input/voltage (PNP) input (switchable)
No-voltage Input
No-voltage Input
ON impedance: 1 kΩ max. (Leakage current: 12 mA when 0
Ω)
ON impedance: 1 kΩ max.
ON residual voltage: 3 V max.
(Leakage current: 12 mA when 0
Ω)
OFF impedance: 100 kΩ min.
ON residual voltage: 3 V max.
Voltage Input
High (logic) level: 4.5 to 30 VDC
OFF impedance: 100 kΩ min.
Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΩ)
Minimum input signal width: 1 or 20 ms (selectable, same for all input)
Power reset (depending on output mode), external reset, manual reset, automatic reset (depending on output mode)
Minimum power-opening time: 0.5 s (except for A-3, b-1, F, ton-1, and toff-1 mode)
10% max. of rated supply voltage
250 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.)
A: Signal ON Delay I, A-1: Signal ON Delay II, A-2: Power ON Delay I, A-3: Power ON
Delay II, b: Repeat Cycle 1, b-1: Repeat Cycle 2, d: Signal OFF Delay, E: Interval, F:
Cumulative, Z: ON/OFF-duty-adjustable flicker, S: Stopwatch, toff: Flicker OFF Start 1,
ton: Flicker ON Start 1, toff-1: Flicker OFF Start 2, ton-1: Flicker ON Start 2
0.01 to 99.99 s
• Models with Contact Outputs
5 A at 250 VAC/30 VDC, resistive load (cos =1)
Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value)
Contact materials : AgSnIn
• Transistor output: NPN open collector,
100 mA at 30 VDC max., residual voltage: 1.5 VDC max. (Approx. 1 V), Leakage current: 0.1 mA max.
7-segment, negative transmissive LCD;
7-segment, negative transmissive LCD;
Present value: 12-mm-high characters,
(switchable between red, Present value: 12-mm-high characters, red
Set value:
6-mm-high characters, green
green, and orange)
6-mm-high characters, green
Set value:
EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.
-10 to 55°C (-10 to 50°C if counters are mounted side by side) (with no icing or condensation)
-25 to 70°C (with no icing or condensation)
25% to 85%
Black (N1.5) (Optional Front Panels are available to change the Front Panel color to light gray or white.)
Waterproof packing, flush mounting
Label for DIP switch settings
adapter, label for DIP switch settings
Models with Instantaneous Contact Outputs
A-2: Power ON Delay I, b: Repeat Cycle 1, E:
Interval, Z: ON/OFF-duty-adjustable flicker,
toff: Flicker OFF Start 1, ton: Flicker ON Start 1
Inputs
Input method
Signal, reset, gate
Reset system
Power reset
Reset voltage
Sensor waiting time
Output modes
Output
One-shot output
time
Control output
Display method
*3
Memory backup
Operating temperature range
Storage temperature range
Operating humidity range
Case color
Attachments
---
*1.
Do not use the output from an inverter as the power supply. The ripple must be 20% maximum for DC power.
*2.
Inrush current will flow for a short time when the power supply is turned ON.
Inrush Current (Reference Values)
Voltage
Applied voltage Inrush current (peak value)
Time
100 to 240 VAC
264 VAC
5.3 A
0.4 ms
26.4 VAC
6.4 A
1.4 ms
12 to 24 VDC/24 VAC
26.4 VDC
4.4 A
1.7 ms
*3.
The display is lit only when the power is ON. Nothing is displayed when power is OFF.
5
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
