RN-0524S/P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DC/DC converters> RN-0524S/P

RN-0524S/P: Description隔离模块直流转换器 1 输出 24V - - 52mA 4.5V - 5.5V 输入; CategoryPower/power management DC/DC converters; File Size776KB，5 Pages; ManufacturerRecom Power; Websitehttp://www.recom-power.com/; Environmental Compliance

Download Datasheet Parametric View All

RN-0524S/P Overview

隔离模块直流转换器 1 输出 24V - - 52mA 4.5V - 5.5V 输入

RN-0524S/P Parametric

Parameter Name	Attribute value
category
Maker	Recom Power
series	ECONOLINE RN (1.25W)
Package	Pipe fittings
type	isolation module
Voltage - Input (minimum)	4.5V
Voltage - input (maximum)	5.5V
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (maximum)	52mA
application	ITE (Business)
characteristic	SCP
Operating temperature	-40°C ~ 85°C
efficiency	85%
Installation type	Through hole
Package/casing	8-DIP module, 4-lead
size/dimensions	0.50" long x 0.40" wide x 0.30" high (12.8mm x 10.1mm x 7.6mm)
Number of outputs	1
Power(W)	1.25 W
Voltage - Isolation	1 kV
Basic product number	RN-0524

Preview

Download Datasheet

View All

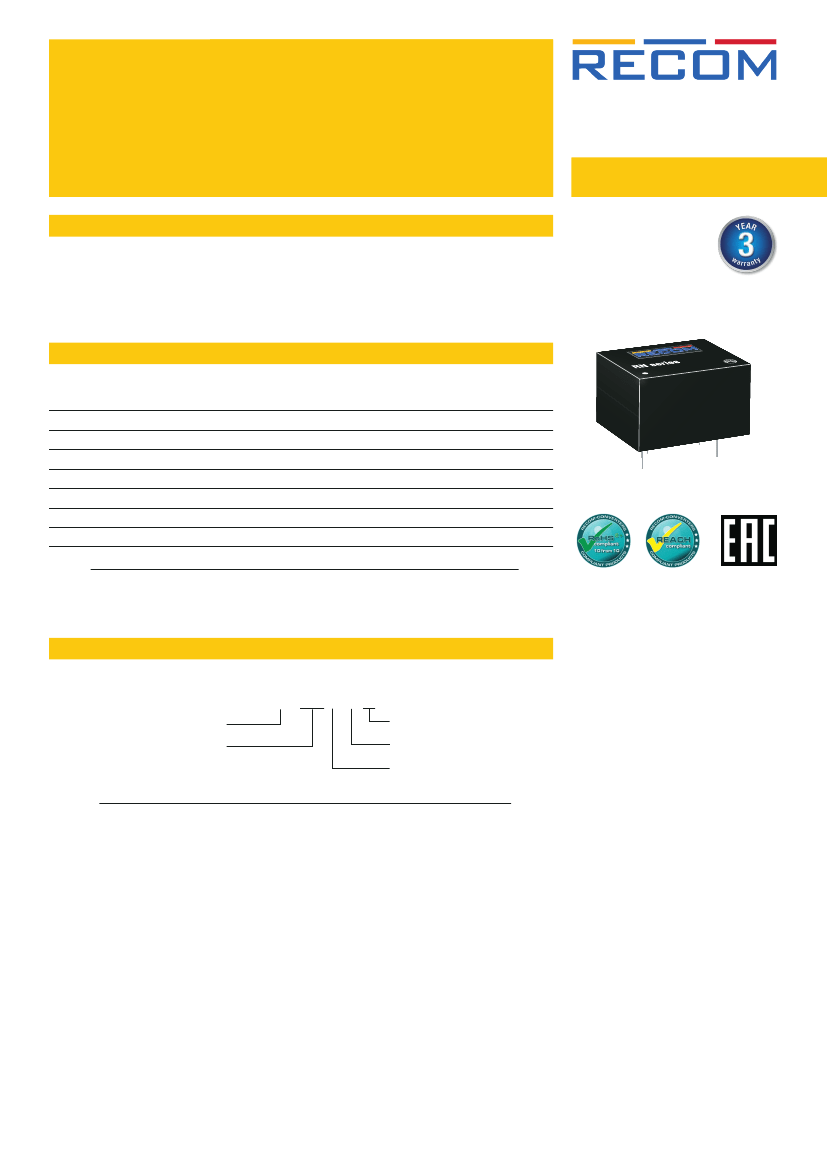

Features

Unregulated

Converters

Description

• 1kVDC/1s or 2KVDC/1s basic isolation

• Optional continuous short circuit protected

• UL94V-0 package material

• No heatsink required

• Efficiency to 85%

DC/DC Converter

The RN series of compact 1.25W single output converters are especially useful when more than 1W of

power is required, but there are space restrictions than make a 2W converter unsuitable. The converter

series feature an industrial ambient temperature operating range of -40°C to +85°C without derating

and up to 100°C ambient temperature with derating. Options include 1kVDC or 2kVDC isolation and

continuous short circuit protection (/P).

1.25 Watt

DIP8

Single Output

Selection Guide

Part

Number

RN-xx3.3S

RN-xx05S

RN-xx07S

RN-xx09S

RN-xx12S

RN-xx15S

RN-xx24S

nom. Input

Voltage

[VDC]

3.3, 5, 9, 12, 15, 24

Output

Voltage

[VDC]

3.3

Output

Current

[mA]

378

250

180

140

104

Efficiency

typ.

(1)

[%]

70-72

72-75

75-80

79-82

80-84

80-85

max. Capacitive

Load

(2)

[µF]

2200

1000

470

220

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient

Note2: Max Cap Load is tested at nominal input and full resistive load and is defined as the

capacitive load that will allow start up in under 1s without damage to the converter

IEC/EN60950-1 certified

Model Numbering

RN- __

Input Voltage

Output Voltage

S/_

Protection

(3)

Isolation Option

(4)

Single

Notes:

Note3: standard part is without continuous short circuit protection

add suffix „/P“ for continuous short circuit protection

Note4: add suffix „/H“ for 2kVDC/1s isolation

or add suffix „/HP“ for continuous short circuit protection and 2kVDC/1s Isolation

Ordering Examples:

RN-0505S/P: 5V Input Voltage, 5V Output Voltage, Single Output with continuous short circuit protection

RN-0505S/HP: 5V Input Voltage, 5V Output Voltage, Single Output with 2kVDC/1s Isolation and continuous short circuit protection

www.recom-power.com

REV.: 1/2019

ECO-1
