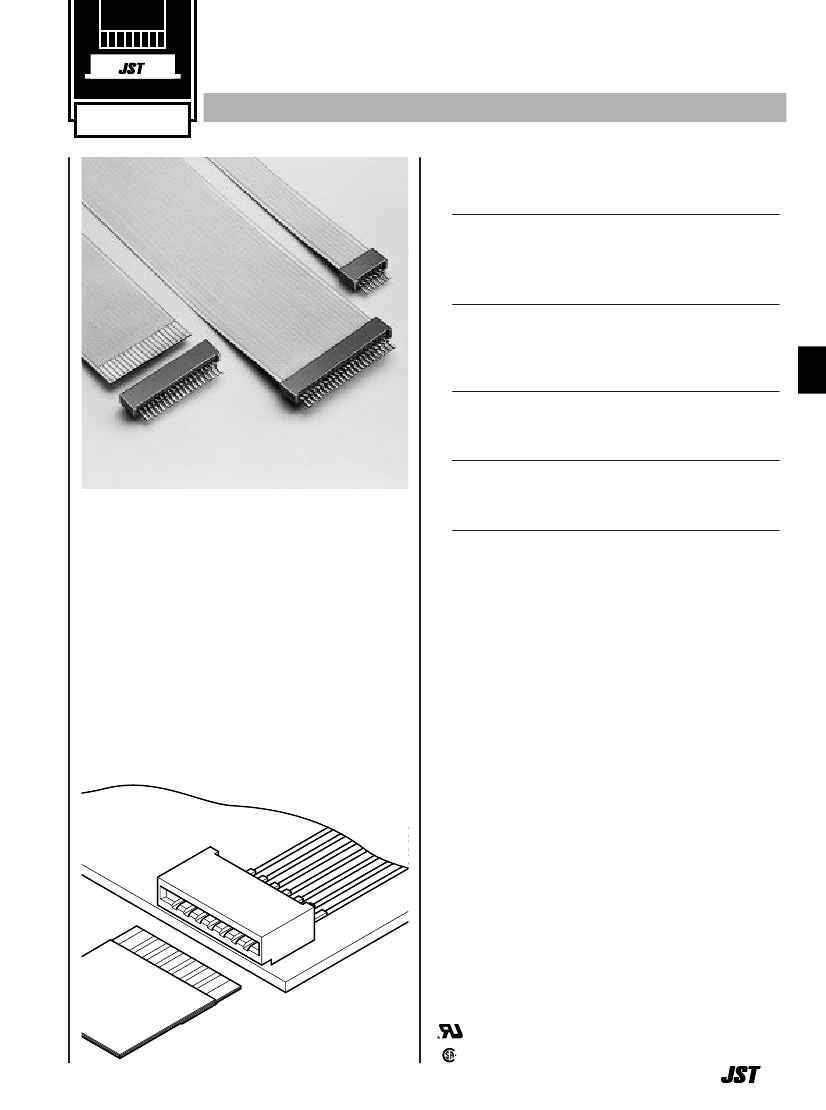

FF
CONNECTOR
1.25mm
(.049") pitch
Connector for FFC and FPC
Features –––––––––––––––––––––––
• Surface mountable (SMT)
Because of its small pitch and its ability to be surface mounted,
this connector meets the demand for high-density packaging.
• Double-leaf contact mating enhances
reliability through redundancy
This connector has highly resilient double-leaf contacts that
ensure continuity even when subjected to severe vibration and
shock.
• Low profile design
This connector is very small with a mounting height of only
3.0mm (.118")
• Simple snap-in action
The FFC or FPC is securely connected by simply inserting
their leads into the connector.
The FF series connectors are designed for
surface mounting (SMT) and to meet the
demand for high-density packaging. They
are miniature connectors with a height of
only 3.0mm (.118"). Their high contact
pressure eliminates fretting corrosion and
ensures secure connections. Light
insertion forces make connection easy.
• Available on tape for automation
On request, this connector is available on embossed heat
resistant resin (PPS) tape. Contact JST for details.
Specifications ––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20mΩ max.
After environmental testing/30mΩ max.
• Insulation resistance:
800MΩ min.
• Withstanding voltage: 500V AC/minute
• Applicable FFC and FPC: Lead pitch/1.25mm(.049")
Note:
Lead width/0.8mm(.031")
Mating part thickness/
+0.03
+.0012
0.32
-0.02
mm(.013
-.0008
mm)
Note: These are reference values. FFC/FPC to be actually used should
becheckedfor applicability.
*Contact JST for details.
Standards –––––––––––––––––––––
Recognized file No. E60389
Certified file No. LR20812
41
FF
CONNECTOR
Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
5
6
B
A
1.25(.049)
Model No.
05FF-SF
06FF-SF
07FF-SF
10FF-SF
17FF-SF
19FF-SF
21FF-SF
23FF-SF
Dimensions mm(in.)
A
5.00( .197)
6.25( .246)
7.50( .295)
11.25( .443)
20.00( .787)
22.50( .886)
25.00( .984)
27.50(1.083)
B
8.80( .346)
10.05( .396)
11.30( .445)
15.05( .593)
23.80( .937)
26.30(1.035)
28.80(1.134)
31.30(1.232)
Q´ty /
box
1.000
1.000
1.000
1.000
1,080
960
840
720
7
5.5(.217)
3.0(.118)
10
17
3.0(.118)
19
21
23
1.0(.039)
1.0(.039)
0.8(.031)dia.
2.0(.079)
Material and Finish
Contact:
Phosphor bronze, tin-plated
Housing: Glass-filled nylon 66, UL94V-0, natural (light gray)
Note: Contact JST for the products applicable to the reflow soldering.
Lead section dimensions of FFC and FPC–––––––––––––––––––––––––––––––––––––
1.25(.049) x (Number of
circuits + 1)
±
0.2(.008)
1.25(.049) x (Number of
1.25
±
0.2(.049
±
.008) circuits - 1)
±
0.15(.006) 1.25
±
0.2(.049
±
.008)
1.25
±
0.1(.049
±
.004)
0.8
±
0.1(.031
±
.004)
3.0
(.118)
min
0.03
0.32
+ 0.02
-
(.013
±
.001)
Conductor
Cover layer
7.0(.276)
min
Reinforcing layer
Base layer
5.5(.217) 3.0(.118)
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
0.8
+ 0.1
0
(.031
+ .004
)dia.
0
2.0(.079)
min
1.25(.049)x(Number of
circuits -1)+2.0(.079)
1.25
±
0.05
(.049
±
0.02)
0.8
(.031) 1.9(.075)
min
3.0(.118)
Soldering surface
Contact
point
Note:
1. Tolerances are non-cumulative:±0.05mm(±.002" ) for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
42
3.5(.138)
