20.06.2013

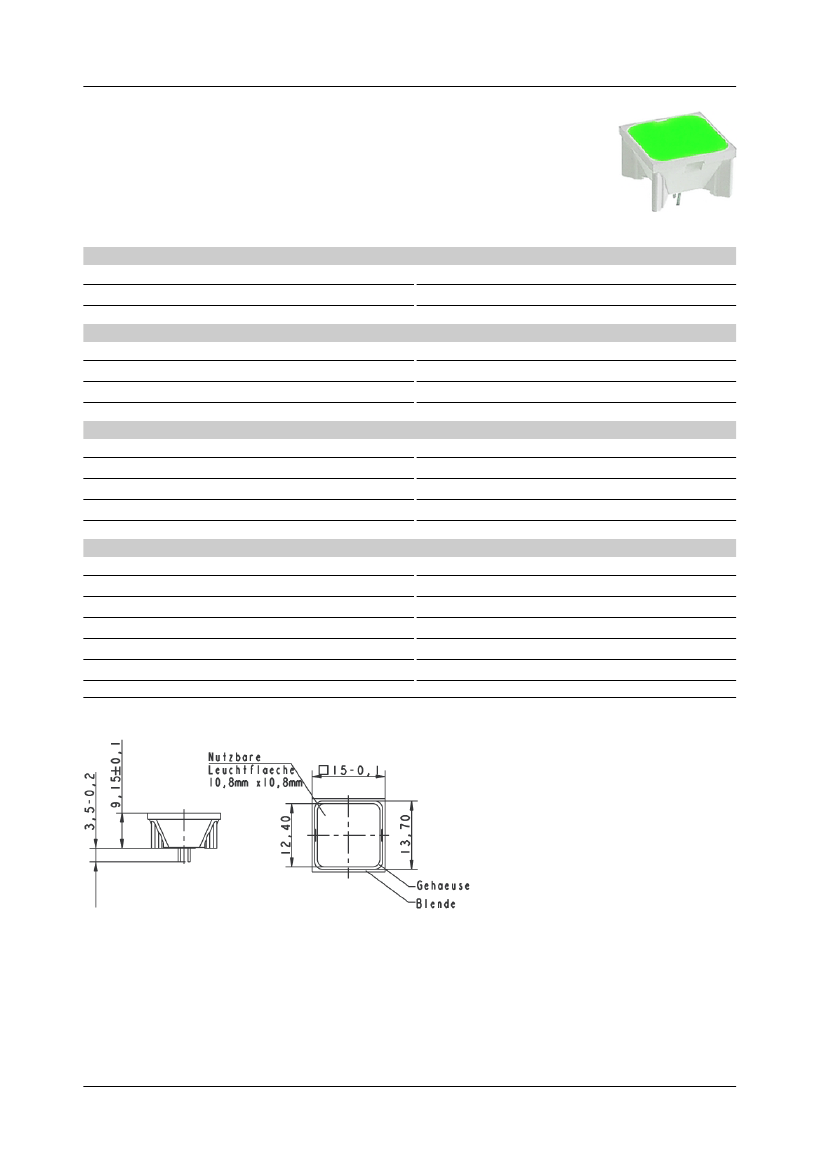

RF 15 - Signal indicator, fully illuminated, 1 LED
3.14.200.052/0000
For more information, see LEDs.
General information
Colour of lens
Recommended key grid
Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Illumination
LED colour
LED type
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Solderability / solder heat resistance
Wave soldering
Manual soldering
green
19.05 mm
15 mm
15 mm
9.15 mm
THT soldering in PCB
fully illuminated 1 LED
green
2 mm
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
according to E DIN IEC 600 28-2-20
260 °C max.
350 °C / 5 sec. max.
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
